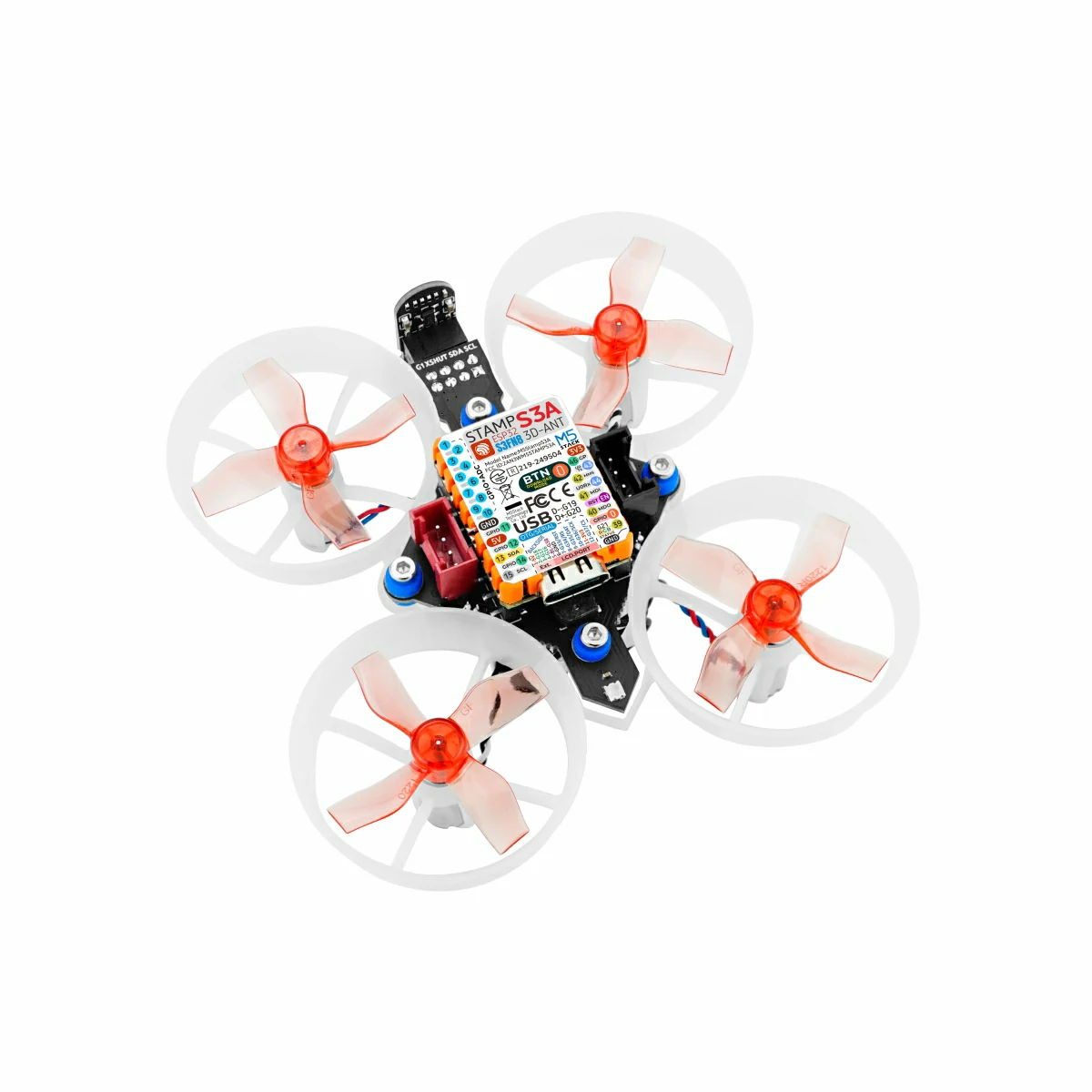

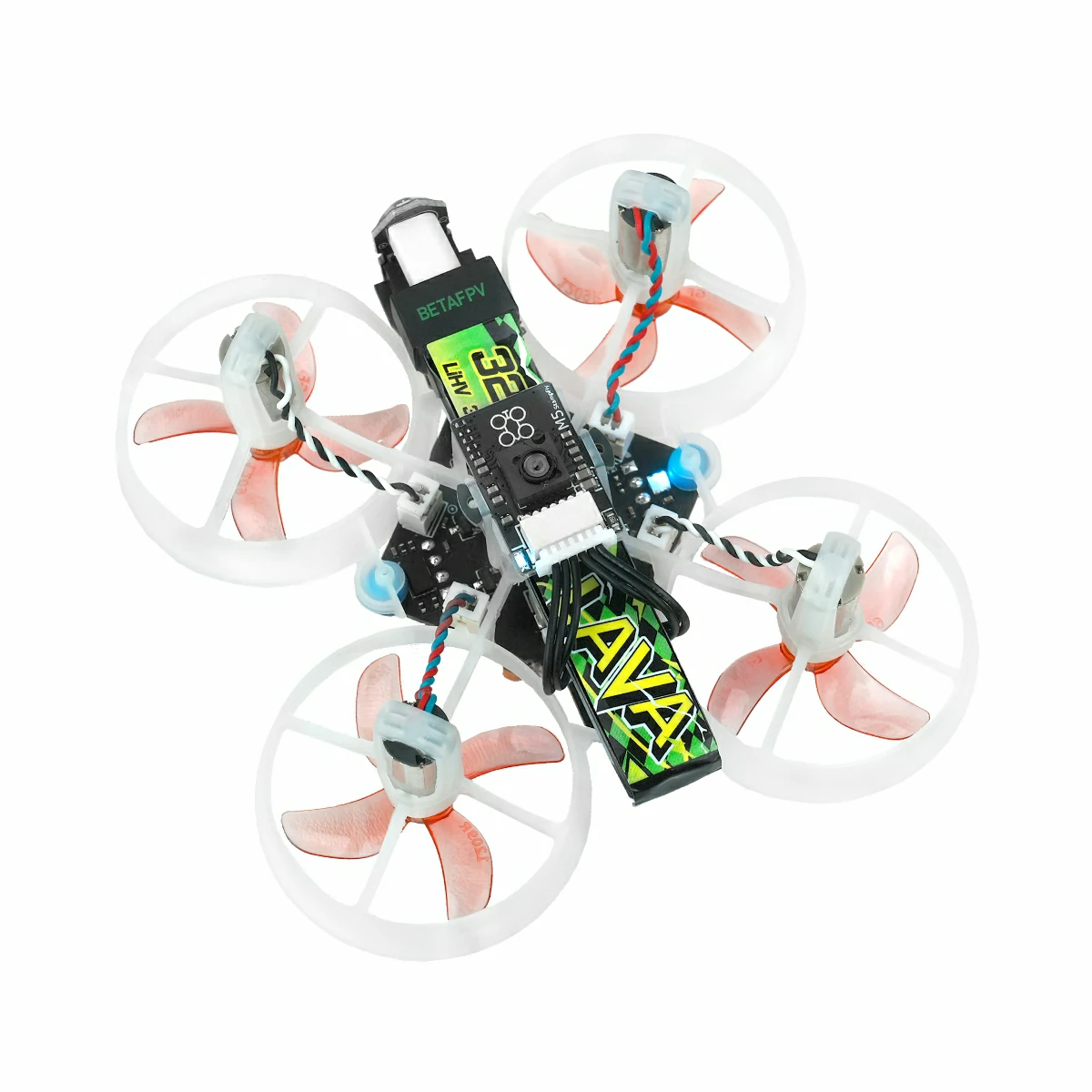

StampFly v1.1 is a programmable open-source quadcopter kit, an iterative upgrade of the StampFly series. The core improvement is the main control module upgraded from Stamp-S3 to the more powerful Stamp-S3A, with a newly optimized antenna structure design that significantly enhances wireless signal reception performance, resulting in a more stable remote connection.
The drone integrates a BMI270 six-axis gyroscope and a BMM150 three-axis magnetometer for accurate attitude and orientation detection. Paired with a BMP280 pressure sensor and two VL53L3 distance sensors, it achieves stable precise altitude hold and intelligent obstacle avoidance. Onboard buzzer, reset button, and WS2812 RGB LED are used for human-machine interaction and device status indication. It comes with a 320mAh high-voltage battery and four high-speed coreless motors, providing ample power output.
An onboard INA3221AIRGVR chip monitors real-time current and voltage. Two Grove expansion interfaces are reserved for flexible connection of various sensors and peripherals. The product is pre-loaded with a debugging program. When used with the Atom Joystick remote controller, it establishes wireless communication via the ESP-NOW protocol, supporting both manual and automatic flight modes, enabling features like fixed-point hovering and aerial flips. The complete firmware source code is open-source, facilitating secondary development and feature customization. It is suitable for STEM education, scientific research experiments, drone project development, and embedded learning training.
This tutorial will introduce you to using M5Burner to flash the factory firmware on StampFly & Atom Joystick, pairing, and the basic operation and indicators of the quadcopter.
Note
Charging Notice
Connect the battery to the charging slot of the Atom Joystick, then connect the data cable to the Atom Joystick to start charging.
Battery Maintenance
1. Do not discharge the battery below 3V per cell under load. 2. Do not store a fully charged battery for more than 3 days. For long-term storage, keep the voltage between 3.8V and 3.9V.
Features

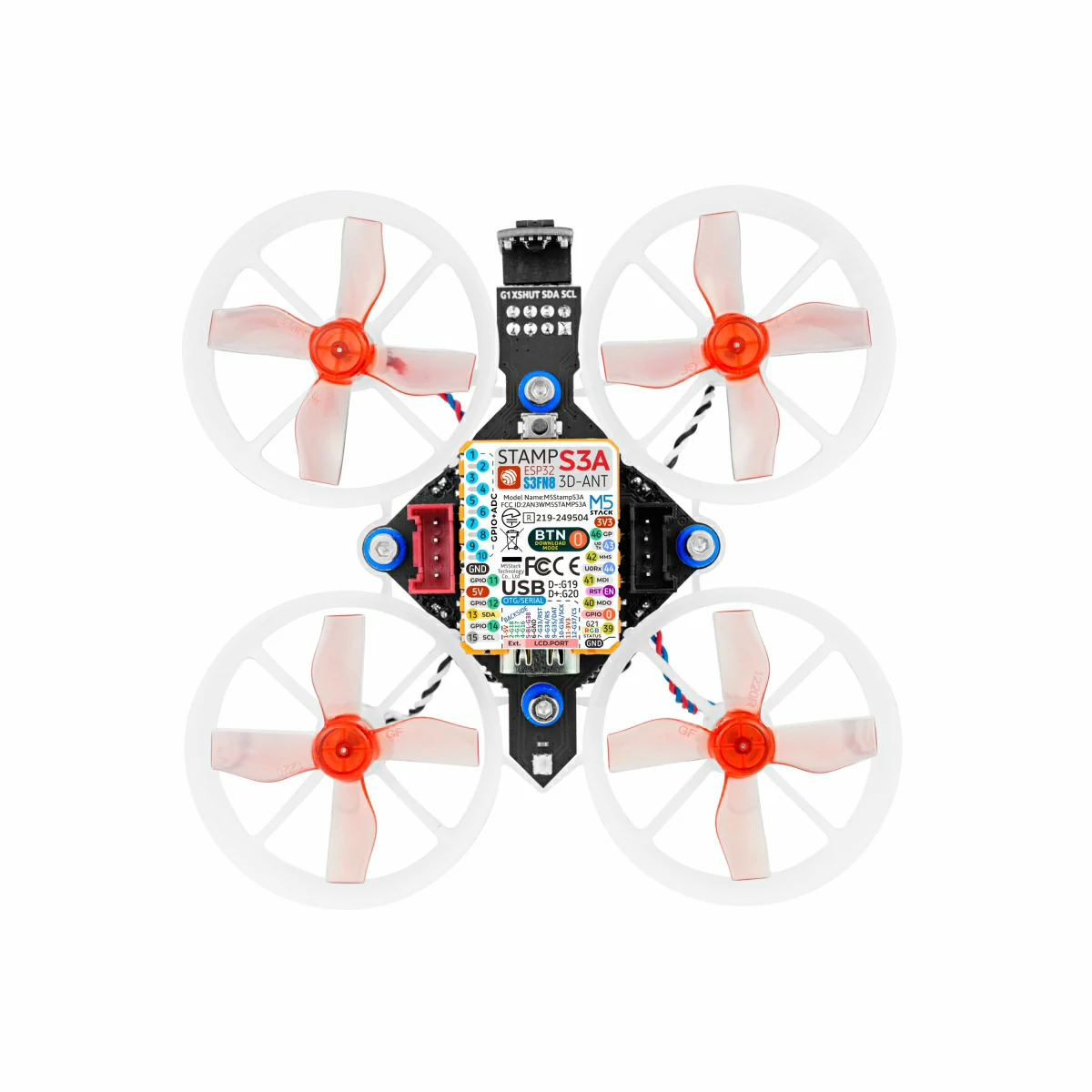

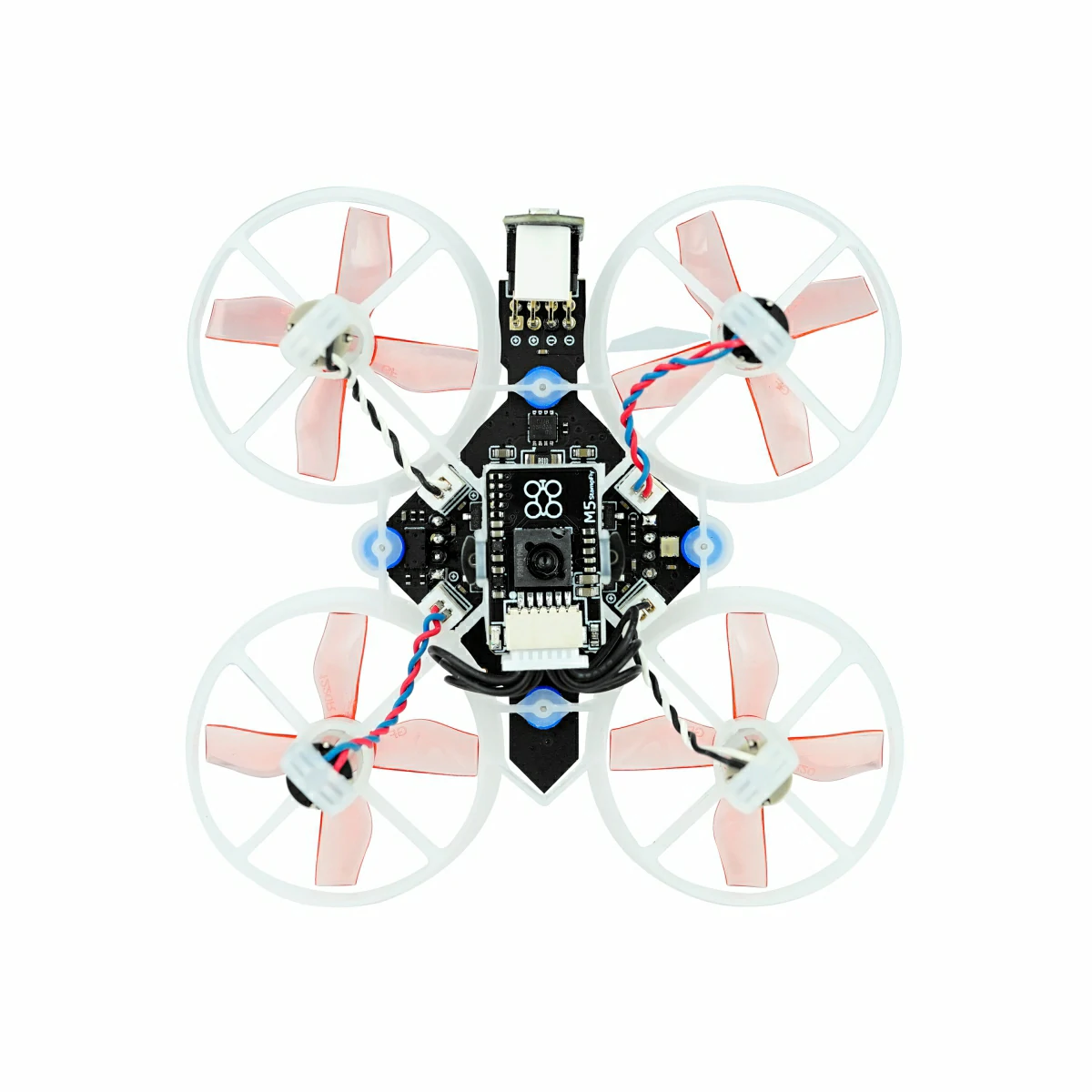

Stamp-S3A main controller

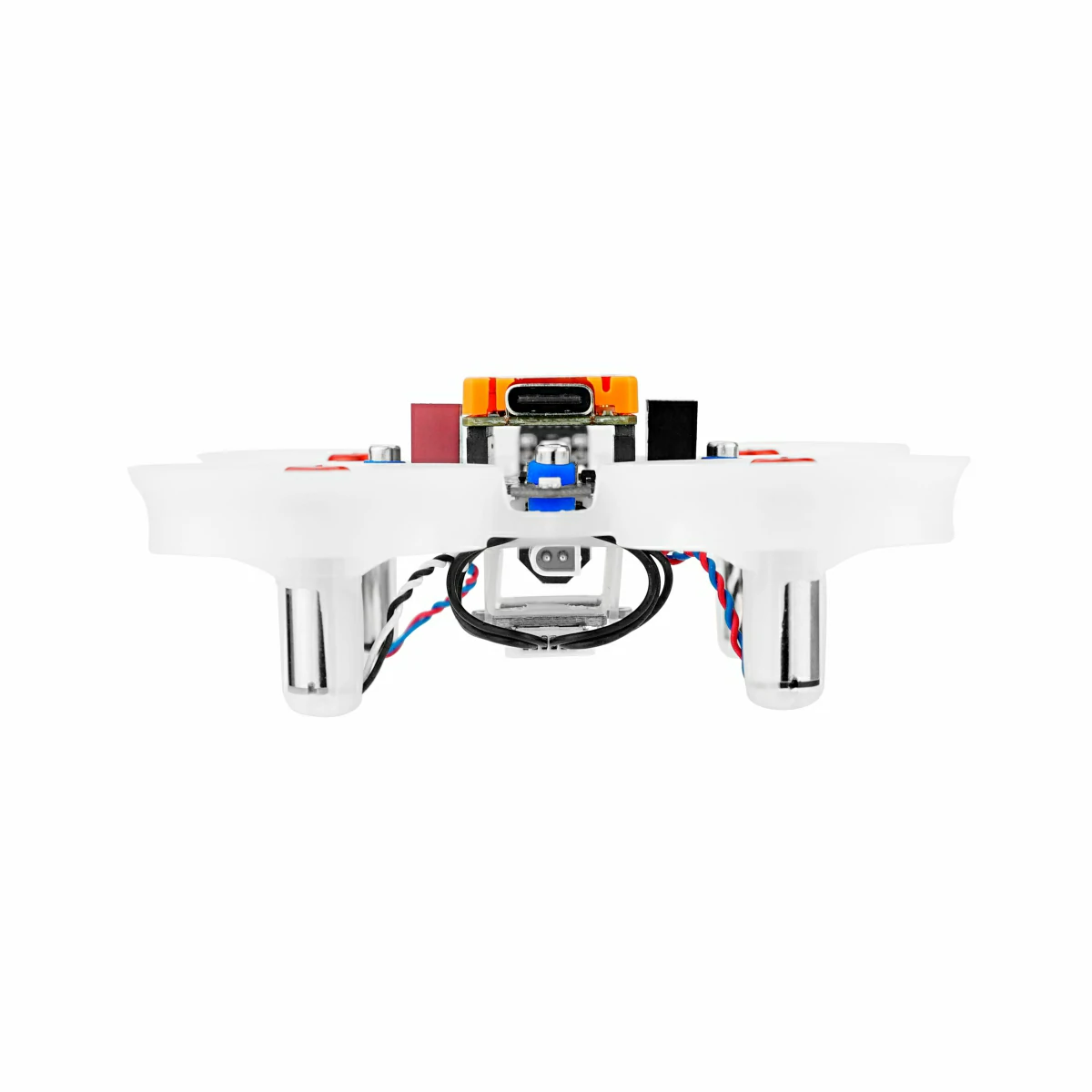

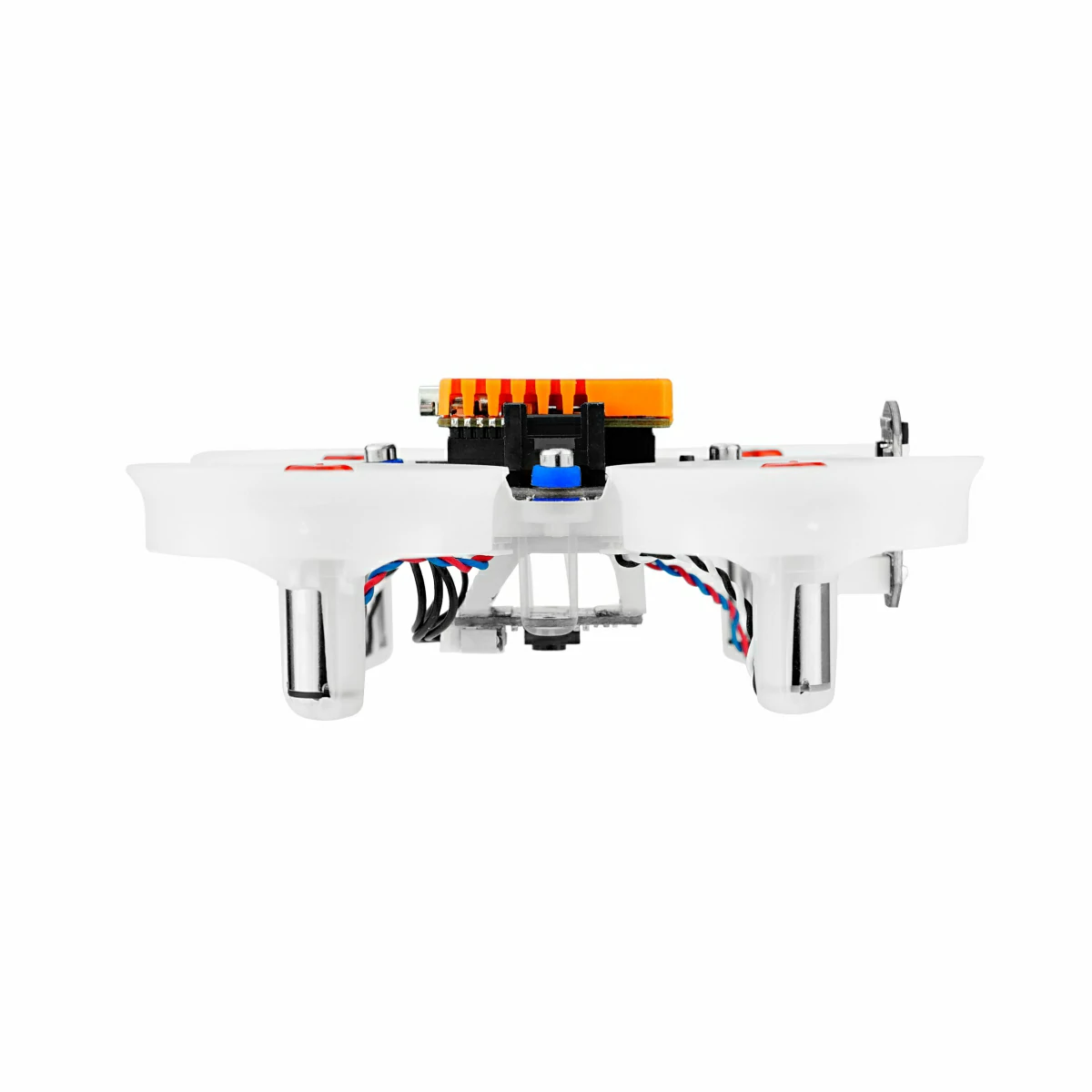

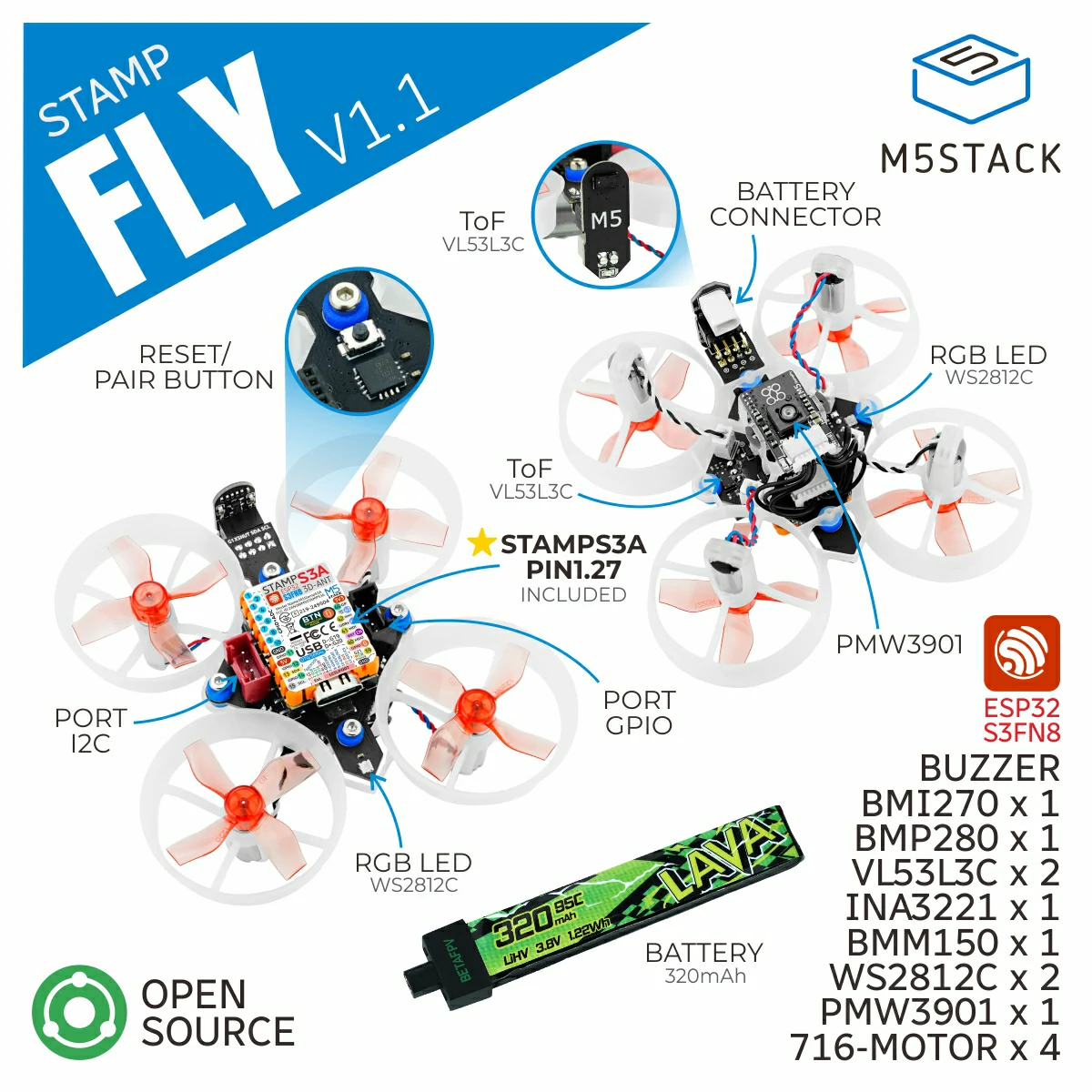

BMP280 atmospheric pressure detection

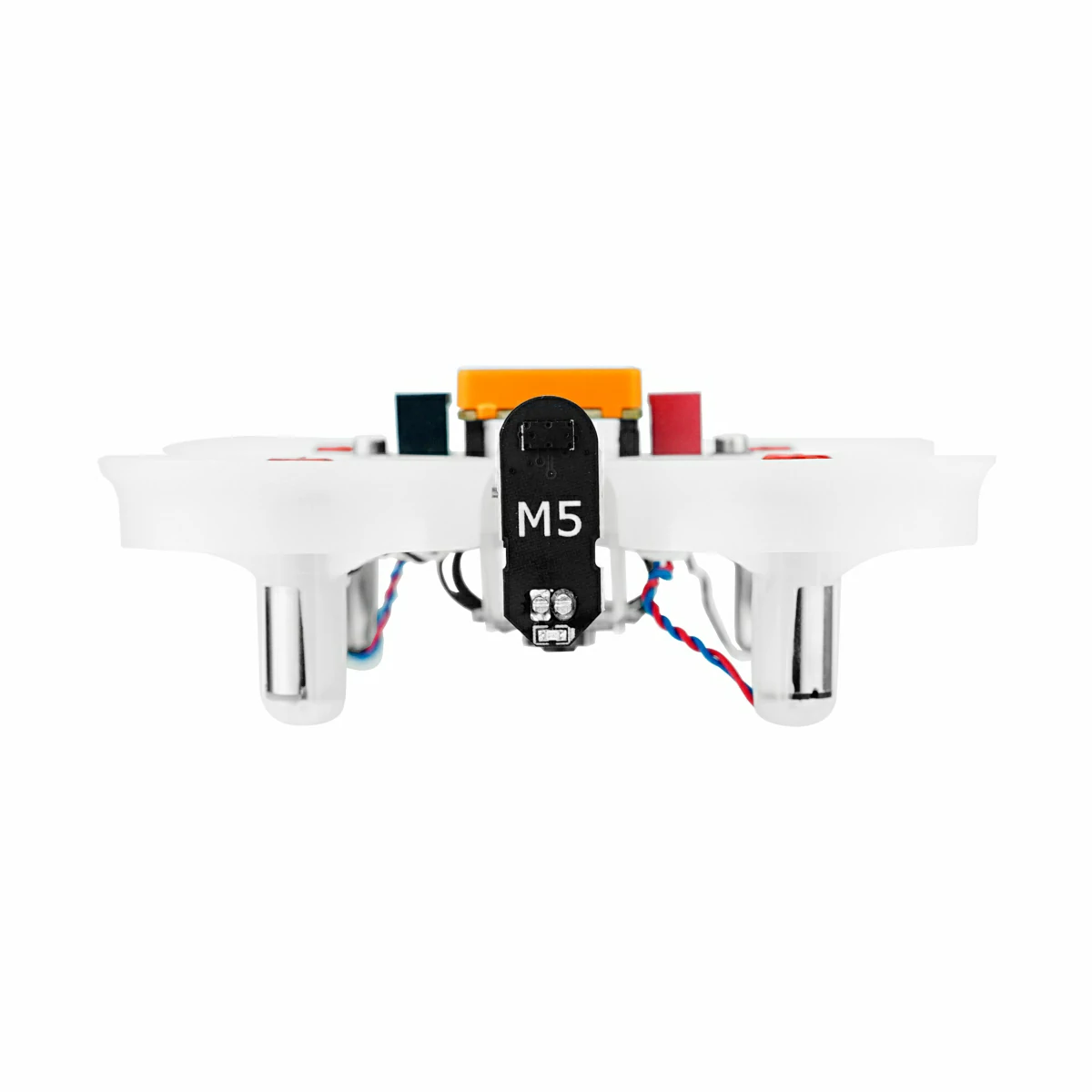

VL53L3 distance sensor for altitude hold and obstacle avoidance
6-axis attitude sensor
3-axis magnetometer for direction detection
320mAh high-voltage battery
Current and voltage detection
Grove expansion interface
Includes
1x Stamp Fly v1.1

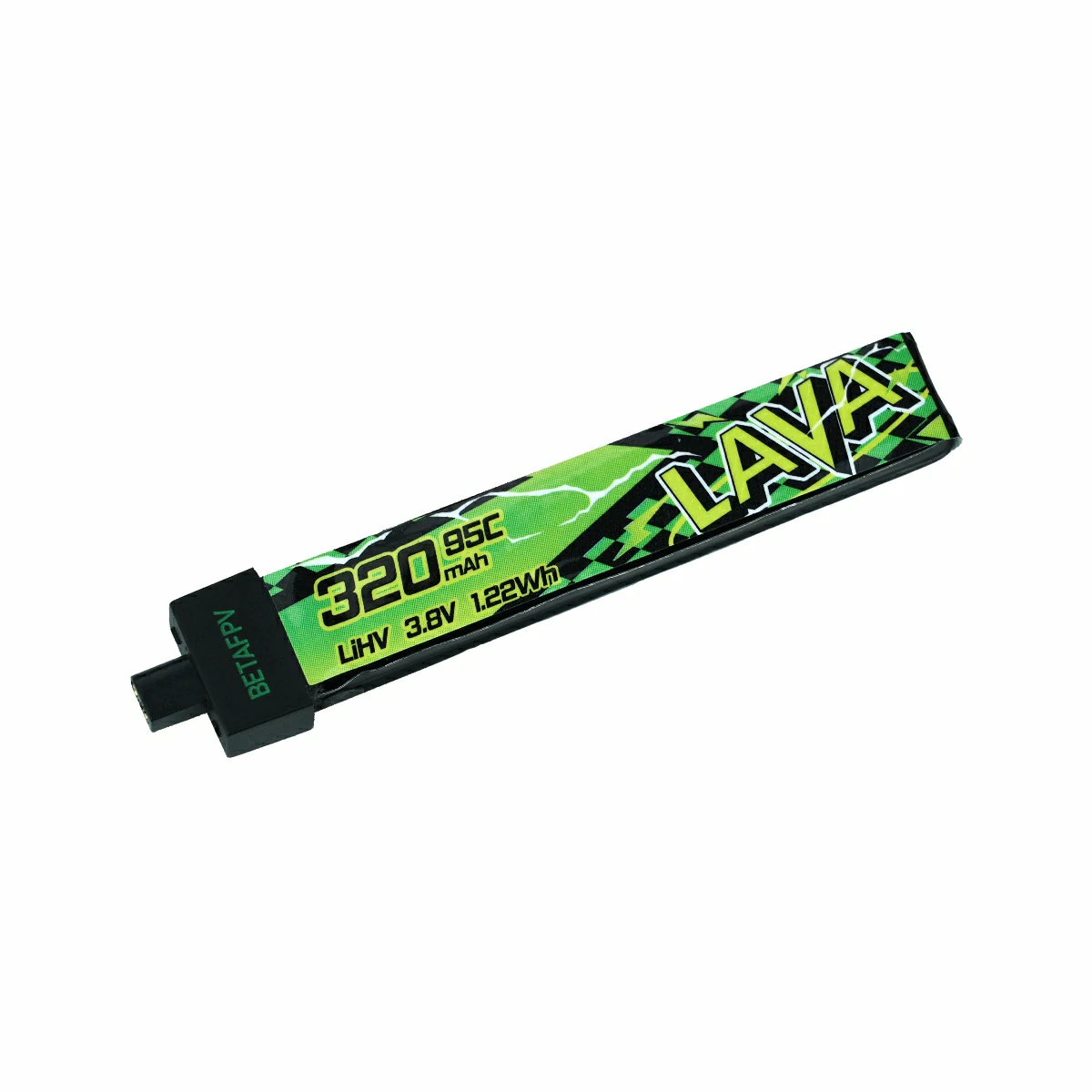

1x 320mAh battery
1x Propeller remover
2x Propeller (0.8mm hole diameter)
Applications
STEM education
Open-source DIY creative projects
Drone R&D
Intelligent flight algorithm validation
Specifications
Specification
Parameter
Module
Stamp-S3A
SoC
ESP32-S3@Xtensa LX7 dual-core, 240MHz
USB
USB OTG, USB Serial/JTAG
Flash
8MB
Wi-Fi
2.4 GHz Wi-Fi
Drive Motors
716-17600kv
Distance Sensor
VL53L3C (7-bit accuracy, max range 3m)
Pressure Sensor
BMP280 (sensing range: 300~1100hPa)
3-Axis Magnetometer
BMM150
6-Axis Attitude Sensor
BMI270
Interface
I2C / UART
Battery
320mAh battery
Battery Output Voltage
4.35V
Flight Time
Approx. 4 minutes
Charging Parameters
Input 5V@1A, full charge approx. 55 minutes
Monitoring Chip
INA3221AIRGVR voltage/current monitor
Buzzer
Onboard 5020 passive buzzer
Operating Temperature
0 ~ 40°C
Product Weight

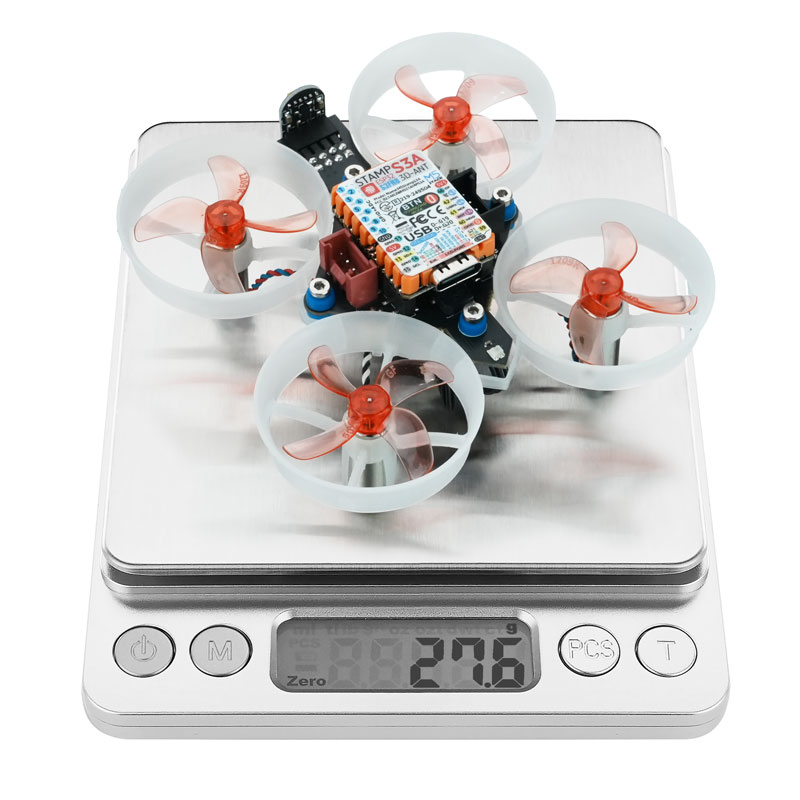

27.6g

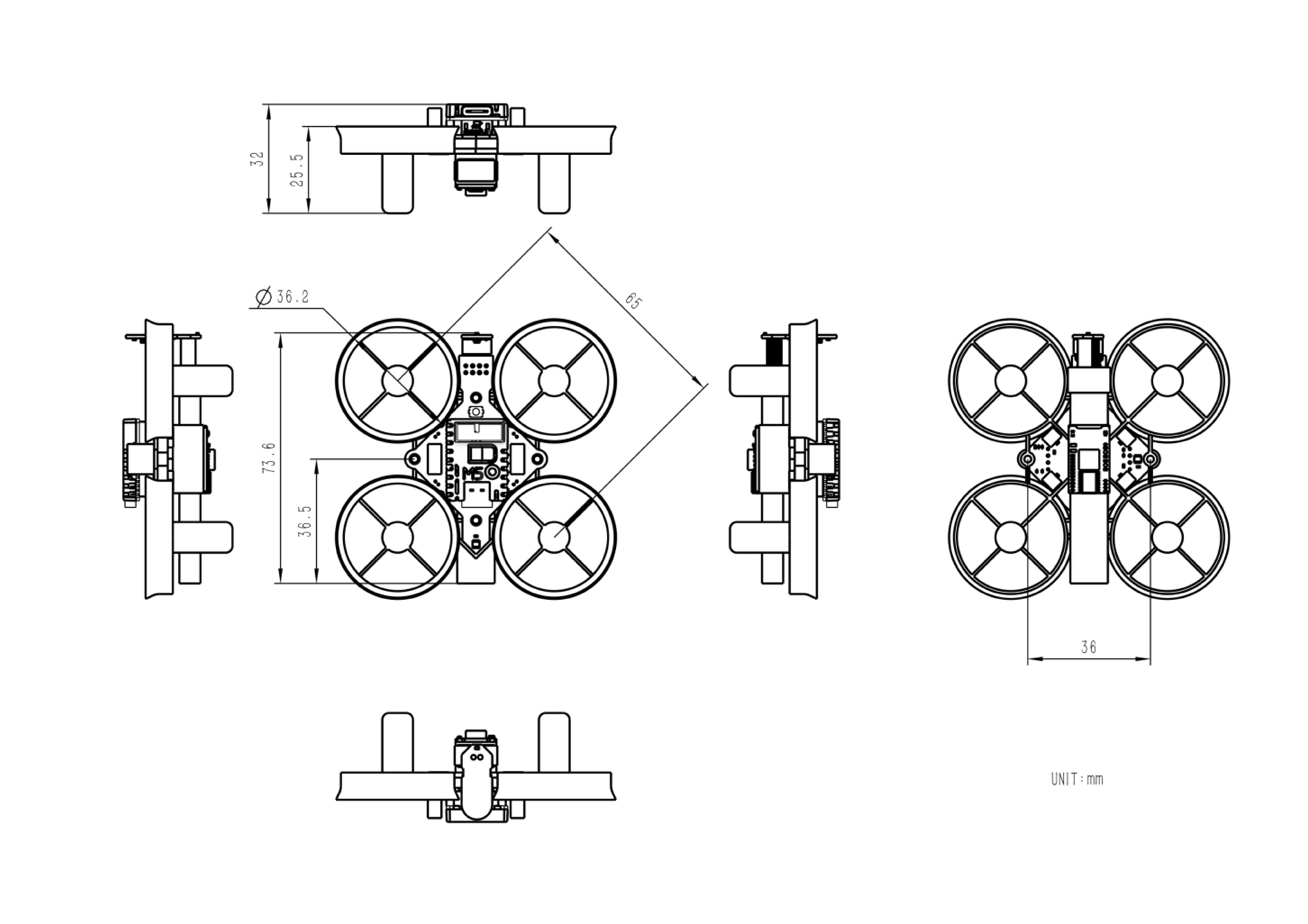

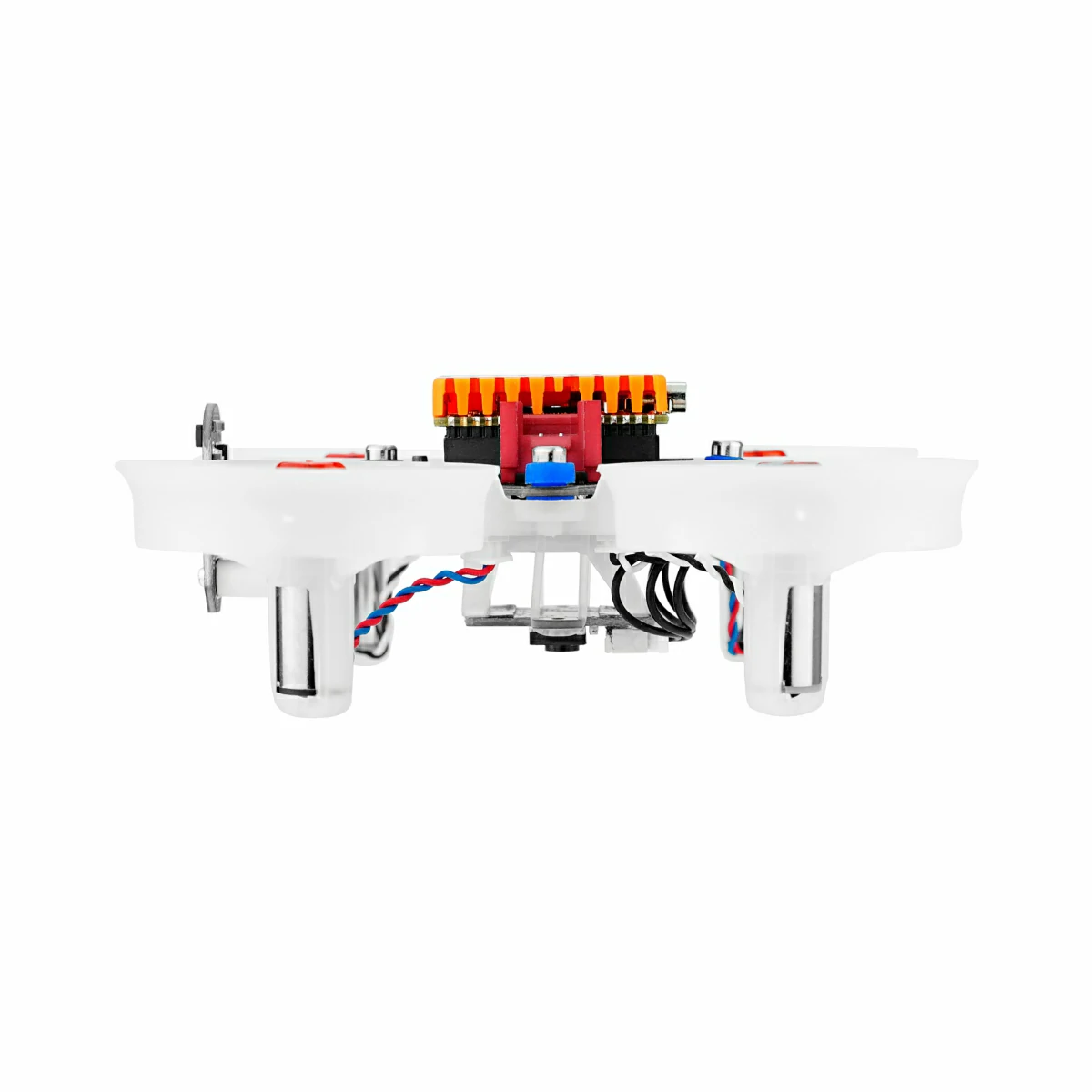

Product Size
73.6 x 73.6 x 32.0mm
Package Size
126.0 x 99.0 x 30.0mm
Gross Weight
80.0g
Learn
BMM150 Magnetic Interference
Products with magnets may interfere with the BMM150 magnetic sensor, causing abnormal readings. When used with M5 main controllers that contain magnets, the magnet must be removed, and the BMM150 sensor should be kept away from strong magnetic fields.

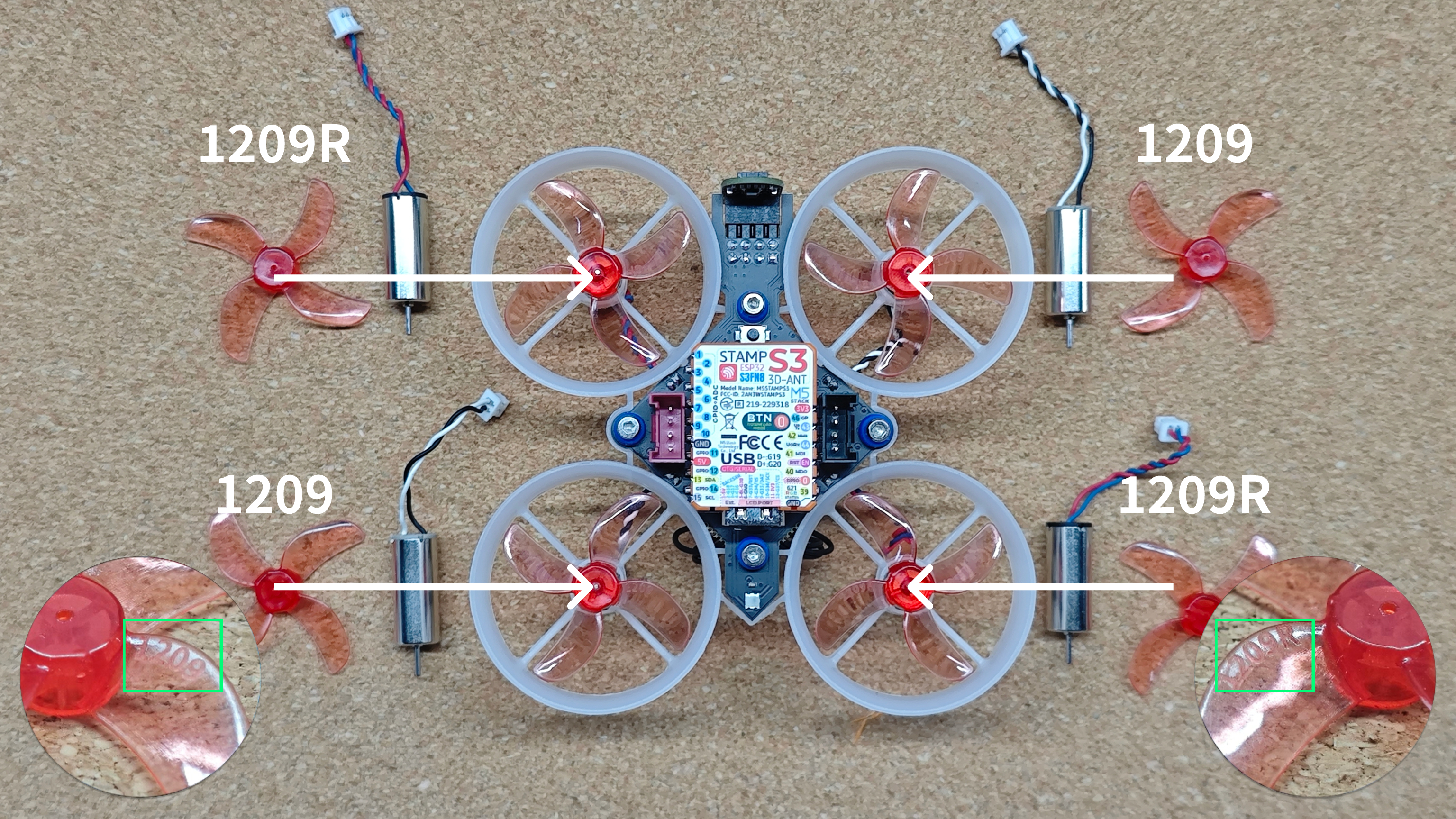

Propeller Installation Direction Diagram
Note
Use the StampFly Repair Kit to replace the propellers. Please check the propeller orientation during installation; incorrect mounting will prevent the device from working properly.
