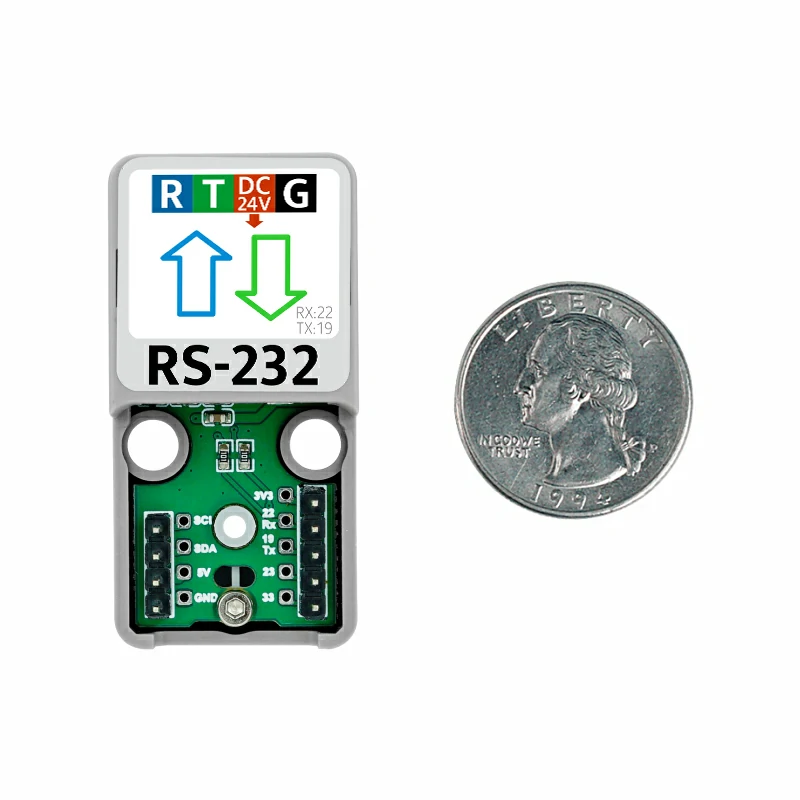

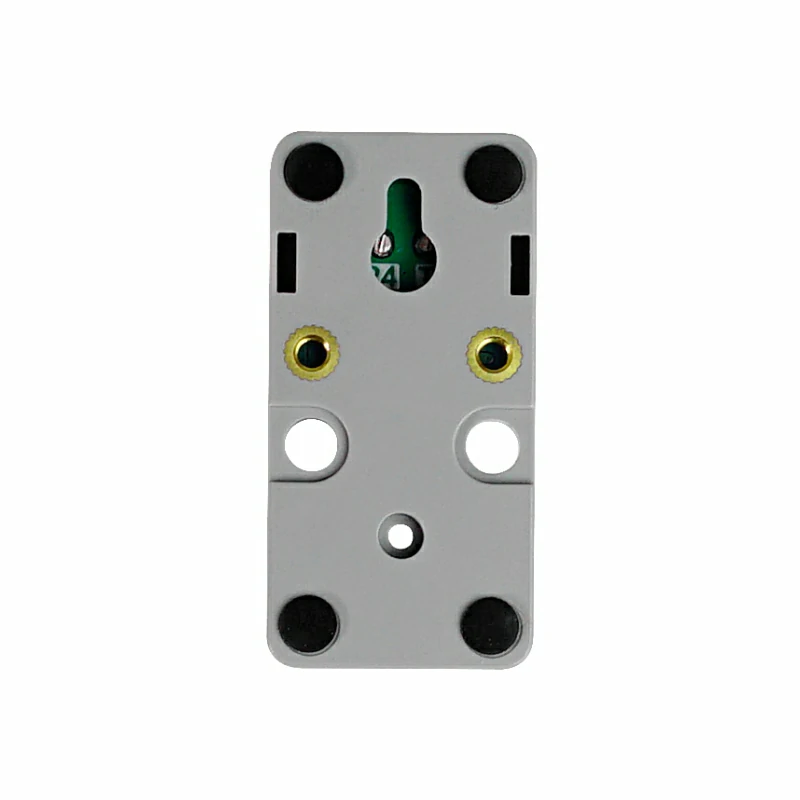

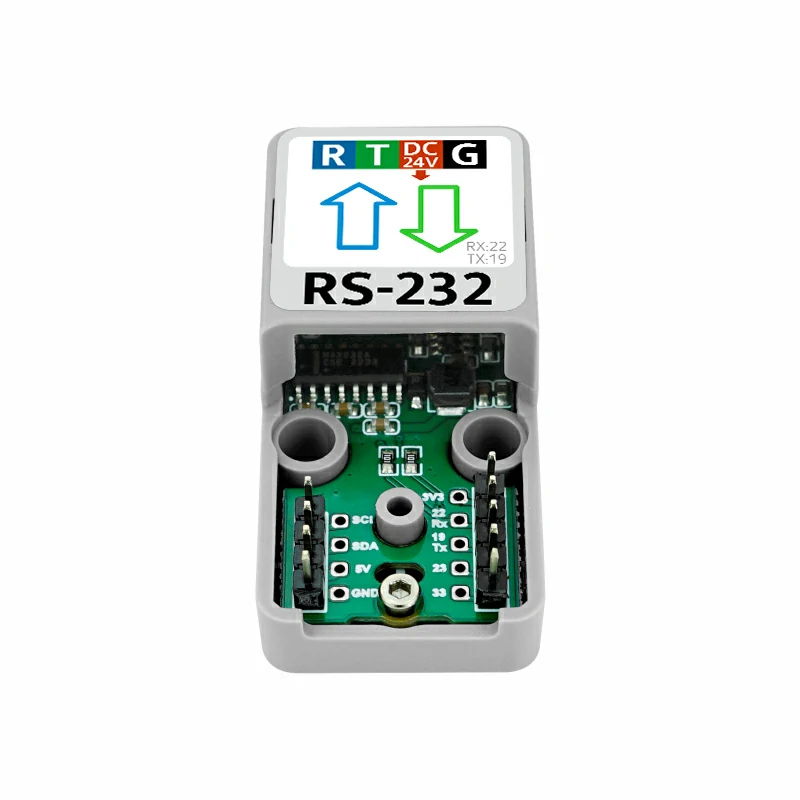

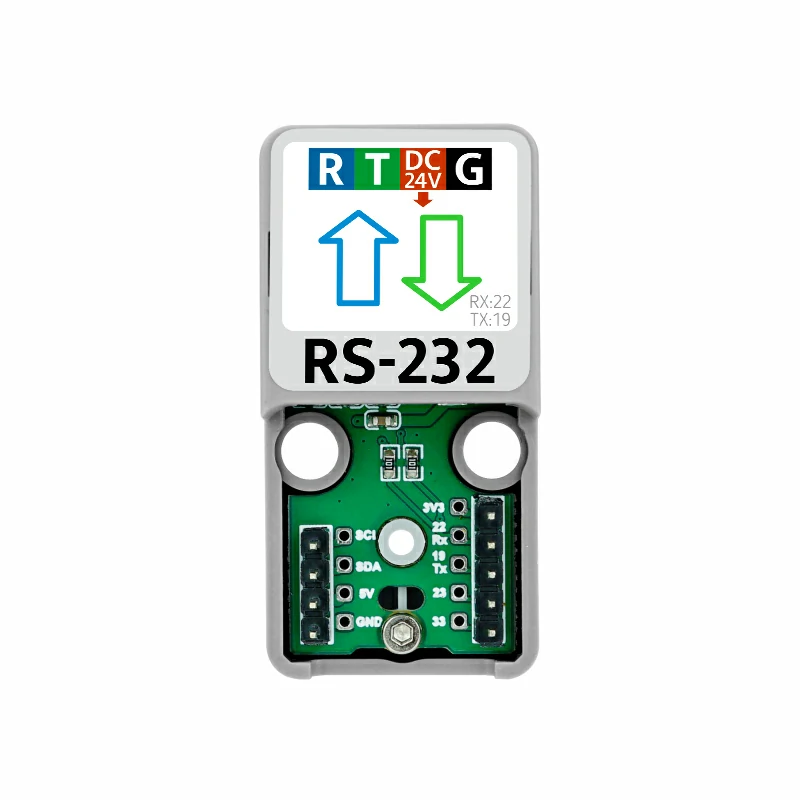

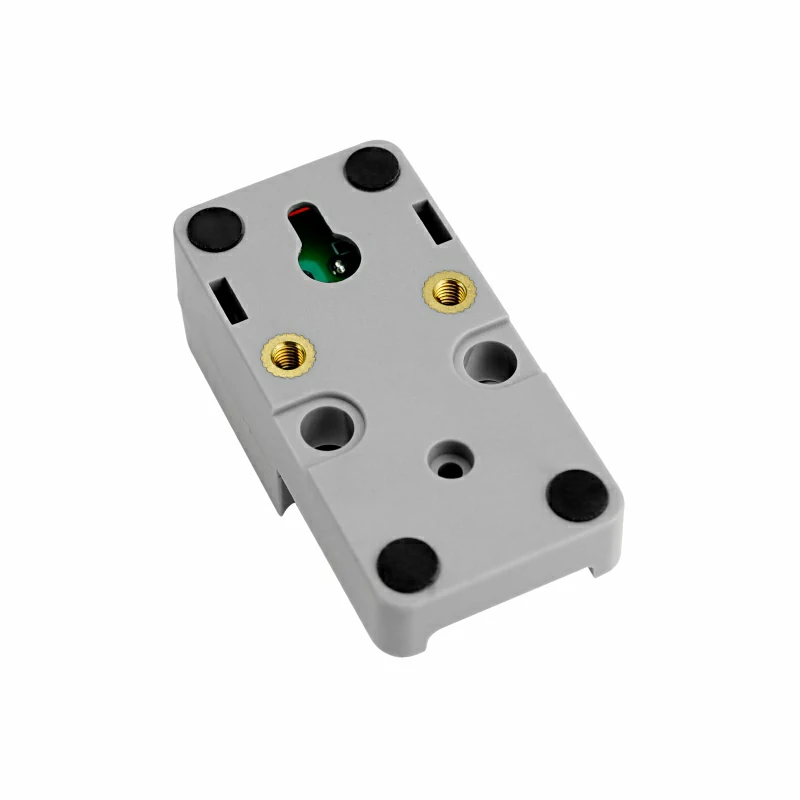

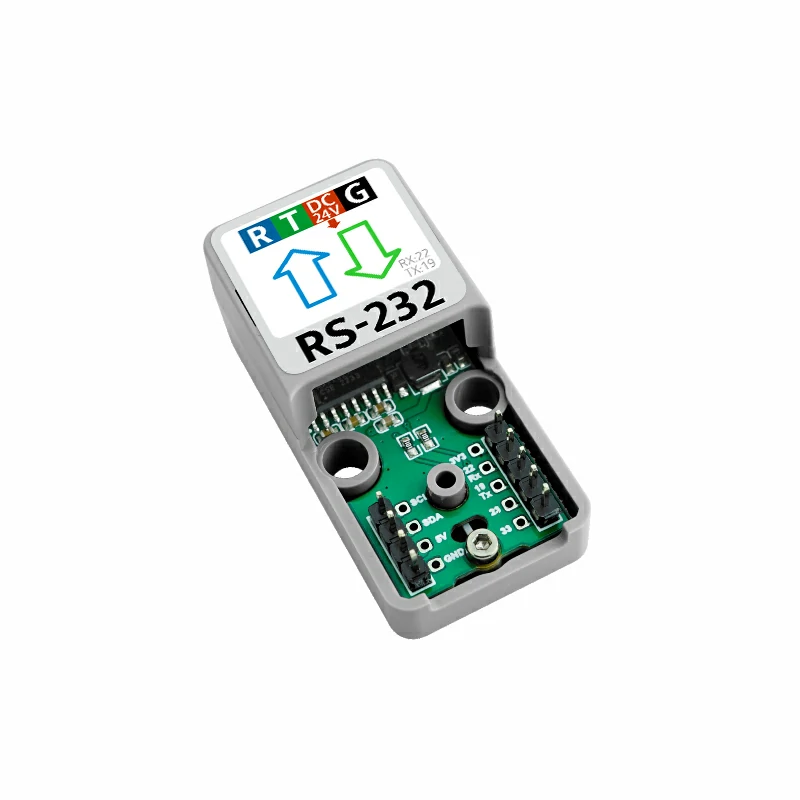

Atomic RS232 Base

SKU:A136

Description

Atomic RS232 Base is a TTL-RS232 level converter designedfor Atom series controllers.** RS-232** is a standard for serial communication between computers and peripheral devices, defining electrical characteristics and data transmission protocols. The module utilizes the MAX232 chip, enabling bidirectional conversion between TTL and RS232 voltage levels. Additionally, it incorporates an internal DC-DC buck voltage regulator chip, allowing support for external 12V voltage level to power the ATOM device.

Features

  • Compatible ATOM Matrix/ATOM Lite/ATOMS3 Lite/ATOMS3
  • Built-in DC/DC
  • Full-duplex communication

Includes

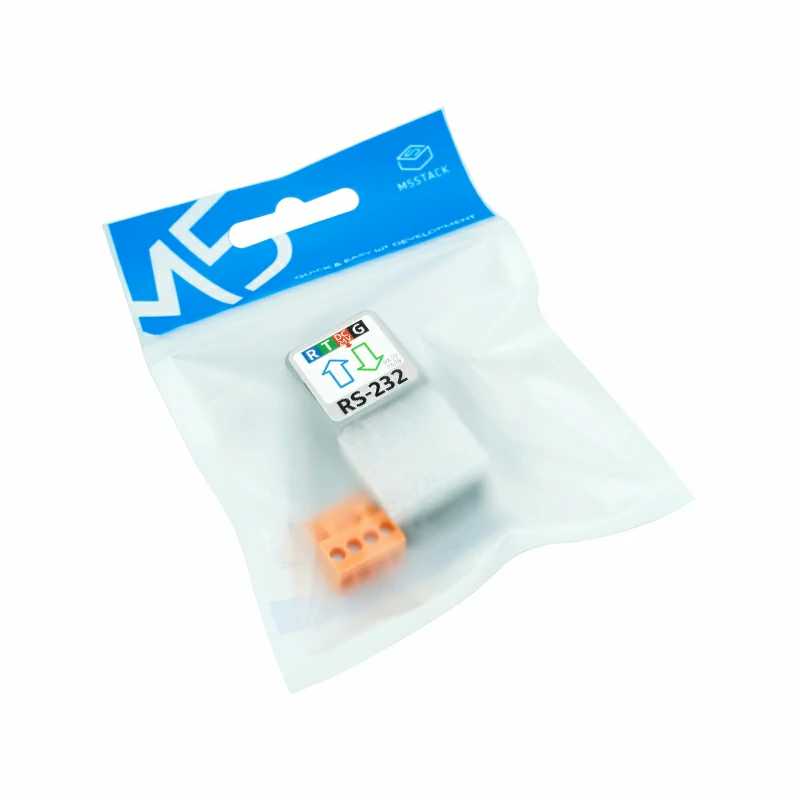

  • 1 × Atomic RS232 Base
  • 1 × VH3.96-4P

Applications

  • RS232 Communication
  • Industrial control node

Specification

Resources Parameters

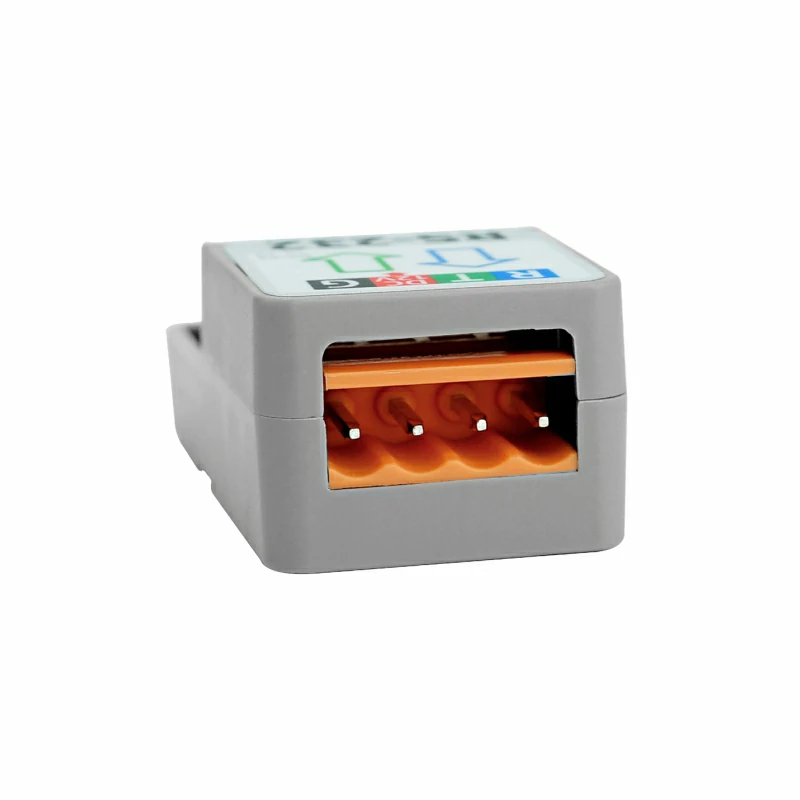

External port VH-3.96 4P
level-conversion IC MAX232
DC-DC A0Z1282CI
Case Material Plastic( PC )
Product Size 24*48*18mm
Package Size 136* 92* 13mm
Product Weight 18g
Package Weight 28g

Schematic

schematics

EasyLoader

PinMap


Examples

Arduino

UIFlow

Video

  • AtomicRS232 Demo

  • AtomicRS232 Communicate With ATOM Printer
