SERVO HAT

SKU:U075

Description

SERVO HAT as the name suggests, is a servo motor module with the new and upgraded "ES9251II" digital servo,This comes with 145°±10° range of motion and can be controlled by PWM signals. The signal pin of the hat is connected to G26 on M5StickC.

Product Features

  • Servo Type:   Digital
  • Spinning speed:  0.09sec/60°
  • Gear material:  Plastic
  • Weight:   2.5g
  • Torque:   0.25Kgf.cm(at 4.8v)
  • Voltage:   5.0V±0.2V

Include

  • 1x Servo HAT

Applications

  • Analog indication
  • Angle and direction control
  • Door lock controller

Specification

Resources Parameter
Net weight 9g
Gross weight 19g

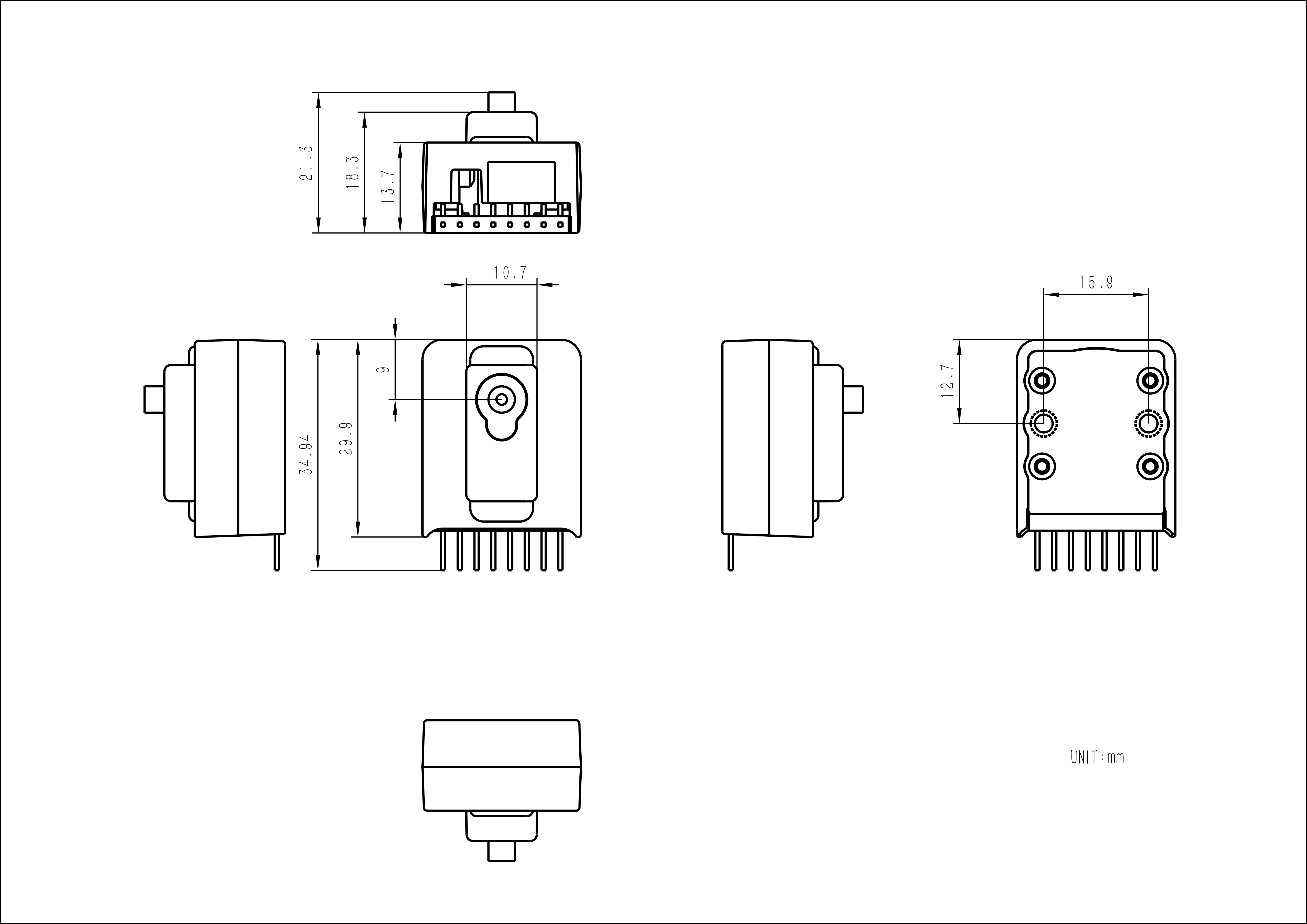

Product Size 35*24*22mm
Package Size 136*92*22mm

EasyLoader

download EasyLoader

EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. This can be burned to the M5 device through simple steps, and a series of function verifications can be performed.

  1. After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to burn the program (For M5StickC, set the baud rate to 115200 or 750000)

Schematic

Example

Arduino

UIFlow
