Unit Proto
SKU:U022
Description
PROTO is a Unit size of universal prototyping board. You can have the total freedom to make your own project as you want it, with prototyping boards that allows to solder and layout customized circuits to interact with the M5 core GROVE Port.
Features
- Hole Size: 0.039" 1mm (CNC Drilled)
- Hole Pitch: 0.1 in - (2.54 mm)
- Entire Hole Quantity: 77 Holes
- Two Lego-compatible holes
Include

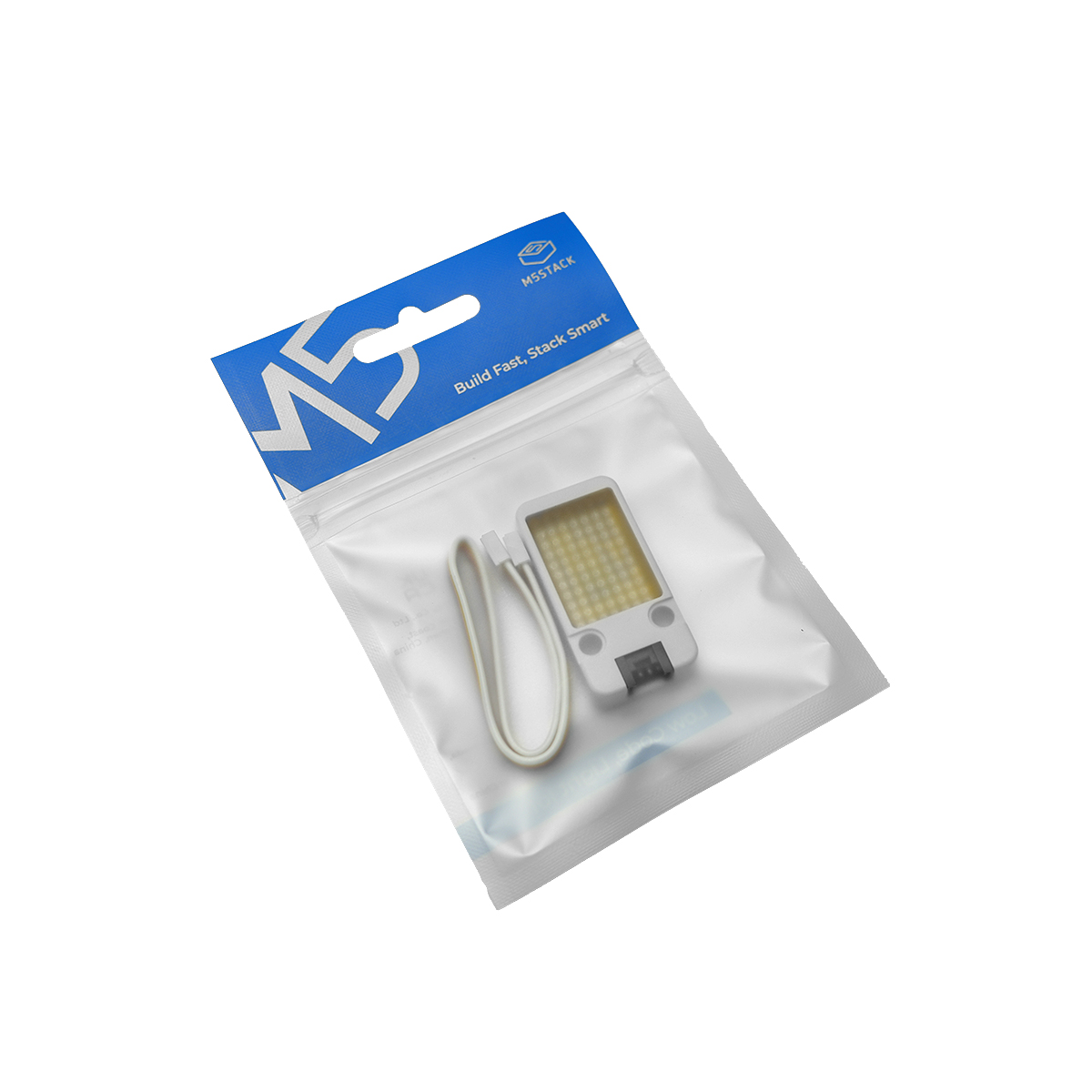

- 1x PROTO unit
- 1x GROVE Cable
Specifications
| Resources | Parameter |
|---|
| Net weight | 5g |
| Gross weight | 17g |

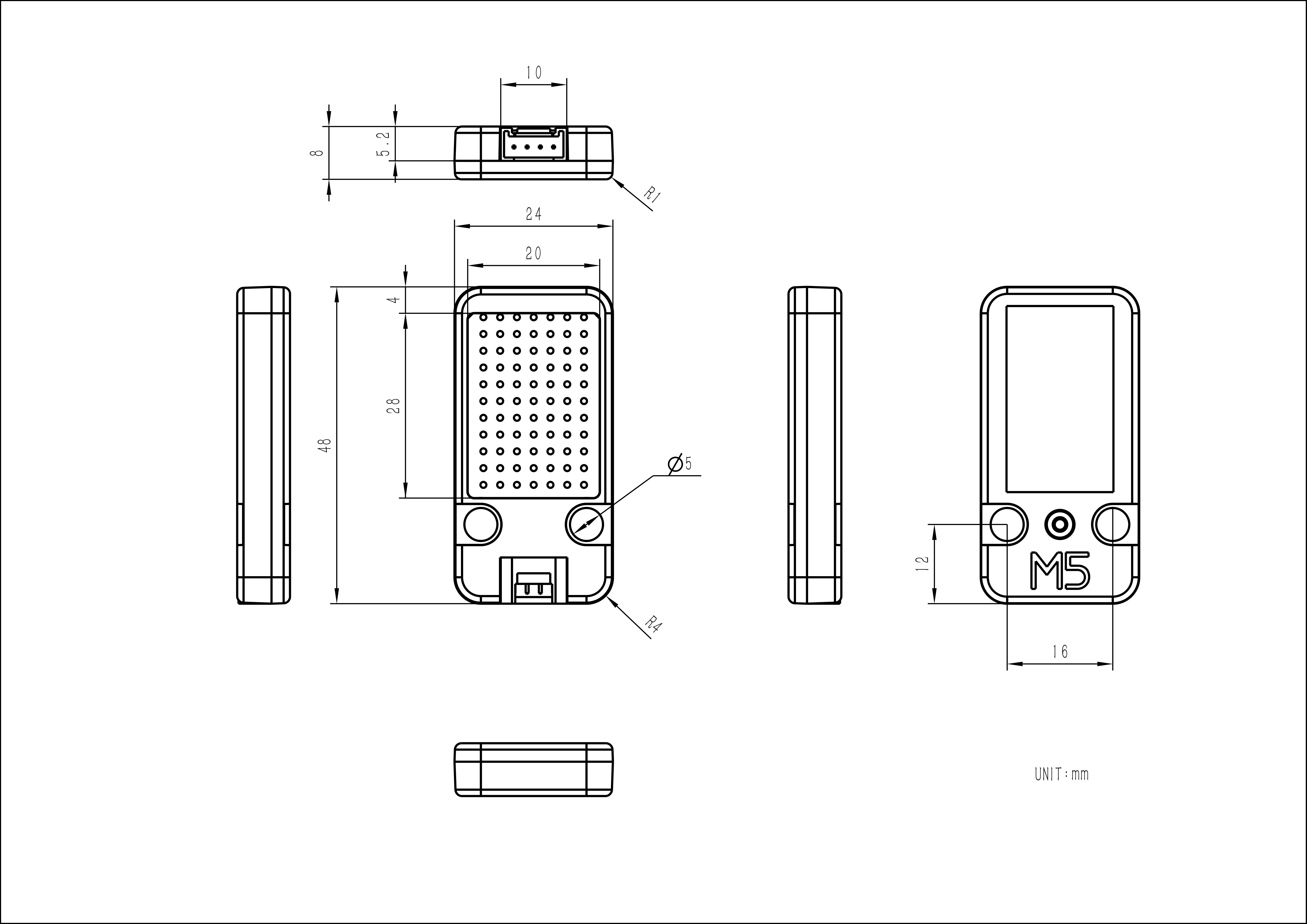

| Product Size | 48*24*8mm |
| Package Size | 136*92*11mm |
PinMap
| M5Core(GROVE B) | GPIO36 | GPIO26 | 5V | GND |
|---|
| PROTO Unit | GPIO36 | GPIO26 | 5V | GND |

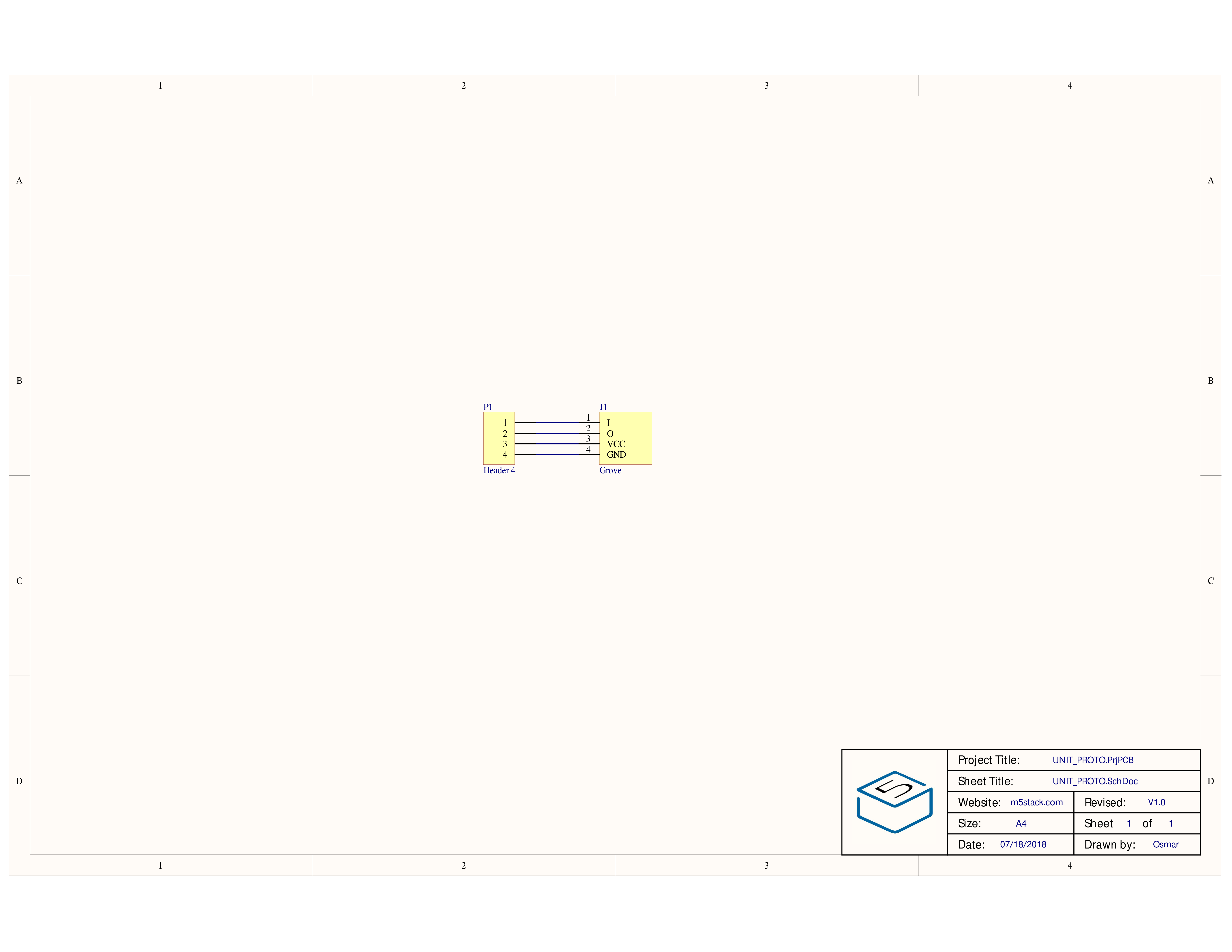

Schematic
