RS485
SKU:U034
Description

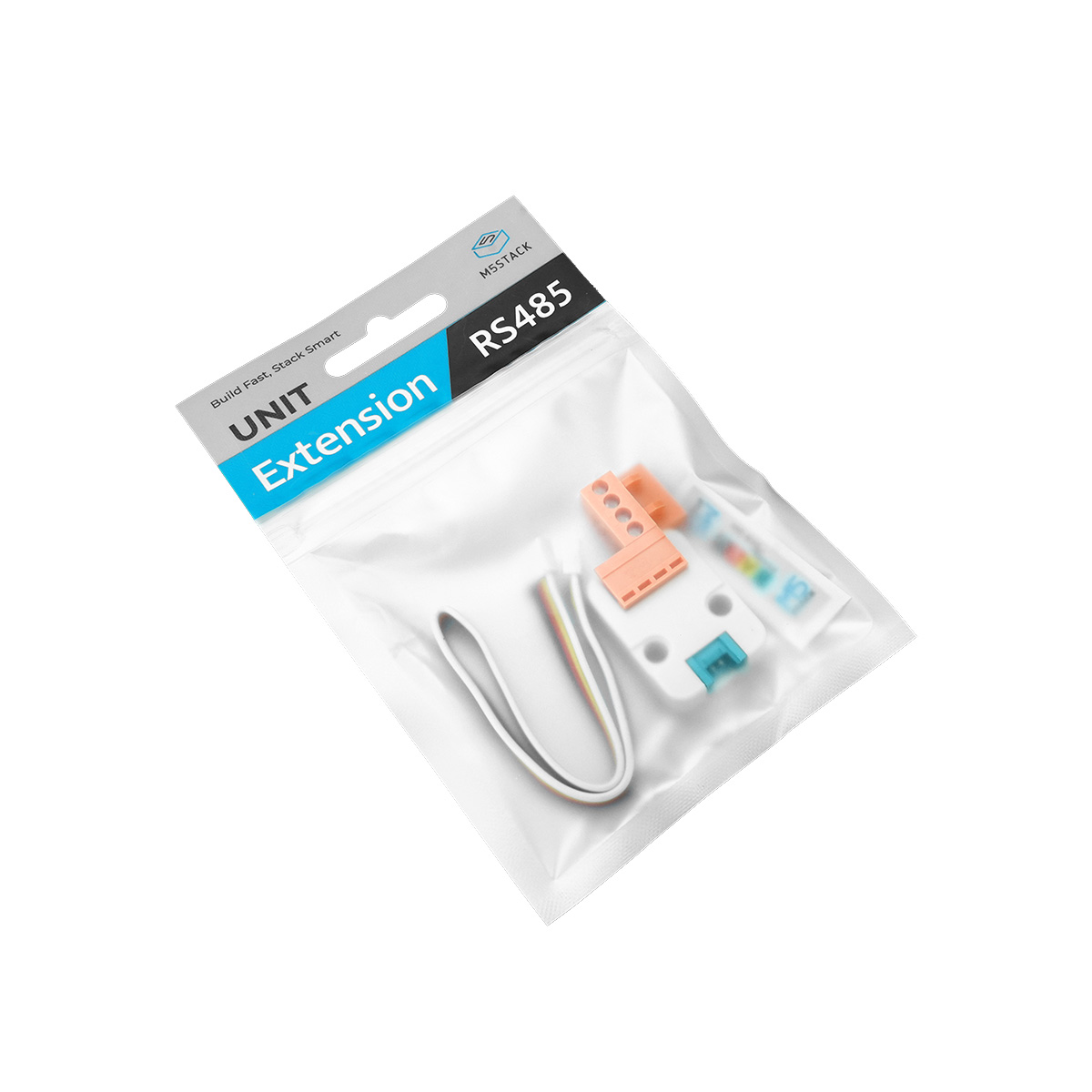

RS485 is a TTL to RS485 convertor.
RS485 is a standard defining the electrical characteristics of drivers and receivers for use in serial communications systems, widely used in industrial field. multi-point systems are supported.
It's used to convert the TTL standard to the RS485 standard. If the outside serial device is RS485 standard, you can attach this unit onto M5stack, therefore, to implement the communication with RS485 device by TTL protocol.
Product Features
- Built in MAX485/SP485EEN
- input DC 12V
- Program Platform: Arduino, UIFlow (Blockly, Python)
- Two Lego-compatible holes
Include
- 1x RS485 Unit
- 1x Grove Cable
Specification
| Resources | Parameter |
|---|---|
| Net weight | 8g |
| Gross weight | 21g |
| Product Size | 40*24*14mm |
| Package Size | 67*53*12mm |
EasyLoader
What is EasyLoader?
1.EasyLoader is a simple and fast program burner. Every product page in EasyLoader provides a product-related case program. It can be burned to the master through simple steps, and a series of function verification can be performed. .
- After downloading the software, double-click to run the application, connect the M5 device to the computer through the data cable, select the port parameters, click "Burn" to start burning. (For M5StickC burning, please Set the baud rate to 750000 or 115200)
PinMap
| M5Core(GROVE C) | U2RXD(GPIO16) | U2TXD(GPIO17) | 5V | GND |
|---|---|---|---|---|
| RS485 Unit | RS485 RXD | RS485 TXD | 5V | GND |
Schematic
Related Link
- Datasheet - SP485EEN
