JoyC

SKU:U079

描述

JoyC 是一款专为M5StickC设计的摇杆模块,可进行双手操作.内嵌STM32F030F4主控芯片,采用I2C通信协议与主机M5StickC进行数据传输.摇杆的范围为0~200,左右摇杆下方各有12颗RGB LED,摇杆底部配有16340电池底座,提供长时间续航.该摇杆支持进行全方位的角度偏移与中心按压,并输出角度偏移数据以及开关数字信号.

产品特性

  • 内嵌STM32F030F4
  • 通信协议:I2C(地址:0x38)
  • 支持全方位偏移/中心按键

包含

  • 1x JoyC
  • 1x 16340电池(700mAh)

应用

  • 游戏控制器
  • 无线摇杆设备

规格参数

规格 参数
通信协议 I2C:0x38
净重 81g
毛重 117g

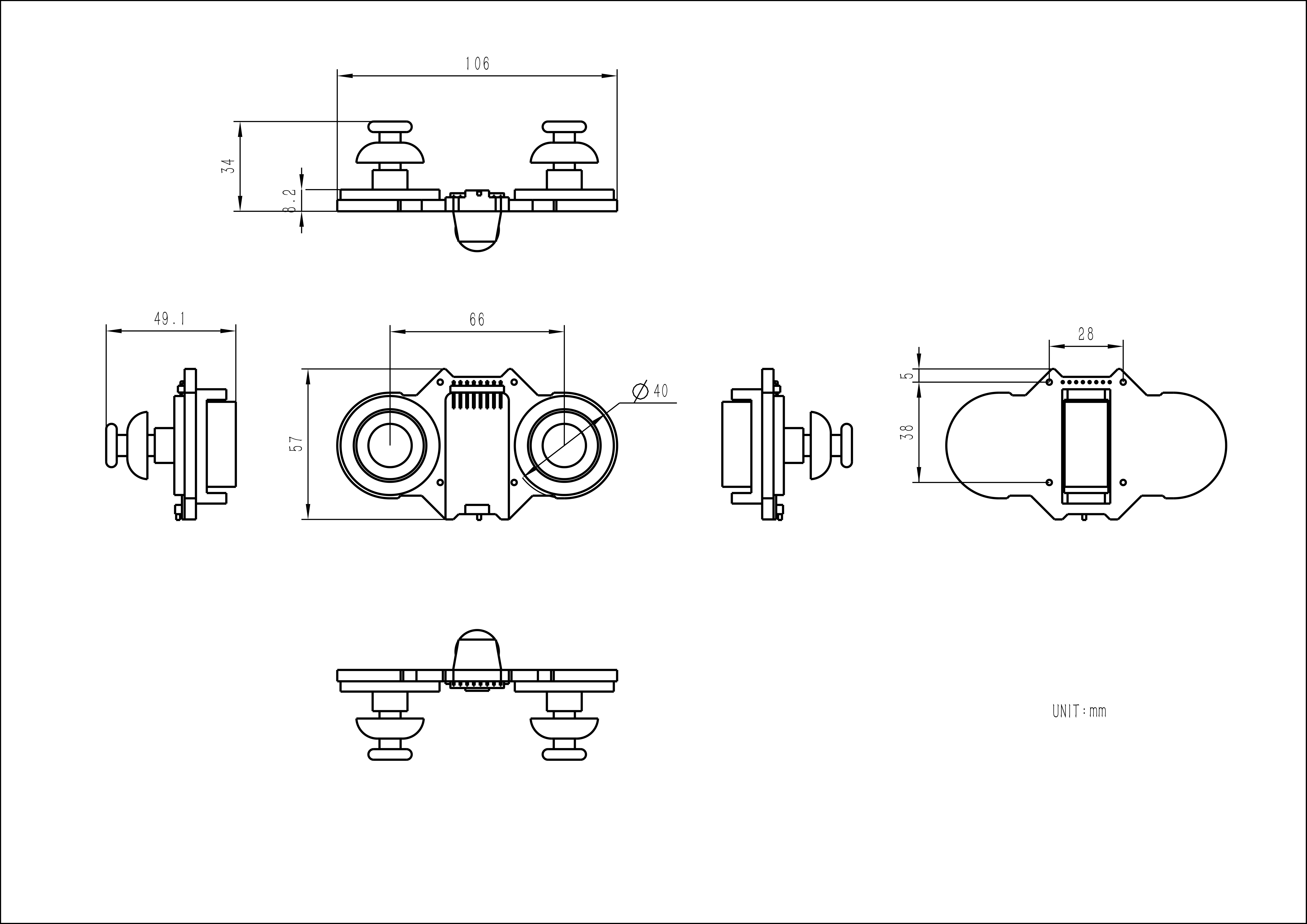

产品尺寸 100*55*50mm
包装尺寸 119*89*65mm

EasyLoader

单独使用

RoverC搭配JoyC使用

1.EasyLoader是一个简洁快速的程序烧录器,每一个产品页面里的EasyLoader都提供了一个与产品相关的案例程序,通过简单步骤将其烧录至主控,能够进行一系列的功能验证.

2.下载软件后,双击运行应用程序,将M5设备通过数据线连接至电脑,选择端口参数,点击 "Burn" 即可开始烧录.(为M5StickC烧录时,请将波特率设置在750000或115200)

通讯协议

  • 协议类型I2C
  • I2C Address: 0x38
/*--------------------------------------------------------------------------------------------------*/
| JOYC_COLOR_REG       | 0x20
| ------------------------------------------------------------------------------------------------
| rgb_r_reg[0]  |  R/W  |  RED value
| rgb_g_reg[1]  |  R/W  |  Green value
| rgb_b_reg[2]  |  R/W  |  Blue value
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_LEFT_X_REG       | 0x60
| ------------------------------------------------------------------------------------------------
| left_x_reg[0]  |  R  |  LEFT X VALUE
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_LEFT_Y_REG       | 0x61
| ------------------------------------------------------------------------------------------------
| left_y_reg[0]  |  R |  LEFT Y VALUE
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_RIGHT_X_REG       | 0x62
| ------------------------------------------------------------------------------------------------
| right_x_reg[0]  |  R |  RIGHT X VALUE
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_RIGHT_Y_REG       | 0x63
| ------------------------------------------------------------------------------------------------
| right_y_reg[0]  |  R  |  RIGHT Y VALUE
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_PRESS_REG       | 0x64
| ------------------------------------------------------------------------------------------------
| press_reg[0]  |  R  |  LEFT AND RIGHT PRESS VALUE
                           | 7 | 6 | 5 | 4 | 3 | 2 | 1 | 0 |
                           | R | R | R | R | R | R | LEFT | RIGHT |
                           | LEFT:
                                   Pressed: 1
                                   Released: 0
                           | RIGHT:
                                   Pressed: 1
                                   Released: 0
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_LEFT_ANGLE_REG       | 0x70
| ------------------------------------------------------------------------------------------------
| left_angle_reg[0]  |  R |  LEFT ANGLE VALUE
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_RIGHT_ANGLE_REG       | 0x72
| ------------------------------------------------------------------------------------------------
| right_angle_reg[0]  |  R |  RIGHT ANGLE VALUE
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_LEFT_DISTANCE_REG       | 0x74
| ------------------------------------------------------------------------------------------------
| left_distance_reg[0]  |  R |  LEFT DISTANCE VALUE
/*----------------------------------------------------------------------------------------------------

/*--------------------------------------------------------------------------------------------------*/
| JOYC_RIGHT_DISTANCE_REG       | 0x76
| ------------------------------------------------------------------------------------------------
| right_distance_reg[0]  |  R  |  RIGHT DISTANCE VALUE
/*----------------------------------------------------------------------------------------------------

项目案例

RoverC with M5Atom
Using M5StickC on RoverC and JoyC with M5Atom attached to display direction of the RoverC.

案例程序

Arduino

配合RoverC使用 点击此处 ,获取完整程序.

单独使用 点击此处 ,获取完整程序.
