Stamp-S3 PIN1.27

SKU:S007-PIN127

Description

Stamp-S3 PIN1.27 is a highly integrated embedded main-control core module. It adopts Espressif’s ESP32-S3FN8 SoC with 8 MB SPI flash and features a high-performance Xtensa 32-bit LX7 dual-core processor running at up to 240 MHz. The module integrates a high-efficiency 5 V-to-3.3 V power circuit, an RGB status indicator LED, and a programmable button. A total of 23 GPIOs of the ESP32-S3 are broken out to 1.27 mm-pitch pin headers. Thanks to its compact size, powerful performance, rich IO resources, and low-power design, the module is well-suited for embedded main-control IoT applications.

Tutorial

This tutorial explains how to program and control the Stamp-S3 device with the Arduino IDE
This tutorial explains how to control the Stamp-S3 device using the UiFlow2 graphical programming platform

Features

  • ESP32-S3FN8 (2.4 GHz Wi-Fi)
  • Integrated programmable RGB LED and button
  • 1.27 mm-pitch pin headers
  • Supports UIFlow graphical programming
  • Development Platform
    • UiFlow2
    • Arduino IDE
    • ESP-IDF
    • PlatformIO

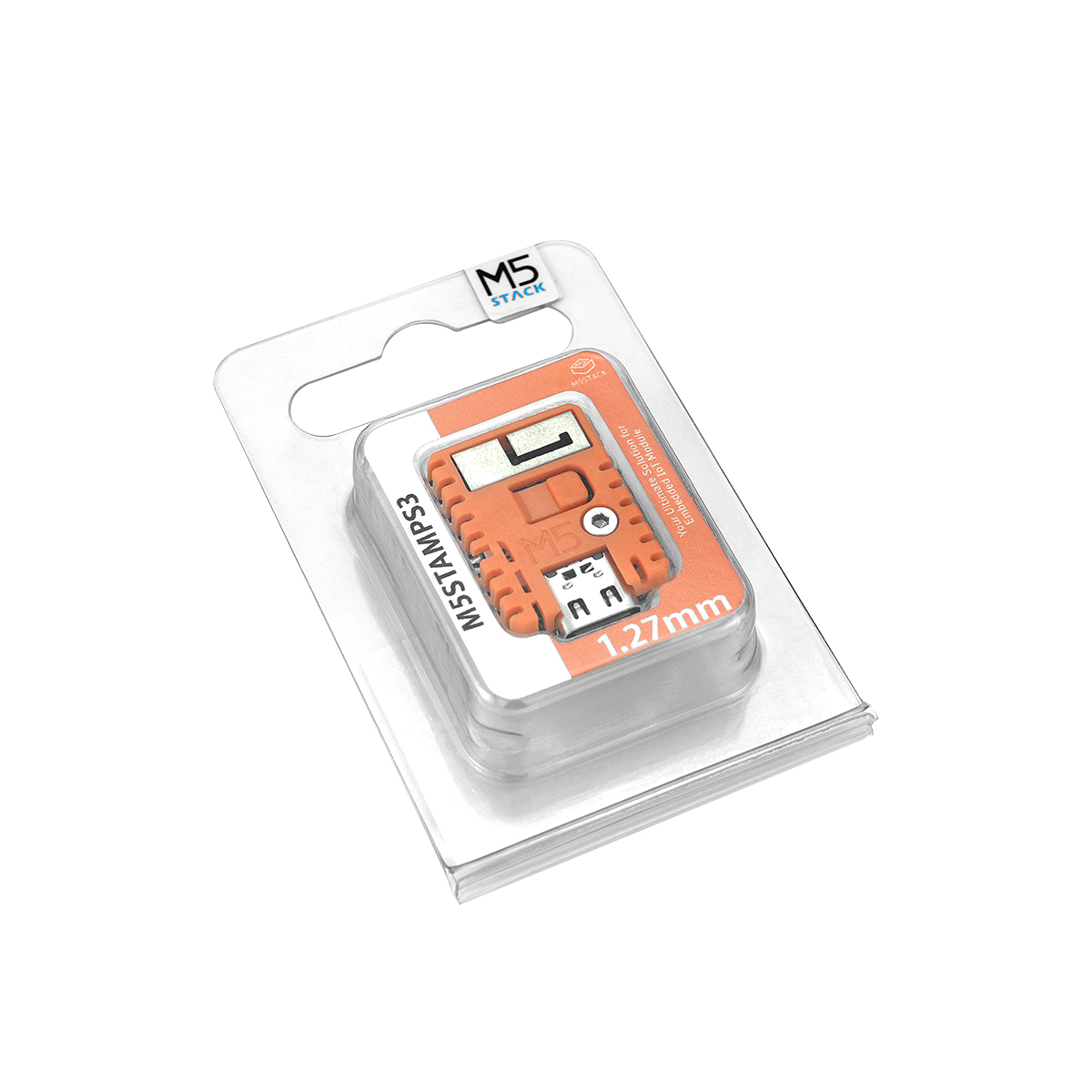

Includes

  • 1 x Stamp-S3 PIN1.27
  • 1 x Silkscreen Sticker

Applications

  • Smart Home
  • Wearable Devices
  • Medical Devices

Specifications

Specification Parameter
SoC ESP32-S3FN8
DC-DC Highly-integrated MUN3CAD01-SC
Flash 8 MB
Input Voltage 5 V
Human-Machine Interface Programmable physical button x 1, Programmable RGB LED (WS2812B-2020) x 1
Antenna Type 2.4 G 3D antenna
Module Resource Interfaces Touch sensor, SD/SDIO/MMC host controller, SPI, SDIO/SPI slave controller, EMAC, Motor PWM, LED PWM, UART, I²C, I²S, GPIO, Pulse counter
IO Interfaces x23 G0/G1/G2/G3/G4/G5/G6/G7/G8/G9/G10/G11/G12/G13/G14/G15/G39/G40/G41/G42/G43/G44/G46
Header Pin Pitch 1.27 mm
LCD Interface Pitch 0.5 mm@12 pin or 8 pin
Operating Temperature 0 ~ 40 °C
Product Size 26 x 18 x 4.6mm
Package Size 74 x 48 x 13mm

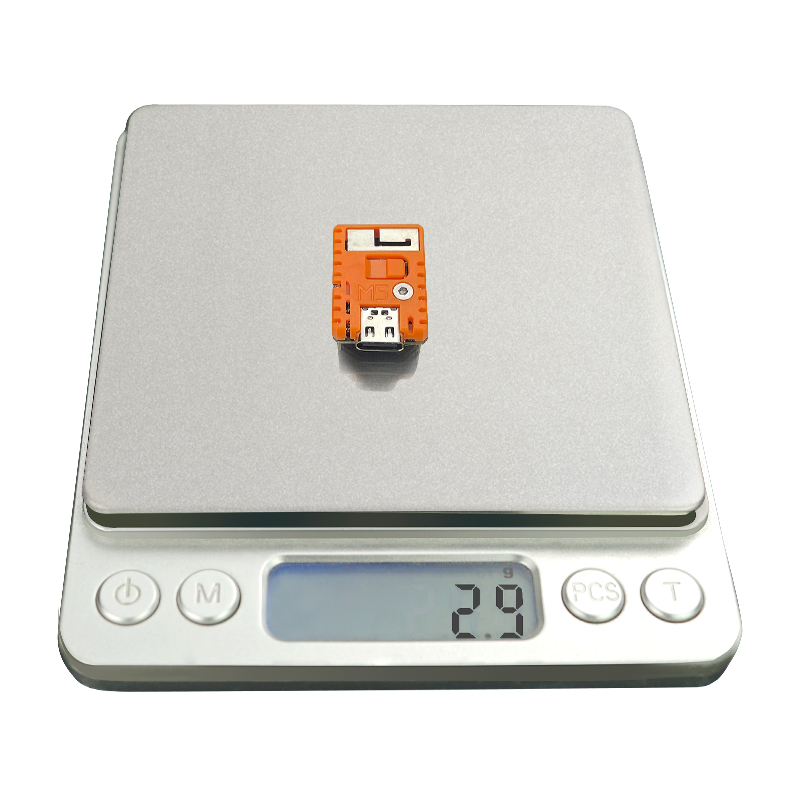

Product Weight 2.9 g
Gross Weight 5.6 g

Operation Instruction

Enter Download Mode

To enter download mode, press and hold the G0 button on the Stamp-S3 before powering on, then release it after power is applied.

Note
GPIO46 is pulled down by default.

Schematics

PinMap

PCB

Model Size

module size

Datasheets
