Module13.2 LAN is an Ethernet controller module with a built-in W5500 full-hardware TCP/IP embedded Ethernet controller (SPI communication interface), supporting multiple communication protocols (TCP, UDP, IPv4, ICMP, ARP, IGMP, and PPPoE, etc.) and integrated with a storage buffer for Ethernet packet processing. In terms of safety: it has a built-in signal-isolated 100M transformer, which converts the signal from the RJ45 interface input to a signal suitable for the output, providing electrical isolation and preventing electromagnetic interference. In terms of power supply: it has a DC-JACK interface and corresponding DC/DC step-down circuit, which can provide power to the entire device. The onboard jumper pin allows for multiple Module13.2 LAN modules to be stacked, and the reserved VH3.96 interface allows users to add expansion devices. The Module13.2 LAN, with its performance and flexibility, provides a simpler embedded Ethernet connection solution. It is suitable for industrial automation, IoT (Internet of Things), data acquisition, and remote monitoring applications.

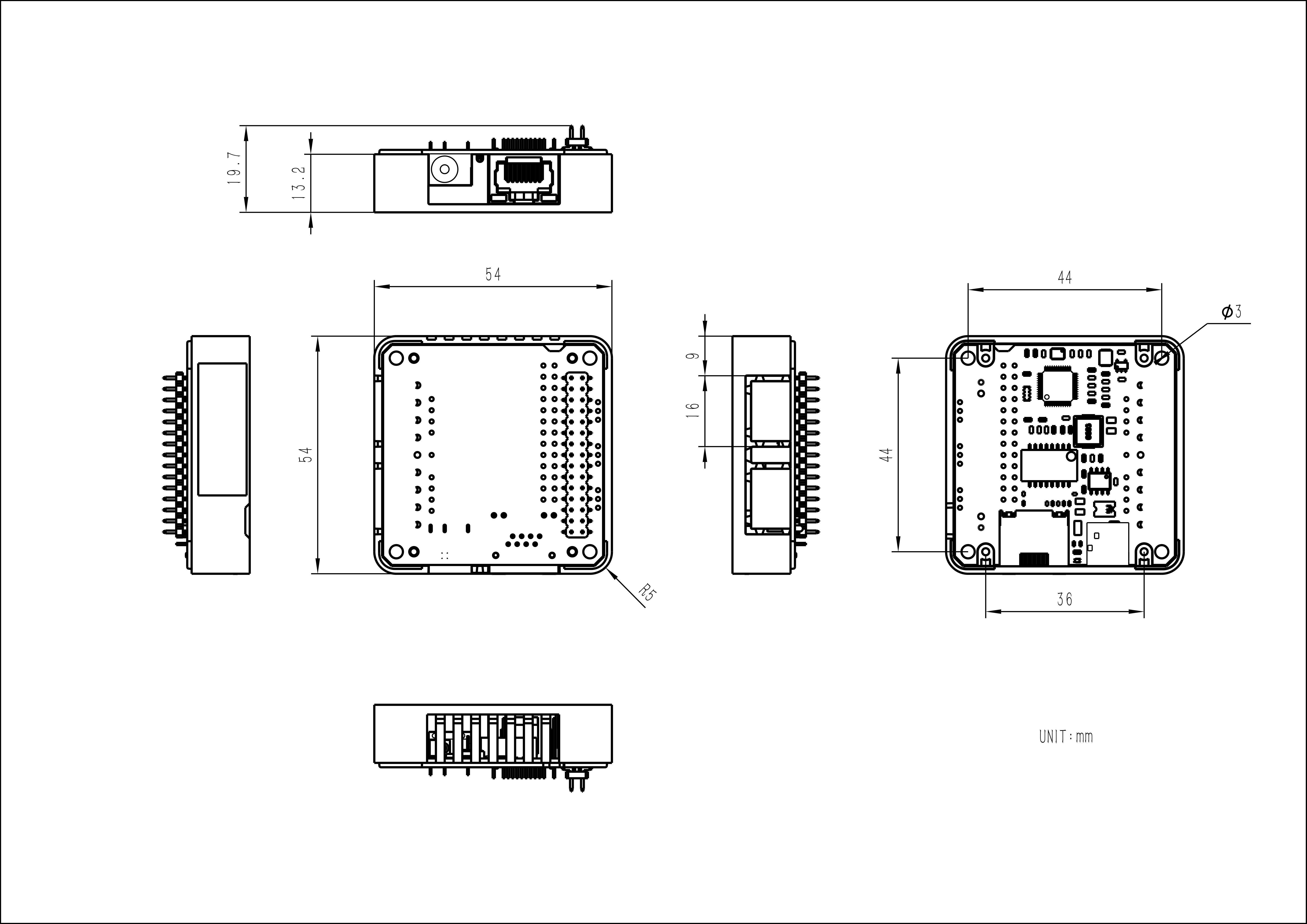

Features
Signal Isolation: Built-in 100M transformer for signal isolation, preventing electromagnetic interference, and improving system stability and reliability.
Power Supply: Provides 9-24V DC-JACK interface and DC-DC step-down circuit to power the entire device, simplifying power management.
Expandability: Reserved VH3.96 interface allows users to add expansion devices to meet specific application needs, providing greater flexibility.
Supports Multiple Protocols: Built-in W5500 full-hardware TCP/IP embedded Ethernet controller, supporting protocols including TCP, UDP, IPv4, etc.
The M5-Bus side of Module13.2 LAN provides 3 sets of jumper caps (pins marked with JC in the table above) that can be used to switch different IO connections.
