Module 4EncoderMotor
Description
4EncoderMotor Module is a 4-channel encoder motor driver module that utilizes the STM32+BL5617 solution. It is suitable for various applications such as robot motion control, automation equipment, smart vehicles, laboratory equipment, and industrial automation systems.
4EncoderMotor Module supports multiple control modes, including duty cycle control, absolute position positioning, and speed adjustment. Users can easily implement functions such as forward rotation, reverse rotation, stop, and braking for the motors. This module adopts I2C communication and allows for the modification of the slave address, providing flexible control options. With the input of AB pulse encoder signals, it can accurately detect the motor's motion state and position.
To ensure the stability and safety of the motor system, the module also integrates the INA199 power monitoring, which continuously monitors the voltage and current status in real-time, ensuring that the motor operates within the appropriate power range. Additionally, the 4EncoderMotor Module features an onboard power input switch. Users can choose between DC 5V or external DC 6-12V power input to meet the requirements of different application scenarios.
Features
- 4 channel coded motor drive
- AB Pulse signal input
- Duty cycle, absolute position positioning, speed adjustment control mode
- I2C communication mode
- Power supply current and voltage monitoring
Includes
- 1x 4EncoderMotor Module
- 1x DC5521 Female To XT30 Female Cable
- 4x KF2510-2P 100mm
Applications
- Robot motion control
- Automation equipment
- Intelligent vehicle
- Industrial automation system
Specifications
| Resources | Parameters |
|---|---|
| Coded motor drive IC | BL5617 |
| Supported maximum current | 3.0A |
| Power | 10W Max |
| External DC power source | 6-12V |
| I2C communication address | 0x24 |
| Operating temperature | 0-40°C |
| Product Size | 54*54*13.1mm |
| Package Size | 94*67*25mm |
| Product Weight | 15.9g |
| Package Weight | 46.4g |
Related Link
Schematic
PinMap
I2C communication and current and voltage detection
| STM32 | MCU_IIC_SDA(PB11) | MCU_IIC_SCL(PB10) | PB0 | PB1 |
|---|---|---|---|---|
| Core(Basic) | G21 | G22 | ||
| Core2 | G21 | G22 | ||
| CoreS3 | G12 | G11 | ||
| Motor Voltage Detect | ADC1_OUT | |||
| Current Detect | ADC2_OUT |
Code motor direction control pin
| STM32 | PB14/PB15 | PB12/PB13 | PB4/PB5 | PA15/PB3 |
|---|---|---|---|---|
| BL5617 (Direction) | MCU_DIR_M1R/MCU_DIR_M1F | MCU_DIR_M2R/MCU_DIR_M2F | MCU_DIR_M3R/MCU_DIR_M3F | MCU_DIR_M4R/MCU_DIR_M4F |
Code motor speed PWM control
| STM32 | PA9 | PA8 | PA11 | PA10 |
|---|---|---|---|---|
| BL5617 (PWM) | MCU_PWM_M1 | MCU_PWM_M2 | MCU_PWM_M3 | MCU_PWM_M4 |
Coding motor A/B signal detection
| STM32 | PA6/PA7 | PA4/PA5 | PB9/PB8 | PB7/PB6 |
|---|---|---|---|---|
| Encodering motors | E1_A/E1_B | E2_A/E2_B | E3_A/E3_B | E4_A/E4_B |
Model Size

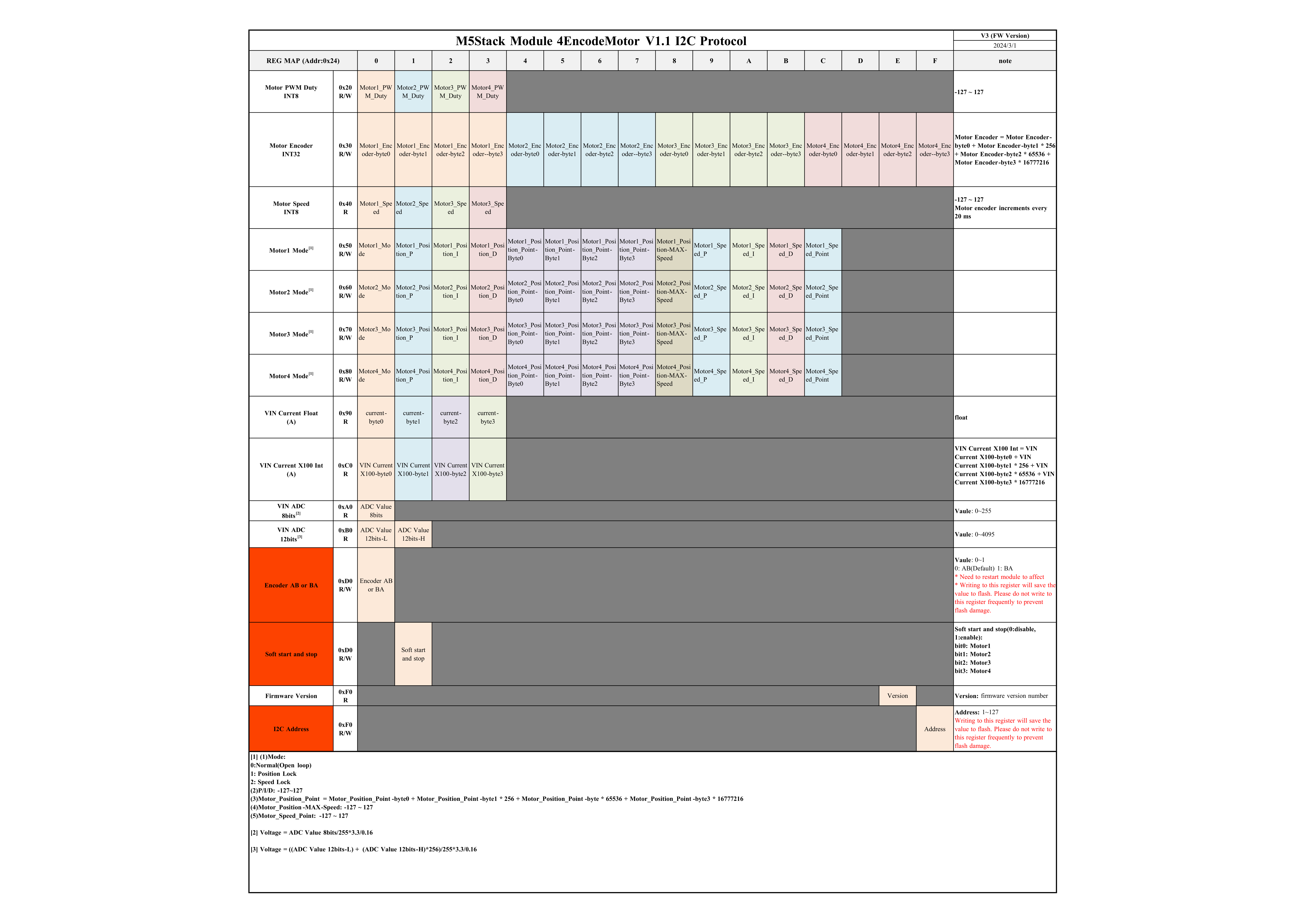

Protocol
UIFlow
Examples
Arduino
- M5Module-4EncoderMotor Library
- M5Module-4EncoderMotor For Basic
- M5Module-4EncoderMotor For Core2
- M5Module-4EncoderMotor For CoreS3
Internal Firmware
Below is the firmware upgrade for the 4EncoderMotor Module.
EasyLoader is a simple and fast program flasher. It comes with a product-related example program that allows you to perform a series of functionality tests after a simple flashing process.
Video
- 4EncoderMotor Module Function Description
FAQ
Question: What is the difference between 4EncoderMotor Module and DCMotor Module (M021)?
| Product | Protocol | Chip | Motor Type | Channel |
|---|---|---|---|---|
| 4EncoderMotor Module | I2C | STM32+BL5617 | DC Motor/Encoder Motor | 4 |
| DC Motor Module（M021） | I2C | MEGA328+L293D | DC Motor/Encoder Motor | 4 |
