RCA Module 13.2

SKU:M125

Description

Module RCA is a composite signal expansion module for audio and video, using the common S-terminal RCA connector, divided into two (left and right channels) audio and one video output. The audio part adopts the I2S power amplifier chip PCM5102APWR scheme, which can realize 32-bit stereo audio signal output; In terms of video, the DAC analog video signal function of the main control ESP32 is applied, which can generate analog video signals with a resolution of no more than 864 x 576 (PAL, PAL_M); The module contains a DC socket and a 9-24V to 5V DCDC circuit to supply power to the whole machine. This product is suitable for audio and video equipment that drives the S-terminal interface.

Features

  • RCA composite video audio output(Left and right channel audio interface)
  • RCA female jack terminals
  • 1 CVBS video output interface (GPIO25&GPIO26 switch between two choices)
  • 3.5mm headphone jack audio output
  • Port C interface
  • PCM5102 audio stereo DAC
  • DC 9-24V to 5V Output (<5V, 3A)

Includes

  • 1x RCA Module

Applications

  • RCA stereo output
  • Composite video and audio output

Specification

Resources Parameters
Audio stereo DAC chip Audio stereo DAC chip
interface RCA female seat
channel 1 CVBS video output interface (GPIO25&GPIO26 switch between two choices)
Output signal Audio and video (3.5mm headphone jack output optional)
DCDC MP1584EN
Audio stereo DAC chip PCM5102APWR
Product Size 54mm × 54mm × 19.7mm(外壳高13.2mm)
Package Size 93mm × 63mm × 25mm
Product Weight 22.5g
Package Weight 41.7g

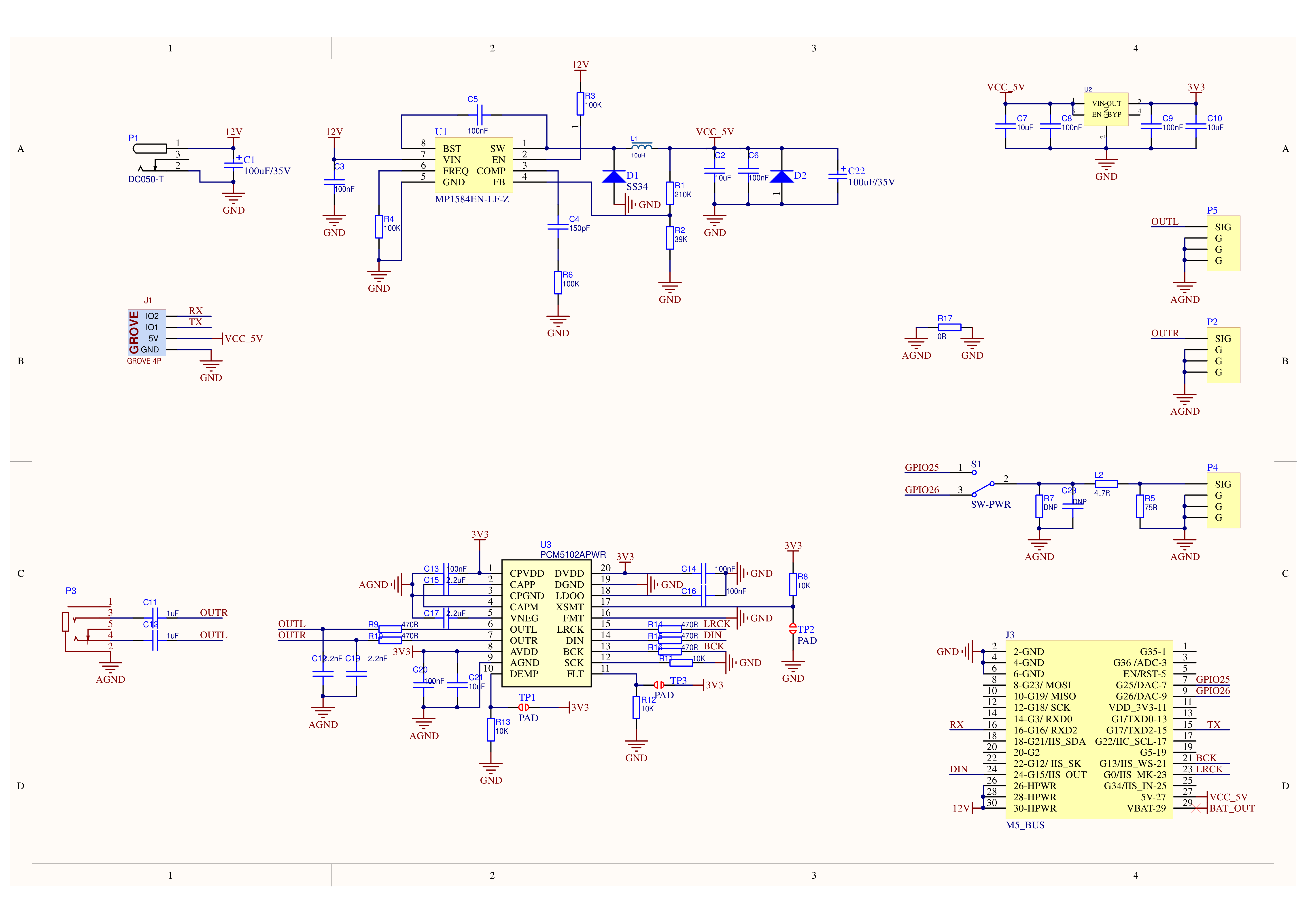

Schematic

schematics

Module Size

module size

Examples

Arduino

UIFlow

This tutorial will show you how to initialize the configuration using the UIFlow2.0 graphical programming platform

RCA Module 13.2 UIFlow Programming Guide
