Module LoRa868

SKU:M029

Description

LoRa868 is a LoRa communication module in the M5Stack stack module series (working frequency is 868MHz). A certain expansion space is reserved on the module, which defeats you for more functional design. For wireless communication or projects with more customized elements, the LoRa868 module will be a suitable choice.

Product Features

  • LoRa Module: Ra-01H
  • Communication Protocol: SPI
  • Universal Perfboard
  • Working Frequency: 803~930 MHz
  • Supports: FSK, GFSK, MSK, GMSK, LoRa™ and OOK modulation modes
  • Receive sensitivity: lowest to -141 dBm
  • Programmable bit rate up to 300Kbps
  • Built-in FPC Antenna
  • External IPX Antenna connector
  • Program platform: Arduino

Include

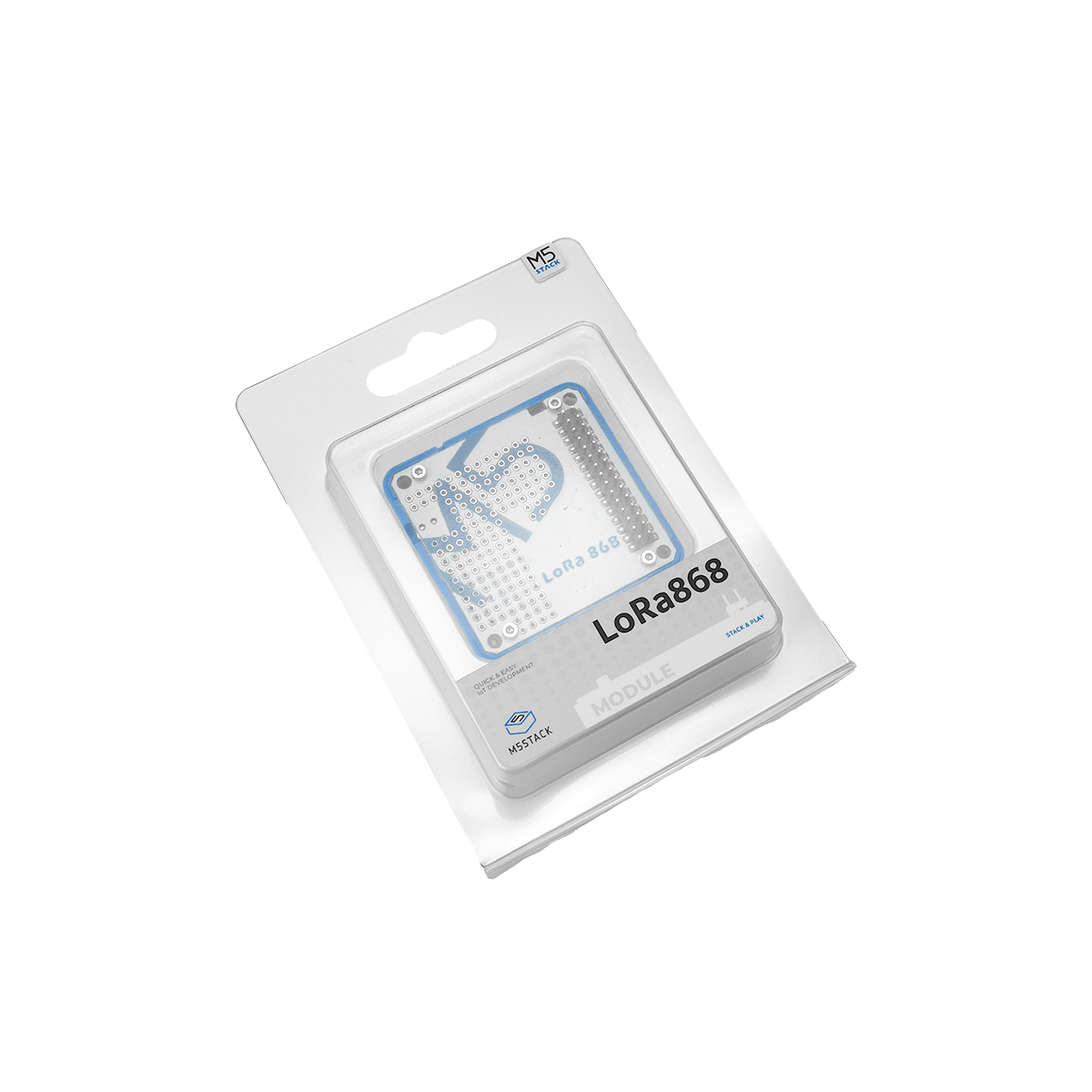

  • 1x M5Stack LoRa868 Module

Applications

  • Remote electricity meter reading
  • Home automation
  • Remote irrigation system

Specification

Resources Parameter
Net weight 14g
Gross weight 24g
Product Size 54.2*54.2*13mm
Package Size 60*57*17mm

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Description:
Two devices will send and receive messages from each other.

MBUS PinMap

Schematic

Example

Arduino IDE

These are the point-to-point communication examples between two LORA868 modules. The LoRa nodes send and receive messages.

  • Blue string indicates sending succeed.

  • Yellow string display the received messages.

  • Red string indicates initialization failed.
