Unit PaHub v2.1 is an I2C multiplexer unit that uses the PCA9548AP chip solution to expand a single I2C interface into six channels. By selecting different channels, it allows multiple devices with the same or different I2C addresses to coexist on the same I2C bus (switching via polling channels). The module is equipped with an onboard DIP switch to easily adjust the I2C address of Unit PaHub v2.1, supporting multi-unit cascading to connect more I2C devices. Compared to its predecessor, it offers greater flexibility and scalability in scenarios where multiple I2C devices are used in parallel. This product is suitable for scenarios where multiple I2C devices are used simultaneously.
Features
I2C HY2.0-4P PORTA expansion
Allows multiple nesting
6 extended Grove ports
DIP switch for I2C address switching
LEGO-compatible holes

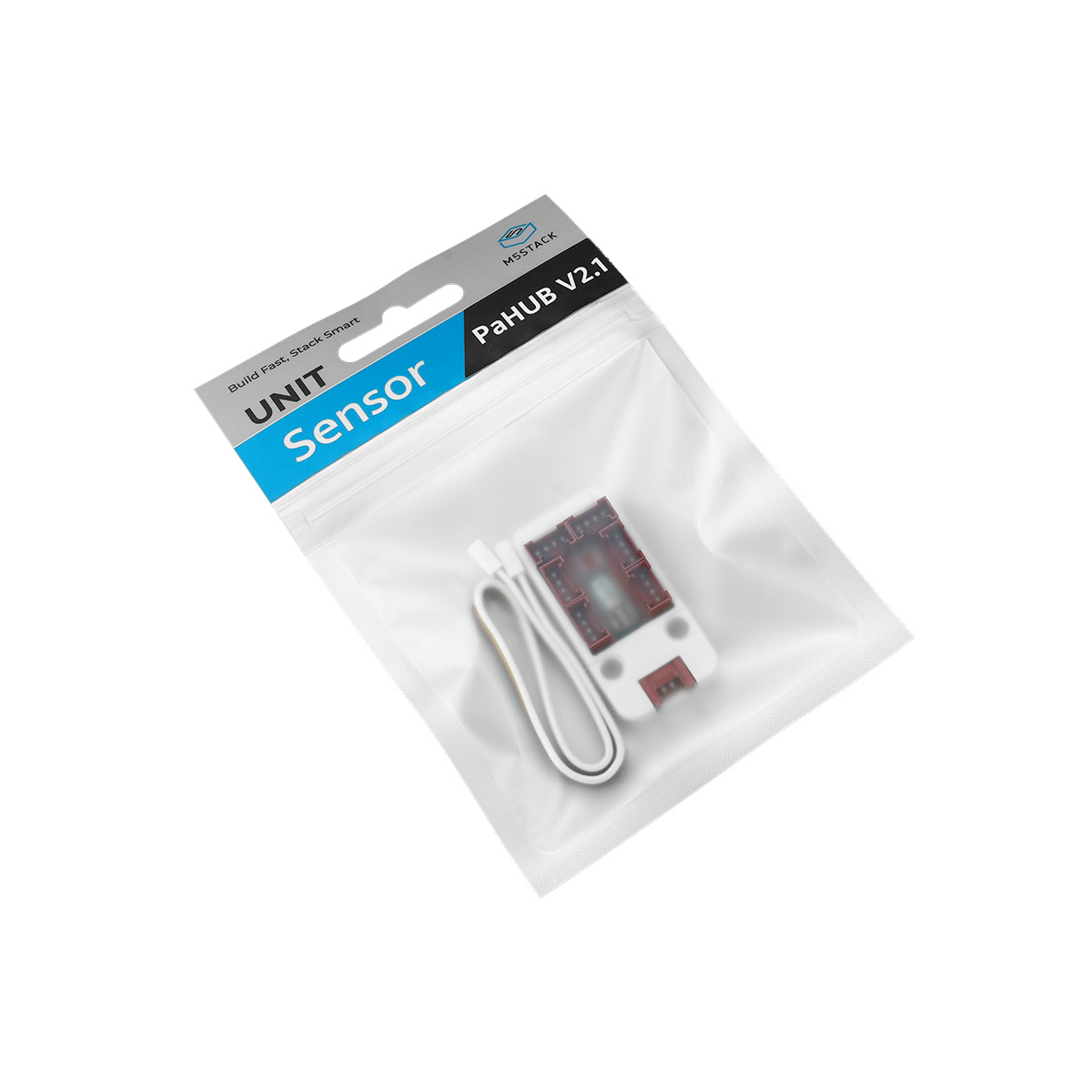

Includes
1 x Unit PaHub v2.1
1 x HY2.0-4P Grove cable (20cm)
Applications
I2C expansion
Specifications
Specification
Parameter
I2C Multiplexer IC
PCA9548AP
Communication Protocol
I2C: 0x70~0x77 (default: 0x70, adjustable via DIP switch)
Operating Temperature
0 ~ 40°C
Product Dimensions
48 x 24 x 12mm
Package Dimensions
136 x 92 x 12mm
Product Weight
7.1g
Gross Weight
12.9g
Learn
Supports modifying the device address via the DIP switch. Users can adjust the I2C address by configuring the corresponding truth table settings.
