Base M5GO BOTTOM
描述
M5GO BOTTOM 是一款 M5Core 增强型通用底座,兼容M5Core各型号主机。相比基础型 Core Bottom 而言,增强型底座配备了更大容量的锂电池(500mAh),内部集成麦克风,LED 灯条,并拓展出两个HY2.0 接口(PROT B/PORT C)等,其背面兼容乐高孔,同时引出pogo pin可用于连接支持的I2C设备(如BALA)或磁吸式充电底座。
产品特性
- 兼容M5Core
- 集成Mic/LED灯条/HY2.0 接口
- 兼容乐高积木
- 可配置磁吸充电底座

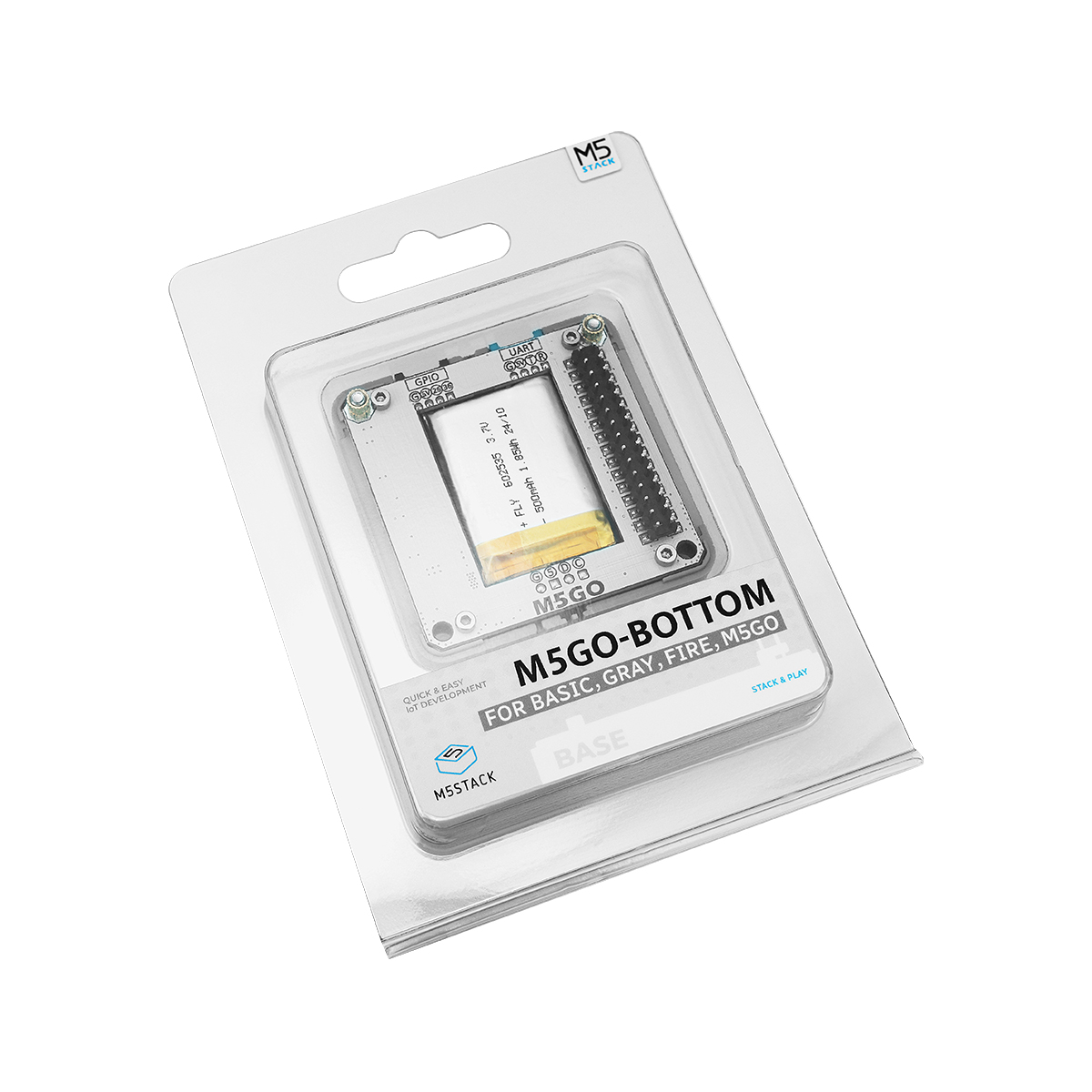

包含
- 1x M5GO BOTTOM
- 2x M3x16 螺丝
规格参数
| 规格 | 参数 |
|---|---|
| 净重 | 31g |
| 毛重 | 49g |
| 产品尺寸 | 54*54*8mm |
| 包装尺寸 | 60*57*17mm |
管脚映射
Pogo Pin
| POGO Pin | ESP32 Chip |
|---|---|
| SCL | GPIO22 |
| SDA | GPIO21 |
LED Bar
M5GO 底座内置 10 个RGB LED
| LED Pin | ESP32 Chip |
|---|---|
| LED Pin | GPIO15 |
MIC
模拟输入麦克风
| MIC Pin | ESP32 Chip |
|---|---|
| MIC Pin | GPIO34 |
GROVE
| PORT B(I/O) | ESP32 Chip |
|---|---|
| G36 | GPIO36 |
| G26 | GPIO26 |
| 5V | 5V |
| GND | GND |
| PORT C(UART2) | ESP32 Chip |
|---|---|
| RXD | GPIO16 |
| TXD | GPIO17 |
| 5V | 5V |
| GND | GND |
M-Bus
