M5StickC

SKU:K016-C

教程&快速上手

选择你想使用的开发平台,查看对应的教程&快速上手。

UIFlow Arduino AWS FreeRTOS

描述

M5StickC 是一款精致小巧的开发板.它作为 M5Stick 的升级版本,提供了更多的拓展接口与按键,拥有出色性能的同时兼具低功耗特性.无论是用作编程学习还是项目开发, M5StickC 都能够提供可靠的硬件支持.

它能做什么? 这个小巧玲珑的开发工具,能够激发你无限的创作可能. M5StickC 能够帮助你快速的搭建物联网产品原型,简化整个的开发过程.即便是刚开始接触编程开发的初学者,也能够搭建出一些有趣的应用,并应用到实际生活中.

M5StickC 是 M5Stack 产品系列中的核心设备之一,该产品系列建立在不断发展的硬件和软件生态系统中.它有着许多兼容的拓展功能模块,丰富开源代码、活跃的论坛社区,这些资源都可以在你的开发过程中为你提供最优服务.

开关机操作:

  • 开机:按复位按键,持续至少 2 秒

  • 关机:按复位按键,持续至少 6 秒

注意:

  • M5StickC 支持的波特率: 1200 ~115200, 250K, 500K, 750K, 1500K

  • VBUS_VIN与VBUS_USB的输入范围限制在4.8-5.5V,VBUS供电时将通过AXP192电源管理为内置电池进行充电。

产品特性

  • 基于 ESP32开发
  • 内置3轴加速计与3轴陀螺仪
  • 内置Red LED
  • 集成红外发射管
  • 内置RTC
  • 集成麦克风
  • 用户按键, LCD(0.96 寸), 电源/复位按键
  • 95 mAh 锂电池
  • 拓展接口
  • 可穿戴 & 可固定
  • 兼容多平台开发:

包含

  • 1x M5StickC
  • 1x Type-C USB(20cm)

应用

  • 可穿戴设备
  • 物联网控制器
  • STEM教育
  • DIY作品
  • 智能家居设备

常见驱动问题

UnitV/M5StickV/M5StickC/ATOM主控在部分系统中,可能无法免驱工作,用户可以通过手动安装 FTDI驱动 修复该问题。以win10环境为例,下载匹配操作系统的驱动文件,并解压,通过设备管理器进行安装。(注:某些系统环境下,需要安装两次,驱动才会生效,未识别的设备名通常为M5StackUSB Serial, Windows推荐使用驱动文件在设备管理器直接进行安装(自定义更新),可执行文件安装方式可能无法正常工作)。

规格参数

主控资源 参数
ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi, dual mode Bluetooth
Flash闪存 4MB Flash
输入电压 5V @ 500mA
接口 TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD屏幕 0.96 inch, 80*160 Colorful TFT LCD, ST7735SV
麦克风 SPM1423
按键 自定义按键 x 2
LED 红色 LED x 1
RTC BM8563
PMU AXP192
IR Infrared transmission
MEMS MPU6886
天线 2.4G 3D天线
PIN接口 G0, G26, G36
电池 95 mAh @ 3.7V, inside vb
工作温度 0°C to 60°C
净重 15.1g
毛重 33g
产品尺寸 48.2*25.5*13.7mm
包装尺寸 55*55*20mm
外壳材质 Plastic ( PC )

EasyLoader

EasyLoader是一个简洁快速的程序烧录器,其内置了一个产品相关的案例程序,通过简单步骤将其烧录至主控,即可进行一系列的功能验证.

Download Windows Version Easyloader Download MacOS Version Easyloader

案例描述:
加速计,麦克风,LED,IR,RTC,蓝牙等硬件测试,单击A键或B键可切换测试项.

管脚映射

电源结构框图

红色 LED & 红外发射管 IR & 按键 BUTTON A & 按键 BUTTON B

ESP32 芯片GPIO10GPIO9GPIO37GPIO39
红色 LEDLED 管脚
红外发射管 IR 发射管引脚
按键 BUTTON A 按键管脚
按键 BUTTON B 按键管脚

彩色TFT屏幕

驱动芯片:ST7735S

分辨率:80 * 160

ESP32 芯片GPIO15GPIO13GPIO23GPIO18GPIO5
TFT 屏幕TFT_MOSITFT_CLKTFT_DCTFT_RSTTFT_CS

GROVE 接口

ESP32 芯片GPIO33GPIO325VGND
GROVE 接口SCLSDA5VGND

麦克风 MIC (SPM1423)

ESP32 芯片GPIO0GPIO34
麦克风 MICSCLSDA

六轴IMU (SH200Q/MPU6886) & 电源管理芯片 (AXP192)

ESP32 芯片GPIO22GPIO21
六轴姿态传感器SCLSDA
电源管理芯片SCLSDA

电源管理芯片 (AXP192)

MicrophoneRTCTFT backlightTFT ICESP32/3.3V MPU6886/SH200Q5V GROVE
LDOio0LDO1LDO2LDO3DC-DC1IPSOUT

充电电流测量值

充电电流充满后电流(关机)充满电(开机)
0.488A0.066A0.181A

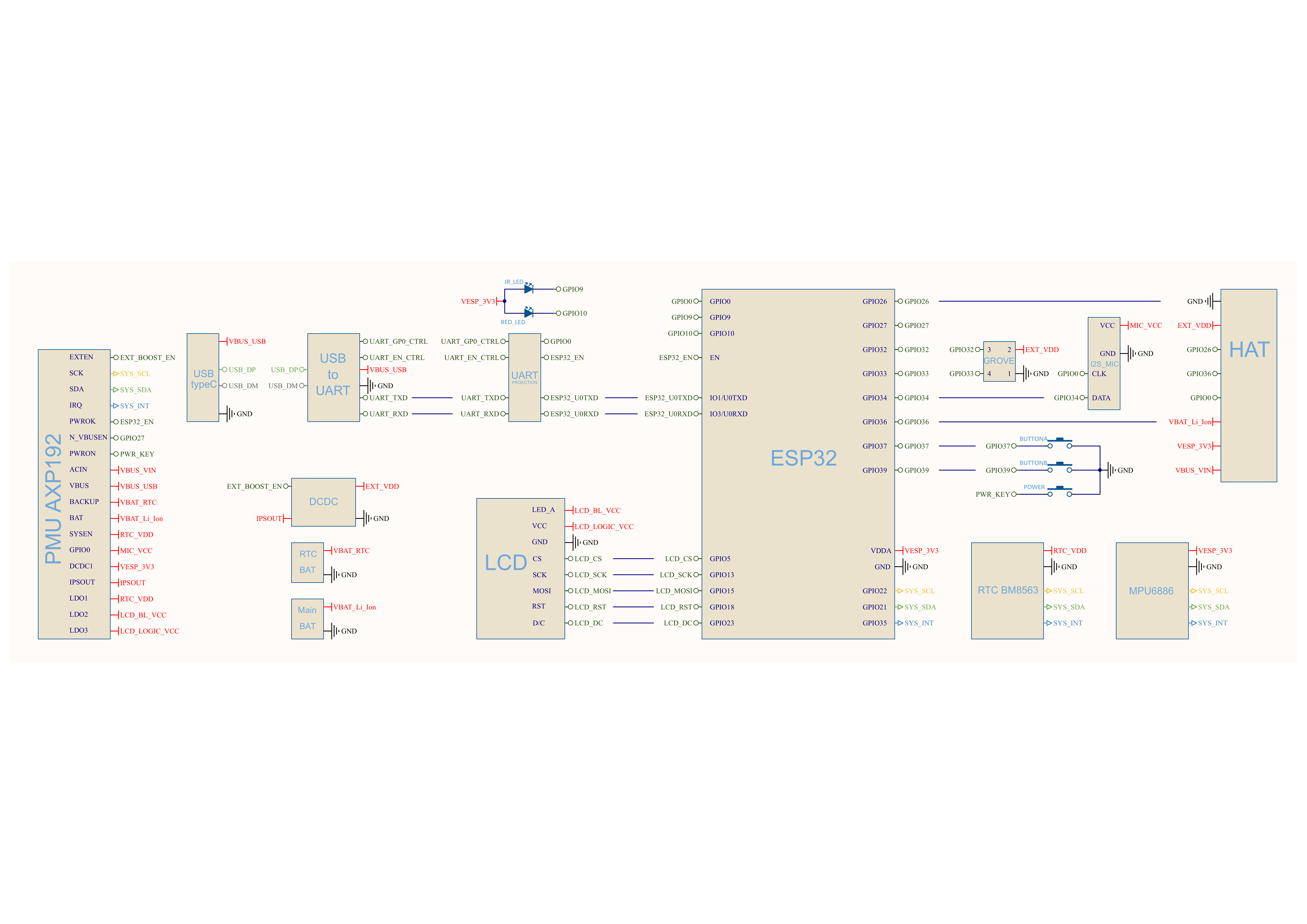

原理图
