PIR

SKU:U004

描述

PIR 是一款人体红外 Unit.它属于"被动式热释电红外探测器",通过检测由人体或物体发射、反射的红外辐射进行判断工作.当检测到红外时、输出高电平,并进行一段时间的延时(期间保持高电平且允许重复触发),直至触发信号消失(恢复低电平).

该 Unit 通过PORT B与M5Core进行通信.

注意: 检测触发后存在2秒延时.

产品特性

  • 检测距离: 500cm
  • 延时时间: 2s
  • 感应范围: < 100°
  • 静态电流: < 60uA
  • 工作温度: -20 - 80 °C
  • HY2.0-4P 接口, 支持 UIFlow Arduino .
  • 2x LEGO 兼容孔

包含

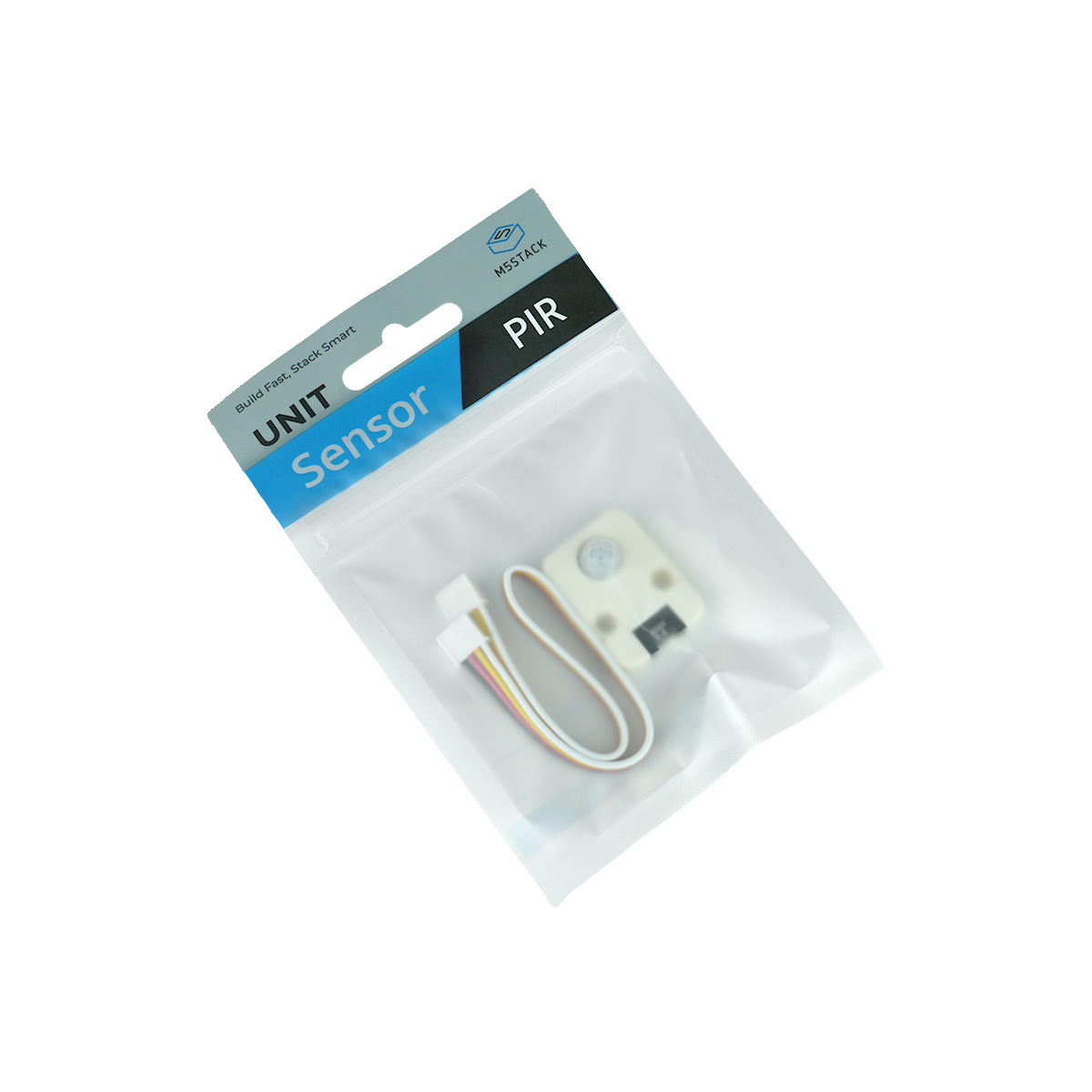

  • 1x PIR Unit
  • 1x HY2.0-4P线缆

规格参数

规格 参数

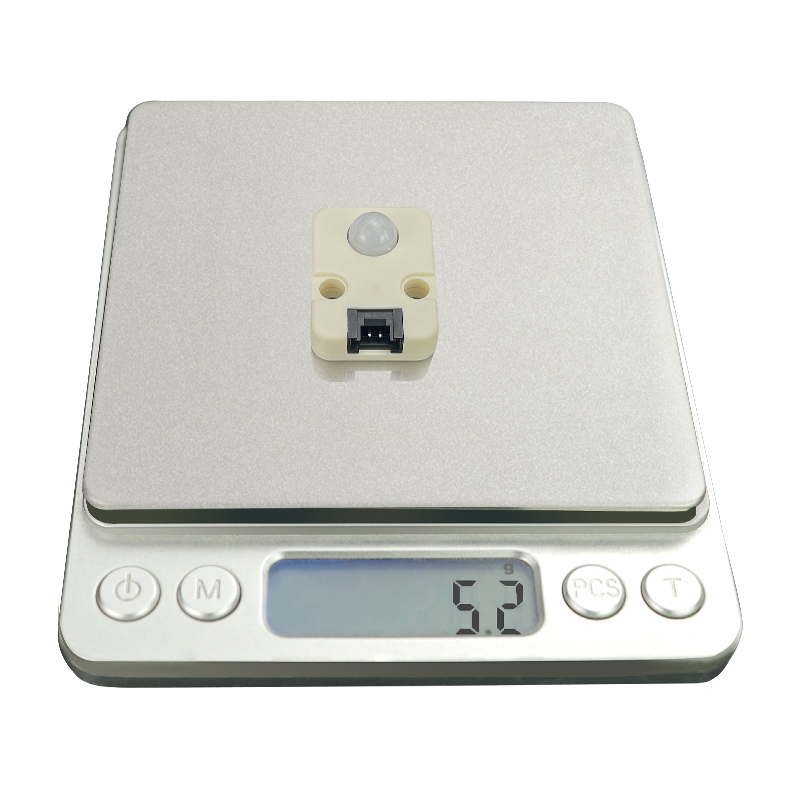

净重 5g
毛重 20g
产品尺寸 32*24*12mm
包装尺寸 60*57*17mm

应用

  • 人体感应灯具
  • 安防产品
  • 自动感应电器设置

EasyLoader

EasyLoader是一个简洁快速的程序烧录器,其内置了一个产品相关的案例程序,通过简单步骤将其烧录至主控,即可进行一系列的功能验证.

Download Windows Version Easyloader Download MacOS Version Easyloader

案例描述:
IR发送信号同时如果接受到遥控器信号屏幕显示detected.

项目案例

M5Stack COM. LoRaWAN Using Arduino IDE
M5Stack recently released an updated LoRaWAN module. This tutorial teaches you how to connect it to The Things Network using Arduino IDE.
M5Stack Christmas Santa detector
Do you want to know when Santa Claus arrives without scaring the reindeer? It also works with the Wise Men!
M5 Mini Hackathon
A inner maker competition of M5Stack.
Simple Watch Device
Make a simple watch device using UIFlow.
M5Stack Based Anti-COVID Security Gate (Proof of Concept)
Gate/door fingerprint security system with body temperature checks for the anti-COVID measure.
Portable Automatic Faucets Using M5StickC for COVID-19
Using the M5StickC, we developed a product that allows you to wash your hands without touching the device.
3 in 1 Sanitiser Dispenser
We have devised with an innovation that dispenses hand sanitiser, measures the temperature of user, shows the count of people in vicinity.
Hand Hygienics
Hand Hygienics aims to reduce spread of Covid-19 through contact.
SEAM [Safe-Entry Access Machine]
An automatic system to perform the tasks of Safe Entry. It consist an adjustable Thermometer, RFID / QR Code Check in and Counting.

案例程序

Arduino

UIFlow

请点击此处

功能说明

检测人体或动物发出的红外线信号返回真

使用方法

检查是否有人靠近,有人靠近亮红灯

原理图

管脚映射

M5Core(PORT B)GPIO36GPIO265VGND
PIR UnitSensor Pin/5VGND
