AtomS3R

SKU:C126

Description

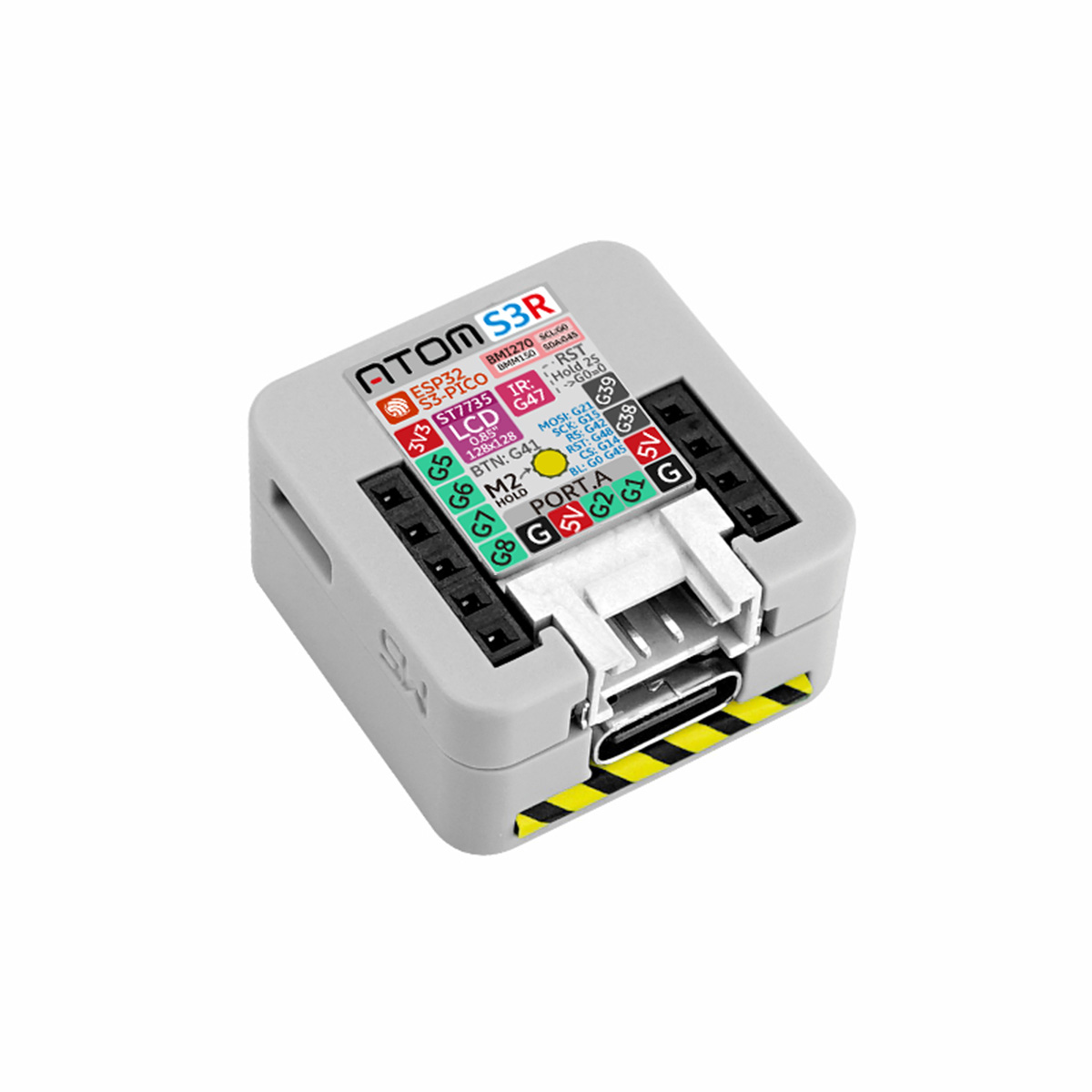

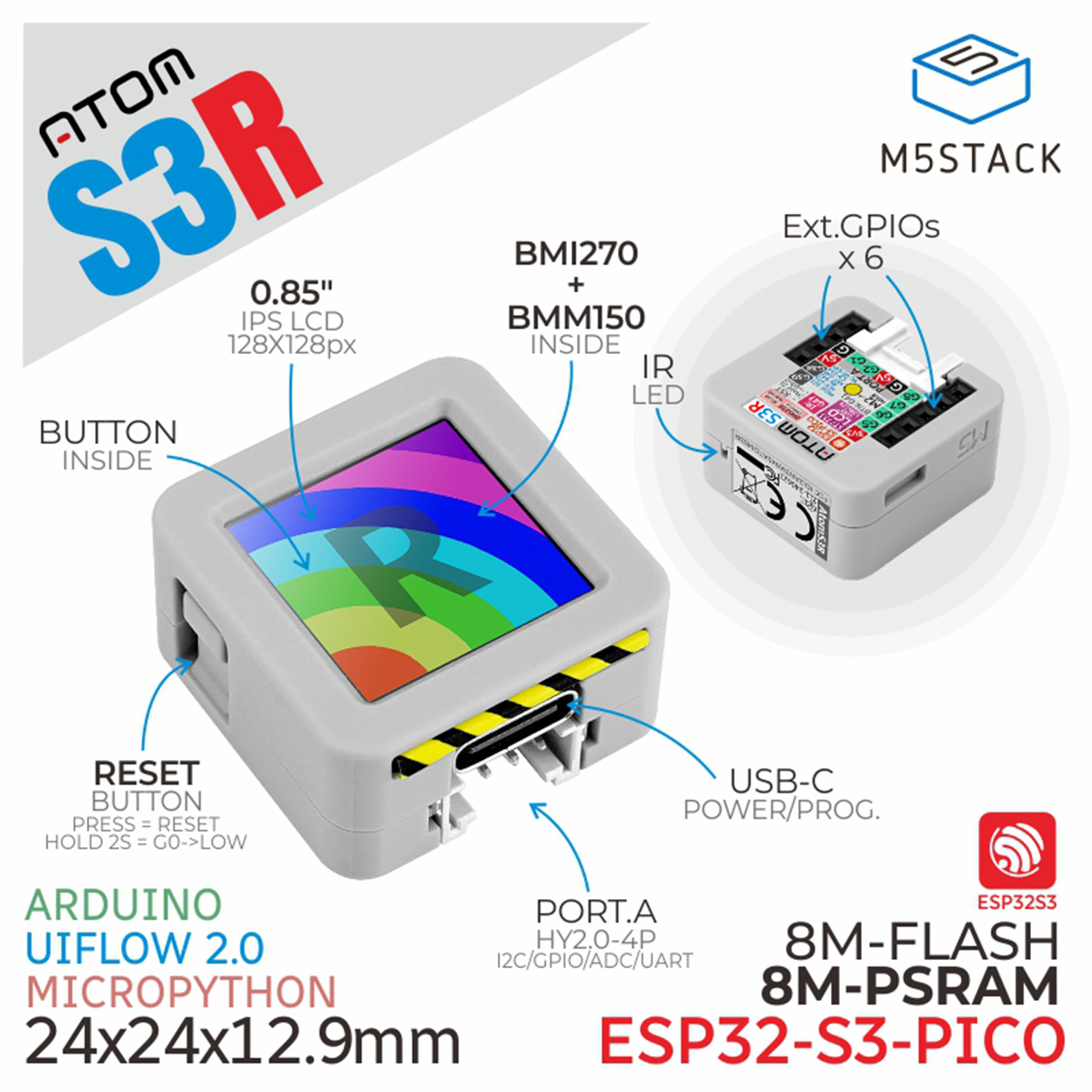

AtomS3R is a highly integrated IoT programmable controller based on the ESP32-S3 main control. It integrates the ESP32-S3-PICO-1-N8R8 main control, with built-in Wi-Fi functionality, 8 MB on-chip Flash, and 8 MB PSRAM; equipped with a 0.85-inch color IPS screen, with a programmable button below the screen; includes a 5V to 3.3V circuit; built-in three-axis BMM150 geomagnetic sensor and six-axis BMI270 attitude sensor; features a USB Type-C interface for power supply and firmware download; includes a HY2.0-4P expansion port; has six GPIO and power pins at the bottom for expansion. Compared to previous products, the 3D antenna of AtomS3R has been enhanced, providing better performance and higher stability. The product dimensions are only 24.0 x 24.0 x 12.9mm, suitable for various embedded smart device applications.

Tutorial

Arduino IDE

This tutorial will introduce you to programming and controlling the AtomS3R device using the Arduino IDE

UiFlow2

This tutorial will introduce you to how to control the AtomS3R device using the UiFlow2 graphical programming platform

Features

Integrated ESP32-S3-PICO-1-N8R8 main control
Nine-axis sensor system (BMI270 six-axis + BMM150 three-axis geomagnetic sensor)
8MB Flash and 8MB PSRAM
Supports infrared emission control function
Programmable button
0.85-inch LCD screen
Expandable pins and interfaces
Development Platform
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO

Learn

BMM150 Magnetic Field Interference

Products with magnets may interfere with the BMM150 magnetic field sensor, causing abnormal readings. When used with an M5 master control device containing a magnet, the magnet needs to be removed, and at the same time, the BMM150 sensor should be kept away from strong magnetic fields.

Includes

1 x AtomS3R

Applications

Motion detection and orientation awareness
Smart device control
IoT applications

Specifications

Specification	Parameter
SoC	ESP32-S3-PICO-1-N8R8 @Dual-core Xtensa LX7 processor, up to 240MHz @USB-OTG
PSRAM	8M PSRAM
Flash	8M Flash
TFT Driver	GC9107
Color IPS Resolution	128 x 128
Six-axis Attitude Sensor (BMI270)	Accuracy: 0.05% (Acceleration), 0.05°/s (Angular velocity) I2C Address: 0x68
Three-axis Geomagnetic Sensor (BMM150)	Accuracy: 0.3 μT Mounted on BMI270, magnetometer data obtained through BMI270
Infrared IR	Infrared emission distance: 12.46m at ∠180° (In the absence of obstruction)
Sleep Current	GPIO-5V Power: DC 5V@11.63 uA Grove-5V Power: DC 5V@10.75 uA USB-5V Power: DC 5V@92.50 uA (including PD resistor loss)

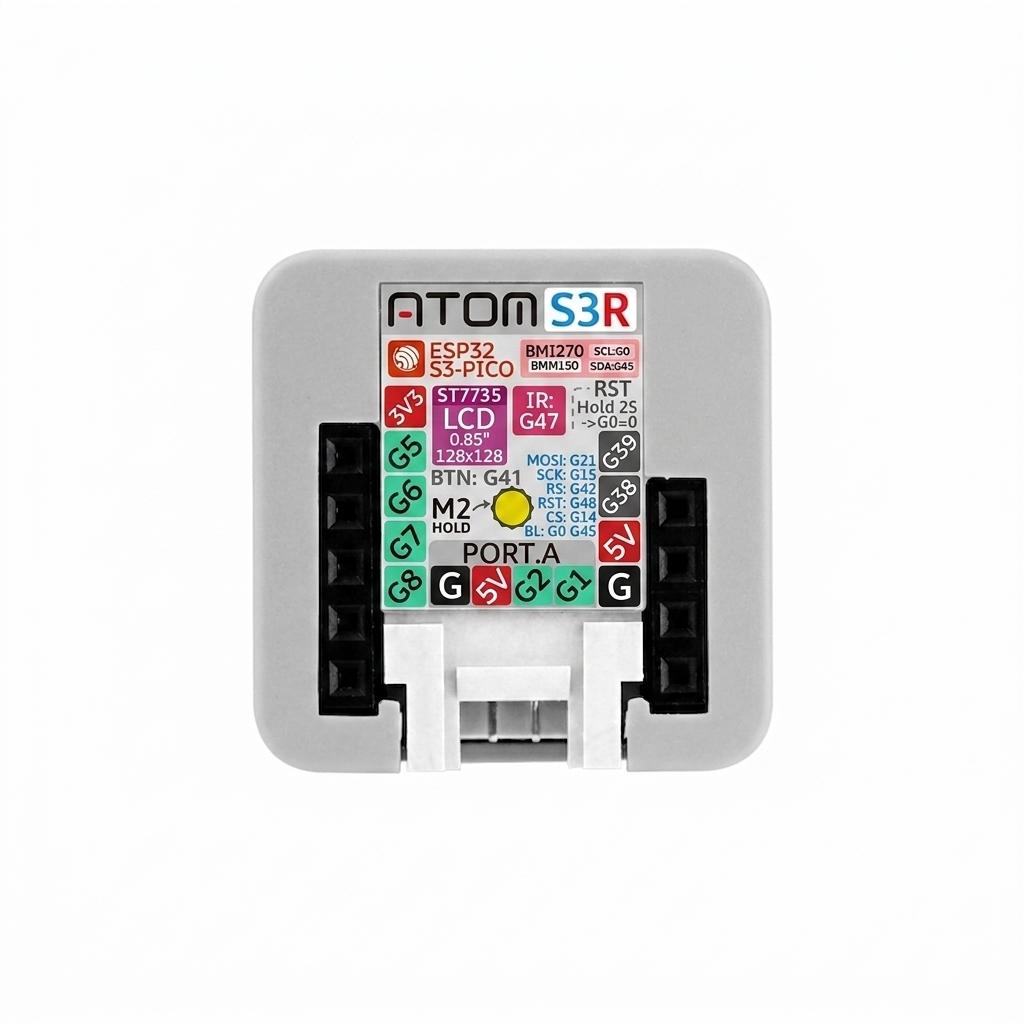

Reserved GPIO at Bottom	G5/G6/G7/G8/G38/G39
Operating Temperature	0 ~ 40°C
Product Size	24.0 x 24.0 x 12.9mm

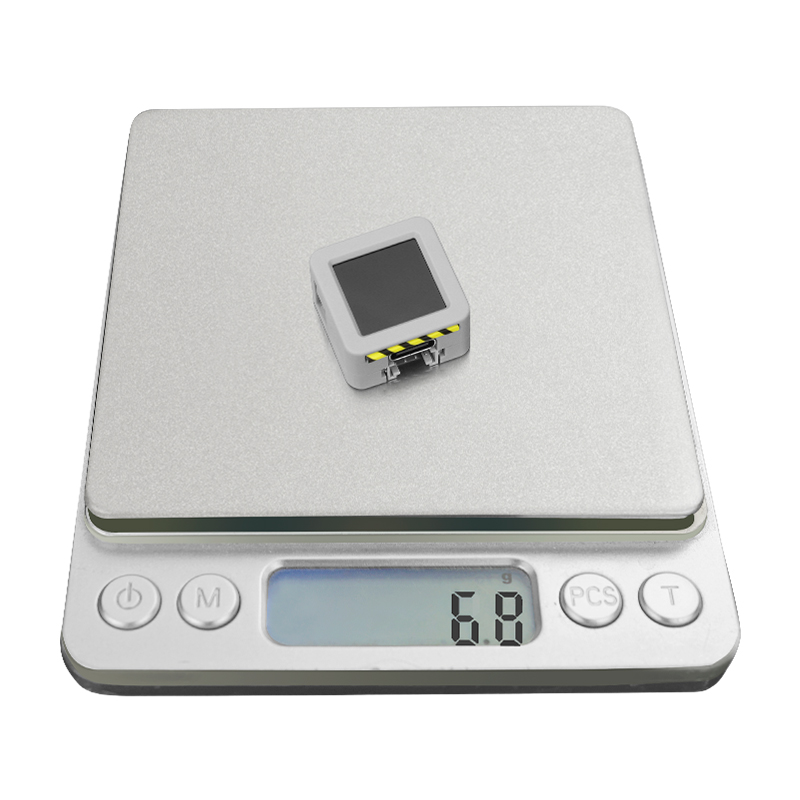

Product Weight	6.6g
Package Size	85.0 x 65.0 x 15.5mm
Gross Weight	12.5g

Learn

Download Mode

To flash firmware, press and hold the reset button (about 2 seconds) until the internal green LED lights up, then release. The device is now in download mode, ready for flashing.

Note

When controlling the LCD backlight, it is recommended to use a PWM frequency of 500Hz.

Schematics

AtomS3R Schematic PDF

1/1

PinMap

RGB & BMI270 & IR & BUTTON

ESP32-S3-PICO-1-N8R8	G0	G45	G47	G41
LP5562 (RGB Control Chip)	SYS_SCL	SYS_SDA
BMI270	SYS_SCL	SYS_SDA
IR			IR_LED_DRV
BUTTON				USER_BUT

BMM150

BMI270	BMI270_ASDx	BMI270_ASCx
BMM150	A_SDA	A_SCL

BMM150 Mounted on BMI270

Integrating BMM150 via BMI270’s Sensor Hub auxiliary I2C interface for unified 9‑axis sensor data collection

SCREEN

ESP32-S3-PICO-1-N8R8	LP5562_W	G48	G42	G21	G15	G14
0.85 Inch IPS	LCD_BL	DISP_RST	DISP_RS	SPI_MOSI	SPI_SCK	DISP_CS

HY2.0-4P

HY2.0-4P	Black	Red	Yellow	White
PORT.CUSTOM	GND	5V	G2	G1

Model Size

Datasheets

Softwares

Arduino

AtomS3R Arduino Library

UiFlow2

AtomS3R UiFlow2 Quickstart

PlatformIO

[env:m5stack-atoms3r]
platform = espressif32@6.3.2
board = esp32-s3-devkitc-1
framework = arduino
board_build.arduino.memory_type = qio_opi
build_flags =
    -DESP32S3
    -DBOARD_HAS_PSRAM
    -mfix-esp32-psram-cache-issue
    -DCORE_DEBUG_LEVEL=5
    -DARDUINO_USB_CDC_ON_BOOT=1
    -DARDUINO_USB_MODE=1
lib_deps =
    M5Unified=https://github.com/m5stack/M5Unified

ESP-IDF

AtomS3R Factory Firmware

Easyloader

Easyloader	Download Link	Note
AtomS3R User Demo Easyloader	download	/

Video

AtomS3R Product Introduction and Case Demonstration

Product Comparison

Product Compare	AtomS3R	AtomS3
SoC	ESP32-S3-PICO-1-N8R8	ESP32-S3FN8
Memory	8M Flash + 8M PSRAM	8M Flash
Sensor	BMI270 + BMM150	MPU6886
Antenna	Enhanced 3D Antenna	Standard 3D Antenna
