Module Fan v1.1
SKU:M013-V11
Description
Module Fan v1.1 is a cooling module designed for the M5Stack stacking system. It features an STM32 microcontroller and uses the I2C protocol for control. It supports reading and controlling the fan speed and includes a stall protection function. This module is primarily used for cooling in stacking systems, effectively improving the system's thermal performance. It is suitable for embedded devices, smart hardware, and other applications requiring thermal management.
Features
- M5Stack stacking system
- STM32 microcontroller
- I2C protocol control
- Fan speed reading and control
- Stall protection function
- Development platforms
- UiFlow1
- UiFlow2
- Arduino IDE
Includes
- 1 x Module Fan v1.1
Applications
- Cooling for M5Stack devices
Specifications

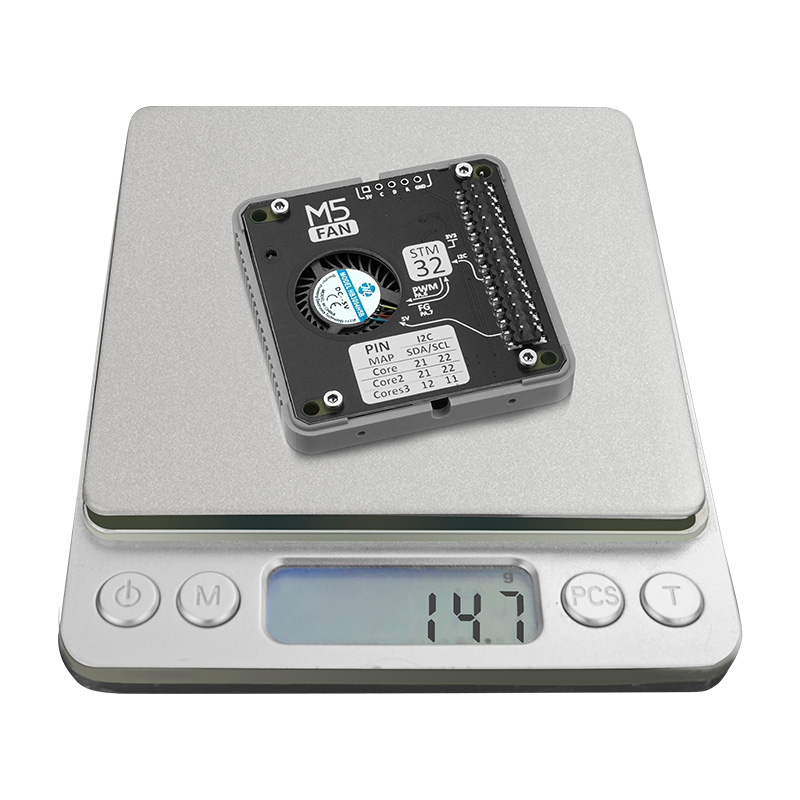

| Specification | Parameters |
|---|---|
| MCU | STM32F030F4P6 |
| Communication | I2C(0x18) |
| Operating Voltage | 5V |
| Noise Test (Ambient Noise 40.8dB) | PWM20%:48.6dB PWM60%:64.5dB PWM100%:70.6dB |
| Operating Power | PWM20%:DC 5V@13.52mA PWM60%:DC 5V@56.19mA PWM100%:DC 5V@125.14mA |
| Standby Power | DC 5V@503.49uA |
| Fan Speed | 11500RPM±10% |
| Maximum Airflow | 1.23 CFM |
| Fan Speed Control | Supports reading fan speed and PWM speed control |
| Stall Protection | Supports stall protection function |
| Operating Temperature | 0-40°C |
| Product Size | 54.0 x 54.0 x 13.1mm |
| Product Weight | 14.9g |
| Package Size | 95 x 184 x 15.7mm |
| Package Weight | 27.9g |
Learn
Stall Protection Note
If the fan is stalled due to foreign objects, it will automatically resume operation after the obstruction is removed. However, prolonged stalling may damage the fan or even cause it to burn out. Therefore, please promptly clear any blockages and ensure the fan operates normally.
Cooling Module Installation
The air intake of Module Fan v1.1 is located at the bottom of the module. For optimal cooling performance, it is recommended to stack it on top of the module that requires cooling, as shown in the image below.
Schematics
1/1
PinMap
Fan
| Fan | VCC | GND | FG_OUT | PWM |
|---|---|---|---|---|
| Color | Red | Black | Yellow | Blue |
FG_OUT is the fan speed waveform output pin, and PWM is the fan speed control pin.
STM32
| STM32F030F4P6 | PA6 | PA7 | PA9 | PA10 |
|---|---|---|---|---|
| Fan | FanCtr | FG_OUT | SCL | SDA |
M5-Bus
| PIN | LEFT | RIGHT | PIN |
|---|---|---|---|
| GND | 1 | 2 | |
| GND | 3 | 4 | |
| GND | 5 | 6 | |
| 7 | 8 | ||
| 9 | 10 | ||
| 11 | 12 | 3V3 | |
| 13 | 14 | ||
| 15 | 16 | ||
| SDA | 17 | 18 | SCL |
| 19 | 20 | ||
| 21 | 22 | IR | |
| 23 | 24 | ||
| HPWR | 25 | 26 | |
| HPWR | 27 | 28 | 5V |
| HPWR | 29 | 30 |
Model Size
Datasheets
Softwares
Arduino
UiFlow1
- Coming soon...
UiFlow2
Internal Firmware
Protocol
Video
- Module Fan v1.1 Product Introduction and Case Demonstration
Product Comparison
| Product Comparison | Module Fan v1.1 | Module Fan  |
|---|---|---|
| Communication | I2C (0x18) | / |
| Speed | 11500RPM ±10% | 7500RPM ±10% |
| Speed Control | Supported (via I2C protocol) | Not Supported |
