Module GPS v2.0
SKU: M003-V2
Description
Module GPS v2.0 is a high-performance GNSS global positioning module, integrating the high-performance AT6668 chip, providing accurate and reliable satellite positioning services. The module supports multi-frequency and multi-mode GNSS signal reception, compatible with multiple satellite navigation systems, including GPS, BD2, BD3, GLONASS, GALILEO, and QZSS, enabling high-precision, multi-system joint positioning or single-system independent positioning, with excellent anti-interference capabilities. In areas with weak signals, it can quickly obtain higher-precision location information.
The module comes with a default SMA antenna. Additionally, the module is equipped with a DIP switch, allowing users to flexibly switch TX/RX communication pins and perform precise timing settings through PPS signal output. The module supports multiple stacking uses, providing more customization possibilities and flexibility, suitable for high-precision positioning applications such as vehicle positioning and navigation, IoT positioning devices, remote monitoring, smart cities, home and industrial automation.
Features
- Supports multiple satellite navigation systems (GPS/QZSS/BD2/BD3/GAL/GLO)
- Multi-frequency and multi-system reception
- Multi-channel
- Low power consumption
- Precise timing support
- Module stacking support
- Development platforms:
- UiFlow1
- UiFlow2
- Arduino IDE
Includes
- 1 x Module GPS v2.0
- 1 x External active GPS/BD antenna (length: 1 m)
Applications
- Vehicle positioning and navigation
- IoT positioning devices
- Industrial automation and robot positioning
- High-precision surveying and geographic information systems
Specifications

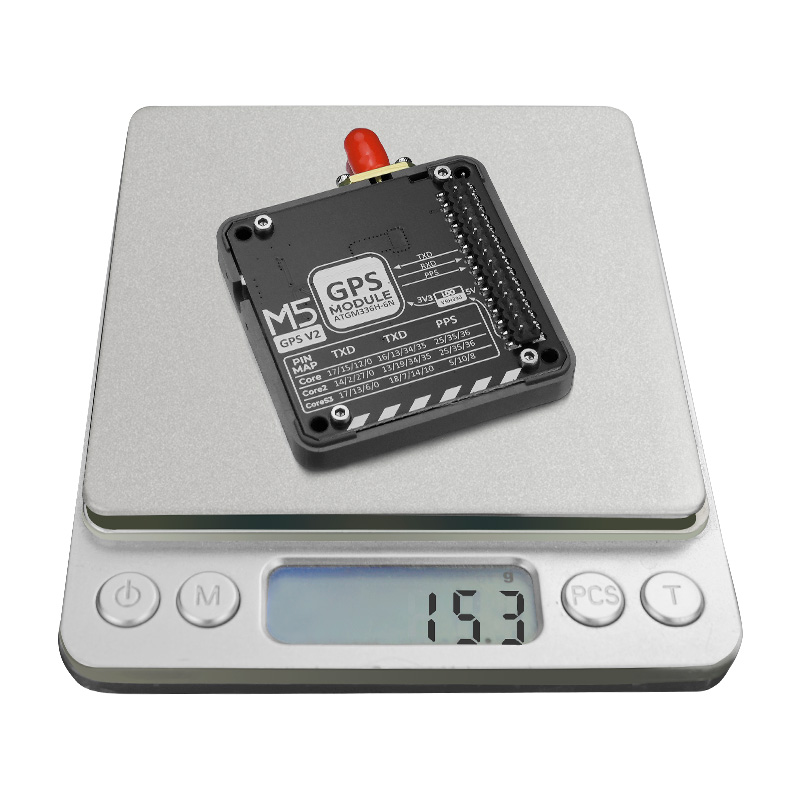

| Specification | Parameters |
|---|---|
| SoC | AT6668 |
| Supported Satellite Systems | GPS/QZSS/BD2/BD3/GAL/GLO Frequencies: BDS: B1I+B1C GPS/QZSS/SBAS: L1 GALILEO: E1 GLONASS: R1 |
| Channels | 50 channels |
| Positioning Accuracy | <1.5m (CEP50) |
| Positioning Update Rate | Up to 10Hz |
| Protocol | NMEA0183 4.1 |
| Sensitivity | Tracking: -162dBm, Acquisition: -160dBm, Cold Start: -148dBm |
| Start Time | Cold Start: 23 seconds, Hot Start: 1 second |
| Power Consumption | Standby Current: DC5V/42.78uA, Operating Current: DC5V/41.96mA |
| Product Dimensions | 54.0 x 54.0 x 13.1mm |
| Product Weight | 51.9g |
| Package Dimensions | 126.0 x 68.0 x 22.0mm |
| Package Weight | 77.7g |
Schematics

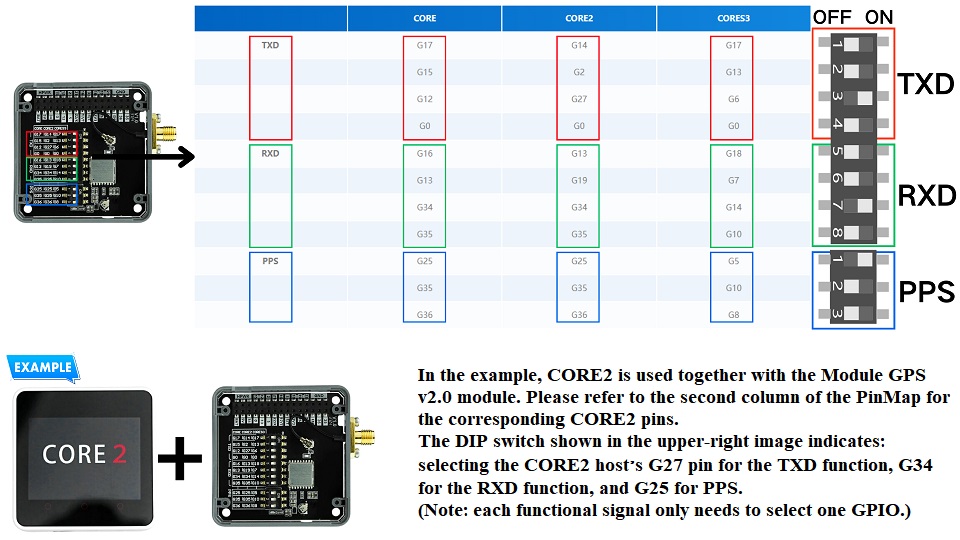

PinMap
| CORE | CORE2 | CORES3 | |
|---|---|---|---|
| TXD | G17 | G14 | G17 |
| G15 | G2 | G13 | |
| G12 | G27 | G6 | |
| G0 | G0 | G0 | |
| RXD | G16 | G13 | G18 |
| G13 | G19 | G7 | |
| G34 | G34 | G14 | |
| G35 | G35 | G10 | |
| PPS | G25 | G25 | G5 |
| G35 | G35 | G10 | |
| G36 | G36 | G8 |
Basic host, the G12 pin acts as a Strapping pin during startup and must be set to low. It cannot be switched to the ON position, otherwise, the device will not boot properly. After the device has booted, it can be configured normally and switched to the ON position. The G25 pin serves as a PPS output function, while the speaker uses it as an input function, causing a conflict. Only one function can be used at a time.When used with
Core2, the G2 pin is multiplexed with the speaker pin, and only one function can be used at a time.Model Size
Datasheets
Softwares
Quick Start
Arduino
UiFlow1
Coming soon
UiFlow2
Coming soon
Video
- Module GPS v2.0 Product Introduction and Case Demonstration
Product Comparison
| Product Comparison |
Module GPS v2.0
|
Module GPS
 |
|---|---|---|
| GPS Module | AT6668 | NEO-M8N |
| Supported Satellites | BD2/BD3/GPS/GLONASS/GALILEO/QZSS | GPS, Galileo, GLONASS, BeiDou |
| Positioning Accuracy | 1.5m | 2.5m |
| Sensitivity | Tracking: -162dBm, Acquisition: -160dBm, Cold Start: -148dBm | Tracking: -167dBm, Acquisition: -160dBm, Cold Start: -148dBm |
| DIP Switch Pin Switching | Includes DIP switch for pin switching, increasing compatibility | Fixed pins, no DIP switch for pin switching |
