Unit-ToF4M

SKU:U172

Description

ToF4M Unit is a high-precision distance sensor module that utilizes the VL53L1CXV0FY/1 sensor and employs Time-of-Flight (ToF) technology. It is capable of measuring object height, detecting object presence, and tracking object movement within a range of 4mm to 4000mm. It finds applications in robotics, autonomous vehicles, drones, security systems, and more.

ToF4M Unit offers exceptional accuracy, with measurements as precise as 0.1mm. This level of accuracy enables it to detect even the smallest distance variations and capture surface details of objects. With its fast response time, ToF4M Unit can perform measurements within milliseconds. This real-time feedback of distance information makes it suitable for scenarios that require quick responsiveness.

ToF4M Unit communicates using the I2C protocol, providing advantages such as simplified connectivity, support for multi-master and multi-slave topologies, and high reliability. It can be easily integrated with existing sensor buses, effectively saving IO resources. The module features a standard Grove interface, ensuring reliable and stable signal transmission. When used with the M5Stack hardware ecosystem, it supports plug-and-play functionality, enabling rapid project development.

Features

  • High accuracy: ToF4M Unit has a very high accuracy, up to 0.1 mm. The measuring distance is about 4 meters.
  • Fast response time: ToF4M Unit has a fast response time and is able to complete a measurement in milliseconds.
  • Multi-field applications: robots, autonomous vehicles, drones, security and other fields. Tasks such as measuring the height, presence, and movement of objects demonstrate its versatility.
  • Programming platform: Arduino, UIFlow, etc.

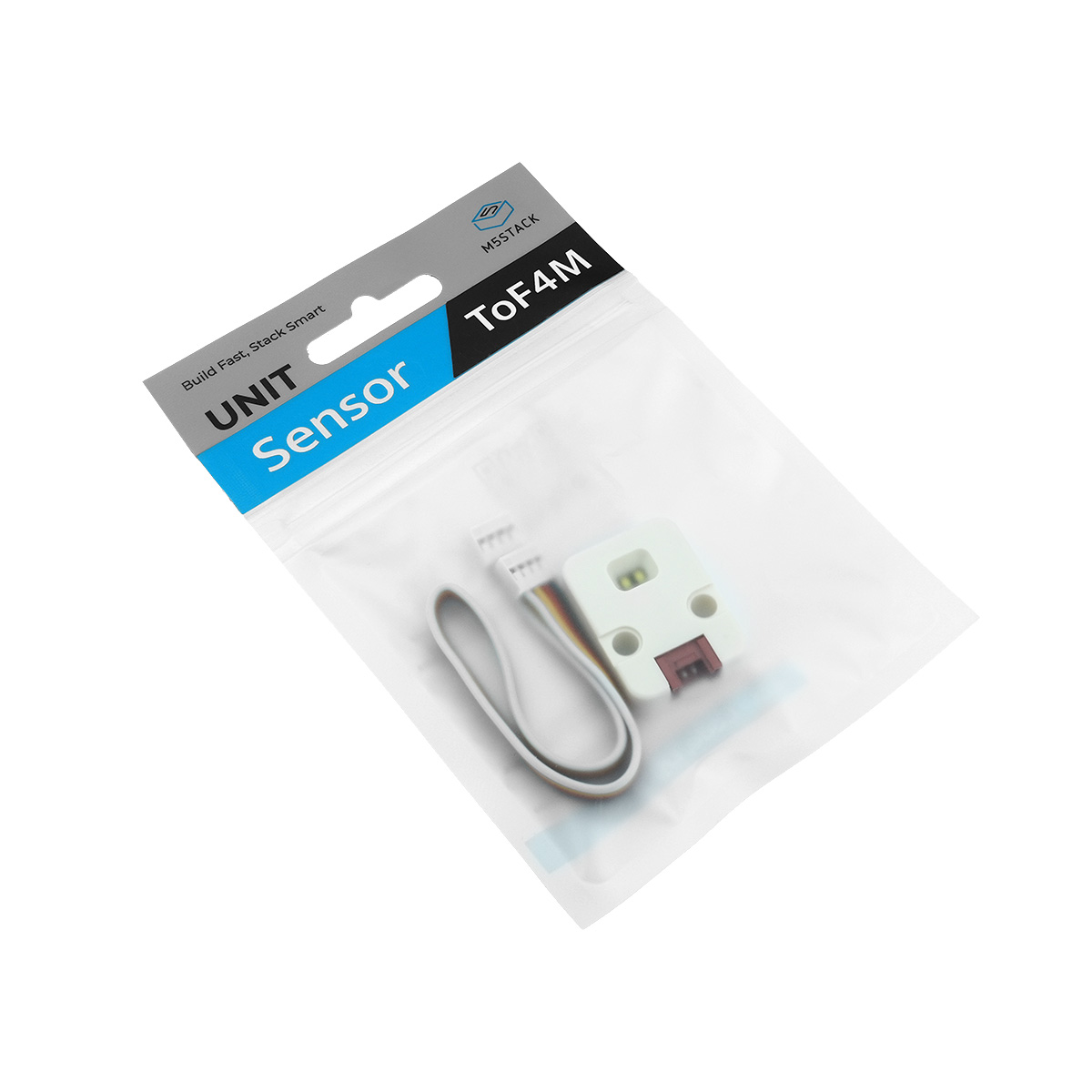

Includes

  • 1x ToF4M Unit
  • 1x HY2.0-4P Cable(20cm)

Applications

  • robots
  • automatic pilot
  • drone
  • construction of security

Specification

Resources Parameters
Sensor VL53L1CXV0FY/1
Measurement range 4mm-4000mm
Resolution ratio Millimeter scale
Measuring speed Millisecond level
FoV 15-27°
Light source Laser (ToF)
I²C address The default is 0x29
Operating temperature range 0°C to +40°C
Product Size 32*24*8mm
Package Size 136* 92*20mm
Product Weight 4.4g
Package Weight 8.8g

Schematic

schematics

The difference between M5 ToF4M Unit and M5 ToF Unit

Unit Sensor Measuring Distance Address Size Light source
ToF4M Unit VL53L1CX 4mm-4000mm 0x29 32*24*8mm Laser
ToF Unit VL53L0X 25mm-1000mm 0x29 32*24*8mm Laser

PinMap

PORT A(RED) SCL SDA VCC GND
Core(Basic) G22 G21 5V GND
Core2 G33 G32 5V GND
CoreS3 G1 G2 5V GND

Module Size

module size

Examples

Arduino

Video

  • ToF4M application example

Version comparison

Product Compare Unit-ToF4M Unit-ToF4M Unit-TOF Unit-TOF
Chip VL53L1X VL53L0X
Maximum Range 4 meters 2 meters
Typical Accuracy ±1-2% ±3%
Field of View (FoV) 27° (adjustable) 25°
Adjustable Field of View YES NO
