OP.90

SKU:U057

Features

  • Vertical Layout
  • IR limit switch
  • Fast response time
  • High sensitivity

Includes

  • 1x OP.90 unit
  • 1x GROVE Cable

Applications

  • Door Switch
  • Machinery Control
  • Mouse Copier
  • Switch Scanner
  • Non-contact Switching

Specification

Resources Parameters
Operating Temperture 0-40°C
Product Size 32*24*14mm
Package Size 136mm × 92mm × 13mm

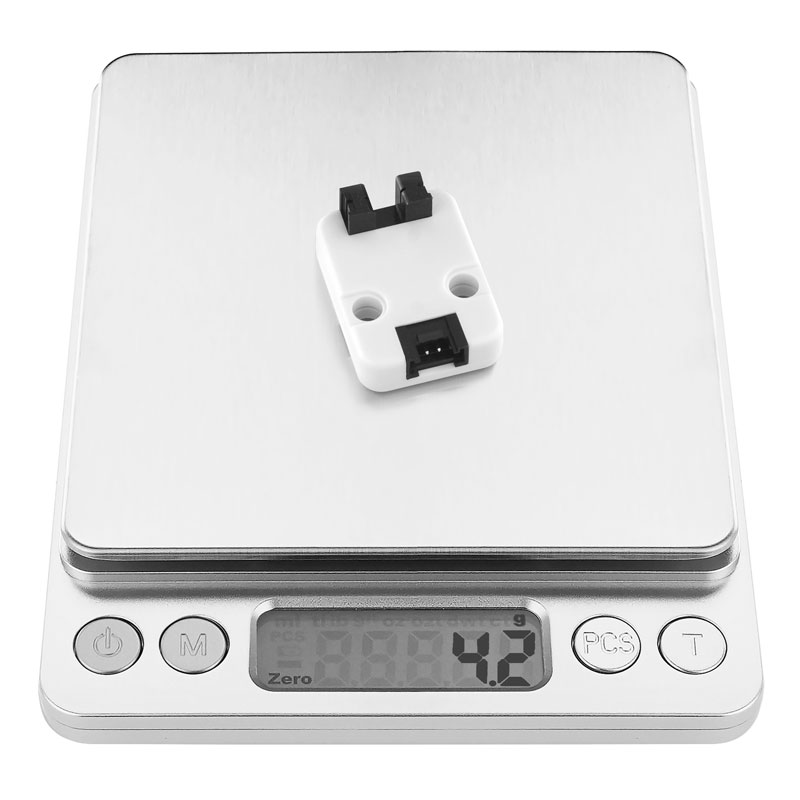

Product Weight 4g
Package Weight 18g

Schematic

schematics

EasyLoader

Module Size

Module Size

Examples

Arduino

UIFlow

UIFlow2.0 UIFlow2.0 Unit op90 Docs
UIFlow2.0 Unit op90 Docs
How to use Unit op90 and related API instructions in the UIFlow2.0

Video

  • OP.90 Unit Example
