Module COM.NB-IoT

SKU:M031-B

Description

COM.NB-IoT is a stackable multi-band NB-IoT wireless communication module with built-in SIM7020G communication module. The module supports PSM and eDRX low power consumption modes.

The COM.NB-IoT module has a wide coverage signal. Compared to GSM, NB-IoT has a strong gain, which also enables the product to have wireless communication capabilities in locations such as basements.

The module has a DC power input and can provide 5V-12V power supply through an external power supply. In order to facilitate the user to configure the pin, the DIP switch is used to set the pin. The SIM7020G module is the optimal solution for low latency, low power consumption, and low throughput applications. It is very suitable for IoT applications such as metering, remote control, asset tracking, remote monitoring, telemedicine, and ride sharing.

Notice

When used with the FIRE main control, due to the PSRAM pin conflict, please switch the DIP switch pins of the module base to TX(0/13), RX(5/15), and the device can use USB/ External DC is used for power supply.
When used with Core2 series main control, due to the different order of the base pin array, COM.X base pins TX(16), RX(17) correspond to the actual pins TX(14), RX of the Core2 main control (13) The equipment needs to use external DC for power supply.

Product Features

  • Stackable design

  • Support low power consumption mode

  • Strong signal access capability

  • Independent external power supply

  • AT command control

  • SIM card type: MicroSIM

  • Status signal: two LED indicators

  • External antenna: SMA antenna

  • Serial communication: UART 115200bps

  • Frequency band:

    • B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85

  • Data transmission speed: Upload:150Kbps Download:126Kbps

  • Protocol: TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/ NTP/PING/LWM2M/COAP/MQTT/MQTTS

Include

  • 1x COM.NB-IoT module
  • 1x SMA antenna

Applications

  • Smart meter
  • Smart parking
  • Municipal management

Certification

• CE/FCC/GCF/PTCRB/ATEX

• RoHS/REACH

• Telstra*(on going)

• Vodafone

• Deutsche Telekom

Specification

Resources Parameter
Frequency band B1/B2/B3/B4/B5/B8/B12/B13/B17/B18/B19/B20/B25/B26/B28/B66/B70/B71/B85
Network protocol TCP/UDP/HTTP/HTTPS/TLS/DTLS/DNS/ NTP/PING/LWM2M/COAP/MQTT/MQTTS
Communication UART 115200bps
DC interface specifications 5.5mm

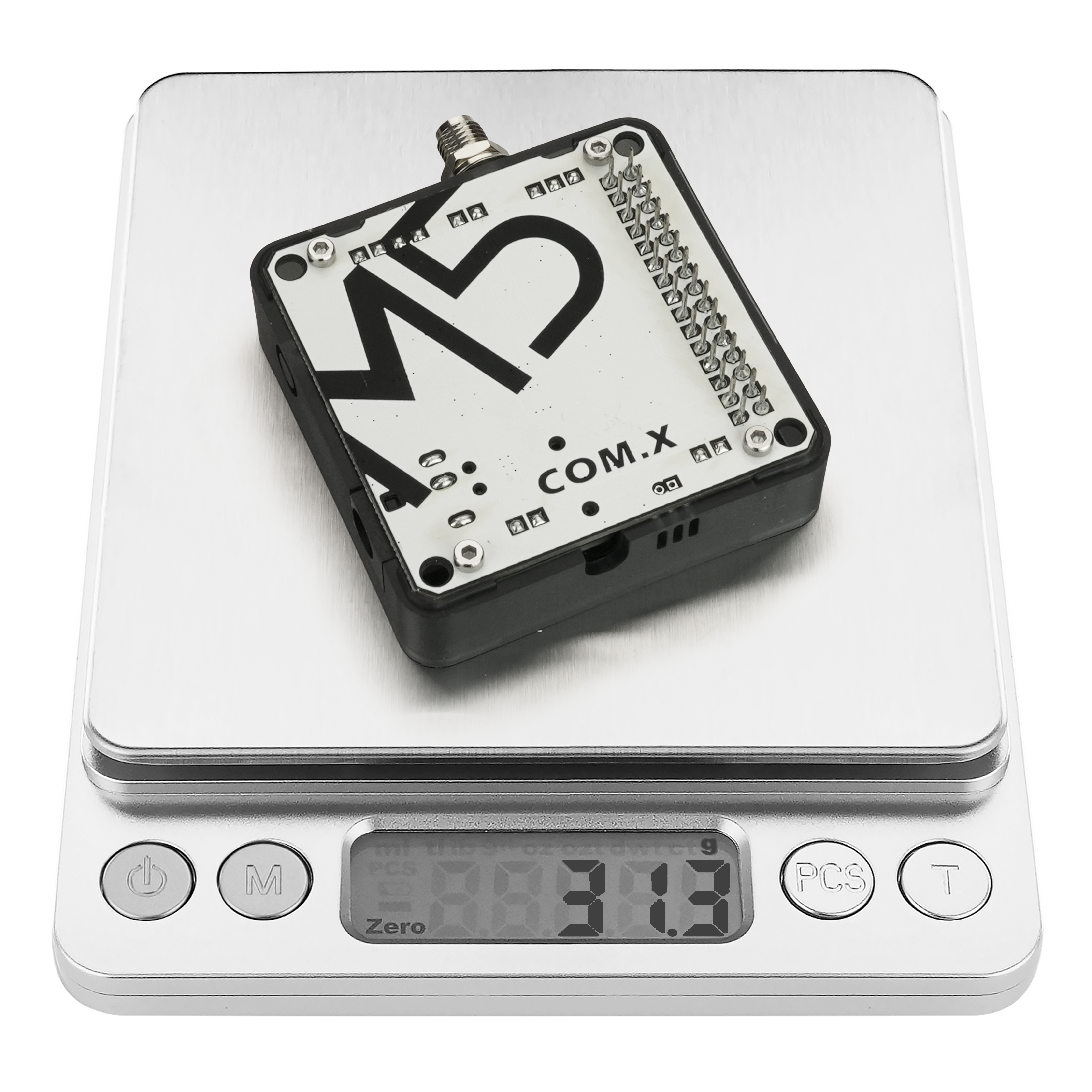

Net weight 40g
Gross weight 75g
Product Size 54.2*54.2*13.2mm
Package Size 165*60*36mm

The module base has a DC power input interface. Please strictly follow the input range (5-12V) to prevent damage to the module when using this interface to connect to the power supply. The internal power DIP switch can adjust the voltage level of the internal terminal VIN to adapt to different modules.

Operator frequency bands in some countries

The following content is for reference only.

North America B4 (1700), B12 (700), B66 (1700), B71 (600), B26 (850)
Asia Pacific B1(2100), B3(1800), B5(850), B8(900), B18(850), B20(800), B26(850),B28(700)
Europe: B3 (1800), B8 (900) , B20 (800)
Latin America B2(1900), B3(1800), B5(850), B28(700)
Commonwealth of Independent States B3 (1800), B8 (900), B20 (800)
Sub-Saharan Africa B3(1800), B8(900)
Middle East, North Africa B8(900), B20(800)

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Description:
Check signal strength,Register to the network,5 and 13 of the DIP switch are set to ON.

PinMap

M5Stack TX(GPIO0/13/17) RX(GPIO5/15/16) 5V GND
COM.NB-IoT RX TX VIN GND

Schematic

Example

To get complete code, please click here

UIFlow

UIFlow1.0 UIFlow1.0 Module comx_nb_iot Docs
UIFlow1.0 Module comx_nb_iot Docs
How to use Module comx_nb_iot on the UIFlow 1.0 graphical programming platform and related API instructions.
