Gesture

SKU:U127

Description

PAJ7620U2 touchless Gesture Moving Recognition Sensor Recognize up to 9 Gestures It's a touchless 3D gesture recognition sensor via the I2C interface that integrates with PAJ7620U2. You could feel the charm of 9 kinds of gesture recognition by default program. In addition to adding more complex gestures, the recognition rate is up to 240Hz with higher anti-interference capability. This sensor is reliable for its recognition process is intuitive and has low power consumption (operating current only 2.2mA) that allows you to control a robot in accordance with your hand's movement. This is particularly useful in interactive applications.

Support 9 gestures:
- Up, Down, Left, Right, Front, Back, Clockwise, Counterclockwise, Quick wave

Features

PAJ7620U2 gesture sensor / I2C interface
Recognizable gestures up to 9 kinds
Faster, more accurate.
Support for customizing and adding recognition gesture combinations (support developing)
Effective recognition distance: 5cm-15cm
Embedded infrared LED and optical lens, be able to work in low-light even dark environment
Development Platform: Arduino, UIFlow

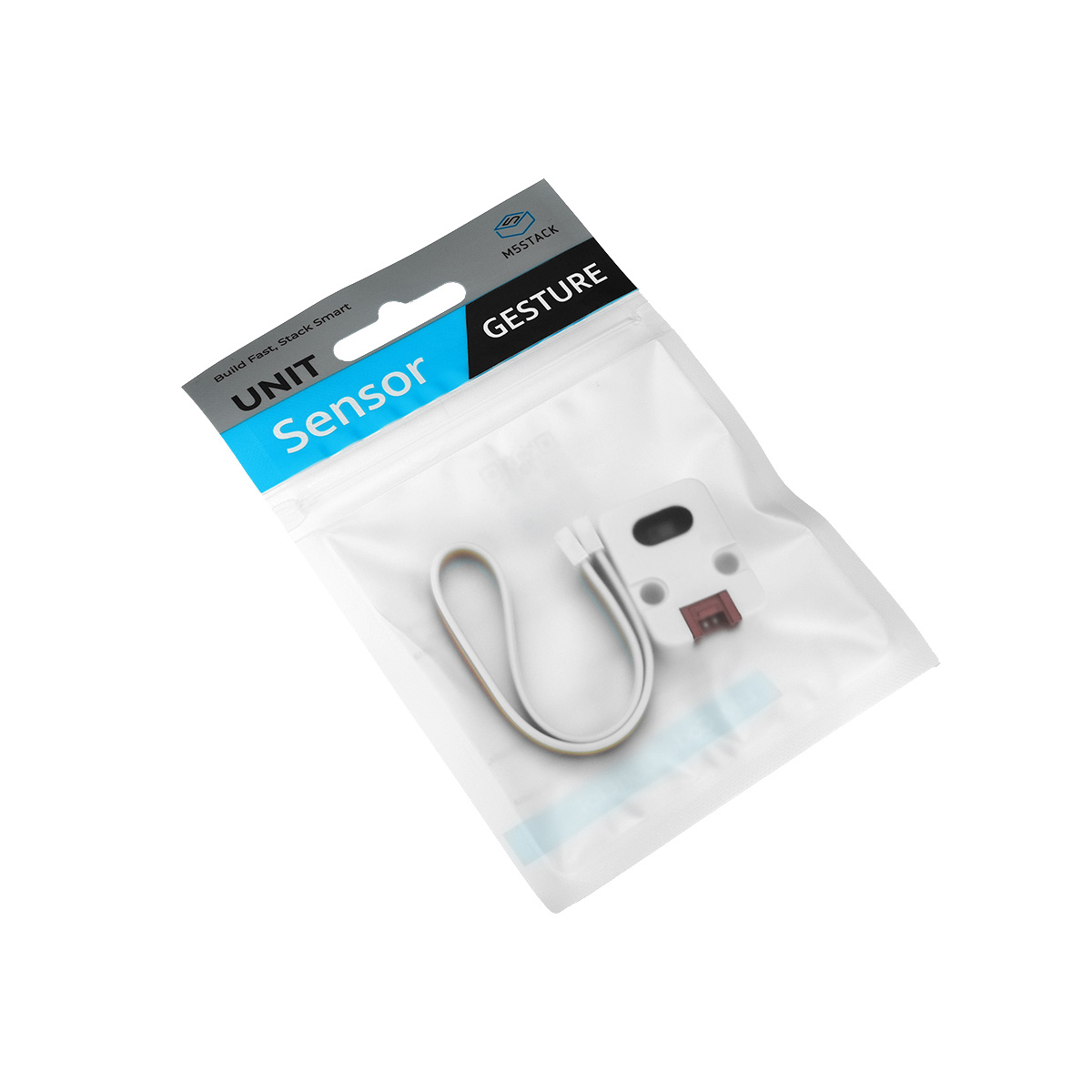

Includes

1x UNIT Gesture
1x HY2.0-4P Cable

Applications

Touchless remote control
Robot interaction
Human-Computer Interaction
Gesture light control

Specification

Resources	Parameters
Gesture recognition frequency	Typical value: 120Hz, maximum 240Hz
Support gestures	9 built-in + 4 software extensions + support software algorithm expansion
Effective recognition distance	5cm-15cm
R Ambient light immunity	<100k Lux
Communication interface	I2C, addr: 0x73
Working current	2.2mA
Product Size	24328mm
Package Size	136* 92* 13mm
Product Weight	4.3g
Package Weight	16.4g
