M5StickC Plus2 with Watch Accessories

SKU:K016-H2

Description

M5StickC Plus2 with Watch Accessories is a watch kit that includes an M5StickC Plus2, a wristband, a LEGO-compatible adapter, and a wall-mounting accessory. In addition to displaying time, it can also be used for applications such as sports activity monitoring and smart home control. When combined with the M5Stack HAT hardware ecosystem, it offers even more possibilities for smart wearable devices.

There is no doubt about the powerful capabilities of the M5StickC Plus2. As the second generation of M5StickC Plust, M5StickC Plus2 is equipped with a 240*135 color LCD screen, ESP32-PICO-V3-02 chip, MPU6886 6-axis IMU, SPM1423 digital microphone, BM8563 RTC chip, and IR emitter.

The HY2.0-4P interface at the bottom of the M5StickC Plus2 allows for connection to M5Stack's sensor series products, enabling customization of various functions. The 8P@2.54mm expansion interface on the top can be directly connected with M5Stack HAT series products, providing users with more development possibilities.

Power on:
Wake up can be started by pressing "BUTTON C" for more than 2 seconds, or IRQ signal triggered by RTC regularly. After triggering the wake up signal, the hold(G4) pin needs to be set to a high level (1) in program initialization to maintain the power supply, otherwise the device will enter the shutdown state again.
Power off:
When no USB external power supply is available, press BUTTON C for more than 6 seconds. Or when there is no USB external power supply, set HOLD(GPIO4)=0 in the program operation, that is, to achieve power off. When the USB is connected, press the "BUTTON C" button for more than 6 seconds to turn off the screen and enter the hibernation state, but not power off.

Tutorial

UIFlow UIFlow
UIFlow
This tutorial will show you how to control M5StickC PLUS2 devices through the UIFlow graphical programming platform
Arduino IDE Arduino IDE
Arduino IDE
This tutorial will show you how to program and control M5StickC PLUS2 devices through Arduino IDE

Features

  • Customization Supports custom display
  • 200mAh battery
  • Light and portable

Includes

  • 1x M5StickC PLUS2
  • 1x LEGO adapter
  • 1x Wall/1515
  • 1x Watch band
  • 1x Type-C USB(50cm)

Applications

  • Smart Watch

Specification

Resources Parameters
ESP32 ESP32-PICO-V3-02
240MHz dual core,support wifi,2 MB SPI PSRAM,8 MB SPI flash
PSRAM 2 MB PSRAM
Flash 8 MB flash
Power Input 5V @ 500mA
Port TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen 1.14 inch, 135*240 Colorful TFT LCD, ST7789v2
Button Custom button x 3
Power indicator LED GREEN LED(non-programmable)
MEMS MPU6886
Buzzer built-in buzzer
MIC SPM1423
RTC BM8563
Battery 200mAh @ 3.7V
Antenna 2.4G 3D Antenna
PIN port G0, G25/G36, G26, G32, G33
Operating Temperature 0°C to 40°C

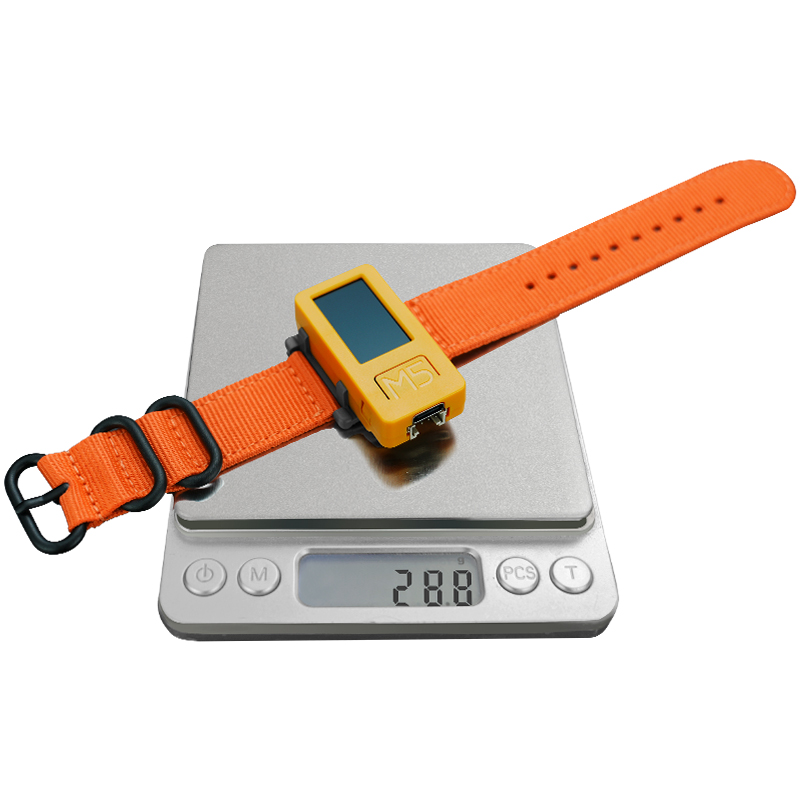

Strap size and weight 230*22*6mm / 12.3g
Product Size 48*25*13mm
Package Size 124*67*23mm
Product Weight 17g
Package Weight 71.8g

Driver Installation

Click the link below to download the driver that matches the operating system. There are currently two driver chip versions, CP34X (for CH9102 ) driver compressed package. After decompressing the compressed package, select the installation package corresponding to the number of operating systems to install. if If the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.
Driver name Applicable driver chip Download link
CH9102_VCP_SER_Windows CH9102 Download
CH9102_VCP_SER_MacOS v1.7 CH9102 Download
Port Selection on MacOS
On MacOS, there may be two available ports. When using them, please select the port named wchmodem.

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader

Schematic

schematics

Examples

Arduino

Module Size

Video

  • M5StickC PLUS2 features
