Bus Socket
SKU:A001/A001-C/A001-D
Description
Bus Socket is an M5-Bus bus female/male pin accessory pack, featuring a 2×15P@2.54mm specification. It is compatible with the M5-Bus interface of M5Stack Core and Module series, supports DIY module expansion, and provides a flexible function expansion solution for main control devices.
Features
- 90° Pin Header
- 2 x 15 @ 2.54mm

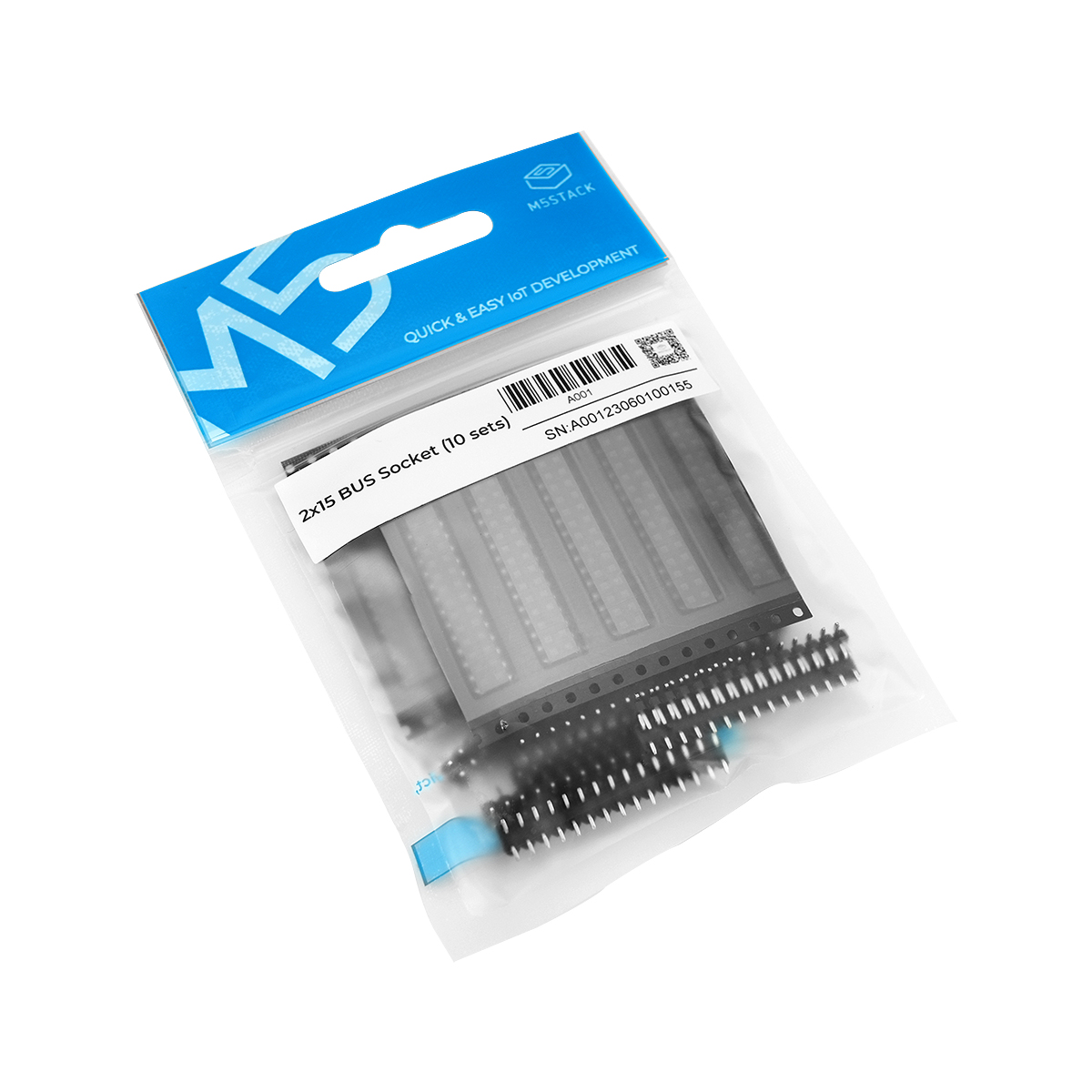

Includes
Socket SMD Kits (SKU:A001)
- 10 x Male Header
- 10 x Female Header
Socket SMD (Male) (SKU:A001-C)
- 10 x Male Header
Socket SMD (Female) (SKU:A001-D)
- 10 x Female Header
Specifications
| Specification | Parameter |
|---|---|
| Male Header | Locating post: Diameter 1.0mm, Height 1.7mm; Pitch: 2.54mm; Pin diameter: 0.64x0.64mm |
| Female Header | Locating post: Diameter 0.9mm, Height 1.0mm; Pitch: 2.54mm |
| Product Size | 38.0 x 8.0 x 5.0mm |
| Product Weight | 20.1g (10 pcs) |
| Package Size | 136.0 x 92.0 x 10.0mm |
| Gross Weight | 22.5g |
