Grove to PIN
SKU:A046
Description
Grove to PIN is a Grove interface adapter connector consisting of an HY2.0-4P (Grove) horizontal right-angle female socket combined with a PCB adapter board. It breaks out the pins of a standard Grove interface into solderable pads, enabling direct hand-soldering and flexible integration with a wide variety of circuits — making it easy to quickly expand sensor and module connectivity.
Features
- Features an HY2.0-4P (Grove) standard 2.0mm-pitch horizontal right-angle female socket
- Paired with a dedicated PCB adapter board to simplify hand-soldering
- Right-angle post-solder design suits board-edge layouts without occupying front-facing space
Applications
- Breakout of Grove interface pin pads
- Board-edge peripheral expansion connections
- Adapter for small circuit module interfacing
Includes
- 5 x Grove to PIN
Specifications
| Specification | Parameter |
|---|---|
| Connector Model | HY2.0-4P Right-Angle Post-Solder Female Socket |
| Pin Specification | 2.0mm-4P |
| Pin Length | 3mm |
| Product Size | 10.1 x 11.8 x 6.5mm |
| Product Weight | 0.4g/pcs |
| Package Size | 138.0 x 93.0 x 6.0mm |
| Gross Weight | 4.5g |

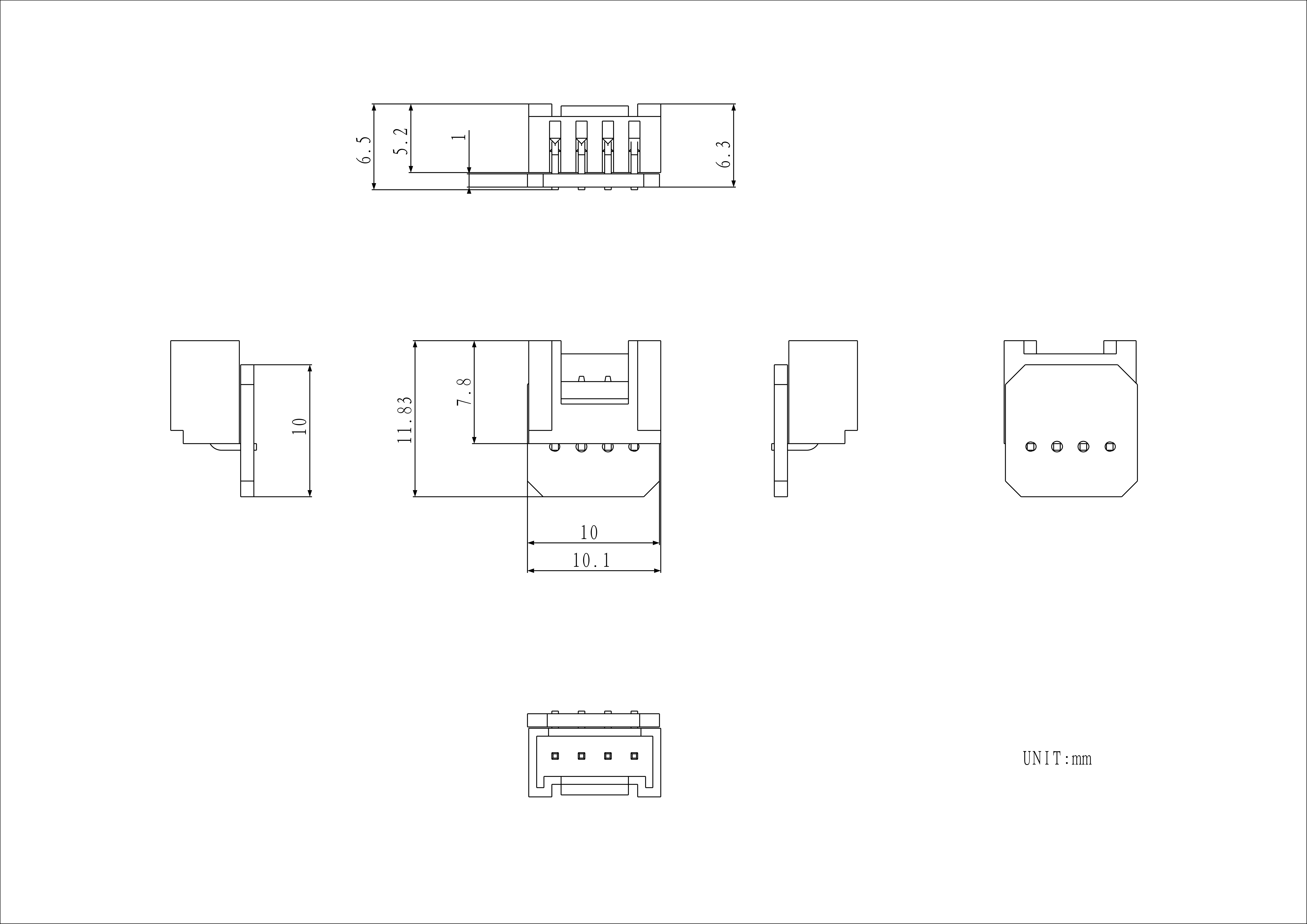

Model Size
