Grove to Servo
SKU:A039
Description
Grove to Servo is a dedicated adapter connector that converts a Grove interface to a servo interface. It directly converts a standard Grove interface into a universal 3 PIN servo interface, enabling plug-and-play connection between servos and M5Stack series devices without additional wiring, simplifying the setup process for mechanical projects.
Features
- HY2.0-4P to 2.54-3P interface adapter board
- 3 PIN male header compatible with standard servo interfaces
- Right-angle pin design fits board-edge layouts without occupying front-side space, keeping wiring neat and organized
Applications
- Quick connection and adaptation between servos and M5Stack series devices
- Servo expansion for robotic arms, pan-tilt platforms, and small robot projects
- Rapid prototyping without additional breadboards / jumper wires
Includes
- 5 x Grove to Servo
Specifications
| Specification | Parameter |
|---|---|
| Signal Input Interface | HY2.0-4P |
| Servo Interface | 2.54-3P |
| Product Size | 20.0 x 10.0 x 6.4mm |
| Product Weight | 0.8g/pcs |
| Package Size | 139.0 x 93.0 x 13.0mm |
| Gross Weight | 6.0g |
Schematics
PinMap
| Signal Input Interface | GND | VCC | D | C |
|---|---|---|---|---|
| Servo Interface | GND | VCC | Signal |

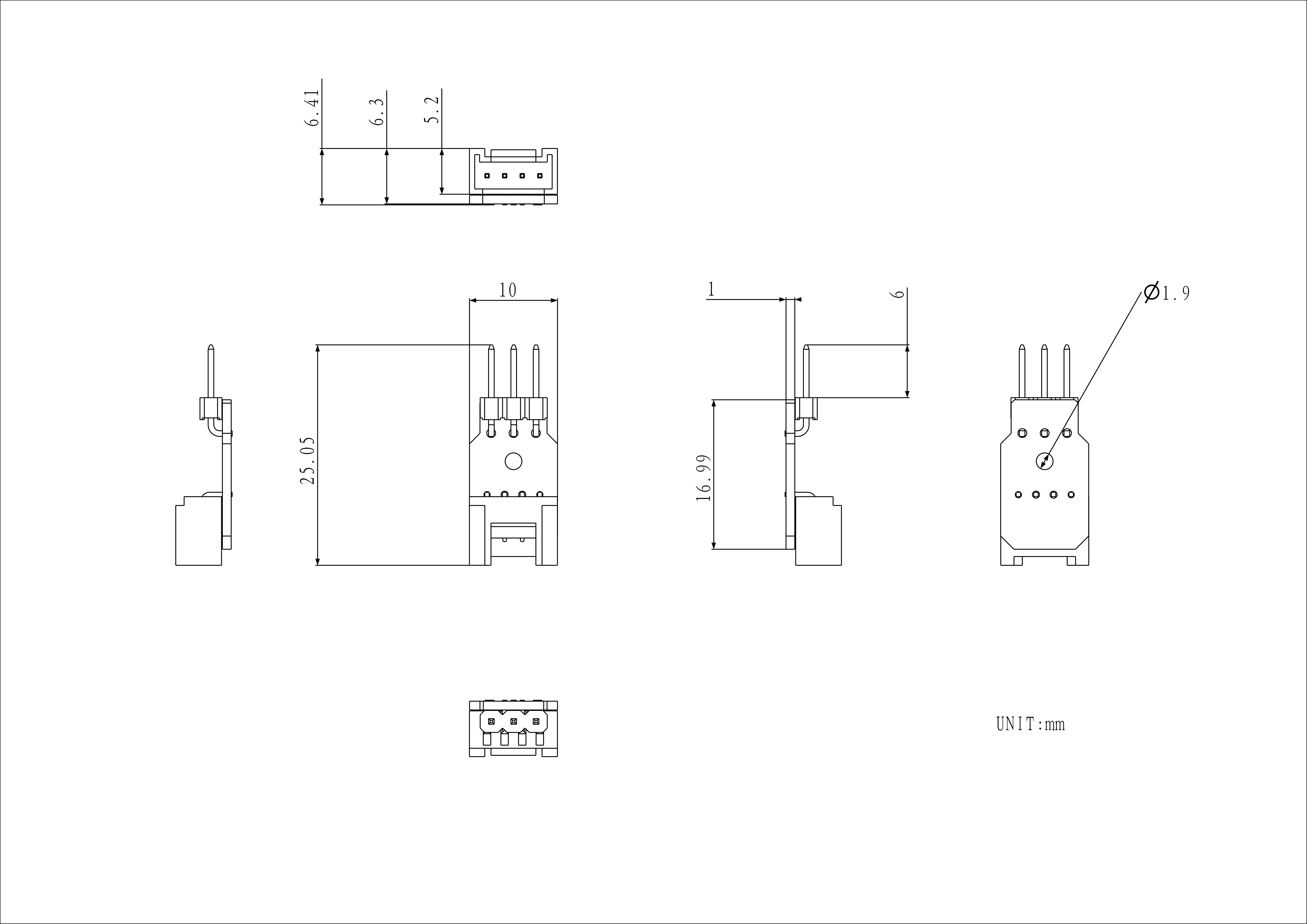

Model Size
