GROVE2GROVE is a GROVE extension connector. Two female GROVE port sit back-to-back. One common use of this part is for the RGB LED strip extension.

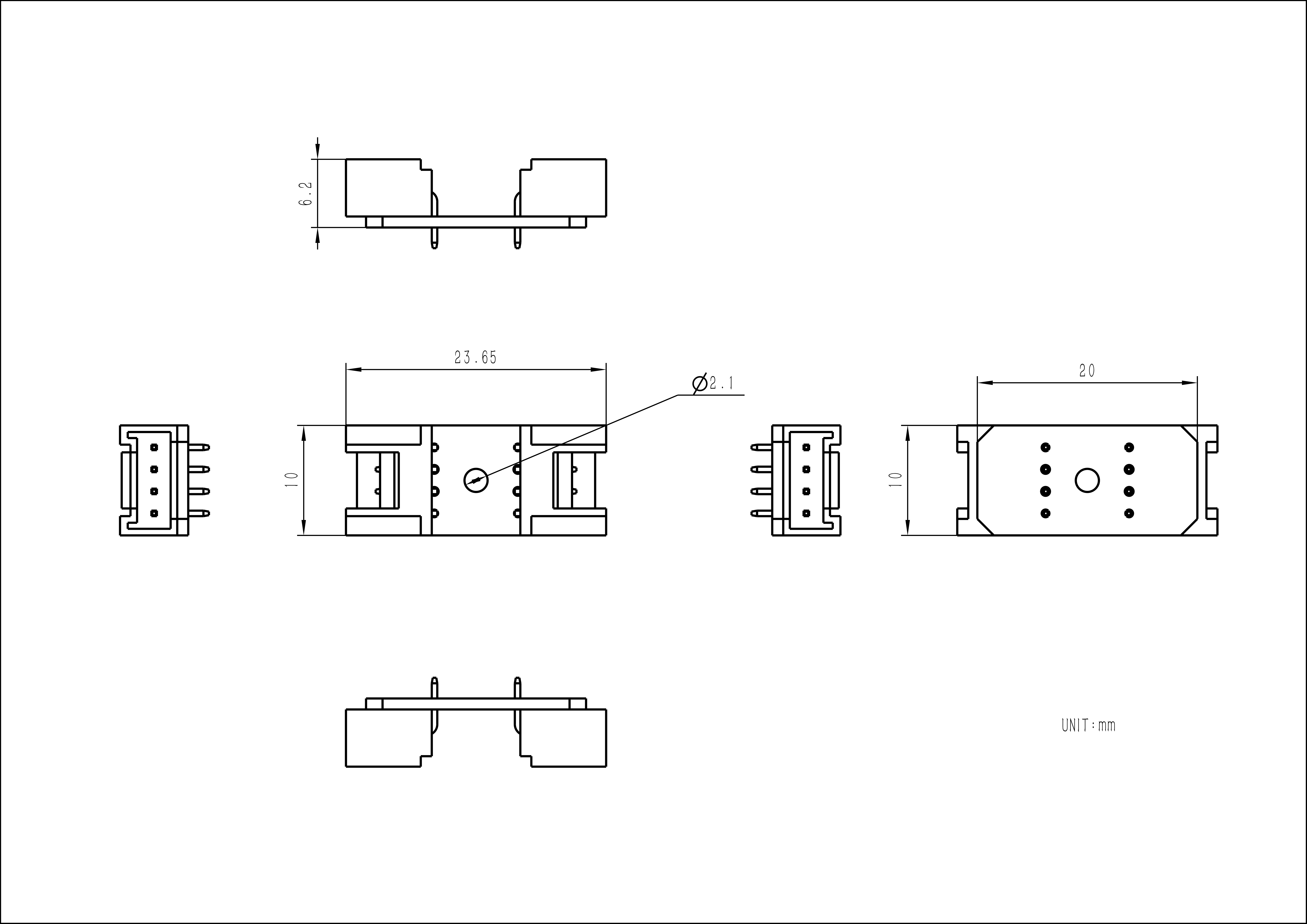

|Product Size||24 x 10 x 6mm|

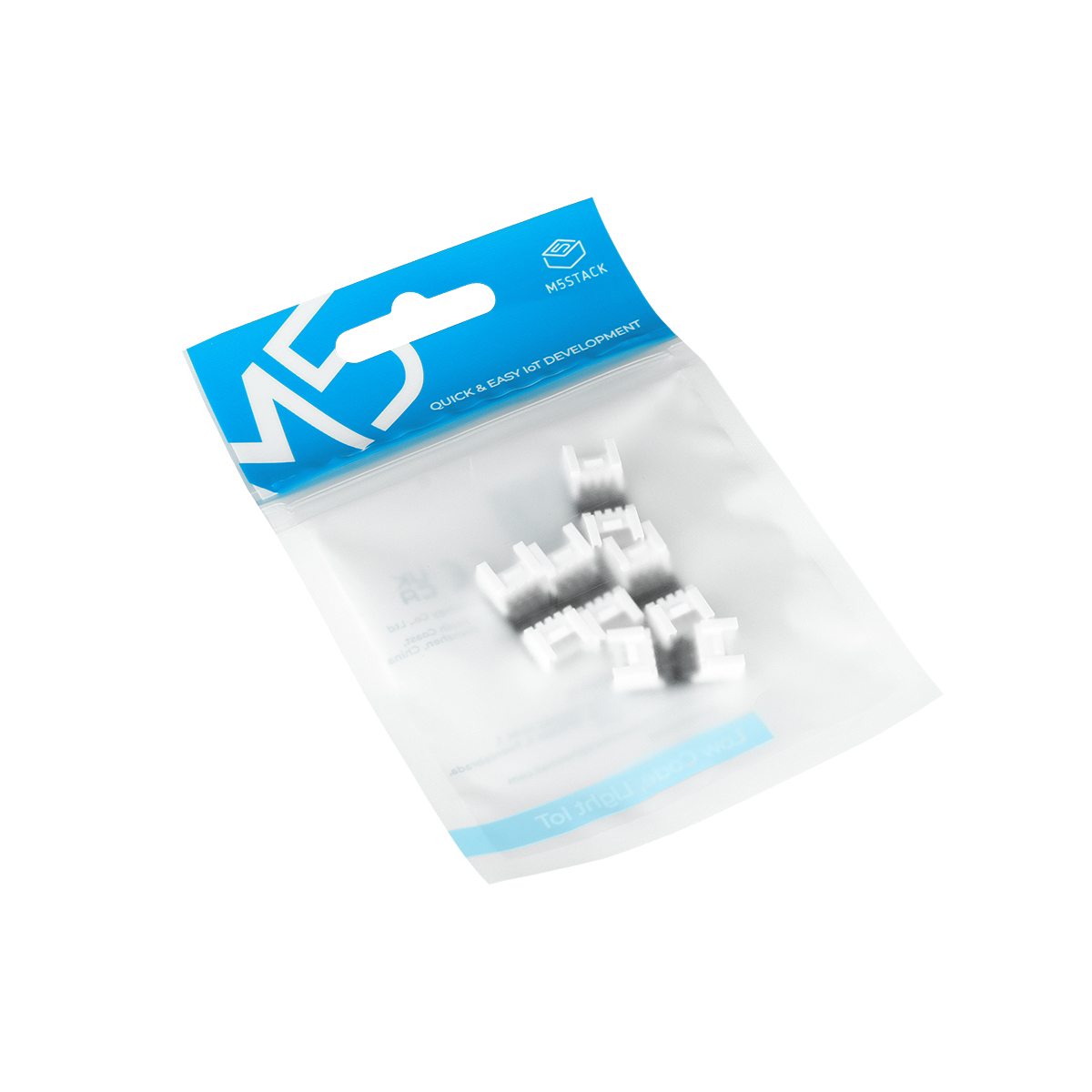

|Package Size||50 x 70 x 6mm|
