HY2.0-4P SMD

SKU:A118

Description

HY2.0-4P SMD is a 2.0mm-4P connector terminal with positioning pins. Users can apply it to their PCB designs to conveniently connect to M5Stack's UNIT sensor system, expanding more functionalities.

Compatibility:
This product has a different terminal shape specification compared to the terminals used in M5Stack products, and is for DIY use only.

Features

  • HY2.0-4P
  • With positioning pins
  • Suitable for PCB surface mounting

Includes

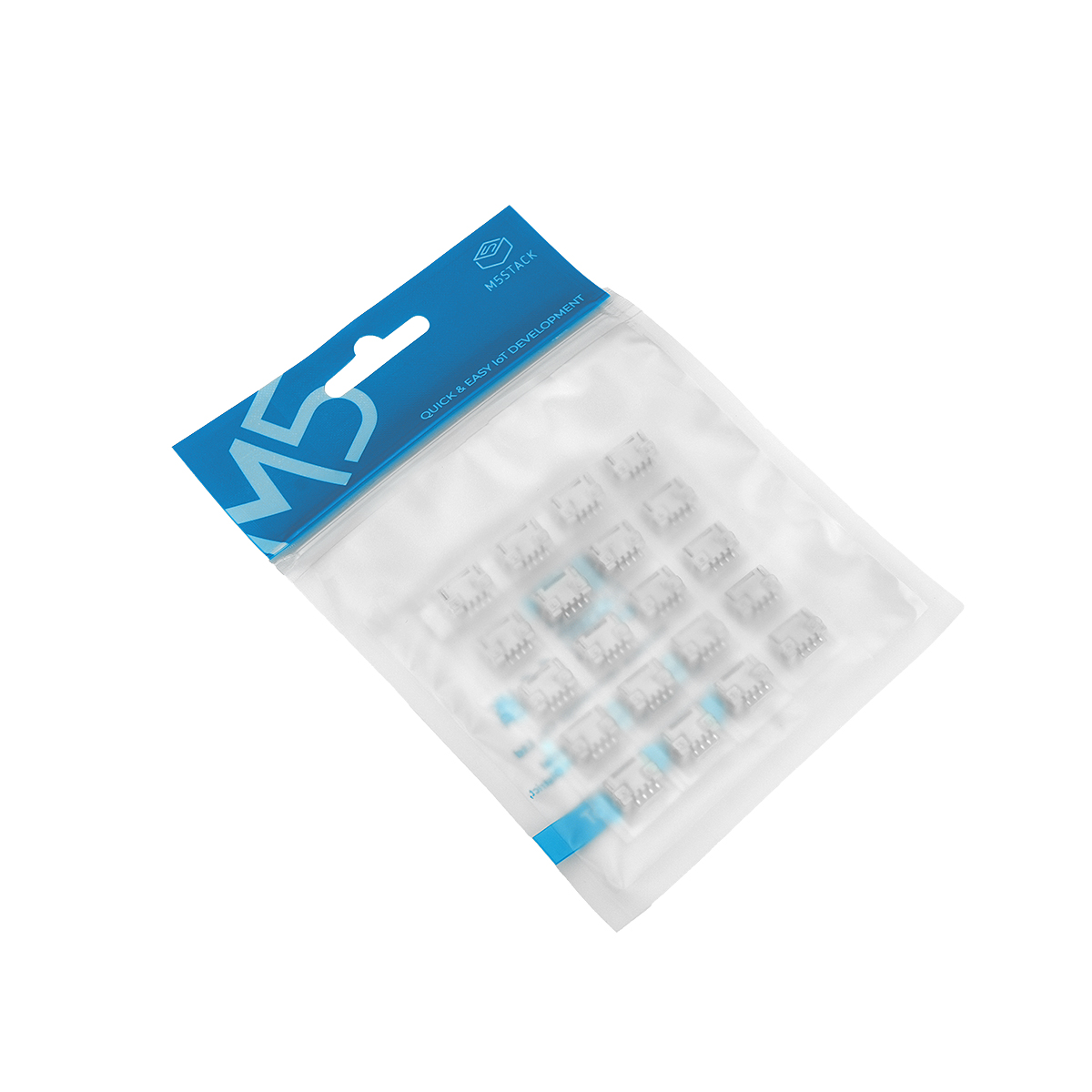

  • 20 x HY2.0-4P SMD

Specifications

Specification Parameter
Pitch 2.0mm
PIN Count 4P
Appearance Type R-90° (with PIN legs)
Operating Temperature -25 ~ 105°C
Insulation Resistance ≥1000MΩ
Product Size 56 x 24 x 9.6mm
Net Weight (Single) 0.4g
Package Size 170.0 x 120.0 x 9.0mm
Gross Weight 11.0g
