ATOM ECHO

SKU:C008-C

Tutorial

Choose the development platform you want to use, view the corresponding tutorial&quick-Start.

BT Speaker EchoSTT Guide

Description

ATOM ECHO is a Programmable Smart Speaker based on the M5ATOM design. Its form factor is very small, its dimensions are only 24 * 24 * 17 mm. Music can be played using the BT capabilities of the ESP32 from a mobile phone or tablet. The device could be programmed to access AWS, Baidu and other cloud platforms, using the built-in microphone and speaker for voice interaction, so that ATOM ECHO has certain AI capabilities, realizing voice control, story telling, Internet of things and other functions. The speaker is embedded with an RGB LED (SK6812), which can visually display the connection status. In addition to being used as a BT speaker, it still has the control ability of Atom series.Screw hole on the back is convenient for users to fix.

Echo already supports HomeAssistant! The latest shipped devices with the sticker ESPHome FW Pre-installed for HomeAssistant have pre-burned ESPHome firmware, users can refer to the following link .Detailed tutorial reference Tutorials for setting up the M5Stack Atom Echo as a voice assistant for Home Assistant .
For those who are not using Home Assistant, you can flash the device with EasyLoader firmware, to resume the device to Factory Test status.

Product Features

  • Light and small
  • Support STT services
  • Based on ESP32, Support A2DP
  • 2.4G Wi-Fi IEEE 802.11b/g/n
  • Built-in microphone and speaker
  • RGB LED status display indication
  • GROVE extension interface
  • Record and playback
  • Programmable key
  • Programming platform:Arduino、ESP-IDF/ADF

Include

  • 1x ATOM ECHO

Applications

  • BT Speaker
  • Voice control
  • IoT

Specification

Resources Parameter
SoC ESP32-PICO-D4,240MHz,Dual Core,Wi-Fi
Flash 4MB
Interface 1x IR-TX,1x Function Button,1x Reset Button
PinOut G21/G25/5V/GND, 3V3/G22/G19/G23/G33
RGB LED SK6812
Speaker 0.8W/NS4168 I2S
Microphone SPM1423 PDM
Net weight 5g
Gross weight 10g
Product Size 24*24*17mm
Package Size 85*65*17mm
Case Material Plastic ( PC )

G19 / G22 / G23 / G33 has been defined, please do not reuse the above pins, otherwise ATOM ECHO will be damaged.

Note: please avoid such conditions with M5Stack Atom Echo.

  • DC output from I2S channel
  • Playing white noise for a long time
  • Playing full square-wave audio

Usage

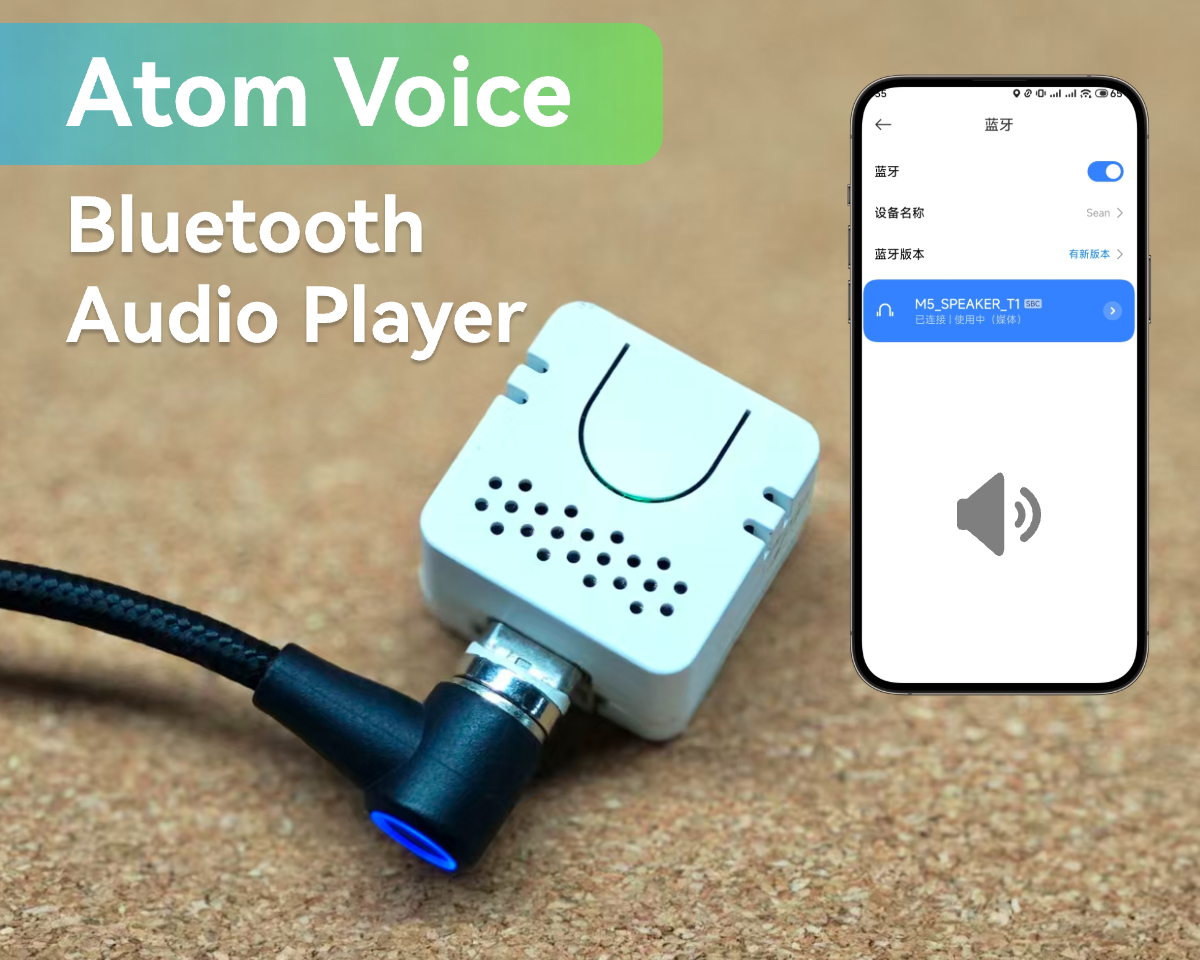

The Factory Test firmware is BT speaker, which uses A2DP protocol to transmit audio data(call reception is not supported). After power on, the red LED will be displayed. When the connection with BT device is established, the LED will turn green. At this time, the sound can be output through atom echo. The LED turns red when disconnected. The firmware is compiled on the esp-idf platform. If senior users need to develop other functions by themselves, they can build the environment according to the official documents of Espressif. See the following links for the source code of factory firmware and bin file, where the BIN file burning address is 0x0000.

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Description:
Used as a BT speaker, the LED turns green after connection, and the phone is turned on to play music

Peripherals Pin Map

DataOut BCLK DataIn LRCK RGB Btn
G22 G19 G23 G33 G27 G39

Schematic

Example

Arduino

Tutorial

Video

The following video is an example

Tutorials for setting up the M5Stack Atom Echo as a voice assistant for Home Assistant
