Atomic

SKU:A077

Description

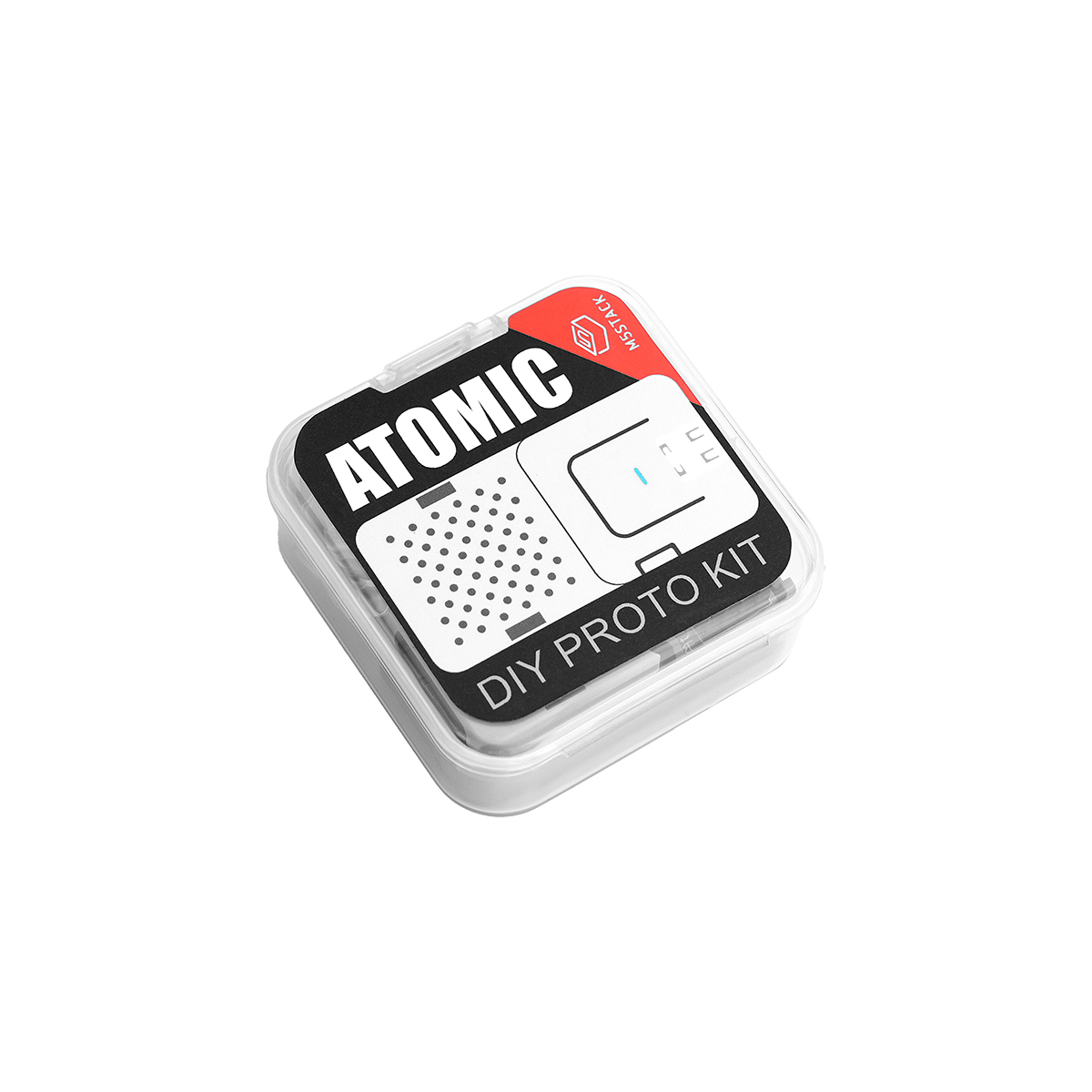

Atomic is a DIY expansion kit specifically designed for the ATOM series, allowing users to design small circuits or connect external hardware easily. It can be directly stacked with ATOM via pin headers. The kit includes 2 Proto boards, each providing over 60 holes to meet users' spatial layout needs. It also comes with a pair of 3.96 x 4P connectors for more reliable external electrical connections. The casing features a perforated design to meet cooling requirements and provide non-enclosed space usage needs such as temperature and humidity measurement. The product offers multiple mounting options, including hanging, LEGO connections, and screw fixation. If you want to create a unique mini node controller, Atomic should be your best choice.

Features

• Compatible with Atom-Matrix/Atom-Lite
• Compact size
• Personalized DIY
• Non-enclosed design

Includes

• 1 x Proto board
• 1 x Proto board with pre-soldered pin headers
• 1 x 3.96 x 4P male & female connectors
• 1 x 4P 2.54 pin header
• 1 x 5P 2.54 pin header
• 1 x ATOMIC casing
• 1 x M2*3mm hex socket head self-tapping screw
• 1 x M2*8mm hex socket head machine screw
• 1 x L-shaped 1.5mm hex key (compatible with M2 screws)

Applications

• Atom expansion board
• DIY node controller
• Peripheral connections

Specifications

PCB

• Atomic v1.0 PCB Doc
