Tail Bat
Description
Tail Bat is an external battery accessory designed for ATOM. It can be plugged into the tail of the ATOM to directly power it, making it convenient for users to use in mobile scenarios. The Tail Bat features a switch button on the front and contains a 190mAh battery controlled by the power management chip IP5303. When the power is turned on, a red indicator light will illuminate. The usage method is the same as that of the M5Stack Core: single-click to turn on the power, double-click to turn off the power, the indicator light flashes during charging, and stays on when fully charged. Since the Tail Bat has a pass-through design for the interface while adding the battery, it does not affect the original wiring method and interface functionality. The built-in battery can only be charged via the TypeC interface and cannot be charged through the GROVE interface.
Features
- Compatible with Atom-Matrix/Atom-Lite
- Plug and play
- Built-in rechargeable lithium battery
- LED indicator
Includes
- 1 x TailBat
Applications
- External mobile power supply for ATOM
Specifications
| Specification | Parameter |
|---|---|
| External Port | 1x GROVE |
| LED Indicator | 1x RED LED |
| USB Port | TypeC |
| Battery Capacity | 190mAh |
| Casing Material | Plastic (PC) |

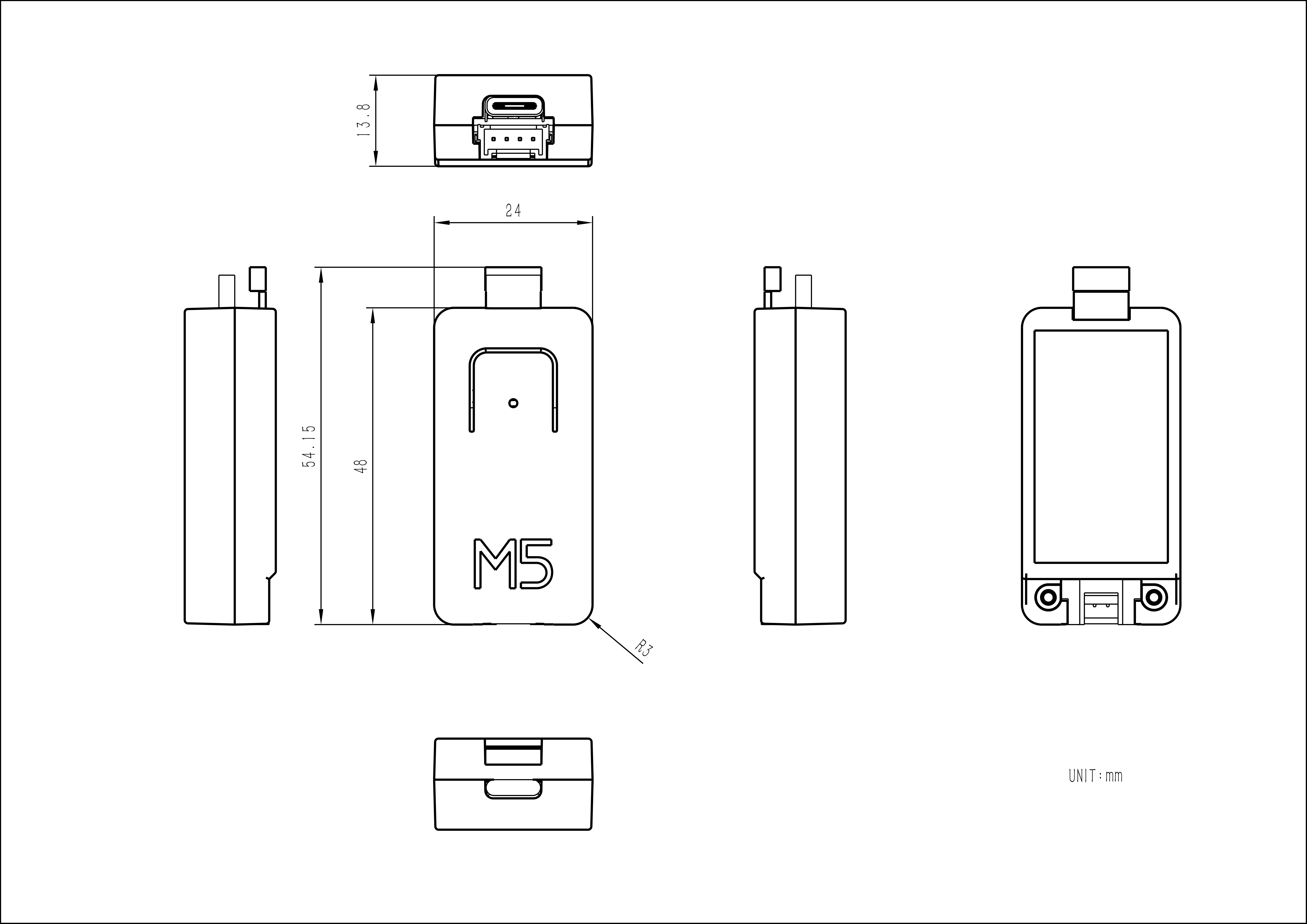

| Product Dimensions | 55 x 22 x 14mm |

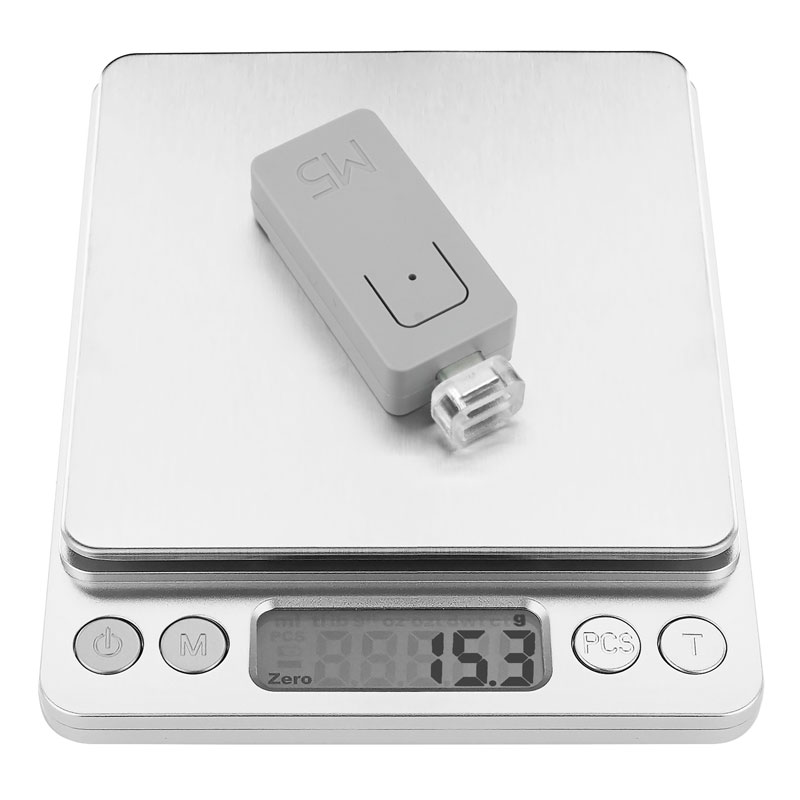

| Product Weight | 10g |
| Package Dimensions | 136 x 92 x 23mm |
| Gross Weight | 10g |
Schematics
