StackChan Body

SKU:A180

Description

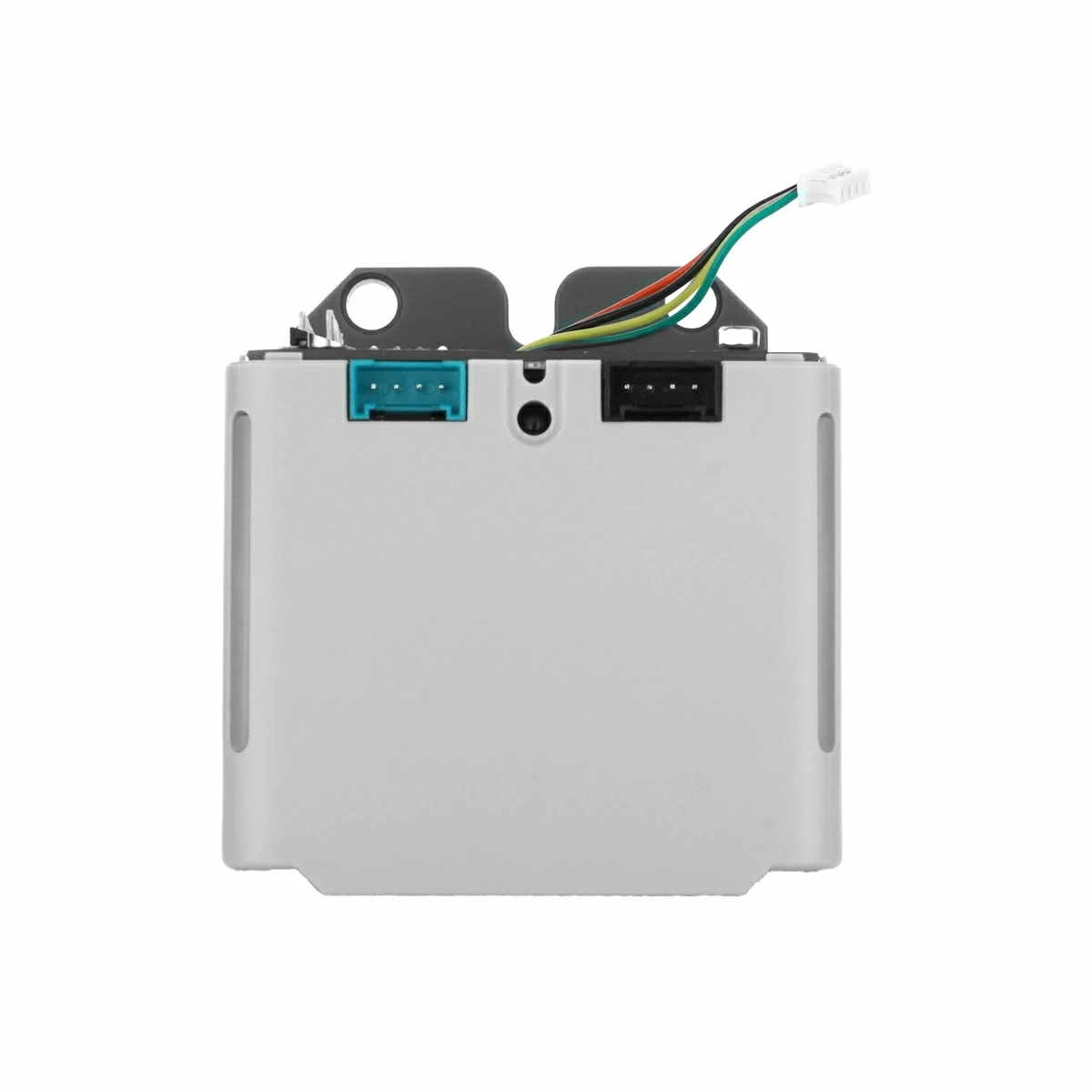

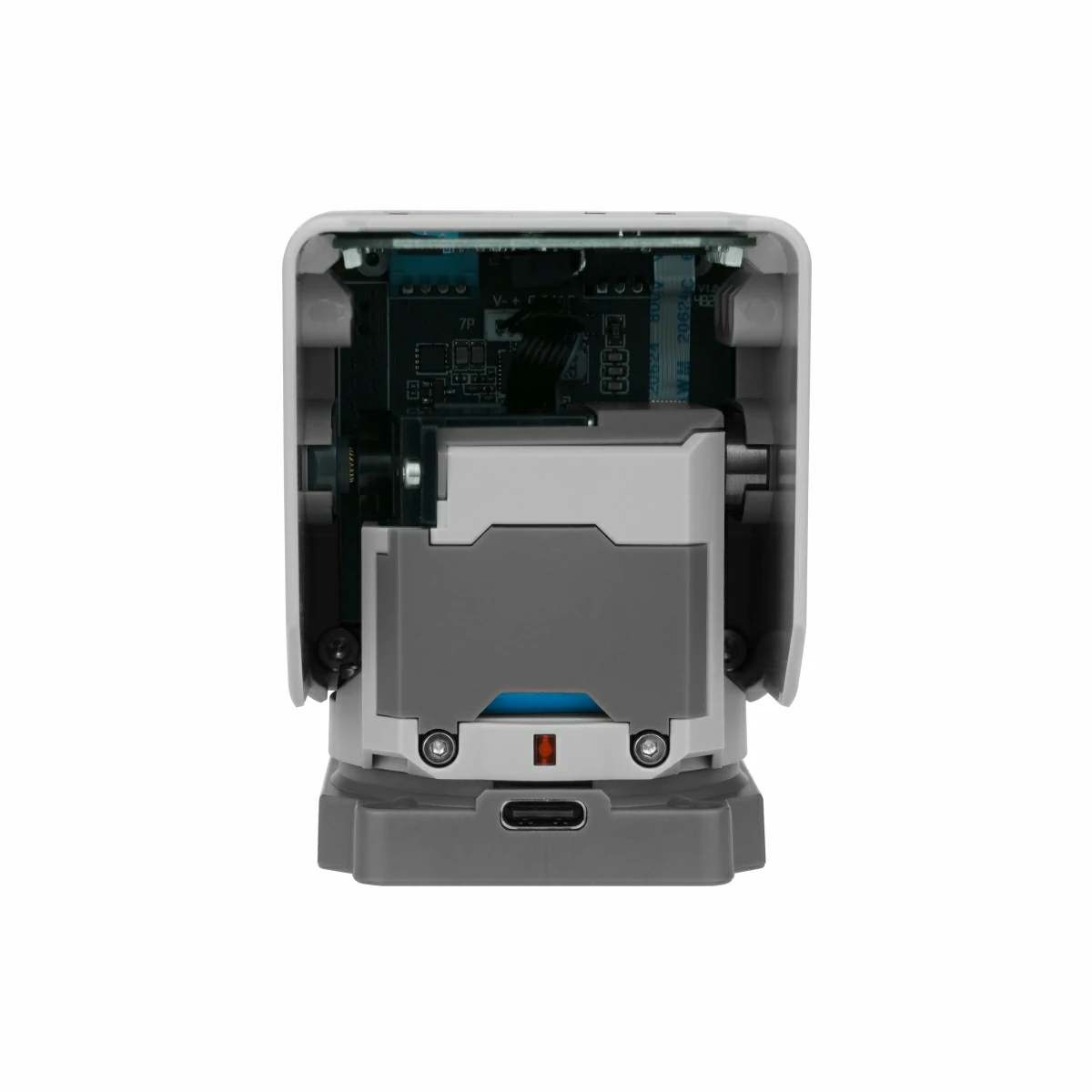

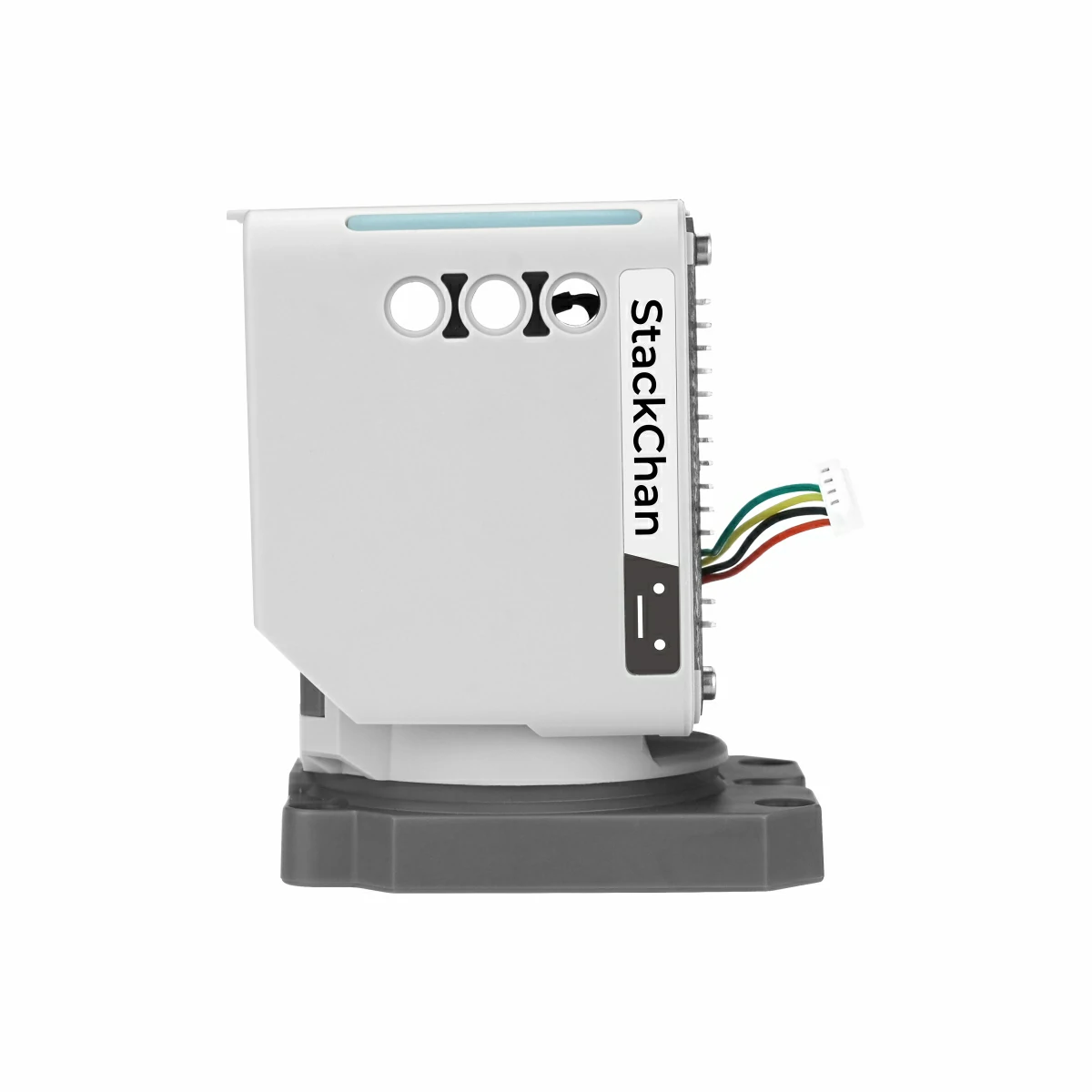

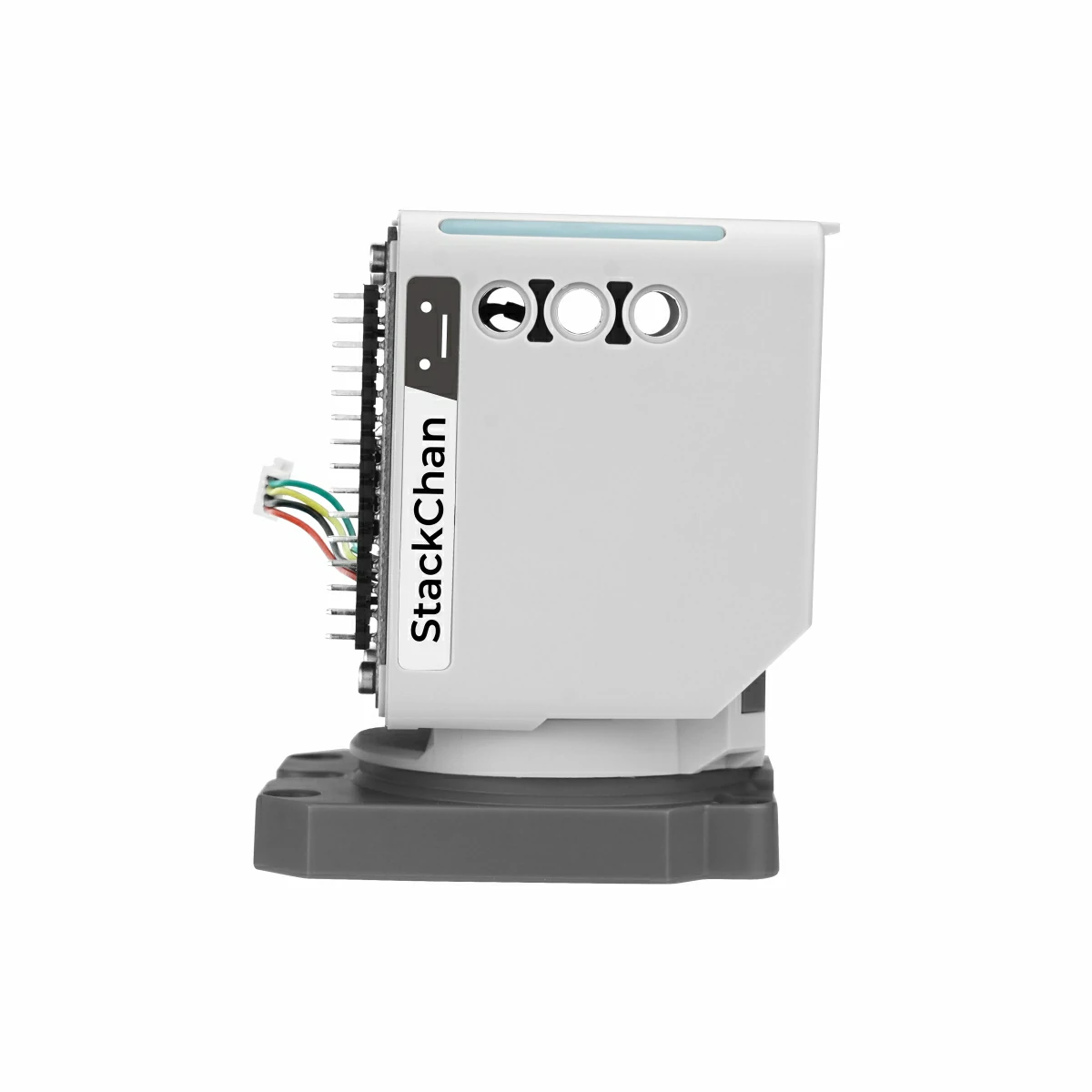

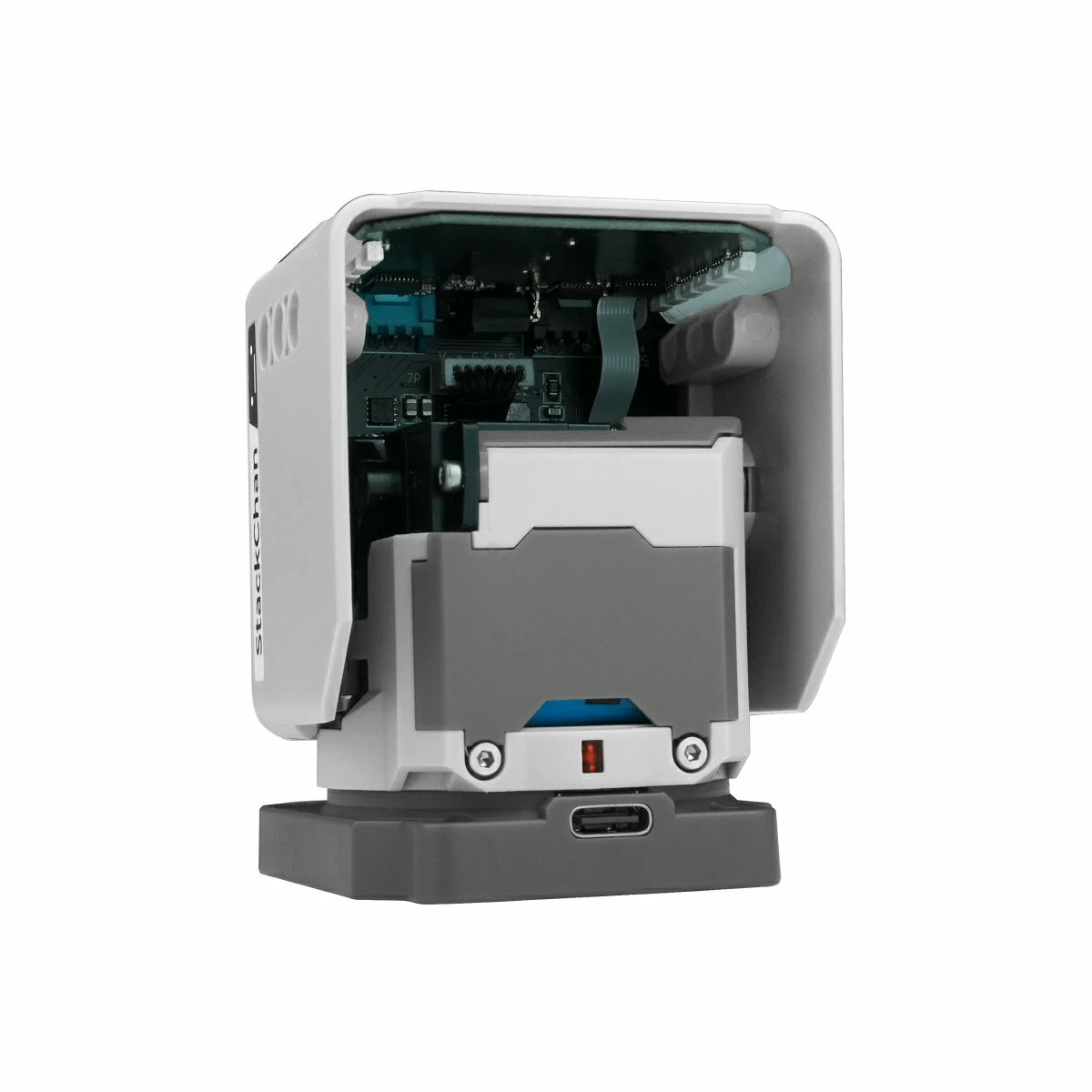

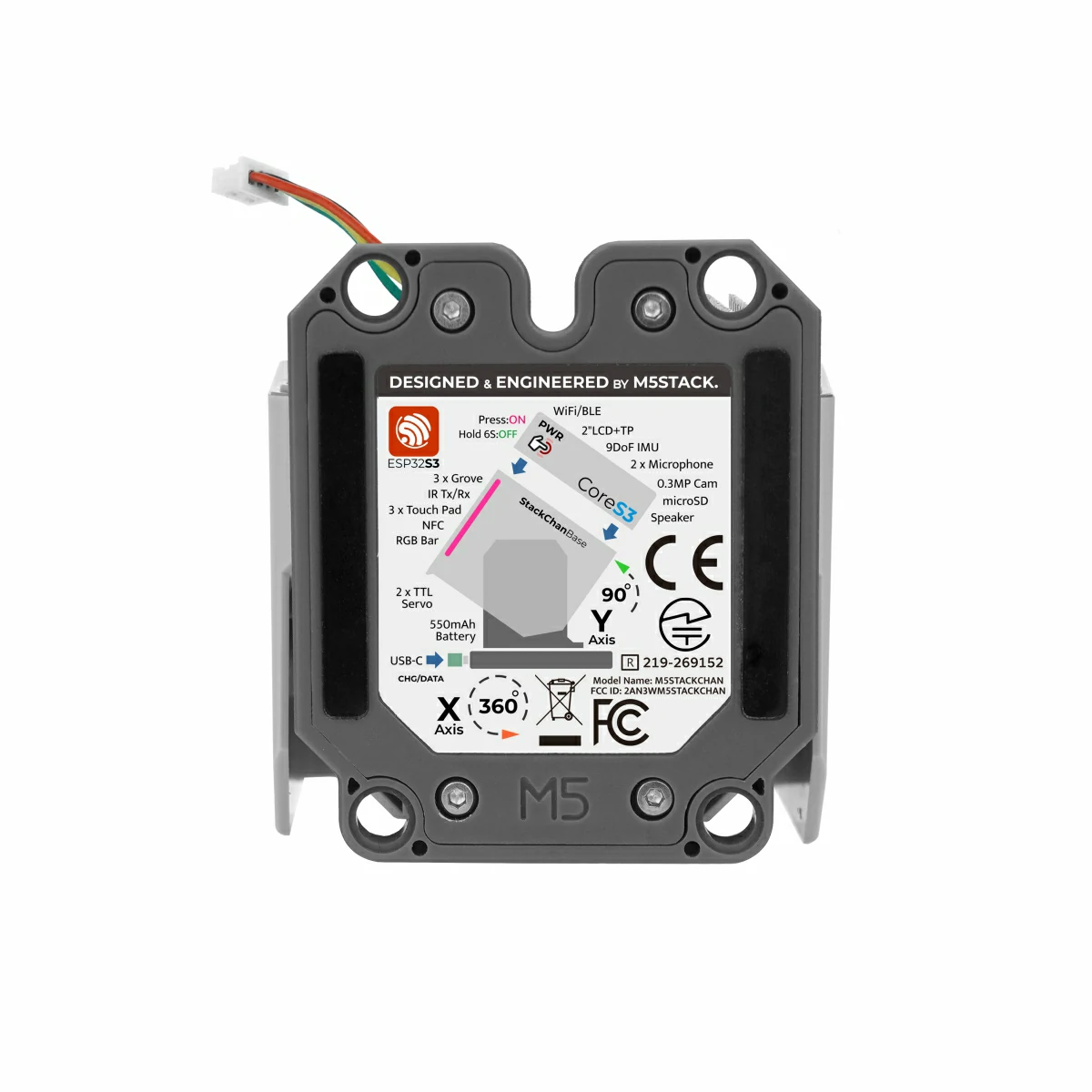

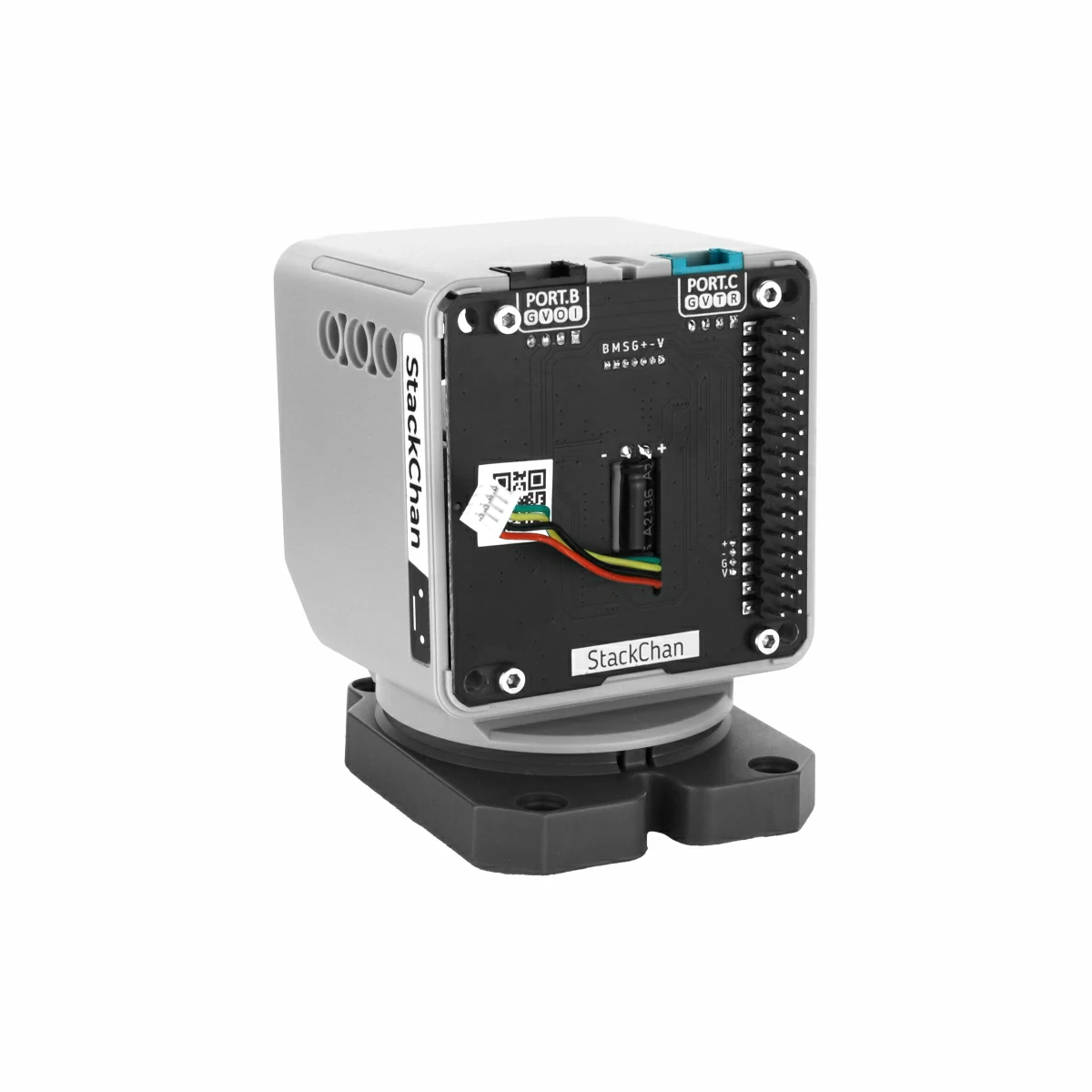

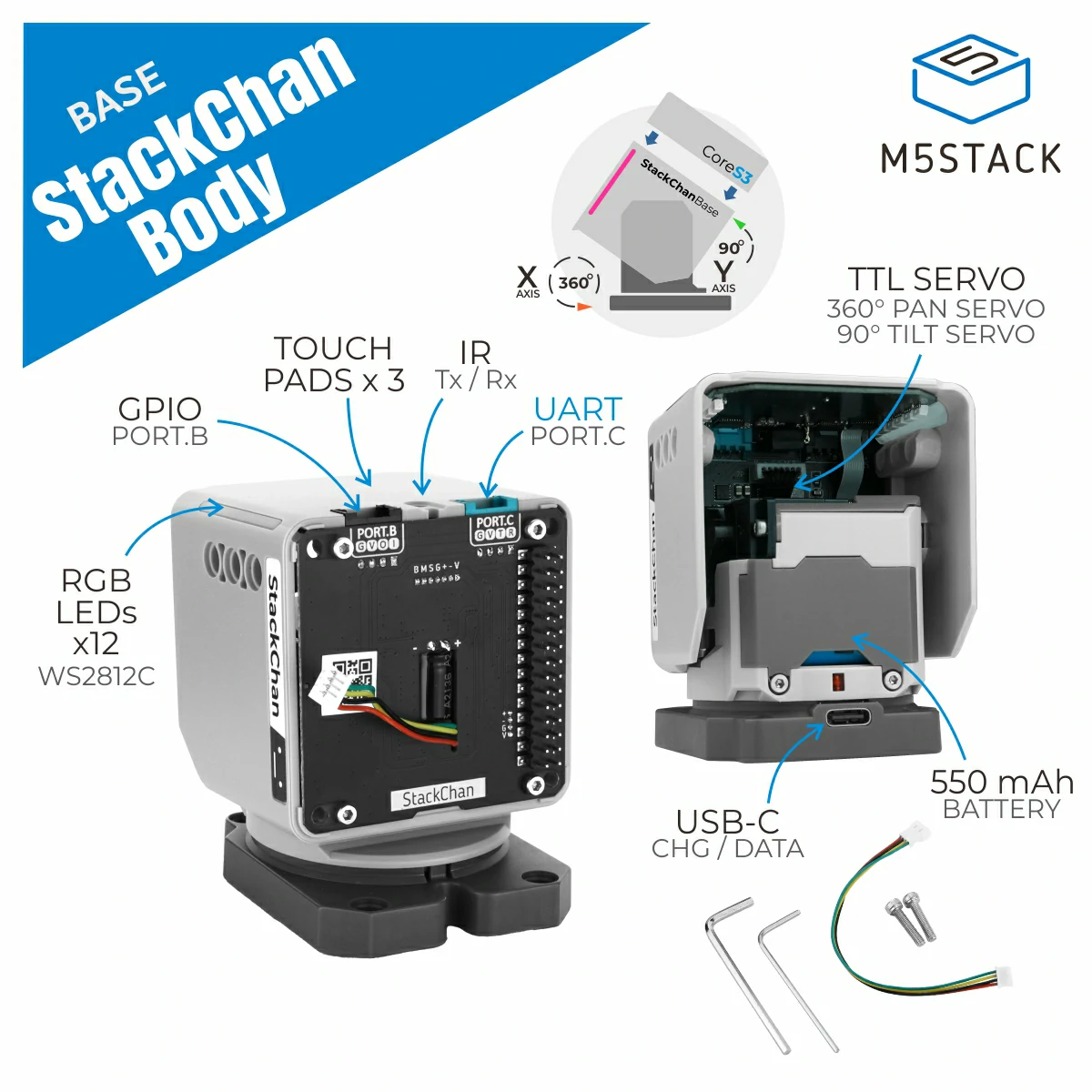

StackChan Body is the body part of the StackChan robot and can be used as a replacement for StackChan mainframe maintenance. The body includes a USB-C power/data interface, 550 mAh battery, two feedback-compatible servos (360° unlimited rotation horizontally and 90° vertically), 12 RGB LEDs (2 rows), infrared transmitter/receiver, a three-zone capacitive touch panel on top, full NFC, and other peripherals. It can replace the original body and is compatible with the StackChan AI desktop robot.

Note

Stackchan App

The Stackchan App supports connections only to original StackChan core controllers, including those in the standard StackChan unit and the Remote Controller Kit, as well as the separately sold StackChan Core replacement controller. Before use, the StackChan user firmware must be flashed to the device. Note that this app cannot connect to non-original core models such as CoreS3, CoreS3-SE, and CoreS3-Lite.

Features

Replacement and maintenance module for StackChan body
USB-C power/data connection
550 mAh battery
Two servos with feedback (360° horizontal endless rotation, 90° vertical rotation)
12 RGB LEDs (2 rows)
Infrared transmitter and receiver
Top 3-zone touch panel

Includes

1 x StackChan Body
2 x M3 * 14mm screws (button head, mechanical thread)
1 x Hex Key L-Shape 1.5mm (For M2 Screw)
1 x Hex Key L-Shape 2.5mm (For M3 Screw)
1 x 1.25-4P male-to-female same-direction extension cable (100mm)

Applications

StackChan body replacement

Specifications

Specification	Parameter
Motor	360° horizontal servo with feedback 90° vertical servo with feedback
Wireless	IR receiver IRM56384 + IR transmitter
Sensor	3-zone touch panel, driven by Si12T Full-featured NFC ST25R3916

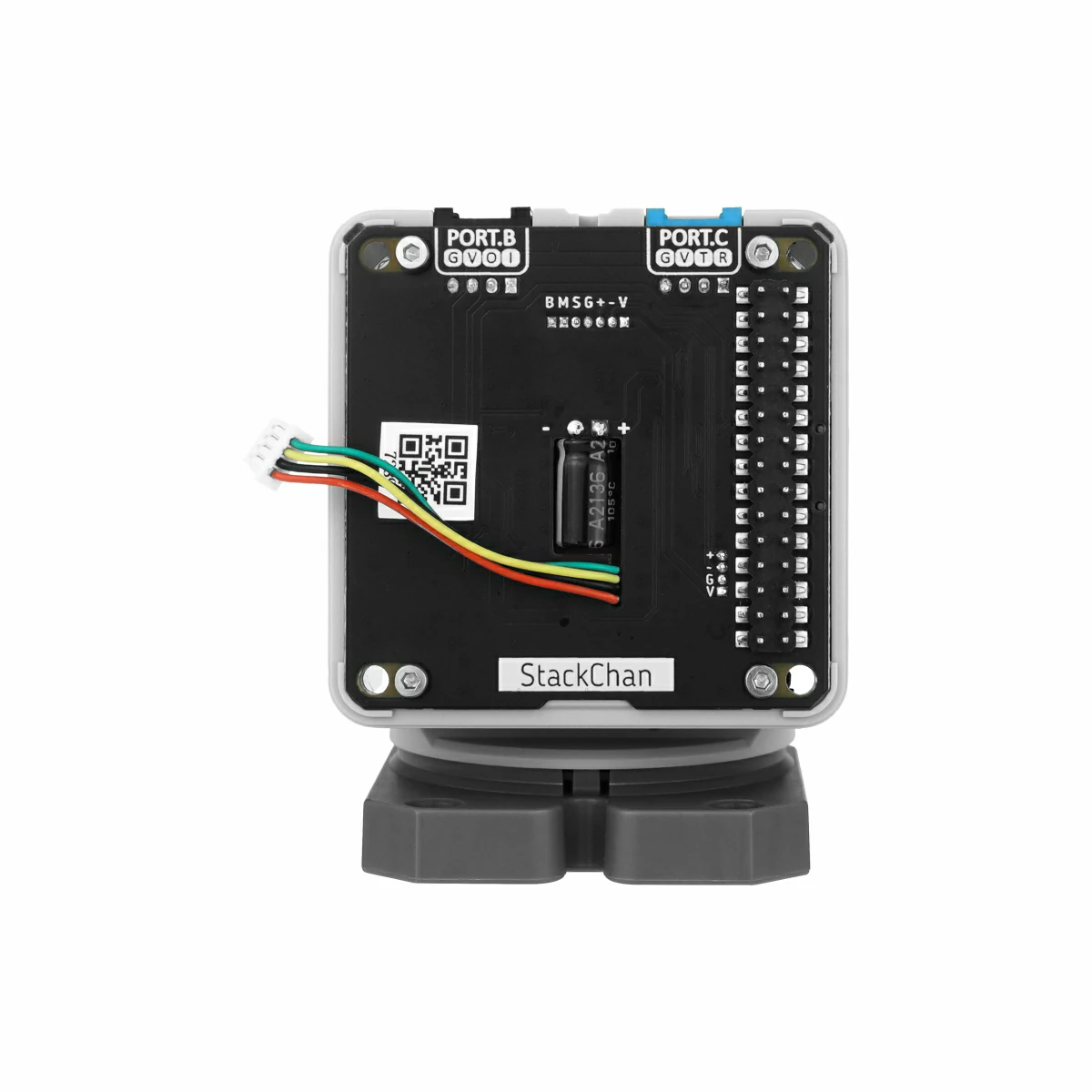

Expansion Port	Grove interface * 2
Product Size	48.0 x 60.1 x 70.4mm

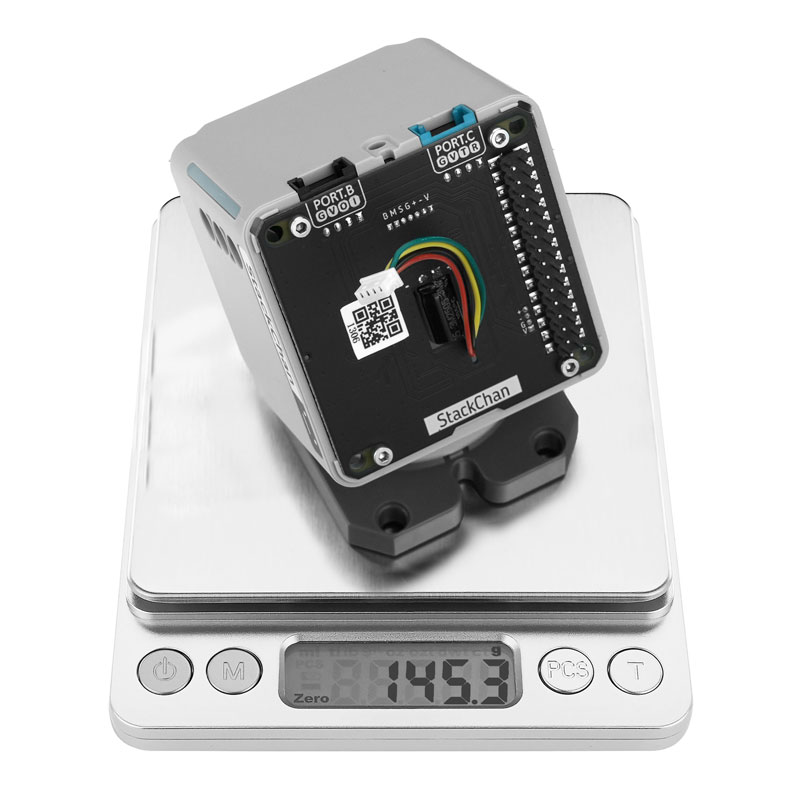

Product Weight	145.3g
Package Size	100.0 x 100.0 x 57.0mm
Gross Weight	201.5g

Schematics

1/4

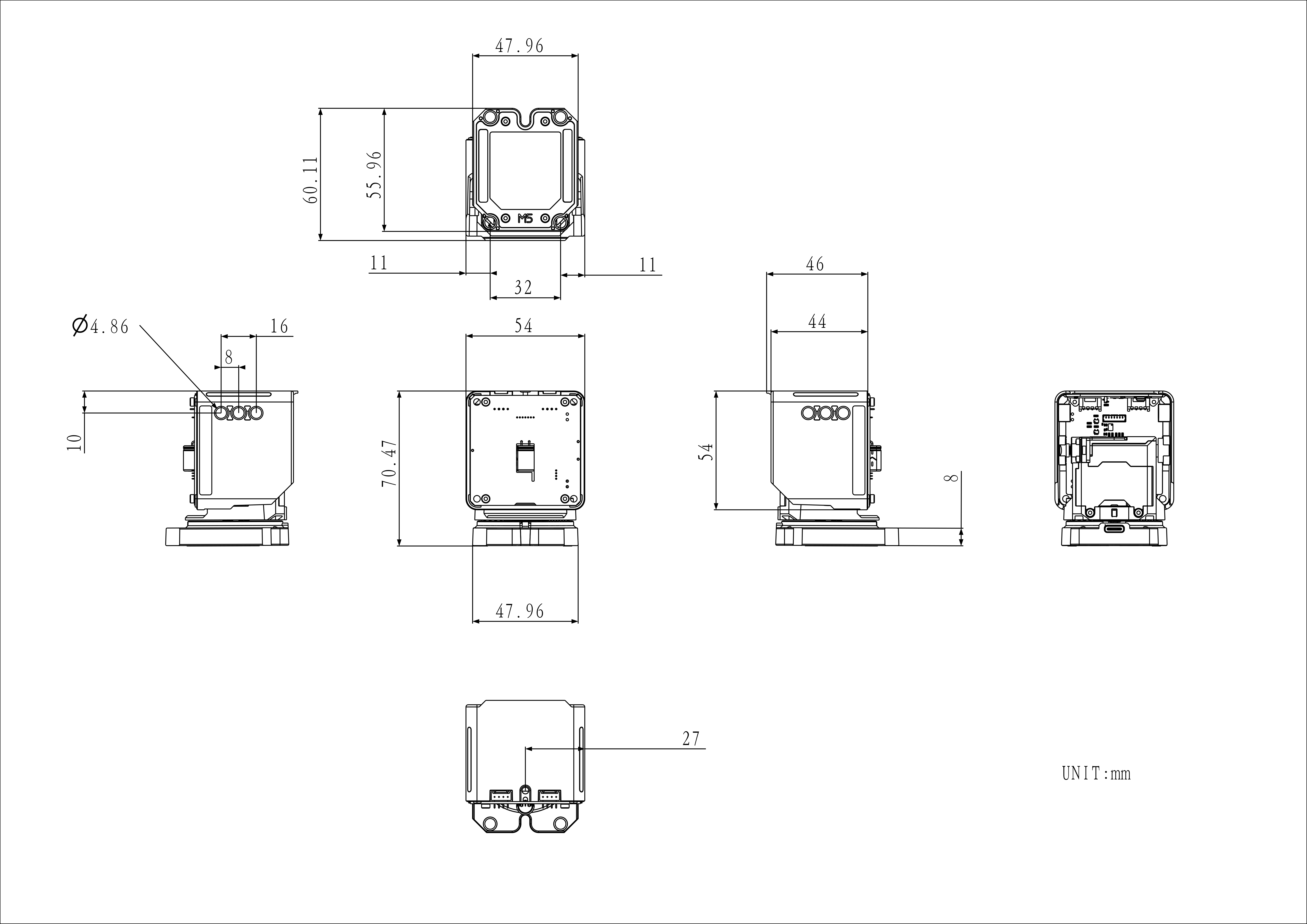

Model Size

StackChan Body Model Size PDF

1/1

Structure

StackChan Body Structure Files
