Base15

SKU:K025

Description

Base15 is a highly customizable industrial base in the M5 ecosystem. It is similar to the PLC Base but offers a higher level of customization. The kit includes a protoboard (universal board) that allows you to add your own circuit design, and it reserves solder pads for two Grove interfaces for easy circuit expansion. It comes with M-type waterproof connector components, which allow the user to install them on the side or bottom of the base.
The "15" in Base15 refers to the base’s height of 15cm, with each side of the base being freely detachable, cuttable, and customizable into different interfaces to meet various needs. For base customization, we provide numerous alternative structural components and have made them completely open-source, so you can create 3D print files or secondary designs based on them. Additionally, the base is fully compatible with M5 stackable modules and hardware expansion systems. On the bottom of the product, we provide two different mounting methods: rail mounting and suspended mounting.
The base is encased in an industrial-grade shell, and the freely splicable components give you unlimited combination possibilities to create powerful and reliable industrial applications. For developers targeting industrial scenarios with certain protection requirements and seeking highly customized projects, Base15 is an excellent solution.

Features

  • Supports high customization
  • Replaceable parts
  • M5-Bus expansion
  • Onboard DC-DC conversion (9 ~ 24V -> 5V)
  • 2 types of base mounting methods

Includes

  • 1 x Base15 Proto Board
  • 1 x Base15 Base Shell
  • 2 x HY2.0-4P Terminal
  • 1 x Hex Key L-Shape 1.5mm
  • 1 x Hex Key L-Shape 2.0mm
  • 1 x Hex Key L-Shape 2.5mm
  • 1 x 35mm Silver Metal Rail
  • 1 x 35mm Black Rail Buckle
  • 2 x M3*8mm Screws (countersunk, machine thread)
  • 2 x M3*22mm Screws (pan head, machine thread)
  • 4 x M2*5mm Screws (pan head, self-tapping)
  • 2 x M3 Nut (with anti-slip rubber ring)
  • 1 x Product Sticker

Specifications

Specification Parameter
Product Size 54.0 x 54.0 x 15.0mm
Product Weight 21.0g
Package Size 125.0 x 67.0 x 23.0mm
Gross Weight 116.0g

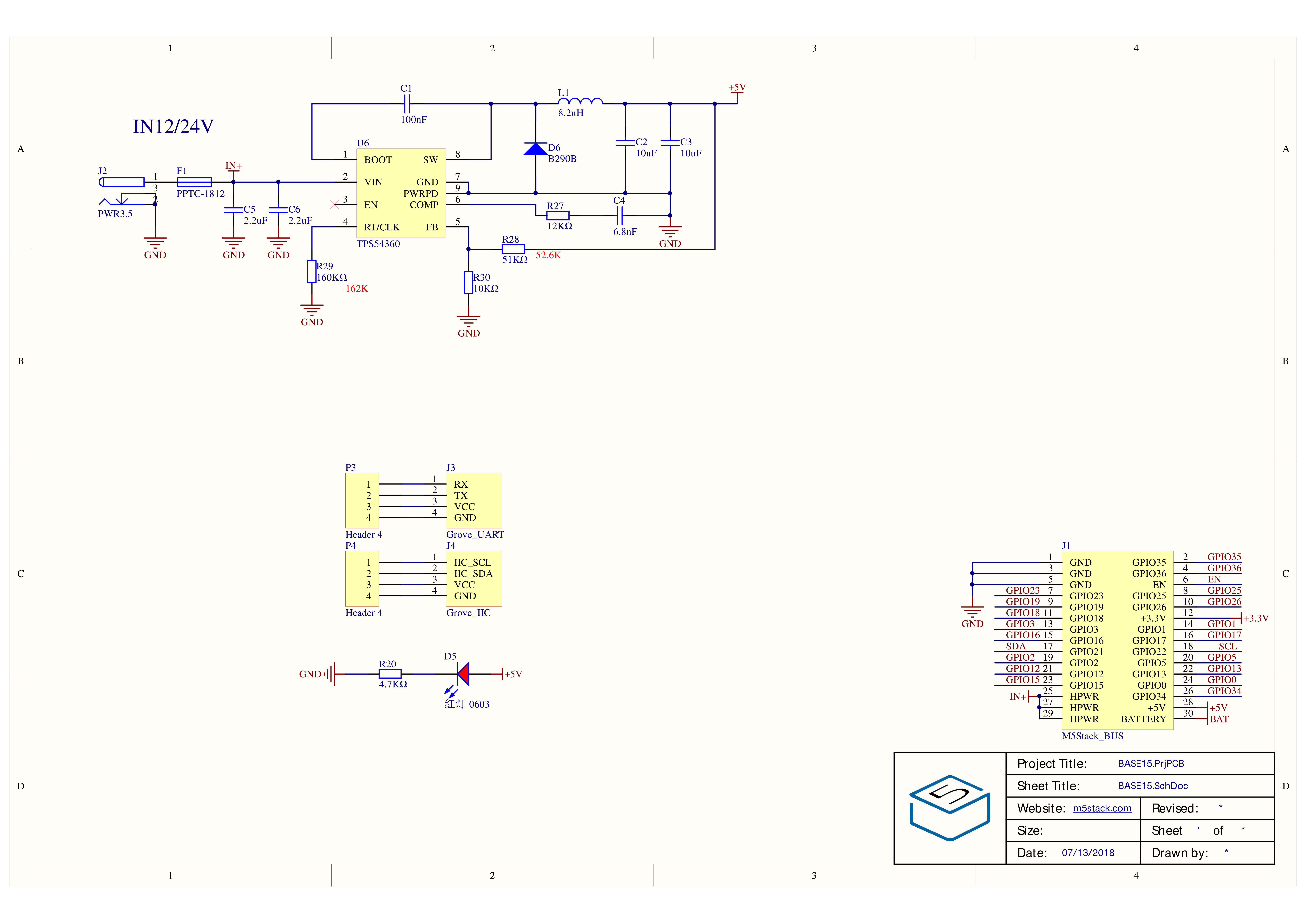

Schematics

PinMap

M5-Bus

PIN LEFT RIGHT PIN
GND 1 2 NC
GND 3 4 NC
GND 5 6 EN
NC 7 8 NC
NC 9 10 NC
NC 11 12 3V3
NC 13 14 NC
NC 15 16 NC
SDA 17 18 SCL
NC 19 20 NC
NC 21 22 NC
NC 23 24 NC
HPWR 25 26 NC
HPWR 27 28 5V
HPWR 29 30 BAT

3D
