Base AAA

SKU:A122

Description

Base AAA is a "5X5cm" series base powered by four AAA dry batteries. Unlike other lithium battery bases, Base AAA uses safe and reliable dry battery power supply. It also features an onboard physical power switch that can completely turn off the power to reduce dry battery loss. It has reserved two PORT.B and PORT.C interfaces for expansion, provides a 1 x 12P 2.54 pitch female header expansion interface, circular mounting holes on the side for easy fixing and expansion, supports magnetic installation at the bottom, and two embedded brass nuts for mounting.

Features

  • 1 x 12P 2.54 interface
  • PORT.B, PORT.C interface
  • Power switch
  • Supports two power supply modes:
    • Powered by four AAA dry batteries, stepped down from 6V -> 4V via DC-DC, supplied to the BUS BAT Pin
    • External power supply through Dupont wire to the BAT/GND of the 12P 2.54 interface
  • Multiple fixation methods:
    • Bottom magnetic fixation
    • Two embedded brass nuts at the bottom
    • Three reserved mounting holes on the side

Includes

  • 1 x Base AAA
  • 1 x Hex Key L-Shape 1.5mm (For M2 Screw)

Specifications

Specification Parameter
Product Size 54.0 x 54.0 x 21.0mm
Product Weight 30.0g
Package Size 95.0 x 67.0 x 25.0mm
Gross Weight 51.2g

Learn

Soldering Tips

By default, the G35 pin is disconnected. If you need to read the power supply voltage, solder this pad as shown in the figure below:

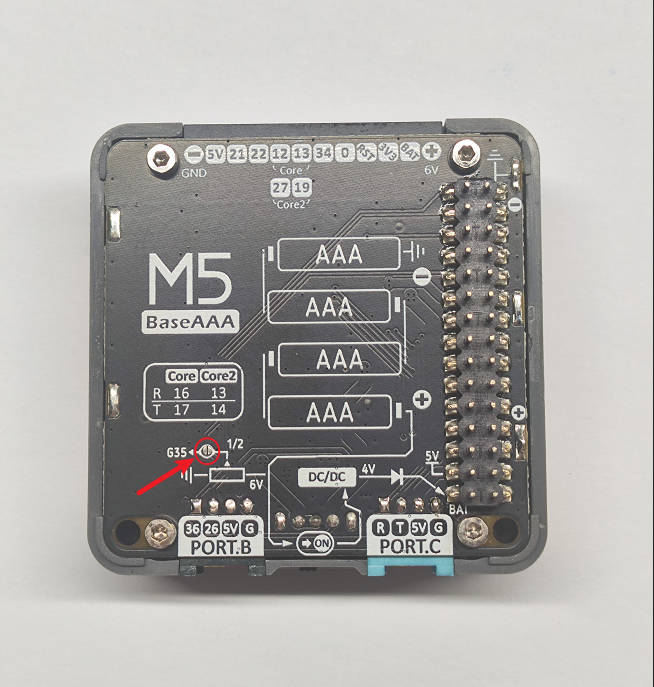

  • Before soldering

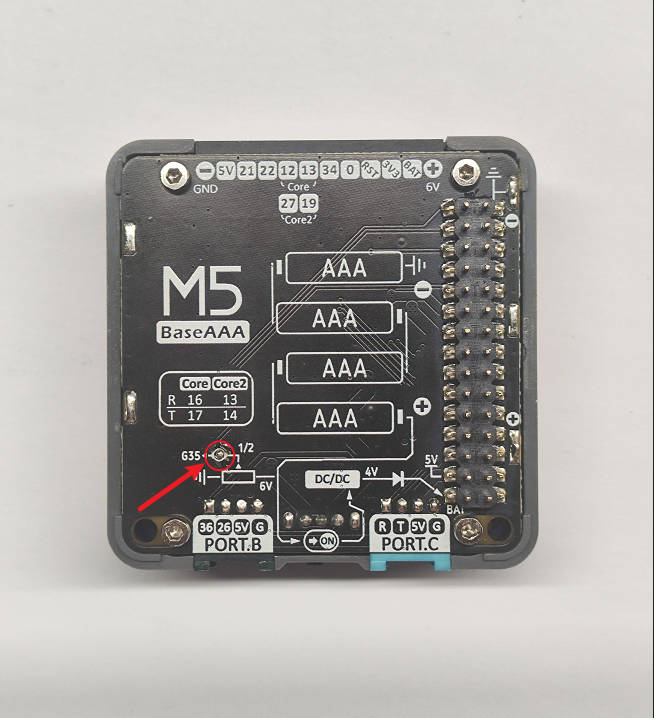

  • After soldering

Schematics

PinMap

M5-Bus

PIN LEFT RIGHT PIN
GND 1 2 NC
GND 3 4 PORT.B
GND 5 6 RST
NC 7 8 NC
NC 9 10 PORT.B
NC 11 12 3V3
NC 13 14 NC
UART_RX 15 16 UART_TX
I2C_SDA 17 18 I2C_SCL
NC 19 20 NC
PIN 21 22 PIN
NC 23 24 PIN
HPWR 25 26 PIN
HPWR 27 28 5V
HPWR 29 30 BAT

Softwares

Arduino

  • Use ADC to read the voltage of the power pin
#include <M5Unified.h>
#define BAT_ADC_PIN 35
int16_t sensorValue = 0;
float voltage = 0.0;
void setup() {
  M5.begin();
  Serial.begin(115200);
  analogReadResolution(10);
}
void loop() {
  sensorValue = analogRead(BAT_ADC_PIN);
  voltage = (sensorValue * 3.0) / 1023.0;
  Serial.print("sensor = ");
  Serial.print(sensorValue);
  Serial.print("\t vol = ");
  Serial.print(voltage);
  Serial.println("V");
  delay(200);
}
