Base BTC

SKU:A011/A011-B

Description

Base BTC is an environmental data measurement base with a built-in SHT30 temperature and humidity sensor, capable of precise measurements. It adopts a female header plug-in design, connecting and communicating with the core controller through the Base Bottom pin header. It is suitable for building personal desktop environmental data monitoring and display systems.

Features

• Built-in SHT30 temperature and humidity sensor
• High measurement accuracy
• I2C communication interface

Includes

• 1 x Base BTC
• 1 x USB Type-C Cable (1m)
• 2 x M3 * 16 Screws
• 1 x Hex Key L-Shape 2.5mm (For M3 Screw)

Applications

• Indoor environment monitoring system
• Smart home linkage devices
• Educational experimental platform
• Small weather station

Specifications

Learn

Charging Instruction

When used with first-generation Core series controllers such as Basic:

• The USB port of the Base BTC base only supplies power to the host device.
• To charge the lithium battery inside the Base Bottom, please connect the USB port on the host device.

I2C Address Conflict

• Do not connect additional sensors with the same I2C address (0x44) as the SHT30 on the I2C bus, otherwise the device will not work properly due to address conflicts.

PinMap

SHT30

M5-Bus

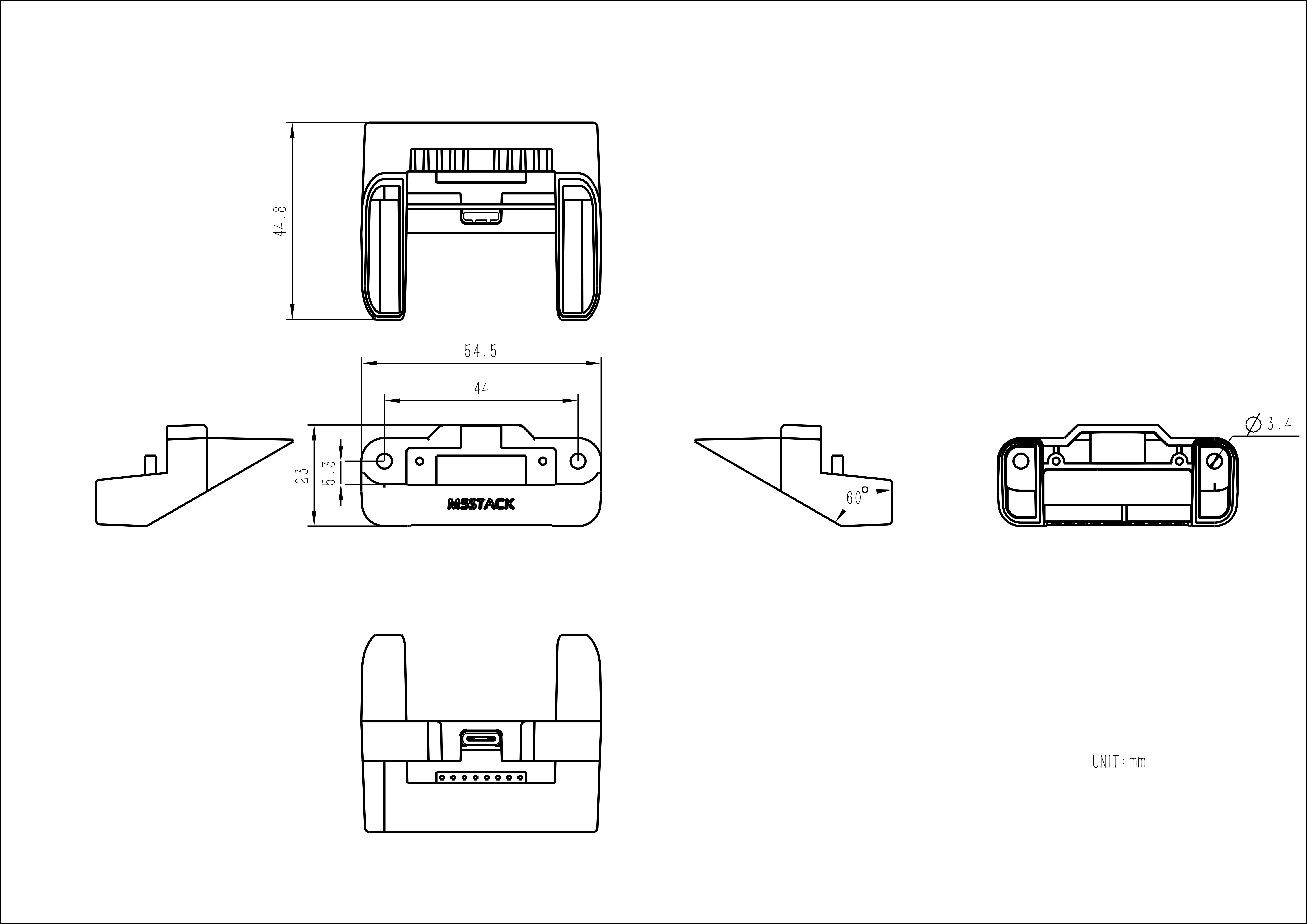

Model Size

• Base BTC Model Size PDF

Datasheets

• DHT12 datasheet
• SHT30 datasheet

Softwares

Arduino

• Base BTC SHT30 Example
• Base BTC DHT12 Example

Version Change
