PLC M12

SKU:K011-B

Description

PLC M12 is a Base specifically design for industrial application. DC Power in 9-24V. Does this PLC remind you of the 'PLC' in industrial controll short for 'Programmable Logic Controller'. This PLC base is not the typical 'PLC' used in programmable controller, but its does able to implement the most common controller in industrial field. Based on the current M5 development system, you can add as many Realys as you want, you can enable the TTL-RS485 communication, you can layout your customized circult on the protoboard. you also can make it an LoRa node by stacking a LoRa module etc. This base gives you an unlimited number of combinations, it is powerful, flexible, and covered with an industrial-grade case. If you happen to work in an industrial field, We especially recommend this PLC base to you which will surely give you the best and the fastest way to resolve your requirement.

If you need to add RS485 interface, soldering the RS485 board onto the mian board pin correspondingly. The serial port pins on the RS485 board will be connected to the GPIO16 and GPIO17 of the PLC backplane.

Product Features

  • Support 9-24V voltage input

Include

  • 1x PLC Proto Board
  • 1x PLC base housing
  • 1x RS485-To-TTL adapter board
  • 1x HT3.96-4P terminal
  • 2x HT3.96-3P terminals
  • 1x 1.5mm hex key
  • 1x 2.0mm hex key
  • 1x 2.5mm hex key
  • 10x 2mm Crimp Terminals
  • 1x magnet (with hole in the middle, diameter 15mm, thickness 3mm)
  • 1x 35mm silver metal rail
  • 1x 35mm black rail clip
  • 1x M3*6mm screw (countersunk head, mechanical teeth)
  • 2x M3*28mm screws (cup head, mechanical teeth)
  • 4x M2*5mm screws (cup head, self-tapping)
  • 1x cable gland (M12)
  • 1x 2.54mm-20P straight pin header (total height 5.32mm)
  • 1x product sticker

Specification

Resources Parameter
Net weight 25g
Gross weight 133g

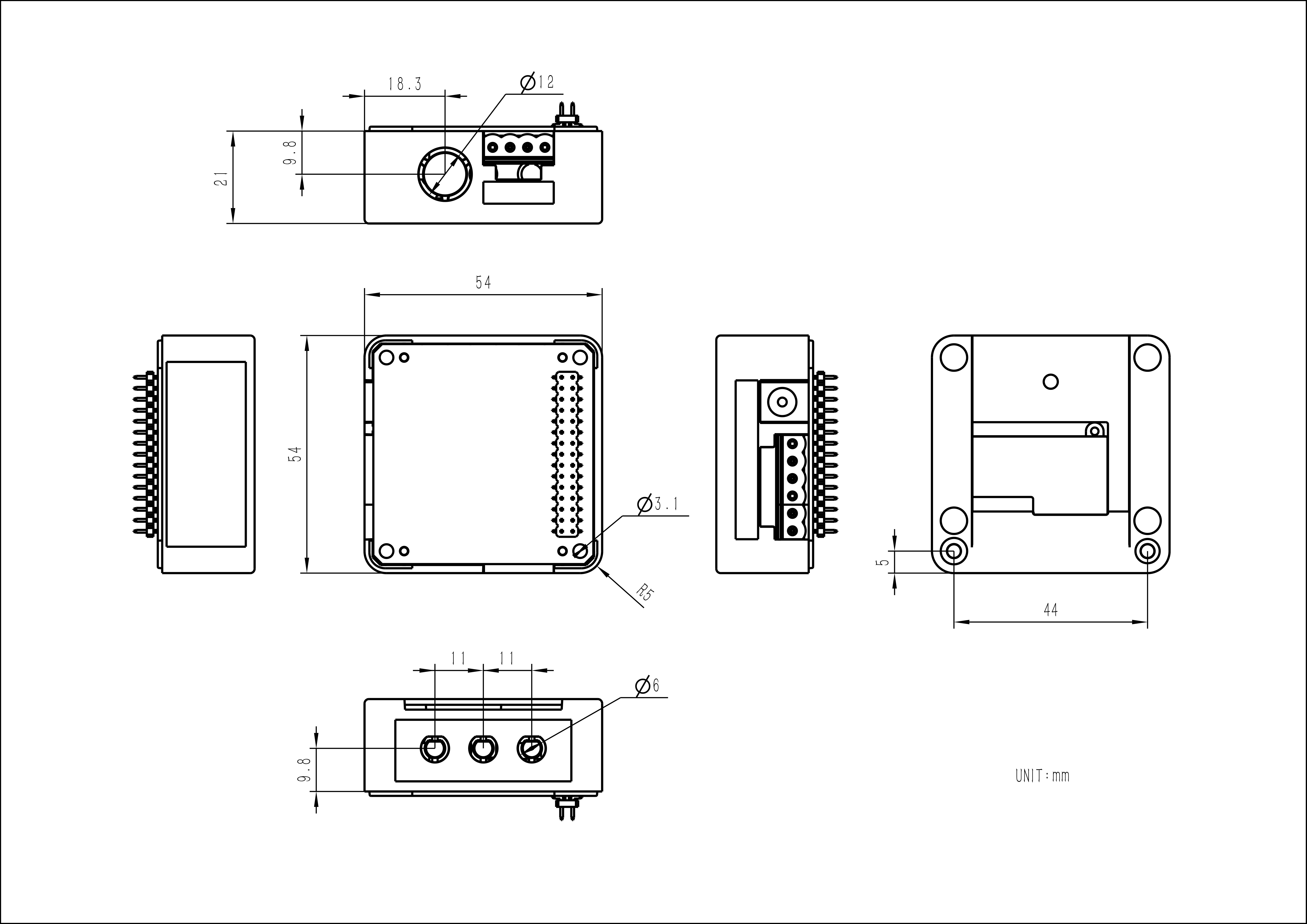

Product Size 545428mm
Package Size 1056540mm

Schematic

Video

RS485 Communication

FAQ

Q1: How do I remove the speaker floor noise when the M5Core is on or running?

Execute the following statement in Setup() of the Arduino program

Q2: How does M5Core2 stack modules?

When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.

Q3: A timeout error is displayed when uploading the program to the device

Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally

Q4: How to solve the phenomenon of automatic signal triggering of M5Core button A

Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program

Q5: M5 device battery life

The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.

Q6: Can multiple modules with batteries be stacked at the same time?

Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)

Q7: M5 master supports WiFi connection to 5G frequency band

ESP32 module currently does not support WiFi in 5G band, only 2.4G.

Q8: The RS485 device cannot communicate normally/data is garbled. Packet loss, etc.

Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference

Q9: The difference between different masters and camera products

Click the link below to view the product comparison table

Q10: M5 camera image blur, how to adjust the focal length

Rotate the lens to adjust the focal length within a certain range

Q1: How to read the programmed firmware?

Use esptool to read the flash content of esp32 and export the bin file. Refer to the detailed operation

Q2: Several solutions for esp32 board download failure in Arduino IDE board management

Restart the Arduino IDE, the computer uses the mobile AP mobile network to download.

Method 3: Download the resource package provided by M5Stack for direct installation, and extract the contents to the board management path of Arduino, such as (C:\Users\Sean\AppData\Local\Arduino15\packages), https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/arduino/packages/m5stack_v2.0.0.zip
Q3: Arduino SPIFFS file upload operation

Refer to the Github link below, use arduino-esp32fs-plugin for file upload

Q4: When M5Burner burns firmware, an error pop-up window or exception occurs

Check if the COM of the corresponding device is selected and if the M5Burner is the latest version

Q5: Does the M5 master device support multi-language display (Chinese, English, Japanese, Russian, etc.)?

UIFlow users can switch the Label font to Unicode, Arduino users can use the Chinese font library provided in the M5GFX driver library

Q6: The program cannot load the SD card normally

Confirm whether the SD card format is FAT32, and no partitions exist.

Q7: How to use Bluetooth, HTTP, SD, WebServer, FreeRTOS and other features in Arduino IDE

You can refer to the following link for other ESP32 users to share the case program

Q8: How to download programs for STAMP C3U

STAMP C3U enters program download mode operation: 1. Long press the center button (G9) of STAMP C3U when the power is off. 2. Connect to the computer, after the port is successfully identified, program burning.

Q9: How STAMP C3U defines UART0 output mode

By default, USB CDC is not enabled, the serial port output started by C3U will be output through the default pins (G20, G21) of UART0. If you want to output through USB, please use the IDE to output Its USB CDC option is enabled. (Arduino users can enable it through Tools->USB CDC on Boot-Enabled. For IDF users, please refer to the ESP IDF official documentation.)

Q10: Unable to connect to UIFlow Desktop IDE

Refer to the UIFlow documentation of the corresponding device to check whether the device has entered the USB programming mode.
