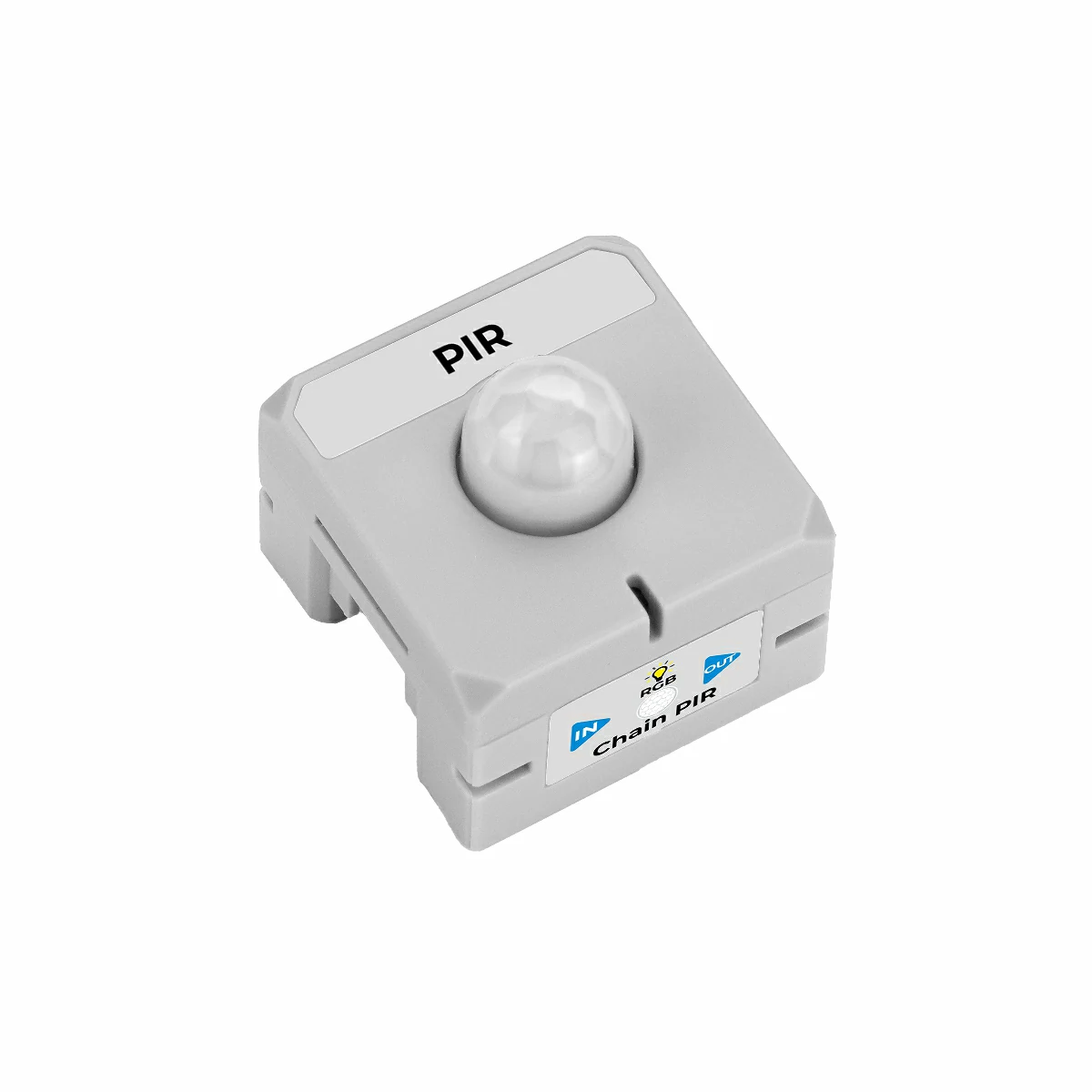

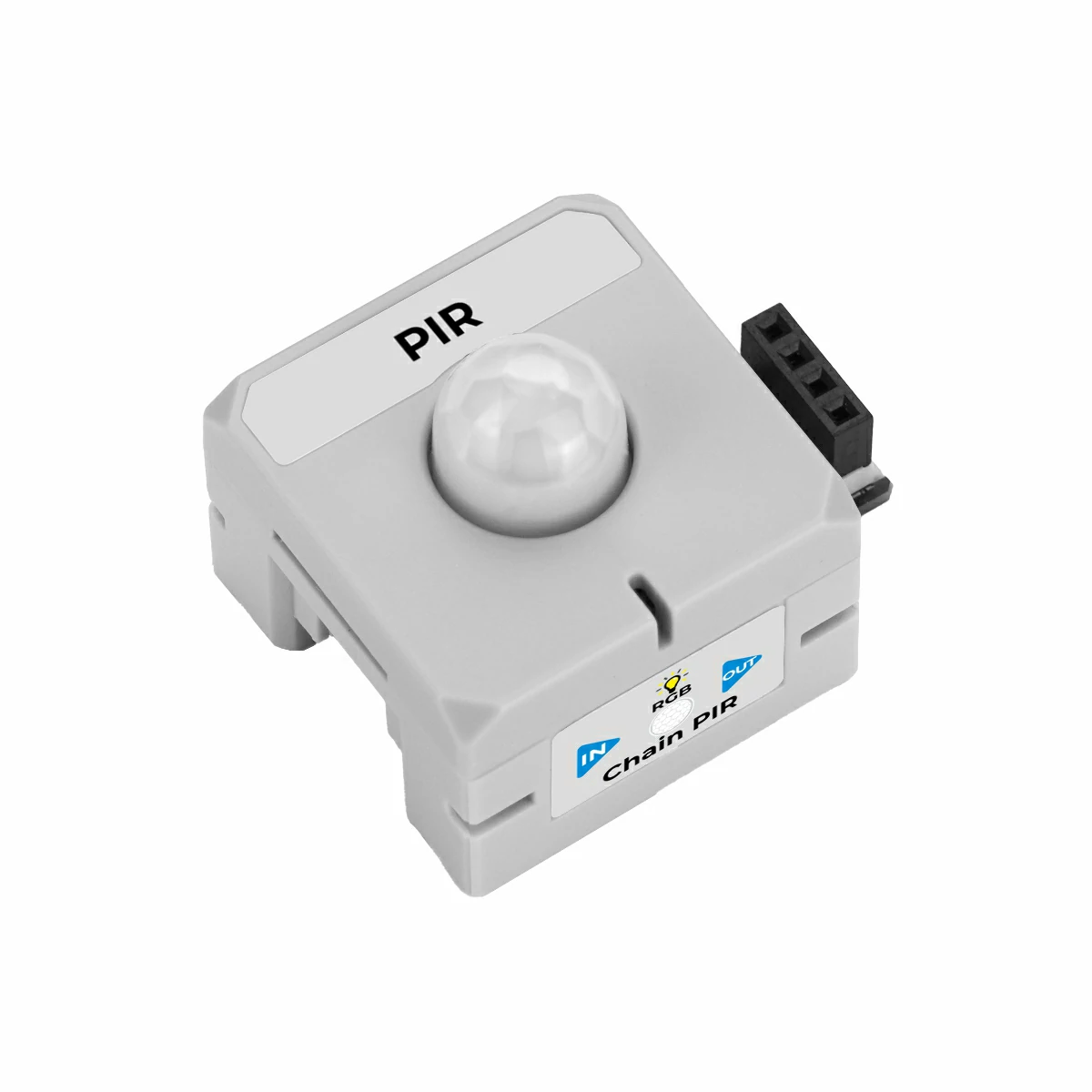

Chain PIR

SKU:U225

Description

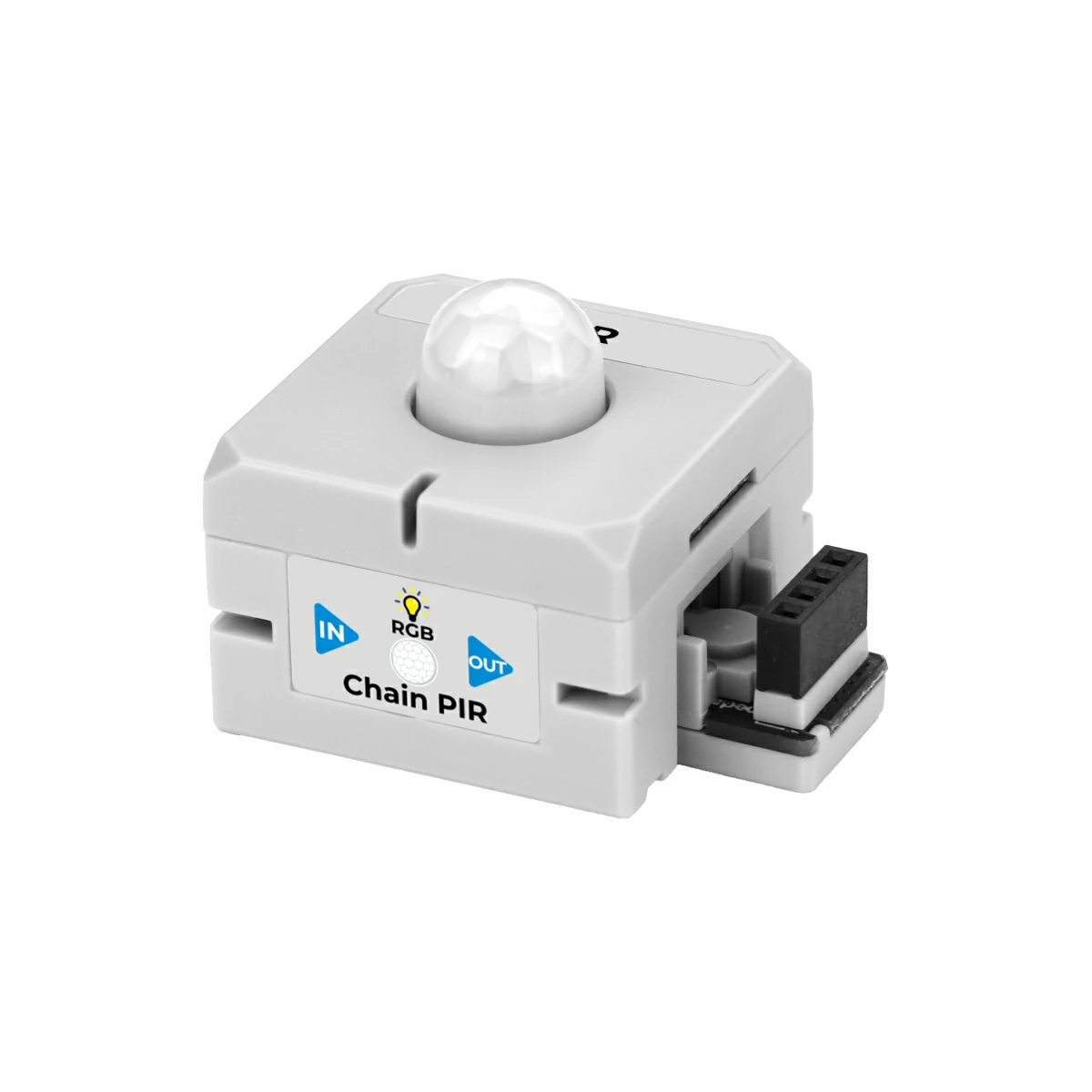

Chain PIR is a pyroelectric infrared human presence sensing node in the M5Stack Chain series. It features a built-in pyroelectric infrared sensor and an integrated programmable RGB LED. It is suitable for applications such as human activity detection, smart home automation, and security alarms.

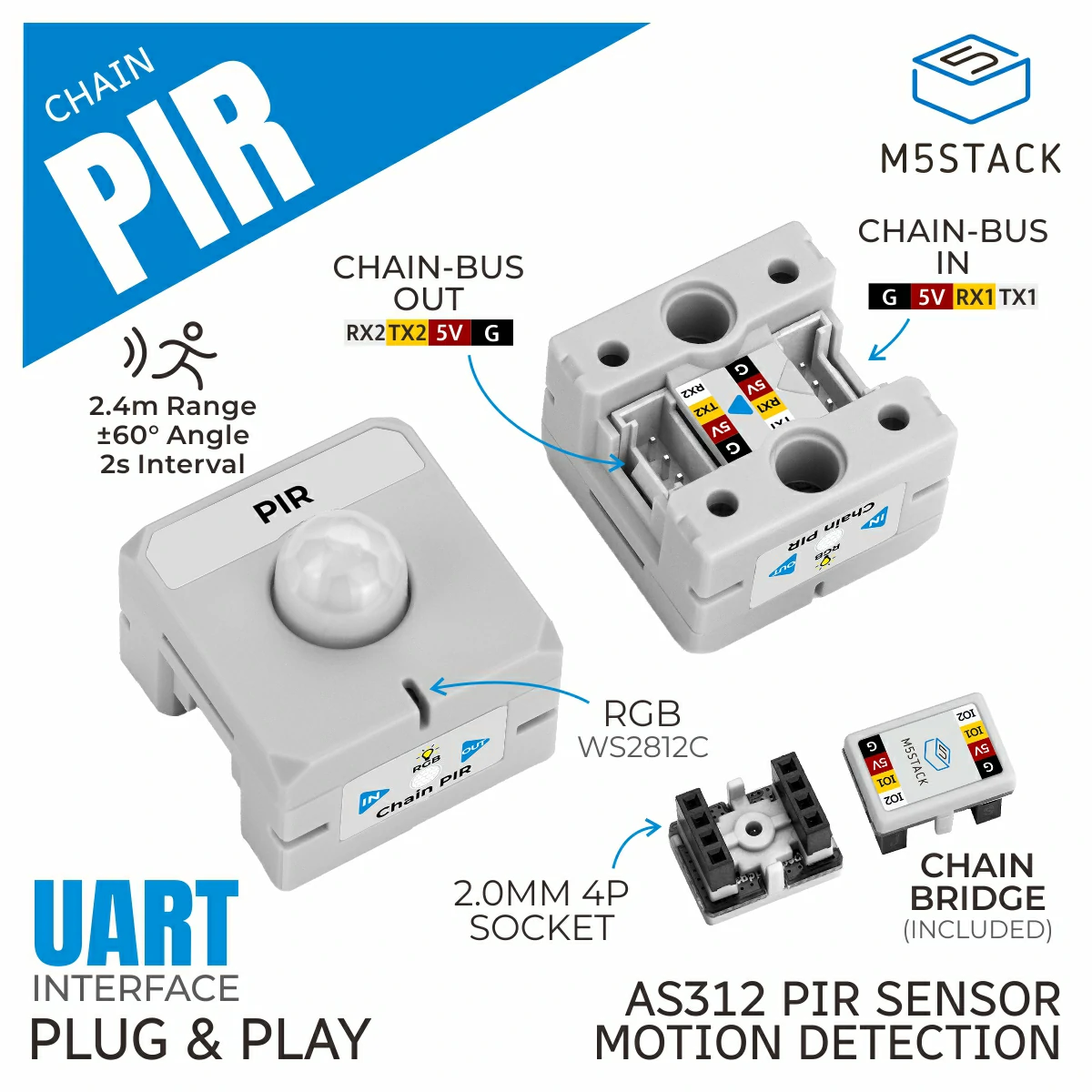

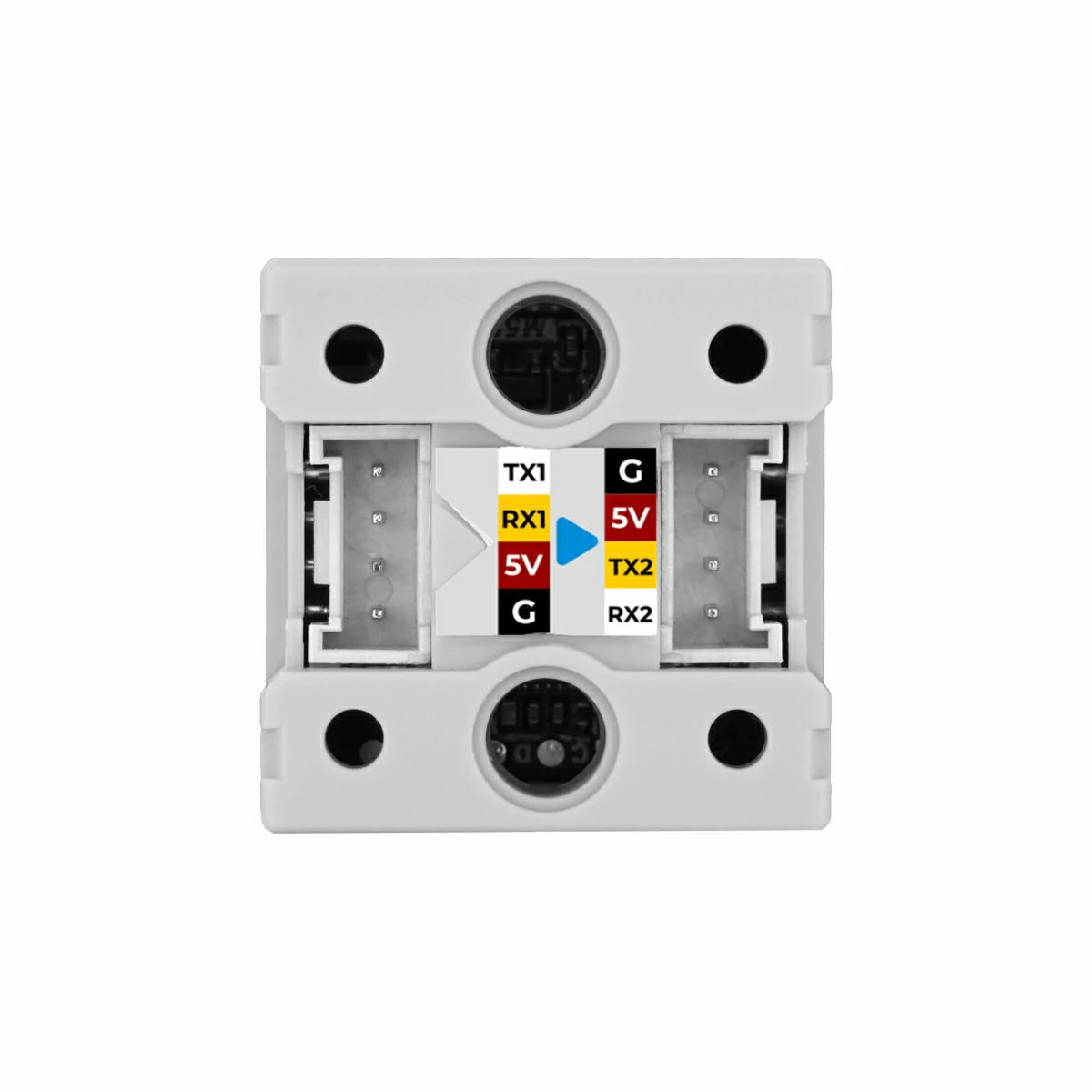

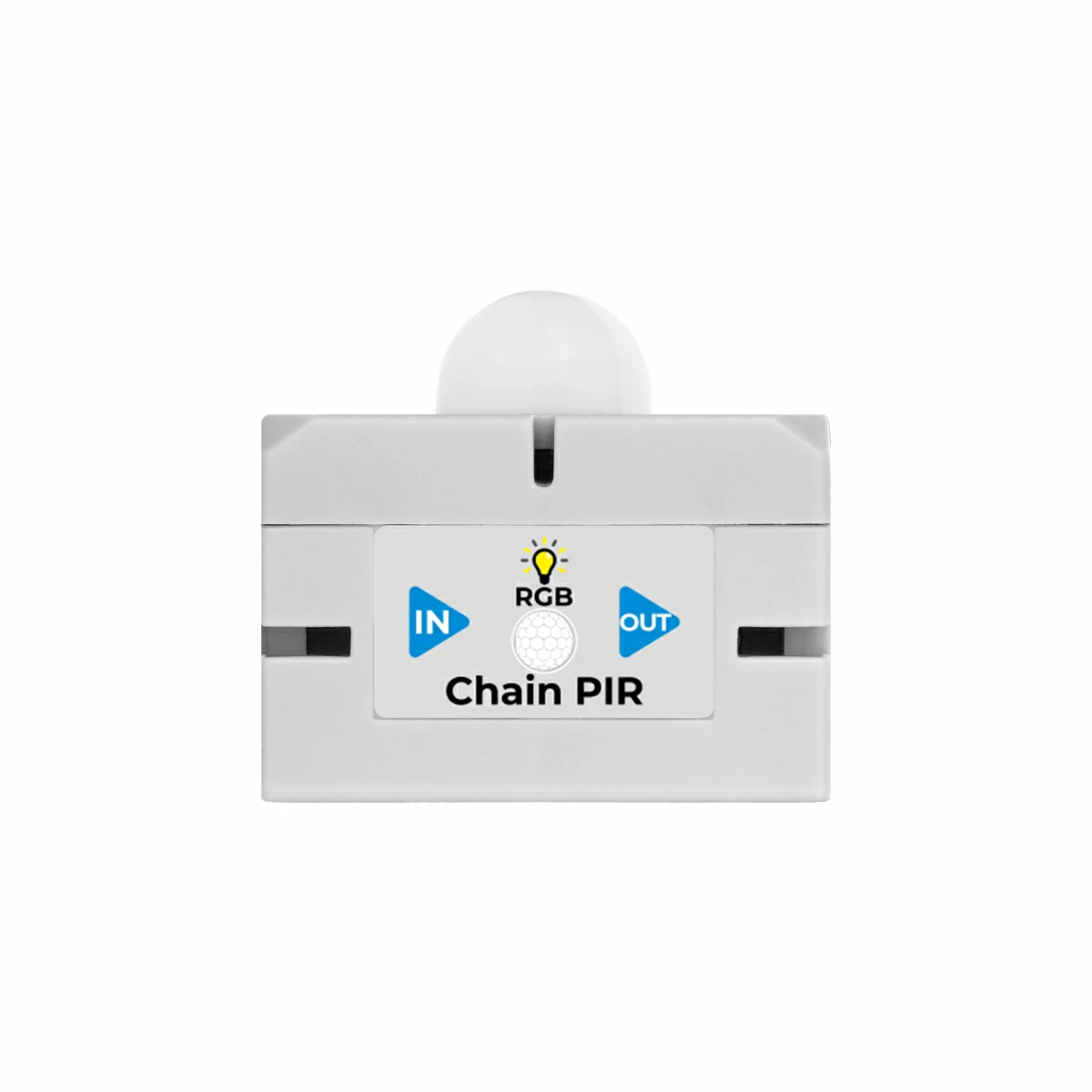

Chain PIR integrates an STM32G031G8U6 data processor and uses a UART serial daisy-chain communication protocol. Its two HY2.0-4P expansion interfaces allow additional Chain series devices to be connected, enabling richer interactive applications.

Features

M5Stack Chain series
Pyroelectric infrared human presence sensing
STM32G031G8U6 main controller
UART serial daisy-chain communication protocol
1 x RGB LED

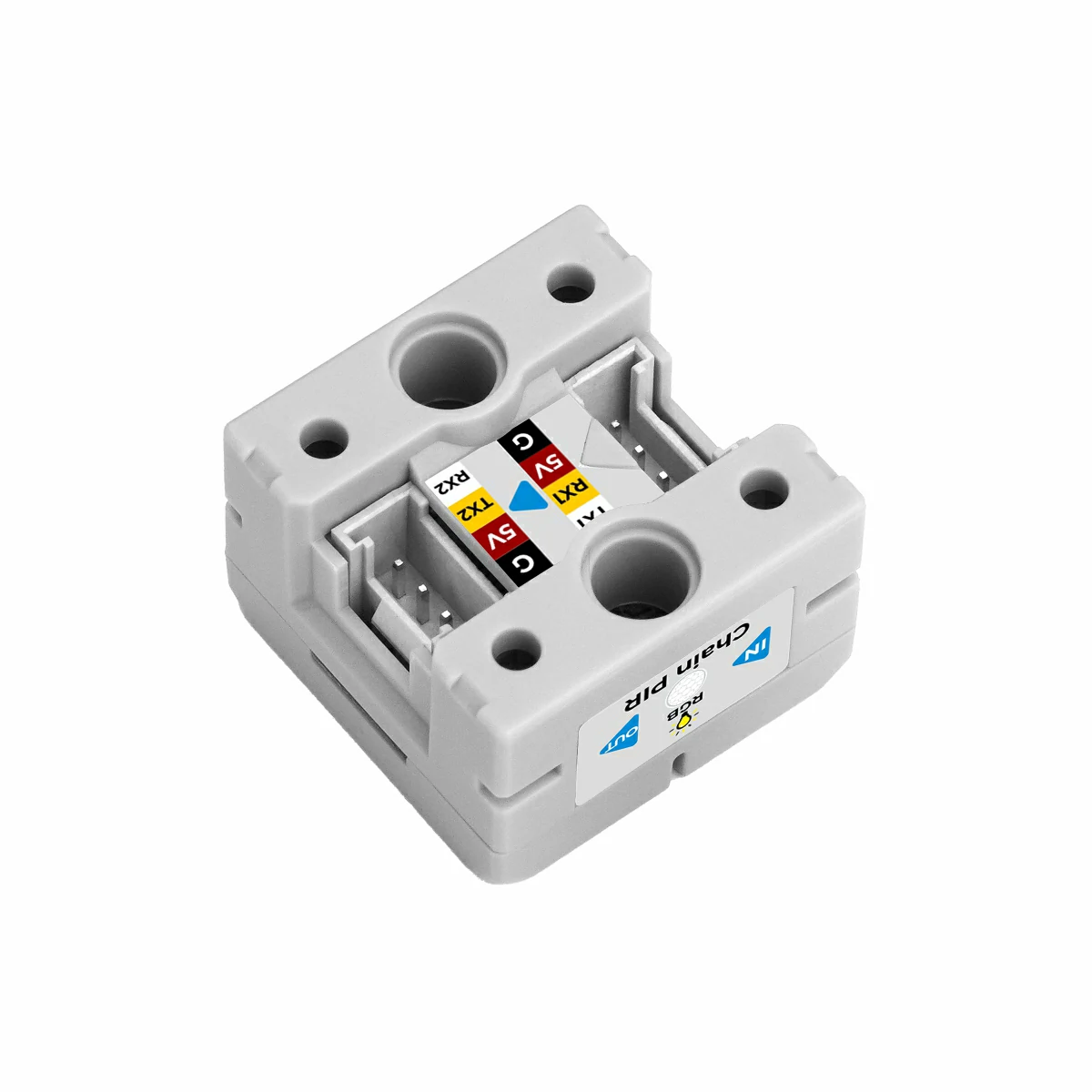

2 x HY2.0-4P expansion interfaces for connecting Chain series devices
Two operating modes:
- Automatic reporting mode: Automatically sends data to the host when the PIR status changes
- Query mode: The host initiates a query, and the slave responds with the current PIR status

Includes

1 x Chain PIR

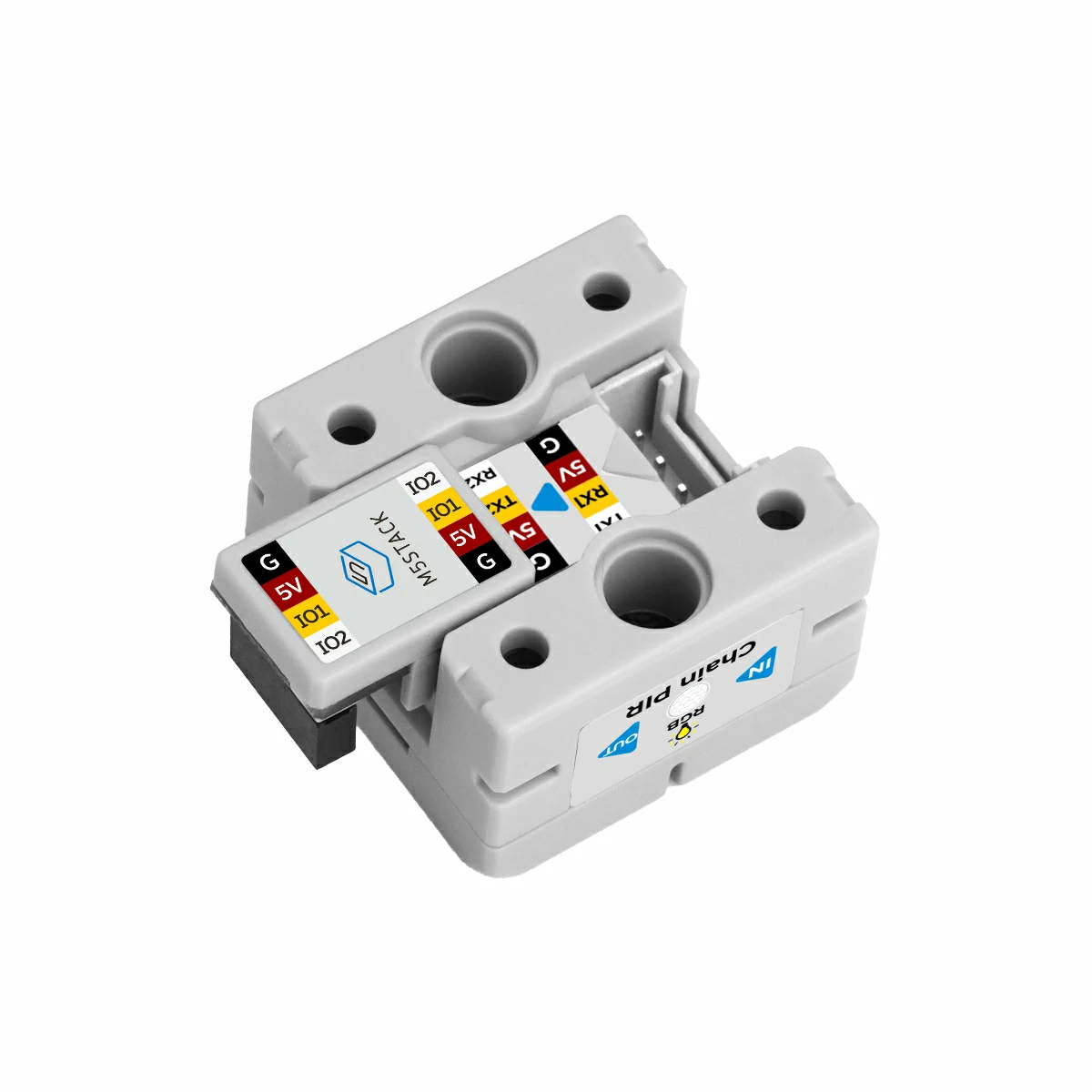

1 x Chain Bridge

Applications

Human activity detection
Smart home automation
Security alarms

Specifications

Specification	Parameter
MCU	STM32G031G8U6
Power Input	DC 5V
Communication	UART 115200bps@8N1
Interface	2 x HY2.0-4P
RGB LED	1 x WS2812C
Sensor	AS312 Pyroelectric Infrared Sensor
Maximum Detection Distance	2.4m
Detection Angle	±60°
Detection Interval	2s
Operating Power Consumption	5V@10.74mA

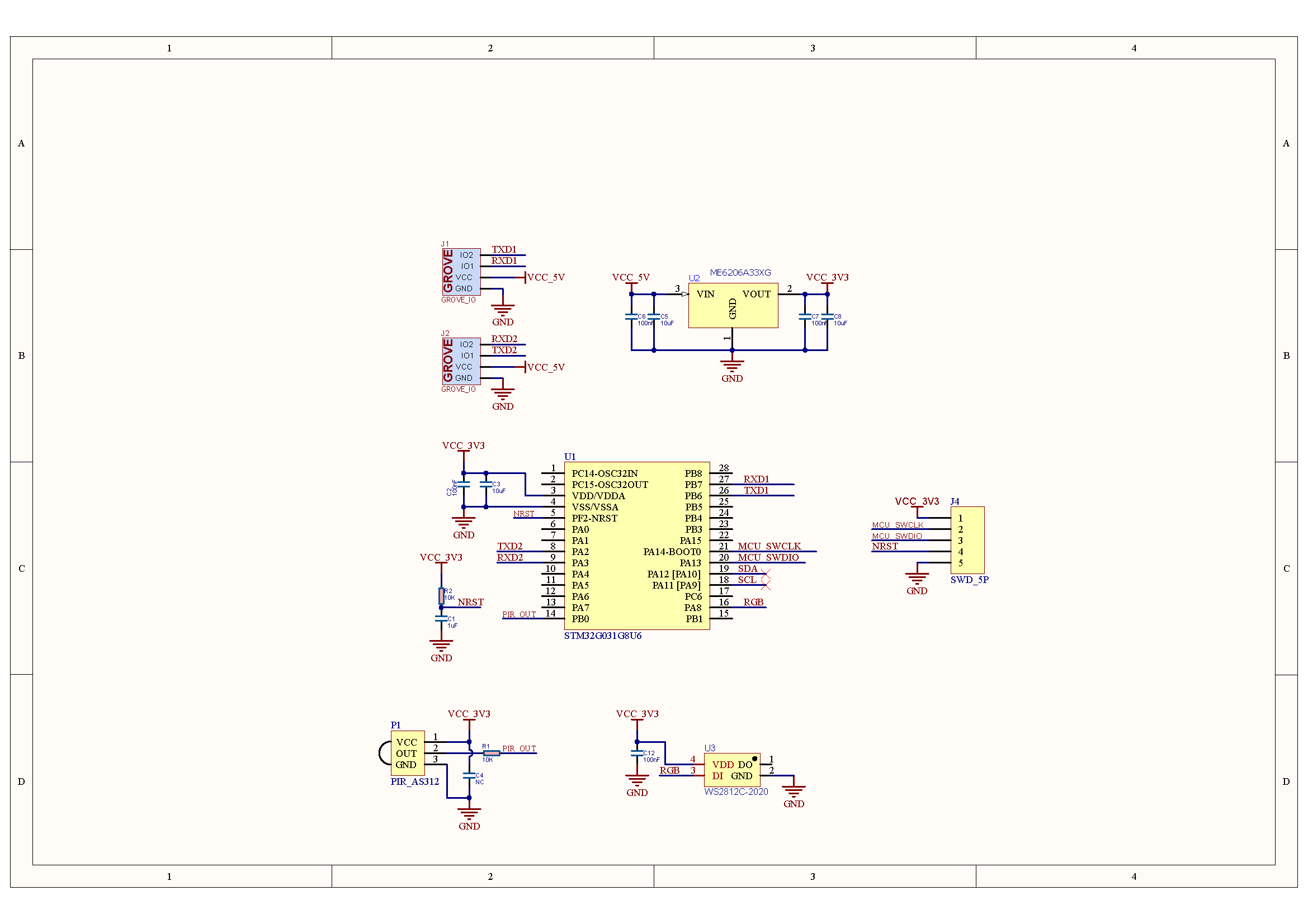

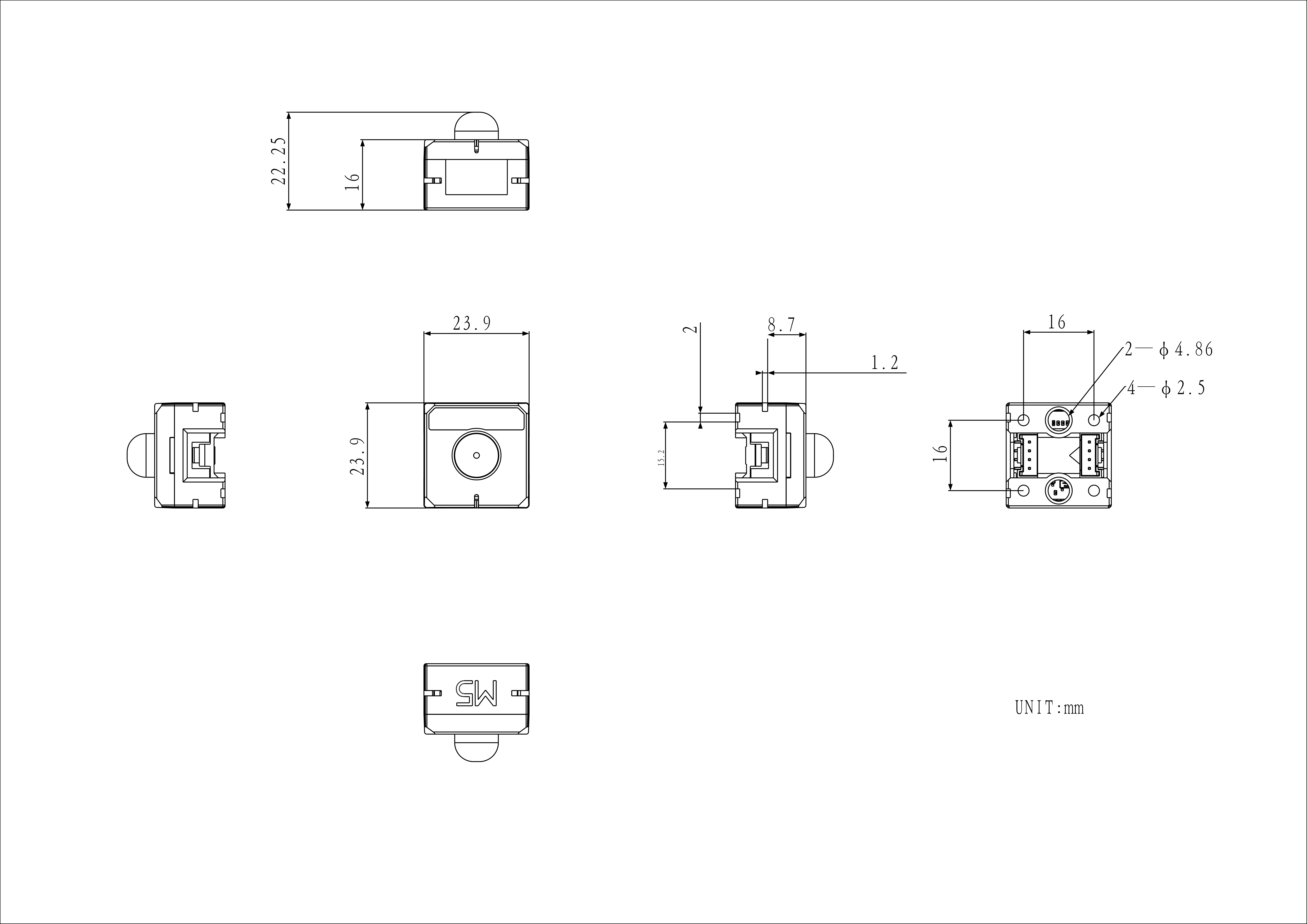

Product Size	23.9 x 23.9 x 22.3mm

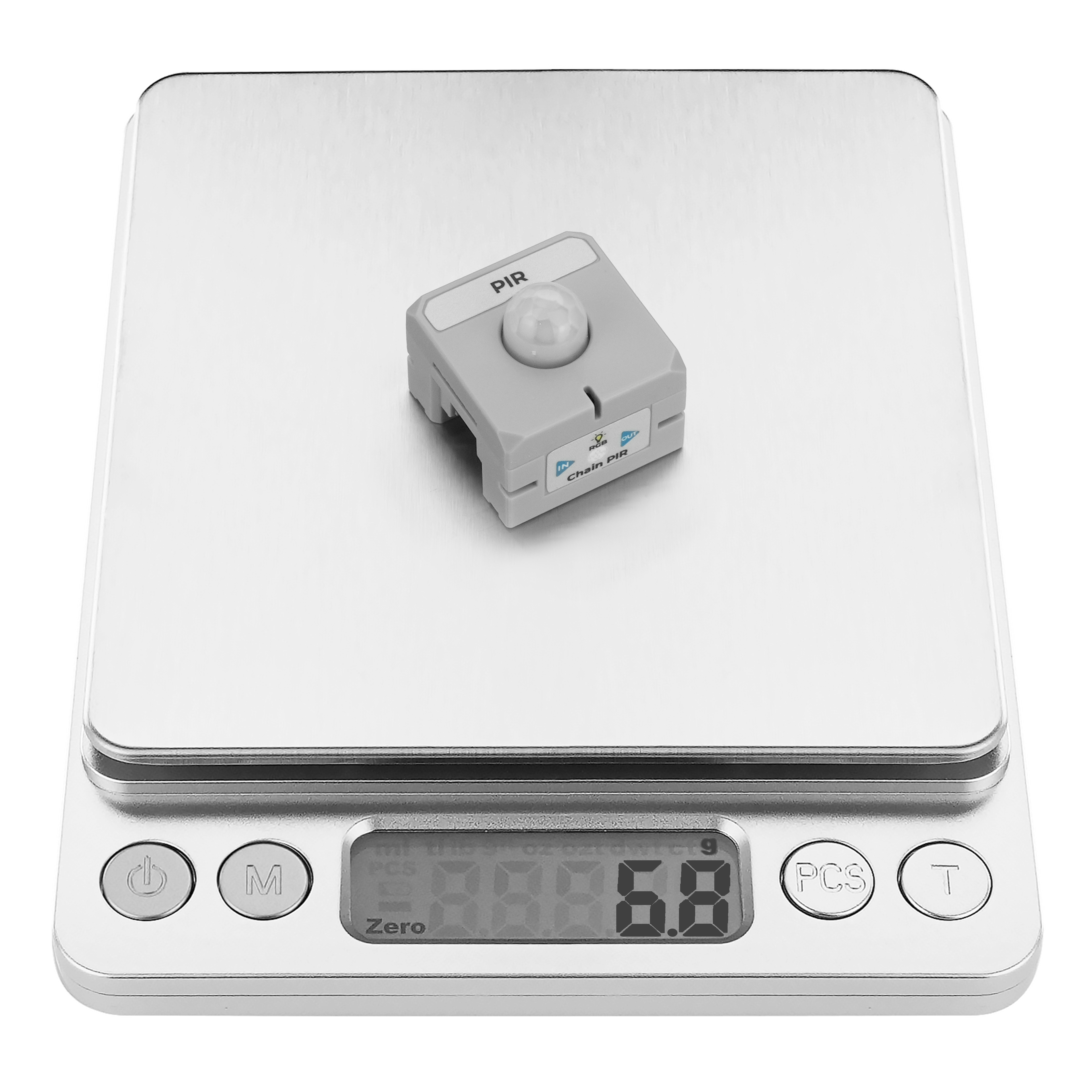

Product Weight	6.8g
Package Size	138.0 x 93.0 x 21.0mm
Gross Weight	10.0g

Learn

Use Chain Bridge connectors to connect the Chain DualKey controller to each Chain series input device. Pay attention to the orientation when connecting: the triangular arrows should point outward from the Chain DualKey controller, as shown below:
