AtomS3-Lite

SKU:C124

Description

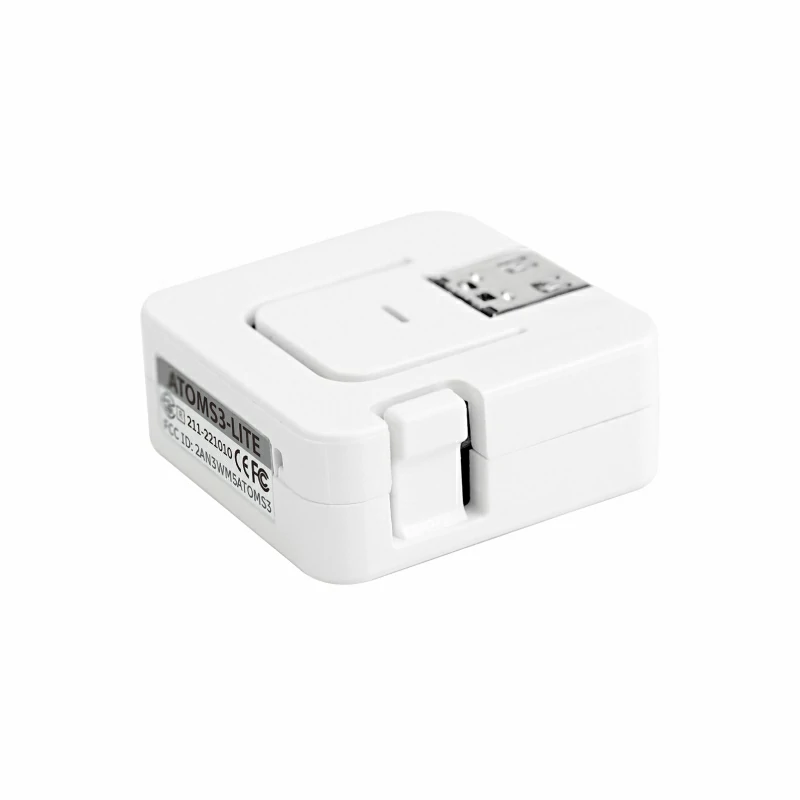

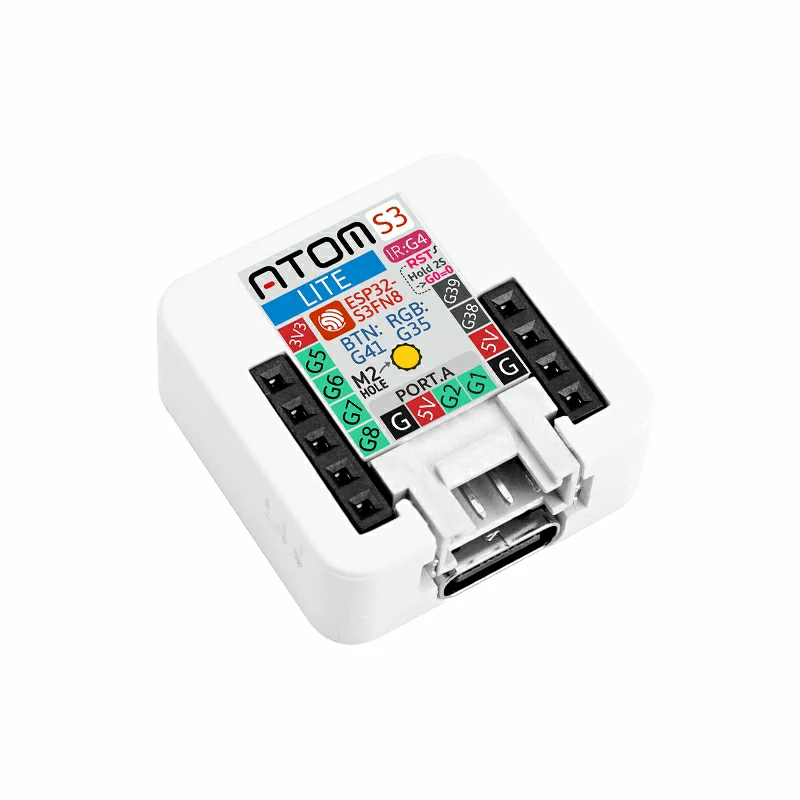

AtomS3-Lite is a programmable controller from the Atom series in the M5Stack development kit series, using ESP32-S3 as the main controller. Its size is only 24.0 x 24.0 x 9.5mm. The main controller uses the ESP32-S3FN8 solution, with 8 MB of SPI flash, integrated Wi-Fi functionality, built-in 3D antenna, 5V to 3.3V power circuit, providing infrared emitter, RGB status indicator, button, and GROVE/HY2.0 - 4P interface. The bottom of the product has power and 6 GPIO pin headers for easy expansion applications. The onboard USB Type-C interface allows for program downloading and serial communication, with an M2 screw hole on the back for fixing. Suitable for various embedded smart device applications.

Tutorial

Arduino IDE

This tutorial will introduce you to programming and controlling the AtomS3 Lite device using the Arduino IDE

UiFlow2

This tutorial will introduce you to controlling the AtomS3 Lite device using the UiFlow2 graphical programming platform

Features

Developed based on ESP32-S3FN8
Built-in USB download function
Programmable button
Infrared transmission function
Expandable pins and interfaces
Development Platform
- UiFlow2
- Arduino IDE
- ESP-IDF
- PlatformIO

Includes

1 x AtomS3-Lite

Applications

IoT nodes
Microcontrollers

Specifications

Specification	Parameter
SoC	ESP32-S3FN8
FLASH	8MB
RGB	WS2812C-2020
DC-DC	SY8089
Operating Temp	0 ~ 40°C
Power Voltage	5V
Power Method	TYPE C
Output Voltage	3.3V
IO Interface ×6	G5/G6/G7/G8/G38/G39
Product Size	24.0 x 24.0 x 9.5mm
Product Weight	5.3g
Package Size	85.0 x 65.0 x 12.2mm
Gross Weight	11.0g

Learn

Download Mode

To flash firmware, press and hold the reset button (for about 2 seconds) until the internal green LED lights up, then release. The device is now in download mode, ready for flashing.

Schematics

AtomS3-Lite Schematics PDF

1/1

PinMap

HY2.0-4P

HY2.0-4P	Black	Red	Yellow	White
PORT.CUSTOM	GND	5V	G2	G1

Model Size

Datasheets

Softwares

Arduino

AtomS3-Lite Arduino Library

UiFlow2

AtomS3-Lite UiFlow2 Quickstart

PlatformIO

[env:m5stack-atoms3]
platform = espressif32
board = esp32-s3-devkitc-1
framework = arduino
upload_speed = 1500000
monitor_speed = 115200
build_flags =
    -DESP32S3
    -DCORE_DEBUG_LEVEL=5
    -DARDUINO_USB_CDC_ON_BOOT=1
    -DARDUINO_USB_MODE=1
lib_deps =
    M5Unified=https://github.com/m5stack/M5Unified

Video

AtomS3-Lite + Bluetooth LE PWM control RGB light (UIFlow)
