Xiaozhi Card Kit

SKU:K146

Description

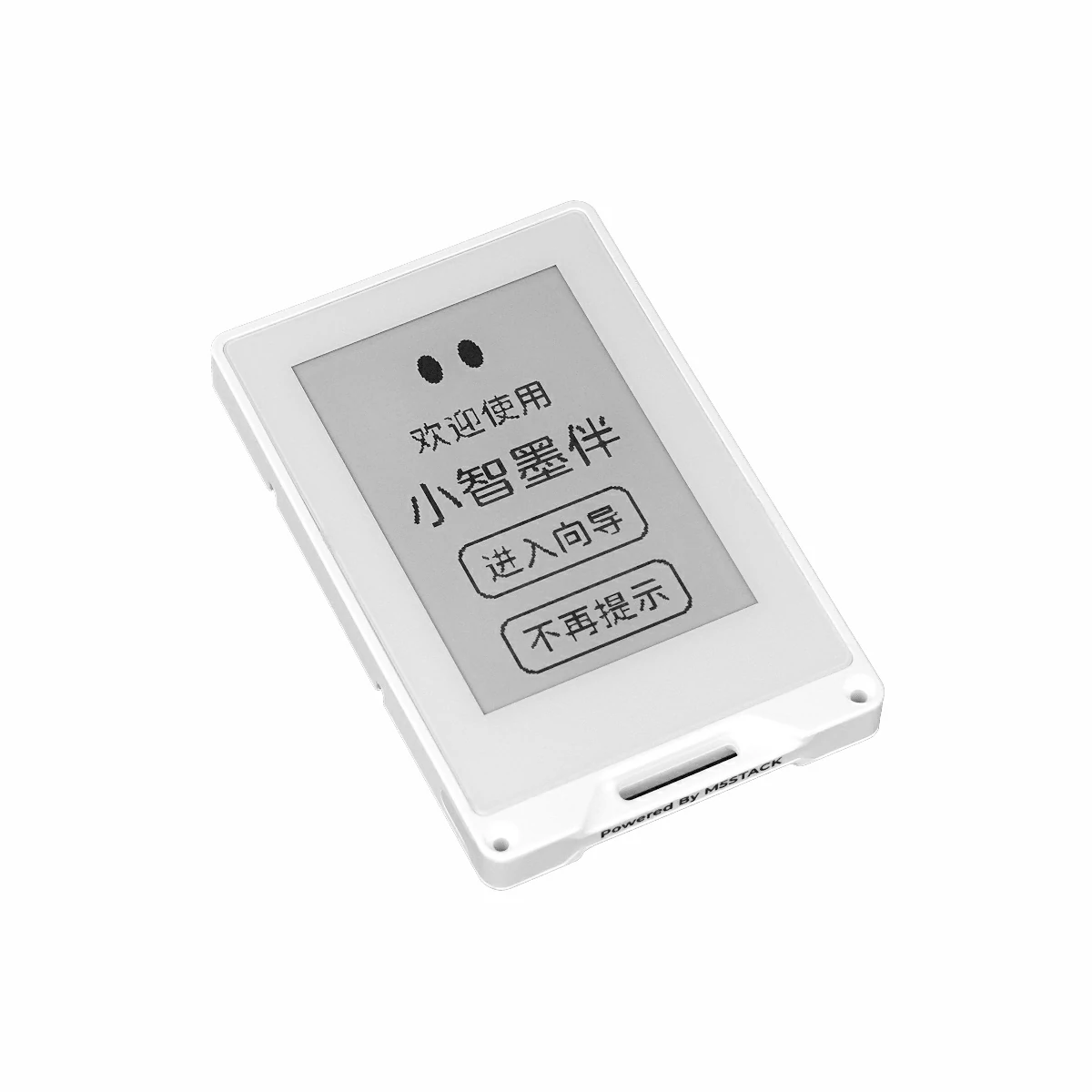

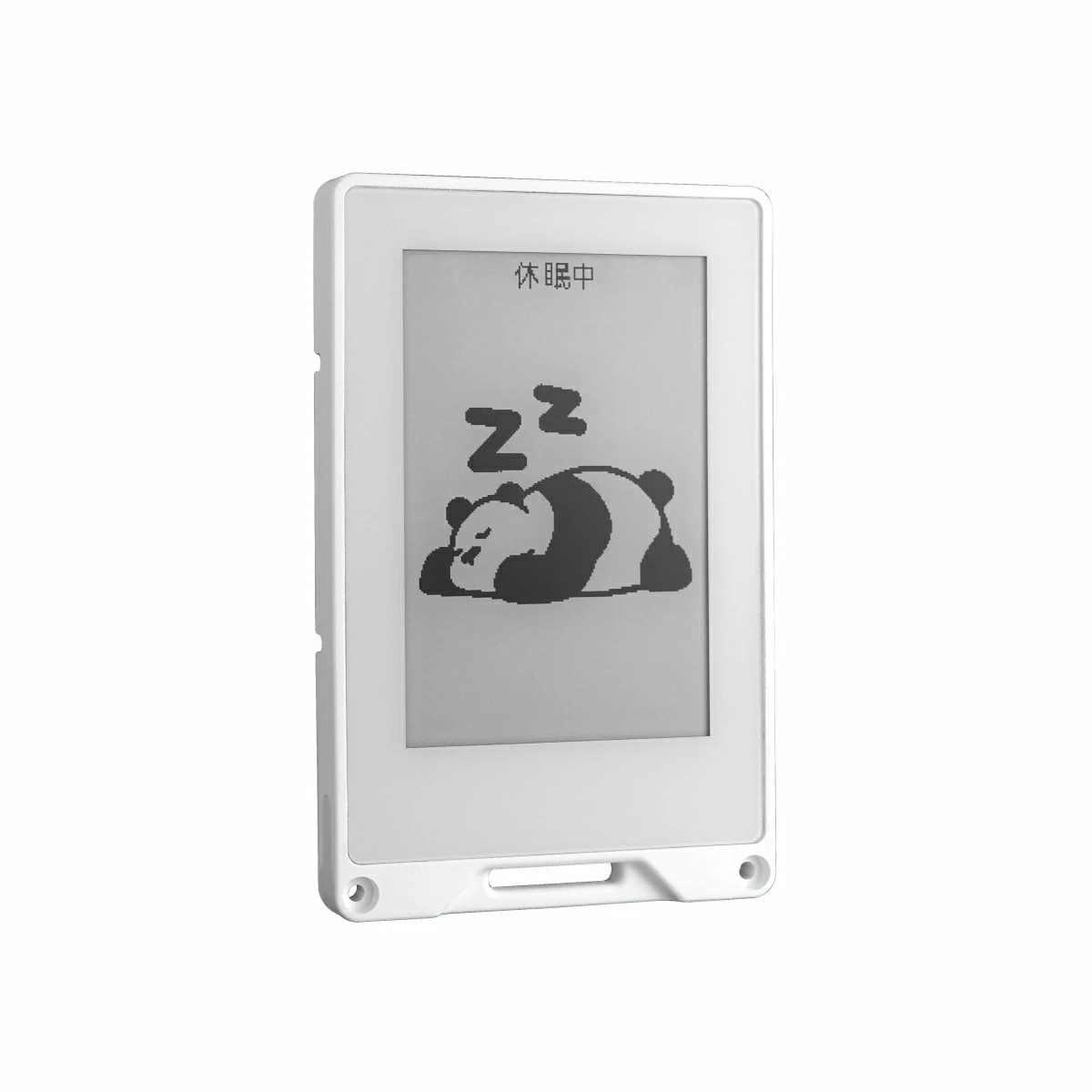

Xiaozhi Card is an ESP32-S3-based smart voice terminal. It supports 4G and Wi-Fi connectivity and is equipped with a 2.7-inch capacitive e-ink touchscreen, microphone, and speaker, delivering a smooth and user-friendly voice-interaction experience. With an onboard 300 mAh battery, the device features charging management and battery level detection for long standby time and convenient charging.

Xiaozhi Card offers three wake-up methods—button, touch, and voice—to suit different user habits. The magnetic design allows easy attachment to the base, a refrigerator, or any metal surface. Pogo-pin magnetic contacts handle both communication and charging between the host and the base. The base provides a USB Type-C port, a Grove port, reset and download buttons, and an RGB status LED. Ready to use out of the box with simple configuration, it is an ideal choice for voice assistants, digital assistants, MCP terminals, and other smart-interaction scenarios.

Tutorial

Xiaozhi Card Kit Voice Assistant

Xiaozhi Card Kit Voice Assistant

This tutorial walks you through configuration and first-time use of the Xiaozhi Card Voice Assistant.

Features

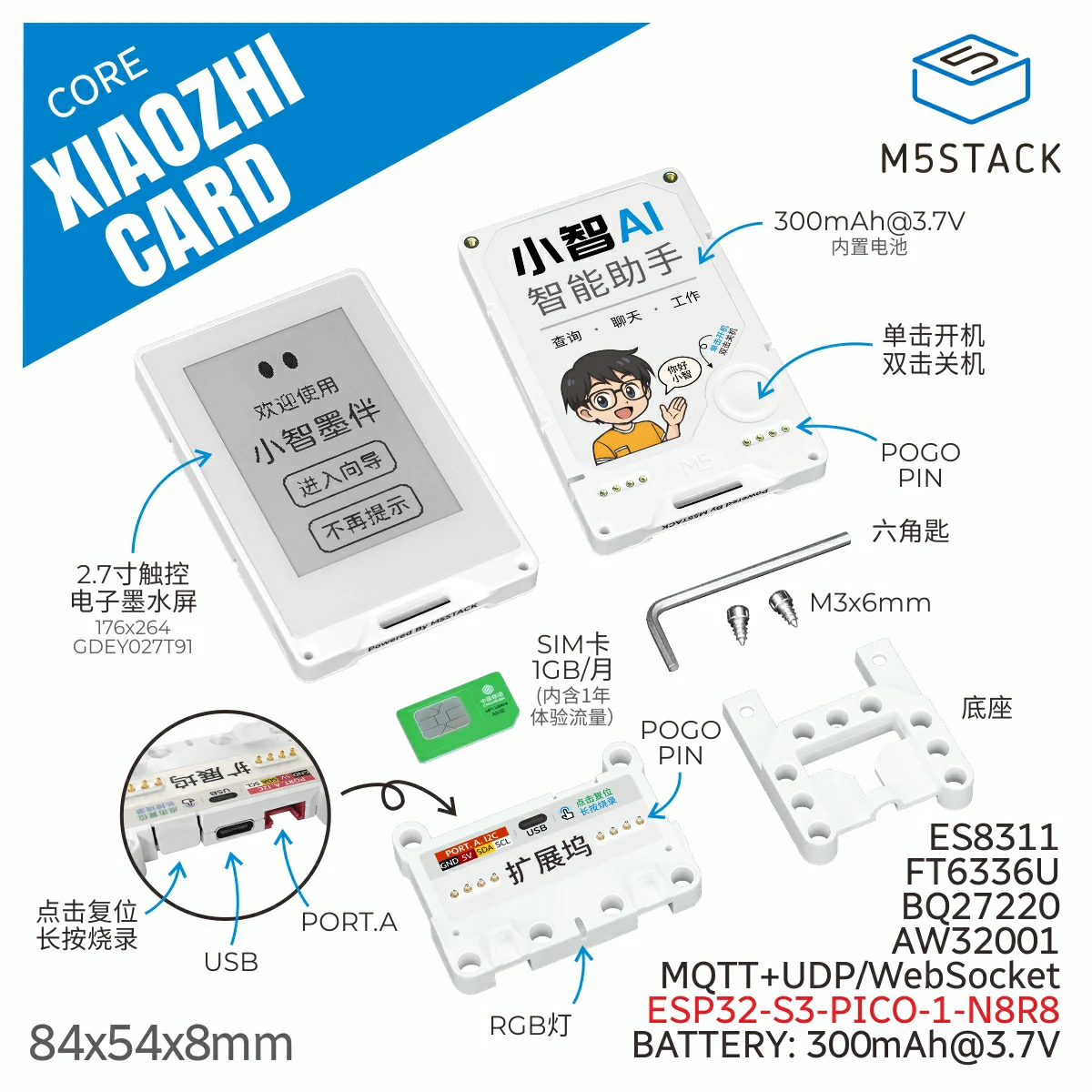

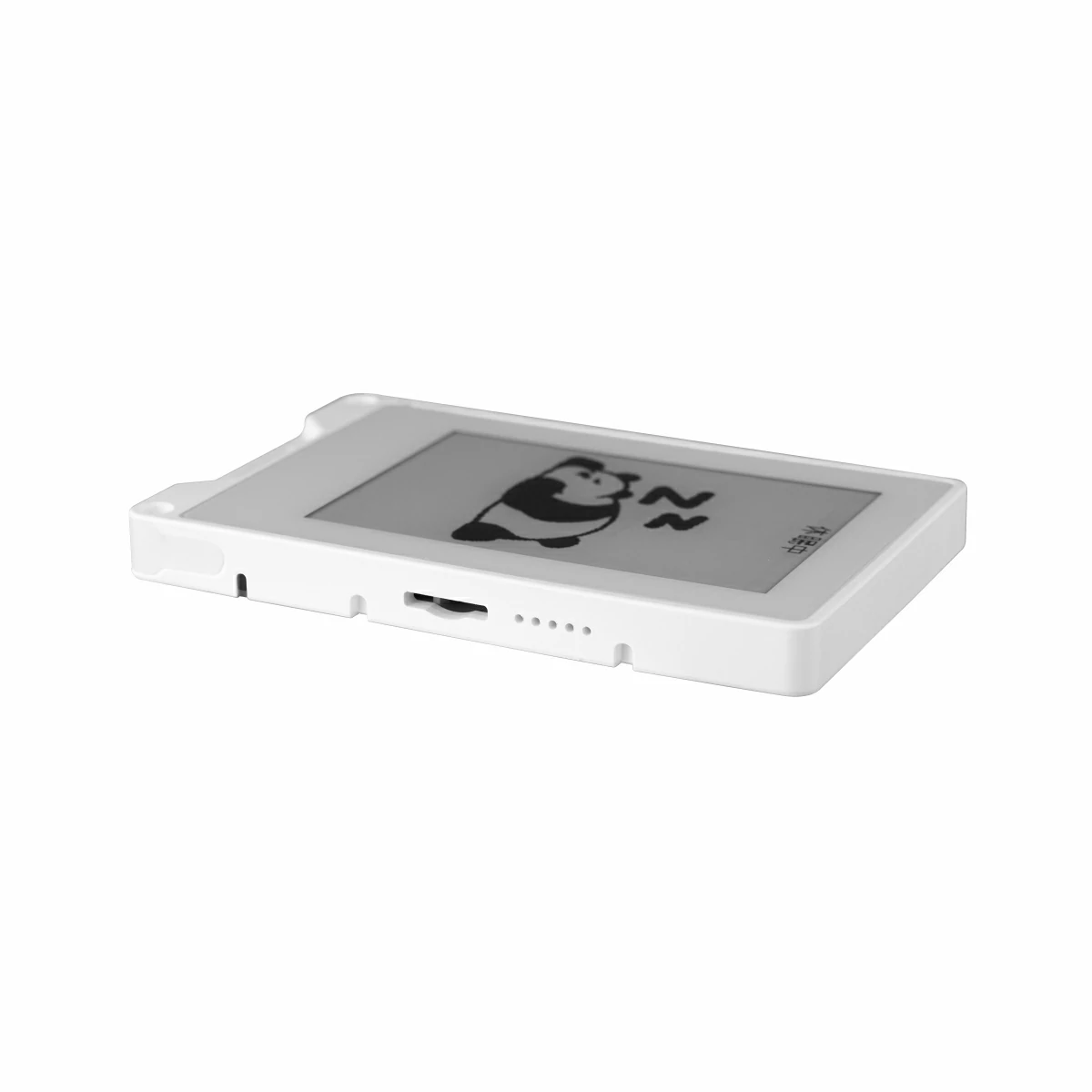

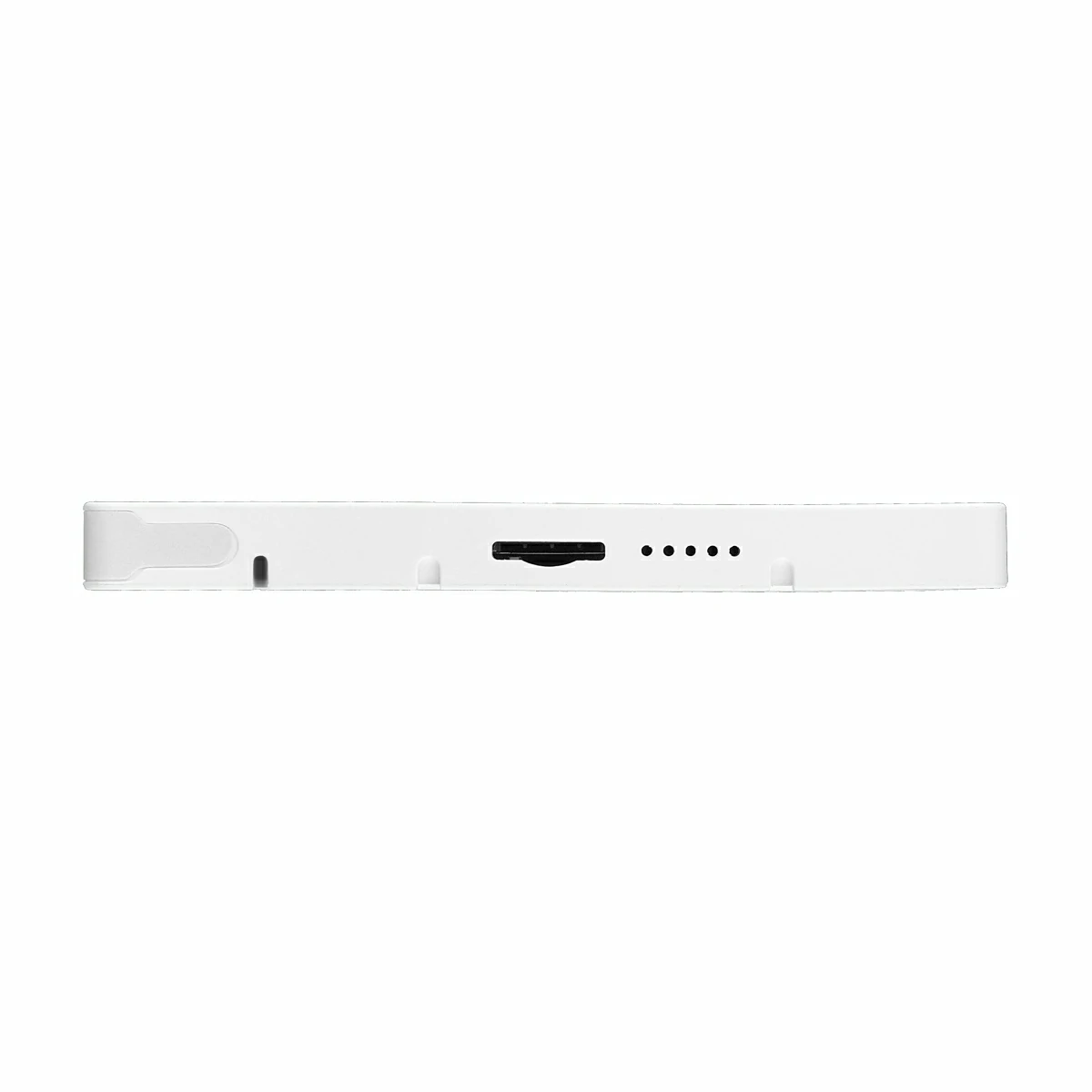

• Xiaozhi Card host

  • ESP32-S3-PICO MCU with Wi-Fi connectivity

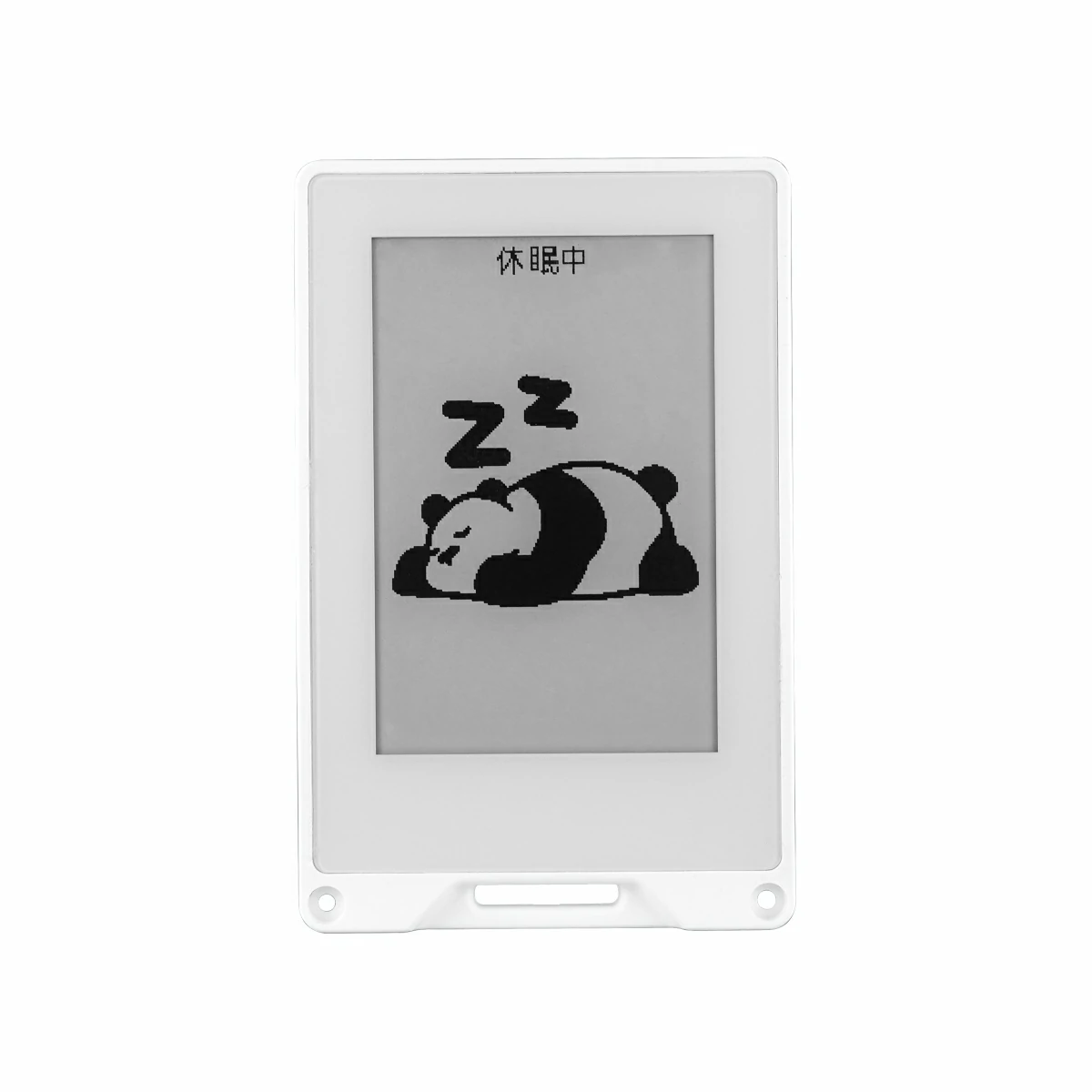

  • 2.7-inch capacitive e-ink display, 176 × 264 resolution
  • 4G network (LTE Cat.1) supporting nano SIM cards from China Mobile / China Unicom / China Telecom
  • 300 mAh battery with charge/discharge management and battery level/status detection
  • Built-in microphone and speaker (volume adjustable)
  • 64 MB SD NAND onboard
  • Triple wake-up: rear button, touch, or voice
  • Ready to use, easy to configure

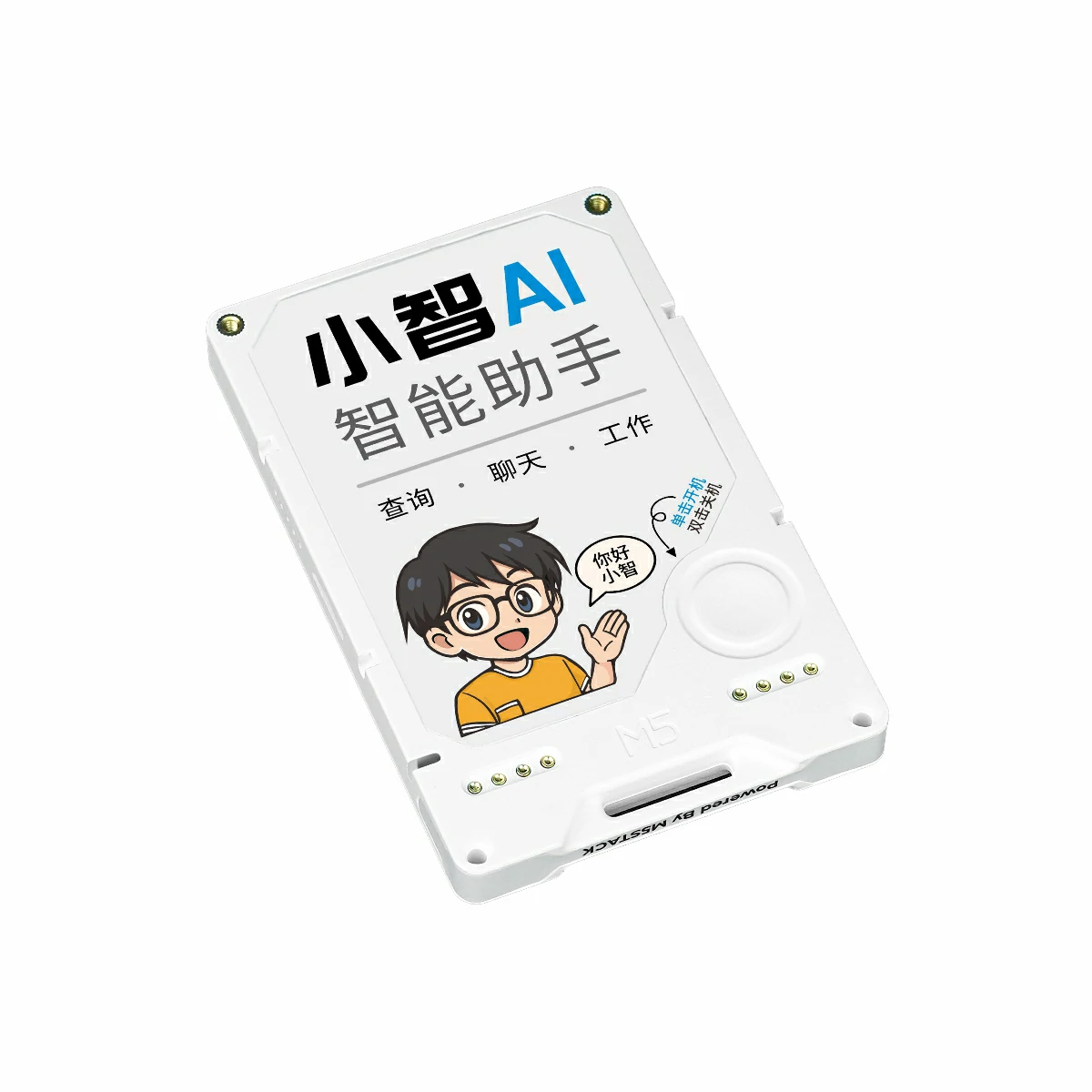

  • Magnetic design, attachable to the base or metal surfaces such as a refrigerator
  • Pogo-pin magnetic contacts for communication and charging with the base

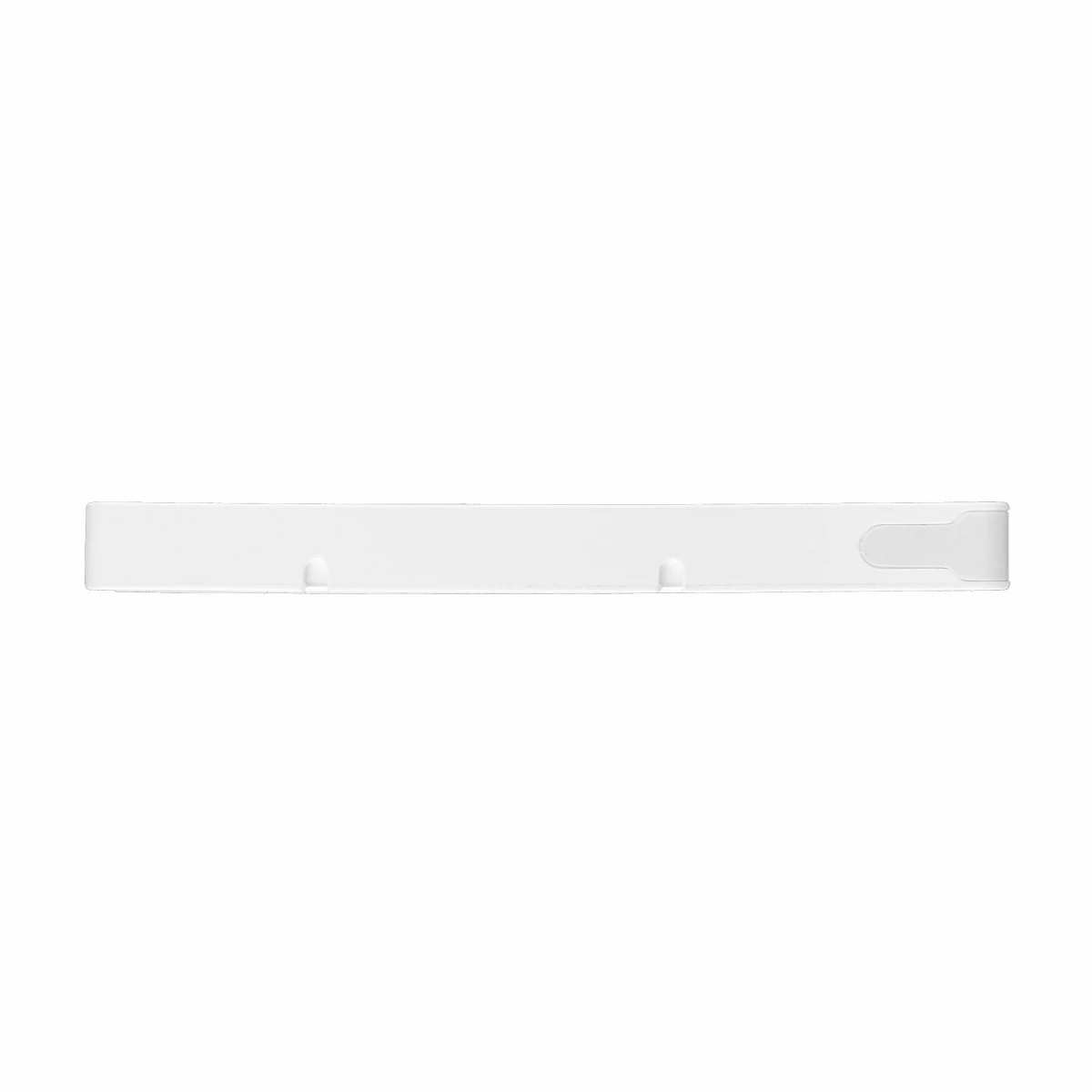

  • Lanyard hole and screw holes for versatile mounting
  • Reserved lanyard hole and rear M2 screw hole, suitable for various scenarios

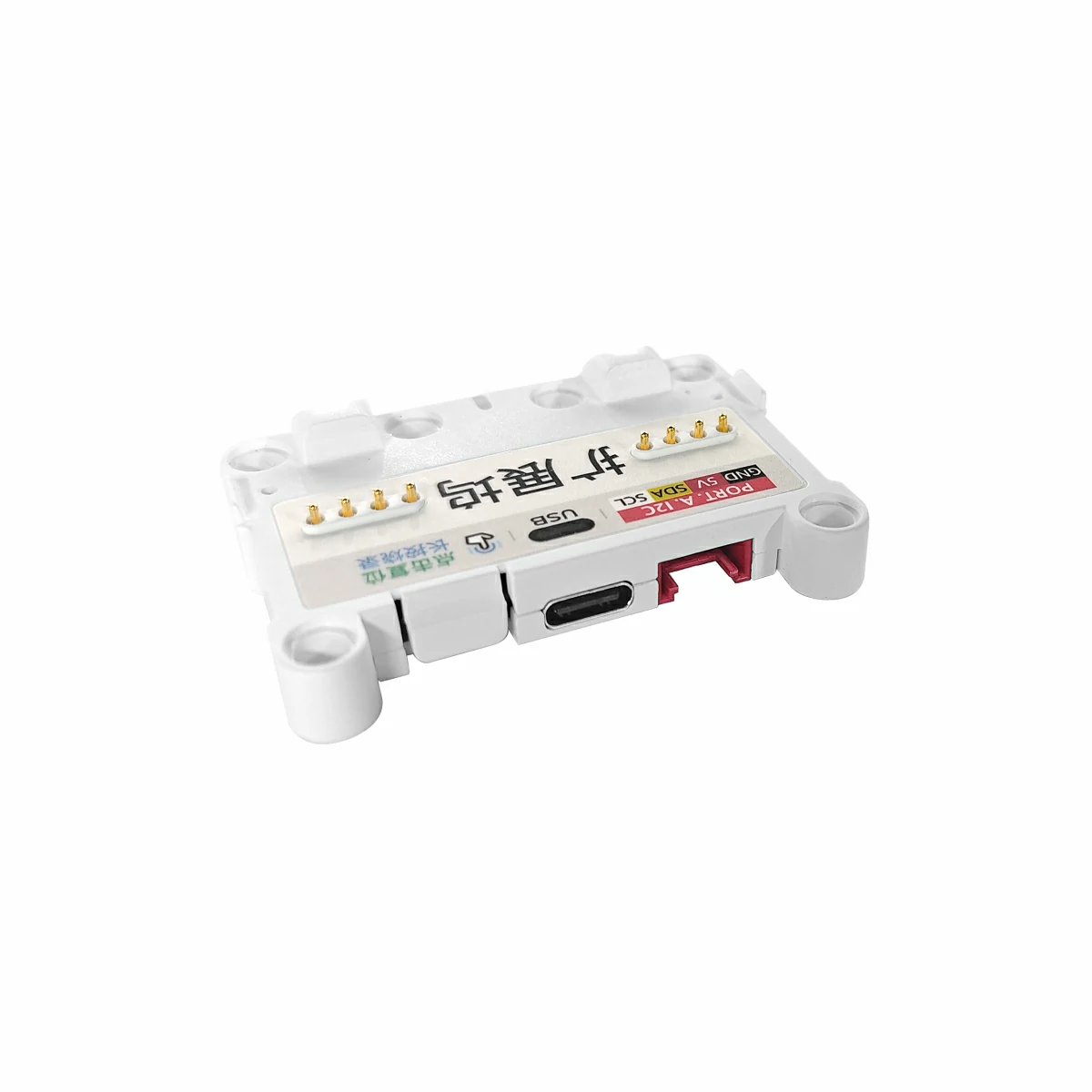

• Xiaozhi Card Base

  • USB Type-C port for communication and power supply
  • HY2.0-4P Grove port
  • Reset / download button
  • RGB status LED
  • Pogo-pin magnetic contacts for communication and charging with the host
  • LEGO-compatible holes for easy mounting

Includes

• 1 × Xiaozhi Card host
• 1 × Magnetic charging base
• 1 × Magnetic charging base adapter
• 1 × China Mobile IoT SIM card (1 GB/month Xiaozhi dedicated data, valid for one year)
• 2 × M3 × 6 mm Screws (pan head, self-tapping)
• 1 × Hex Key L-Shape 2.5 mm (For M3 Screw)

Applications

• Xiaozhi Card Kit Voice Assistant
• Voice chat
• Digital assistant
• MCP terminal

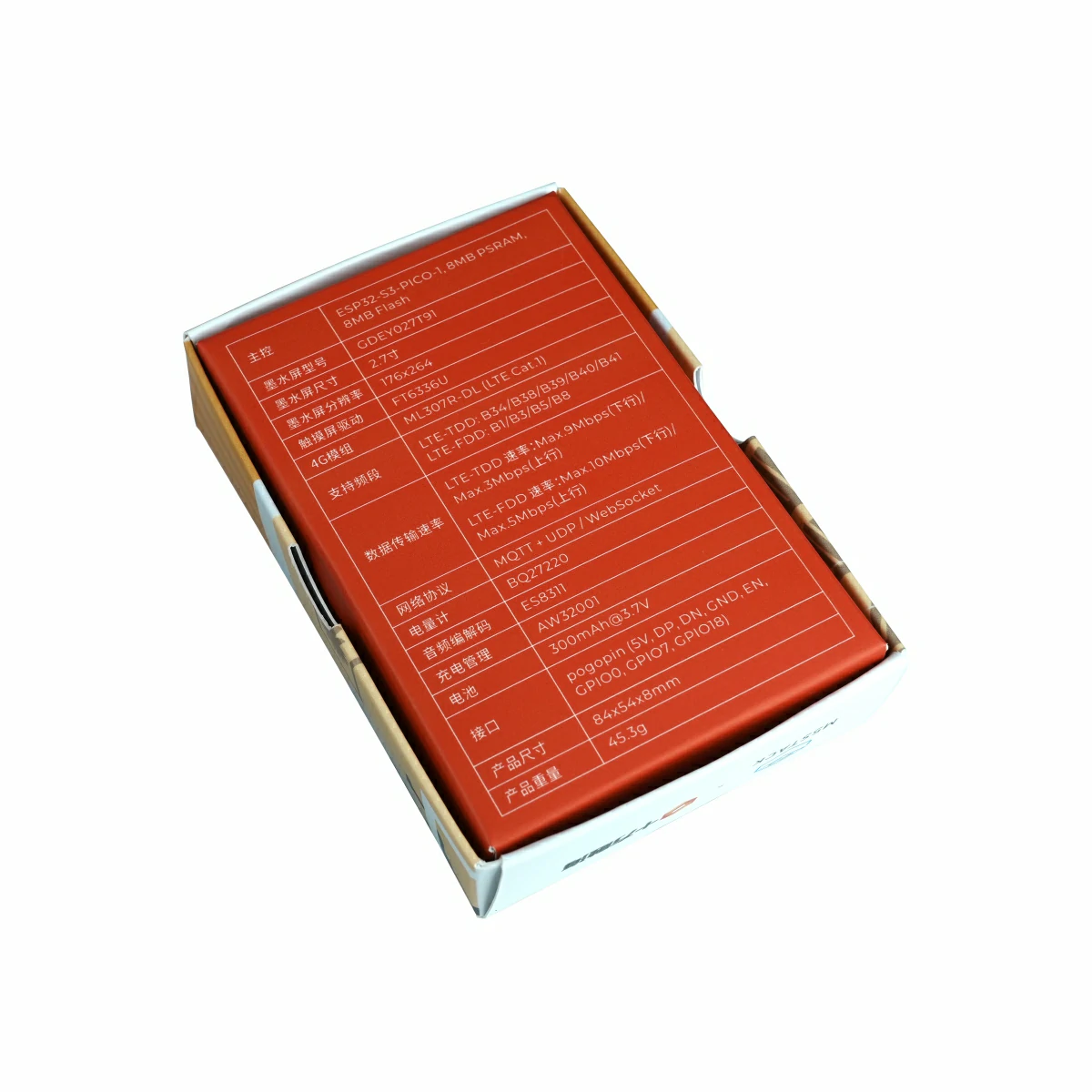

Specifications

Learn

SIM Card

The product comes with a China Mobile IoT SIM card that includes 1 GB of XiaoZhi dedicated data per month and is valid for one year, counted from the first time it goes online. After the validity period, you can renew it at http://iotwe.yshiqi.com/recharge.php.

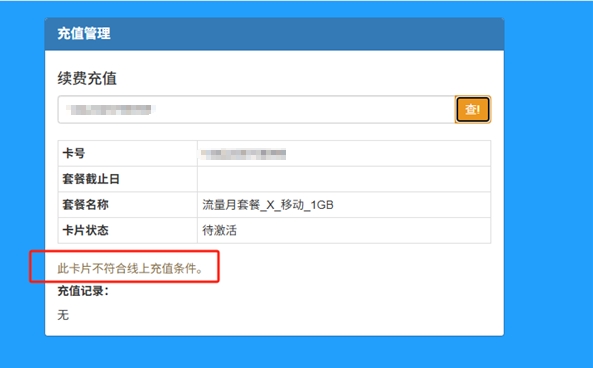

If the SIM card is still within the one-year trial period, the Recharge Management Page will display “This card is not eligible for online recharge” (as shown below), but this does not affect normal use. We recommend recharging after the trial period expires.

Button Operations

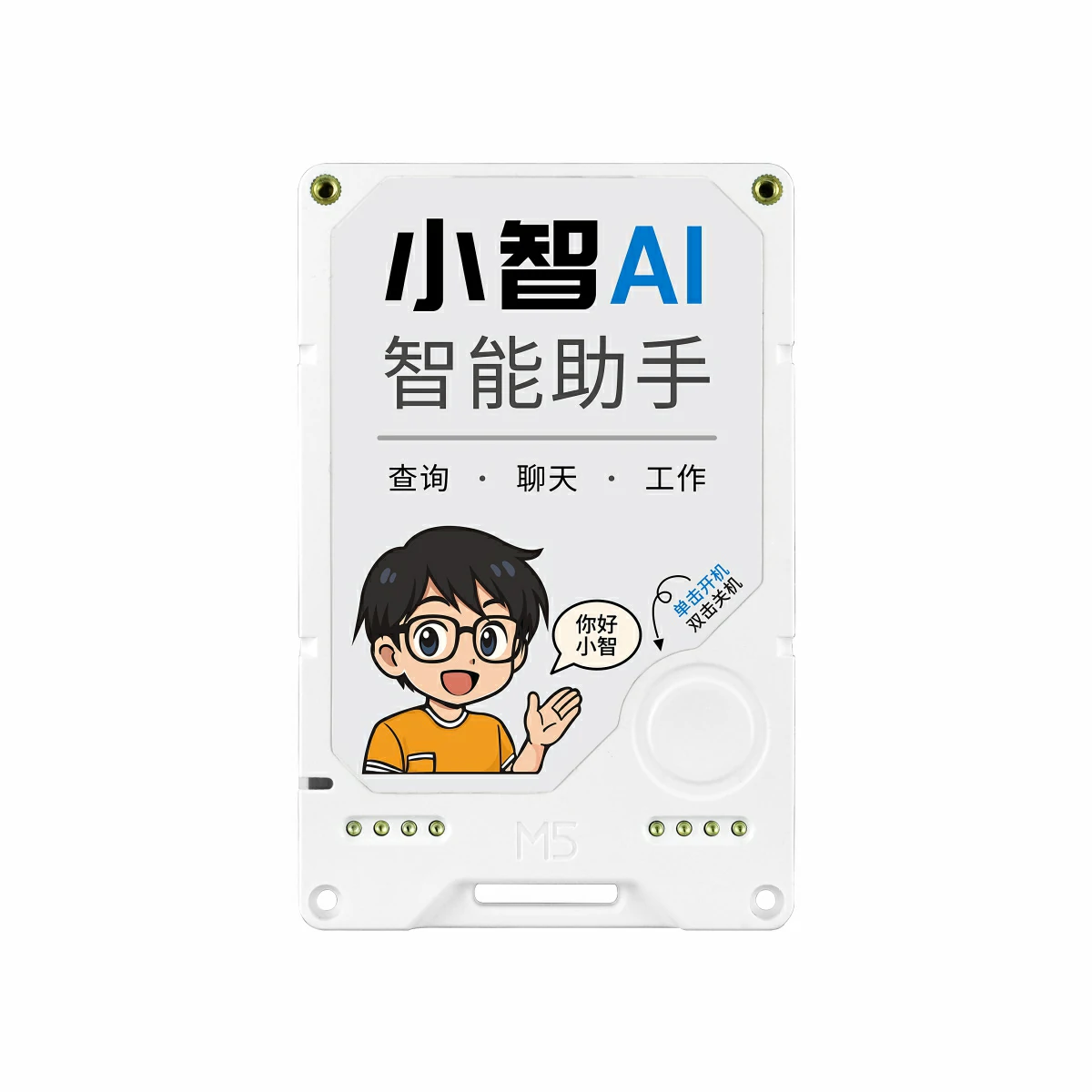

• Power On: Long-press for 2 s the round button on the back of Xiaozhi Card.
• Power Off: Double-click (two quick presses) the rear round button. While powered on, swipe from top to bottom on the screen to bring up the power-off menu as well.
• Standby / Wake: While powered on, single-click the rear button to toggle between standby (idle) and wake (listening) states.

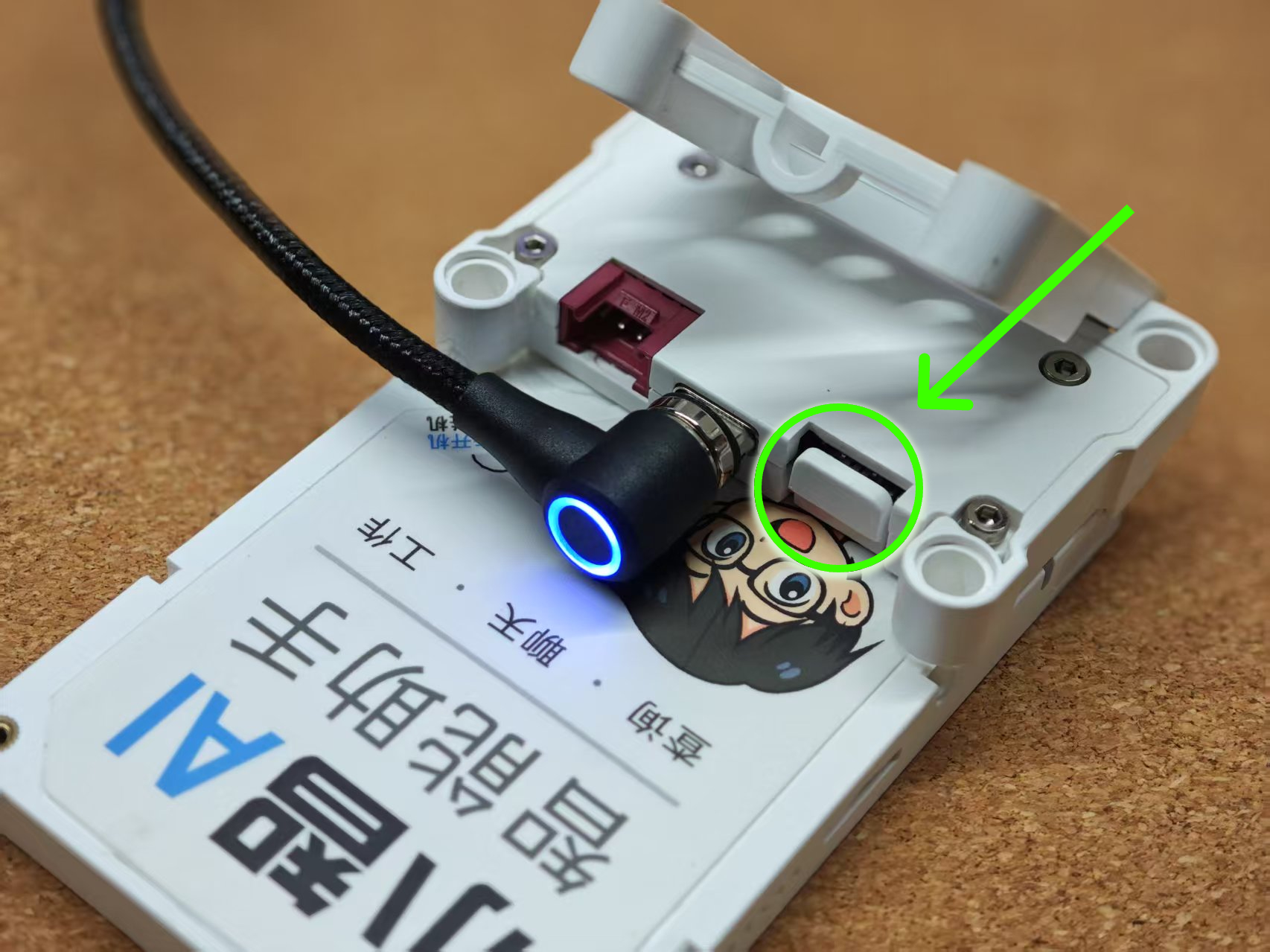

• Reset: With Xiaozhi Card attached to the Base and powered via USB, short-press the button on Xiaozhi Card Base to reboot the device.
• Download Mode: With Xiaozhi Card attached to the Base and powered via USB, long-press the button on Xiaozhi Card Base until the green LED lights up to enter download mode.

Base RGB LED Status

• Green: Listening
• Blue: Charging

Device Reset

Schematics

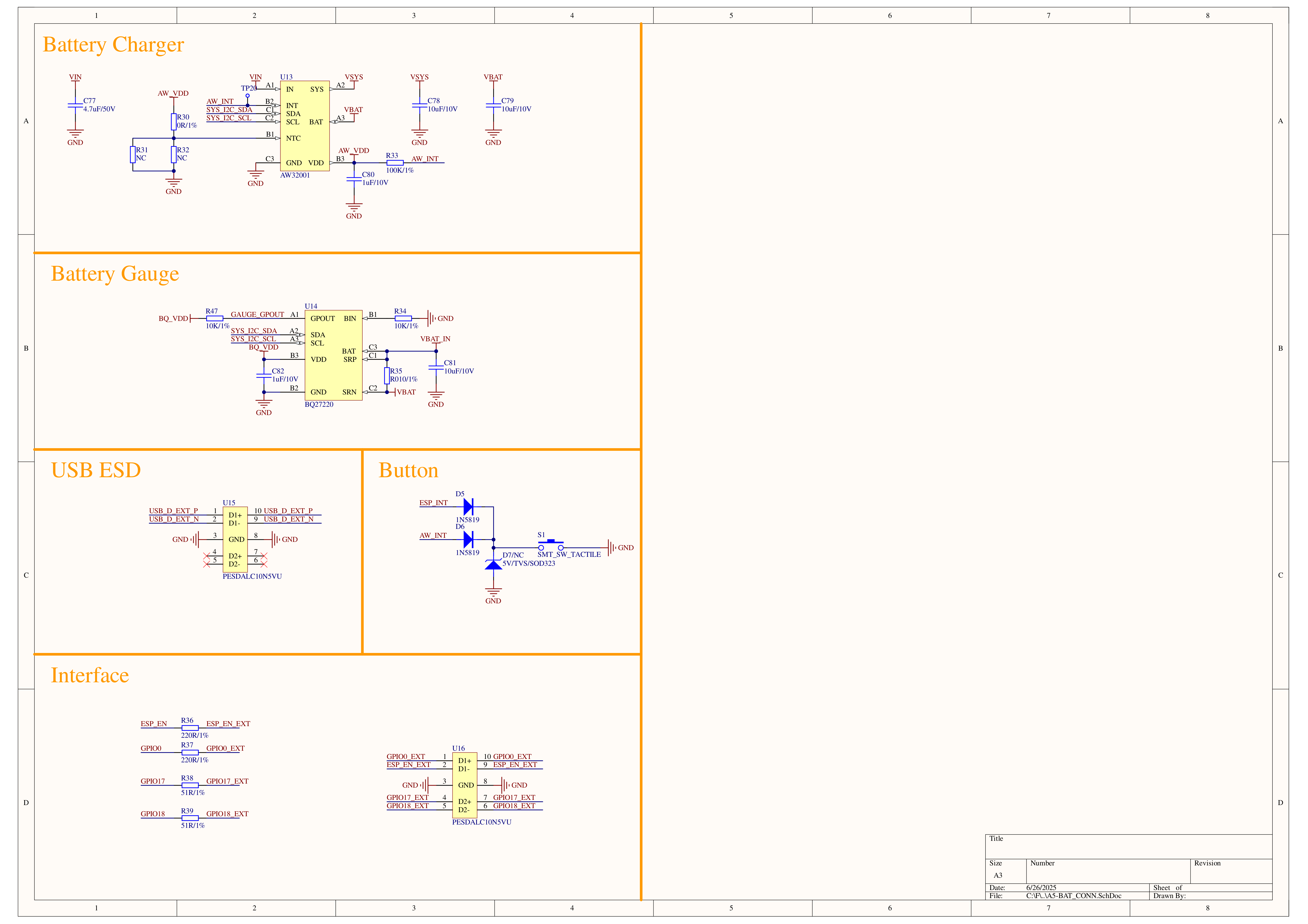

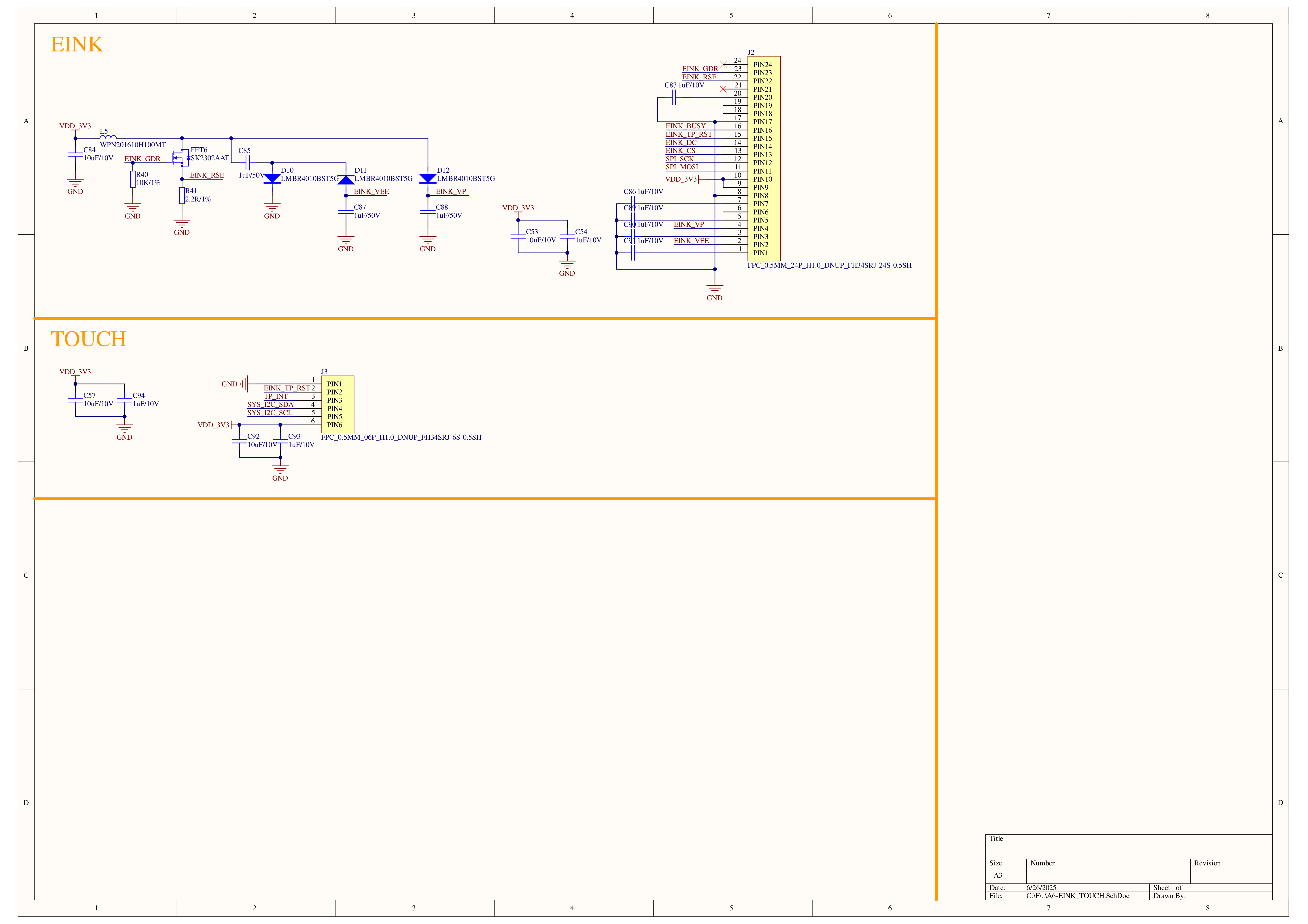

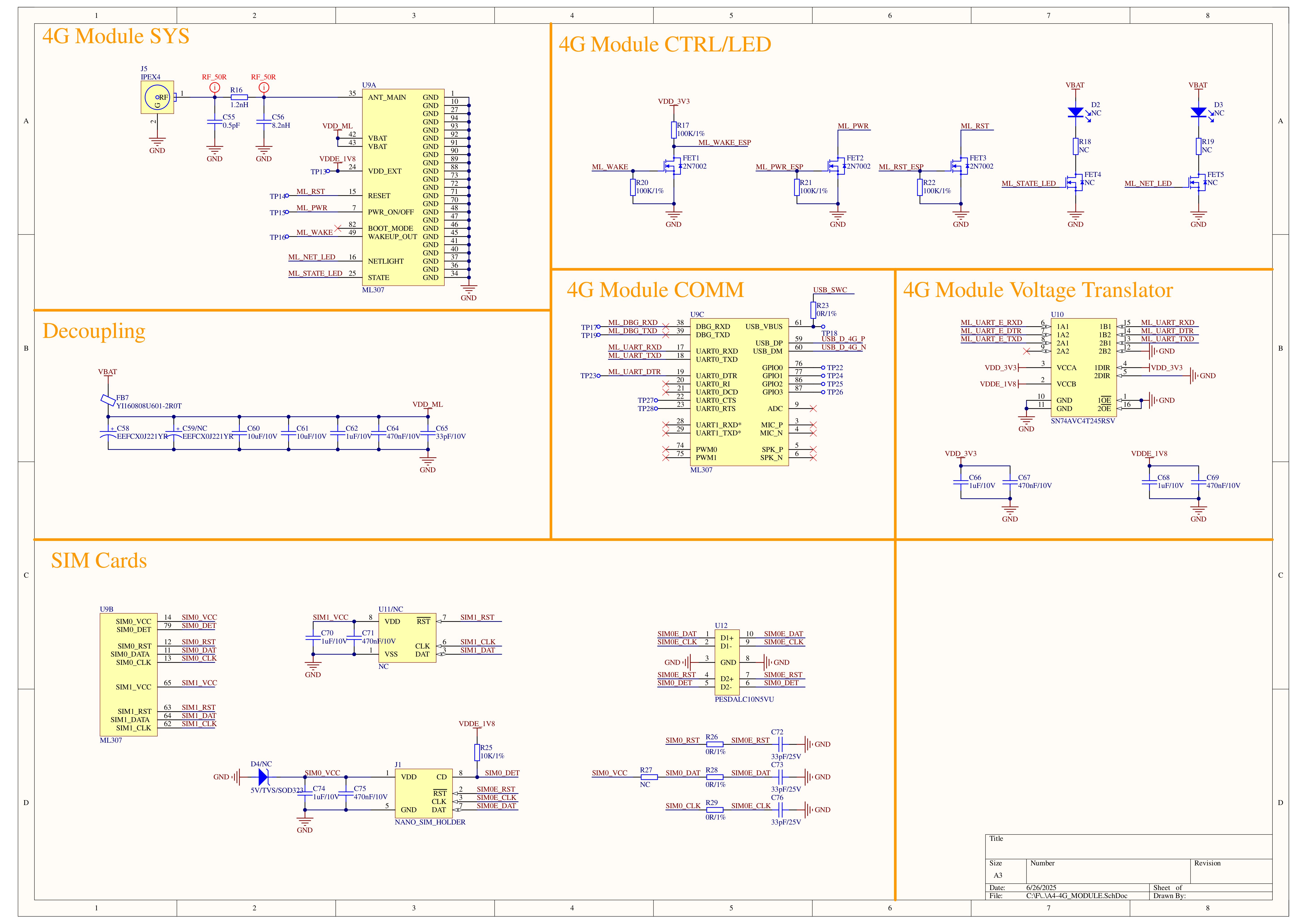

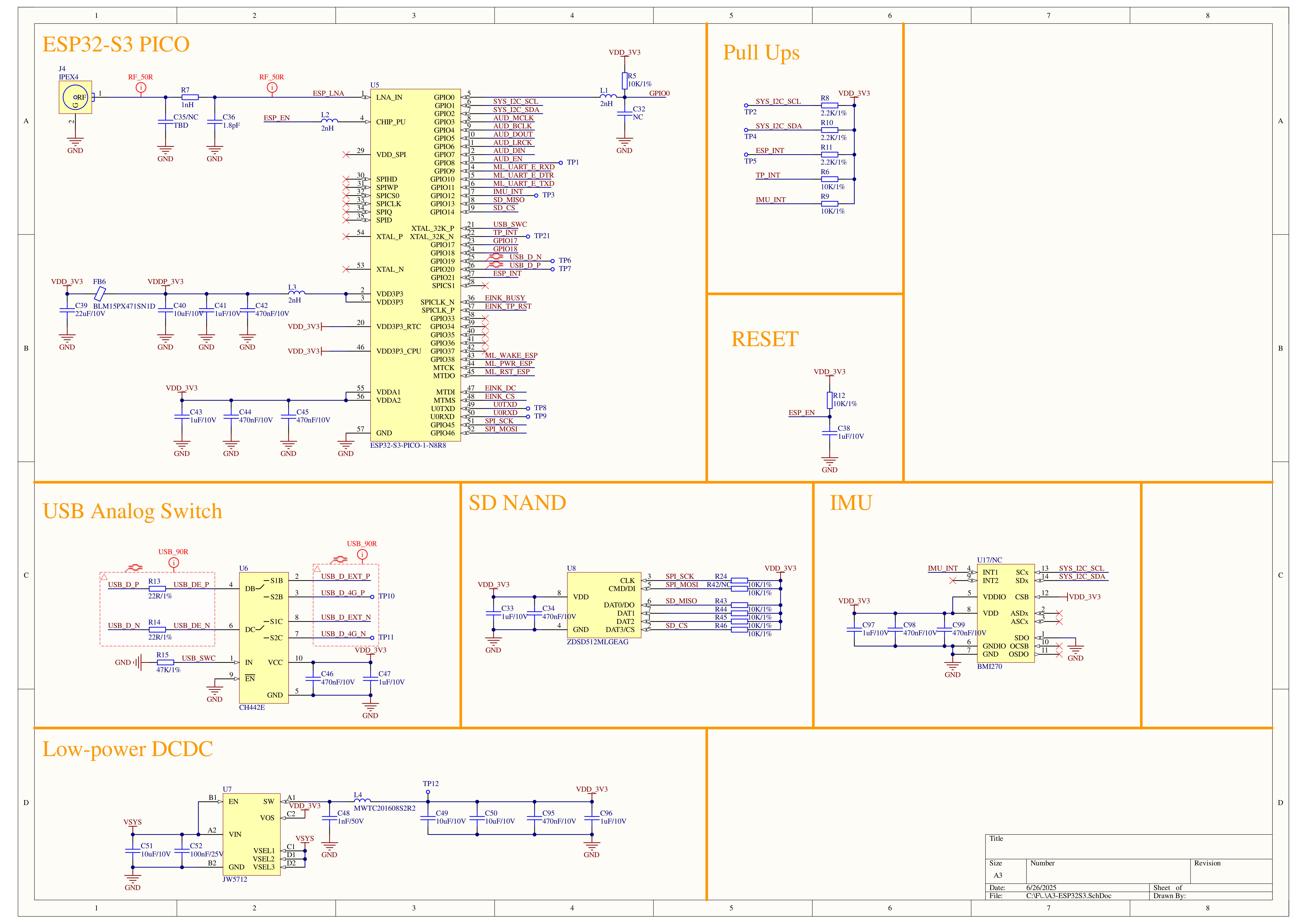

• Xiaozhi Card Schematics PDF

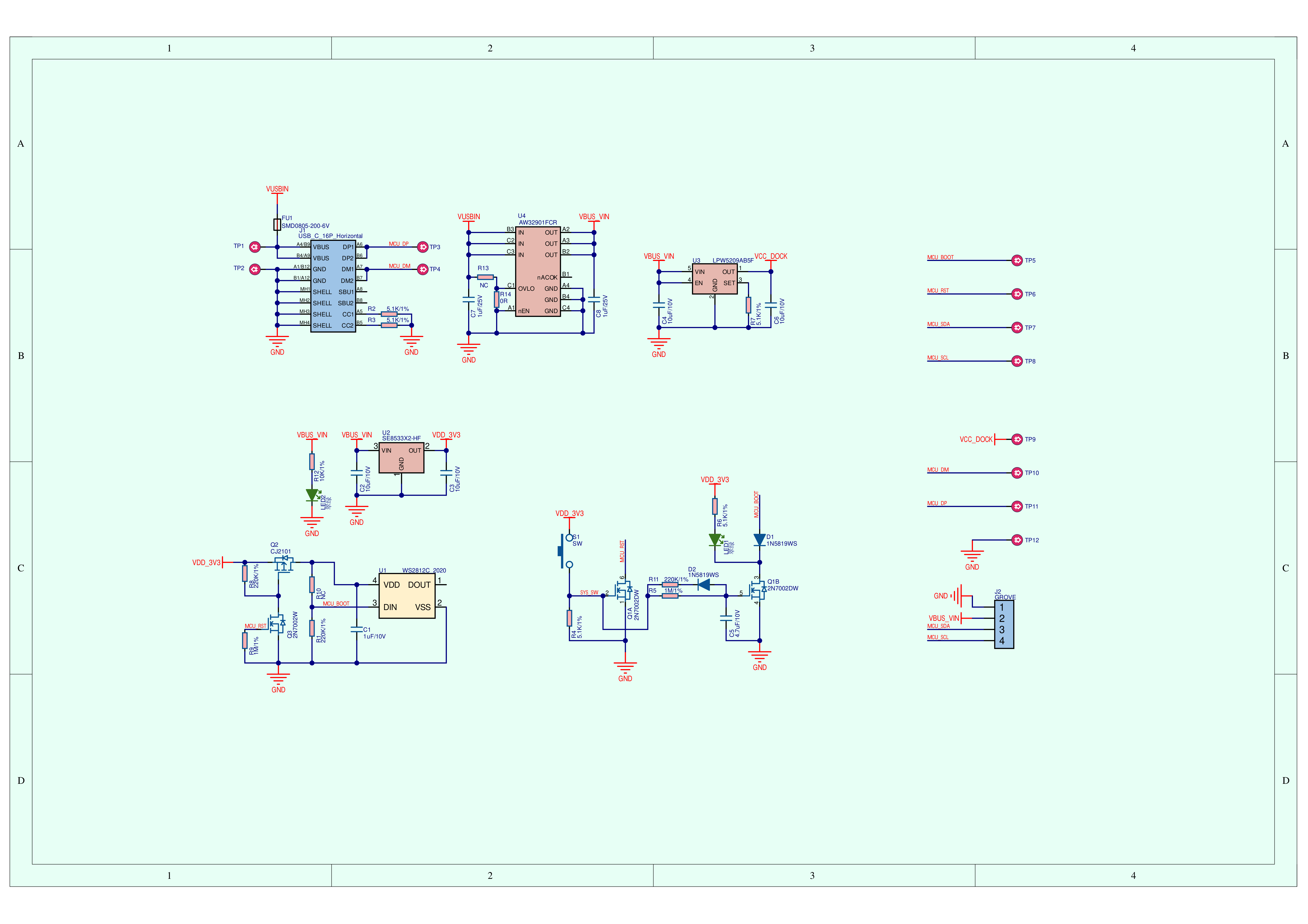

• Xiaozhi Card Base Schematics PDF

1/6

PinMap

E Ink

SD NAND

I2C Devices

Audio Codec

4G Module

Button

HY2.0-4P

Pogo Pin

Model Size

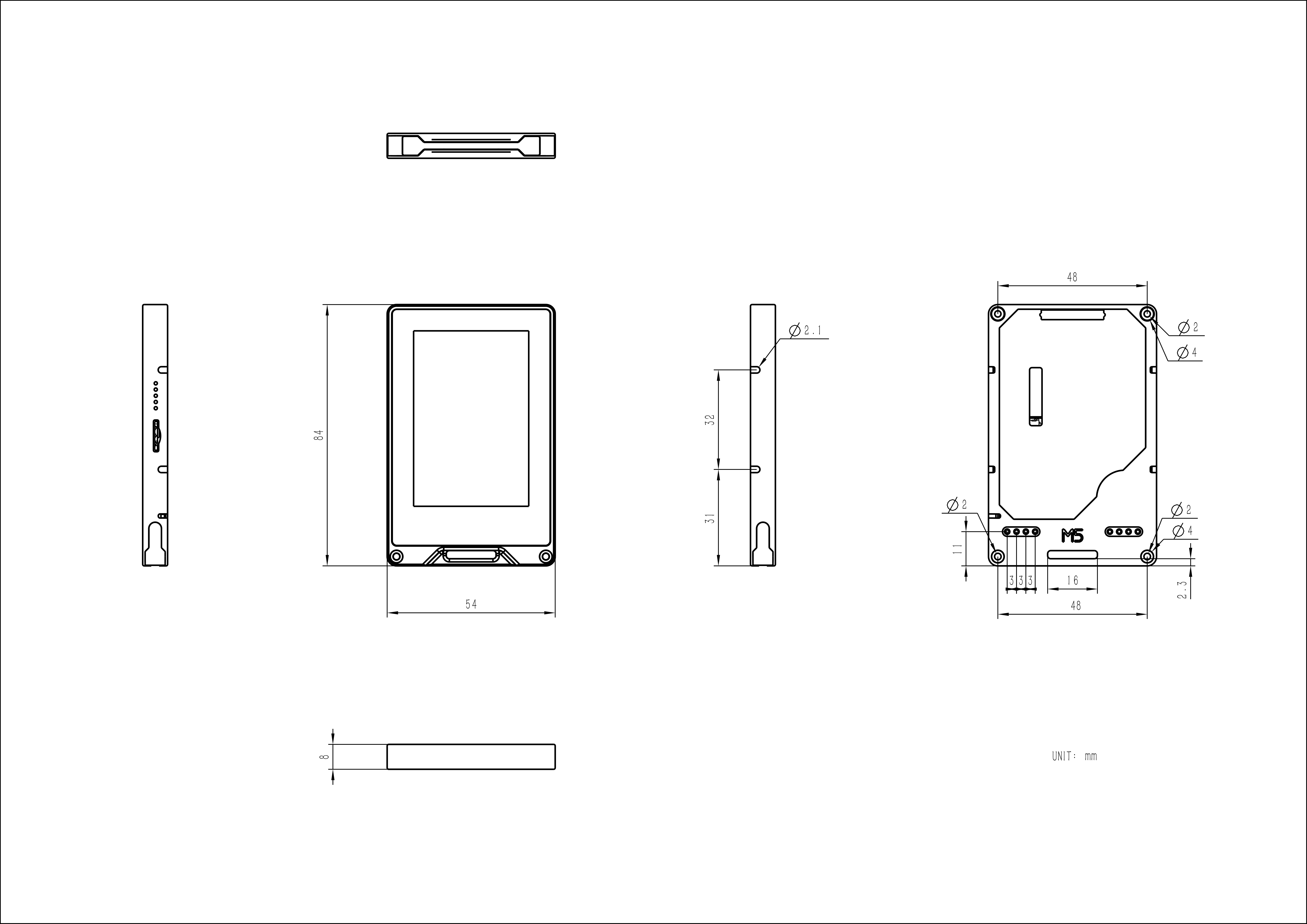

• Xiaozhi Card Model Size PDF

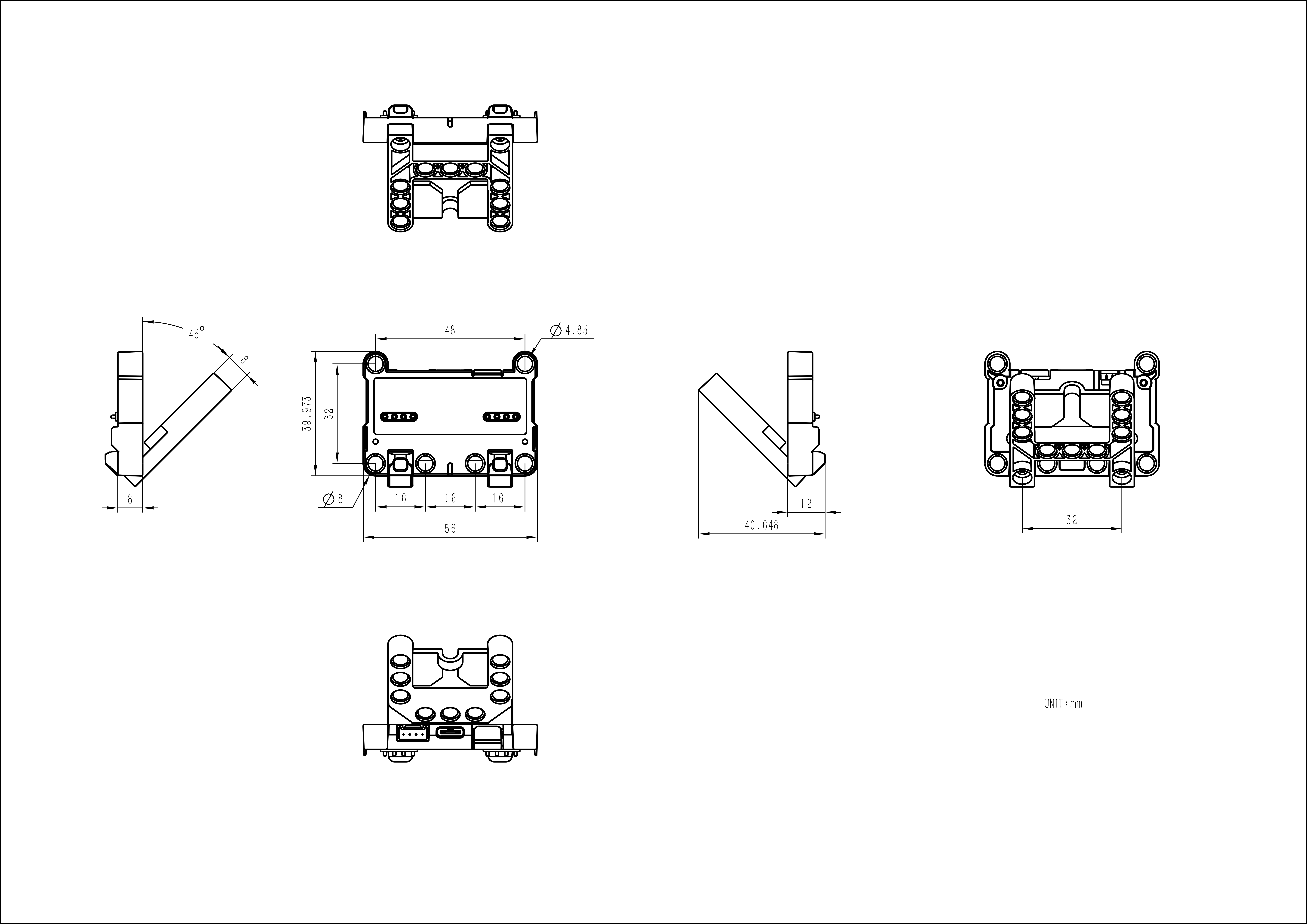

• Xiaozhi Card Base Model Size PDF

1/2

Structure

• Xiaozhi Card Kit Structure Files

Datasheets

• Audio Codec ES8311
• Battery Charger AW32001
• Battery Gauge BQ27220
• 4G Module ML307R-DL AT Commands

Softwares

Quick Start

• Xiaozhi Card Kit Voice Assistant

ESP-IDF

• Xiaozhi Card Kit Factory Firmware

I2C Address

Other

• Xiaozhi Card Kit Factory Firmware Restore

Video
