M5StickT2is an exquisite and compact infrared thermal imaging camera. It adopts the latest FLIR Lepton 3.0 long-wave infrared (LWIR) camera core with an effective resolution of 160 * 120 for a clear and stable image. As it is a large area non-contact infrared sensor, it is a good solution for temperature measurement. Its main control chip is Espressif’s ESP32, which has built-in support for Wi-Fi connections, and computing speeds of up to 240Mhz. This provides a favorable guarantee for image output with a FPS reaching 7 and above. The screen is 1.14 inches and has a resolution of 135 * 240. The device comes with a rich variety of hardware resources: An on-board 6-axis Inertial Measurement Unit, a digital microphone and a power management chip and a built-in 300mAh battery, all embedded into the device. In terms of interactive operation, two programmable buttons and a rotary encoder are provided. In order to facilitate users to connect more peripherals, a 4 Pin HY2.0 interface with I2C support is provided at the bottom. The body is 3D printed from high quality Black Nylon filament. In addition, an M3 screw hole and a 1/4" screw hole are provided underside for easy mounting.

Power switch operation:

  • Power on :Long press power button for 2 seconds

  • Power off :Short press power button for 6 seconds


Press the reset button to power on. The default display screen is RGB display mode. The left side is the temperature image, the upper right is the power display, and the lower right is the histogram and temperature range. The temperature range is automatically adjusted with the target temperature. The default bulls-eye automatically tracks the maximum temperature. Press the button on the right side of the fuselage (B button) to switch the tracking mode (minimum / center / maximum value), press the button A on the front of the fuselage to switch the image display mode (GRAY / GOLDEN / RAINBOW / IRONBLACK / RGB). Dial encoder controls the display sensitivity (adjust the display temperature and color gamut), and long press the reset button for 6 seconds to turn off.

Product Features

  • ESP32-based
  • Case Material: Nylon 3D print
  • FLIR Lepton 3.0
  • Built-in 6-Axis IMU,microphone
  • Buttons and dial encoder
  • IPS LCD(1.14 inch)
  • built-in Lithium Polymer Battery
  • GROVE/4P HY2.0 Interface

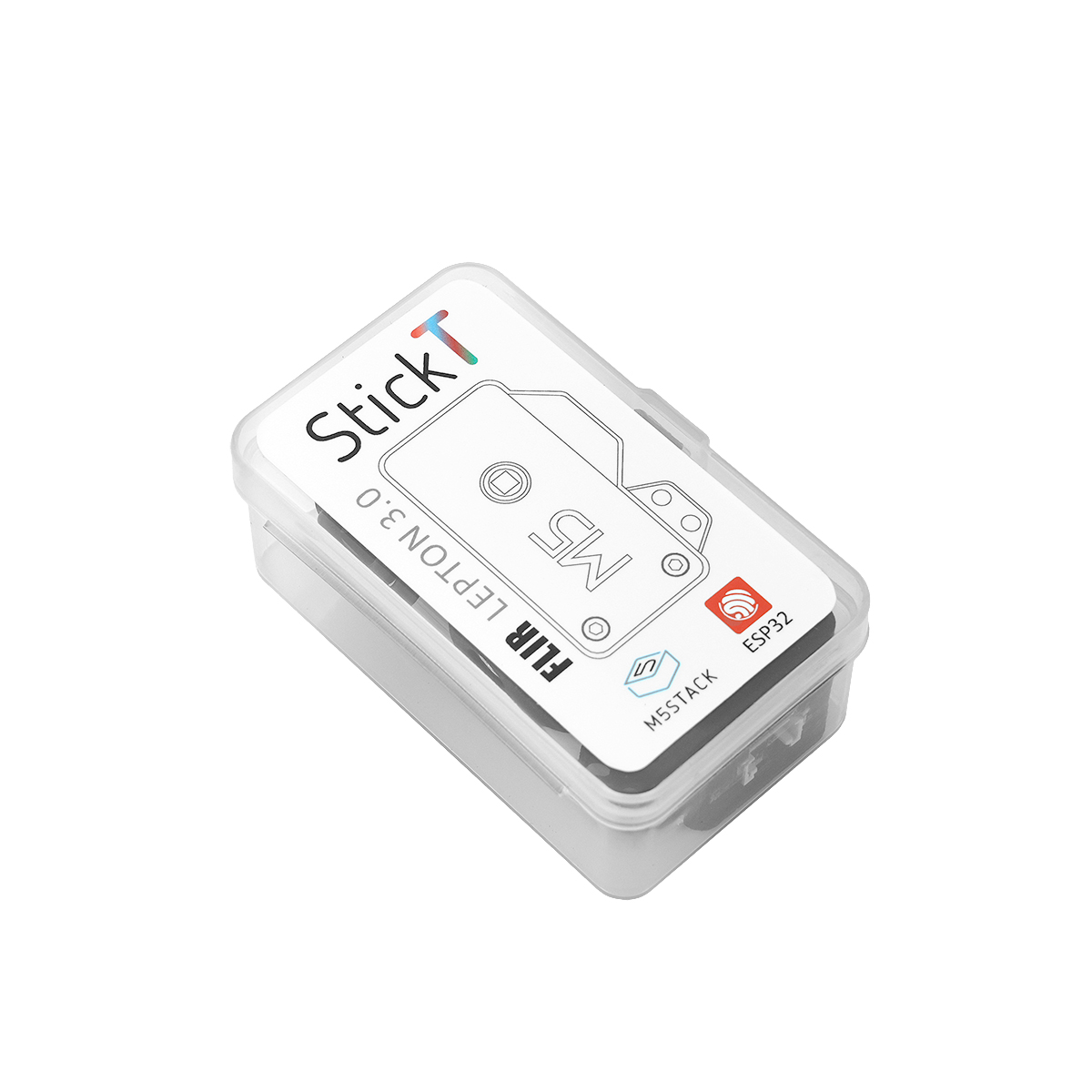

  • 1x M5StickT2
  • 1x USB Type-C(20cm)


  • Car engine failure check
  • Building dehumidification insulation sealing test
  • Industrial furnace inner wall refractory crack
  • Outdoor observation of animals at night

Lepton 3.0 Parameter

Parameter /
Effective Pixels 160*120
Field of view 56°
Fast imaging time 500ms
Effective Frame Rate 8.7Hz
Input Clock 25MHz
Pixel Size 12μm
Low operating power 150 mW (operating), 650 mW (during shutter event), 5 mW (standby)
Scene Dynamic Range Low Gain Mode: -10 to 400°C; High Gain Mode: -10 to 140°C
Spectral Range 8 to 14µm
Thermal Sensitivity 50 mK(0.050°C)
Optimum Temperature Range -10°C to +80°C


Resources Parameter
ESP32 240MHz dual core, 600 DMIPS, 520KB SRAM, Wi-Fi
Flash Memory 4MB
Power Input 5V @ 500mA
Port TypeC x 1, GROVE(I2C+I/0+UART) x 1
LCD screen 1.14 inch, 135*240 Colorful TFT LCD, ST7789
Button Custom button x 2
Power Manager AXP192
Battery 300 mAh @ 3.7V
Antenna 2.4G 3D Antenna
Thermal Lepton 3.0
Encoder Dial encoder
Operating Temperature 0°C to 60°C
Net weight 26g
Gross weight 82g
Product Size 48*30*29mm
Package Size 144*44*43mm
Case Material Plastic ( PC )


EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.

Download Windows Version Easyloader Download MacOS Version Easyloader

Thermal imaging operation instructions: A button to switch tracking mode, B button to switch display mode, dial to adjust sensitivity.



BUTTON A Button Pin
BUTTON B Button Pin


Driver IC:ST7789

Resolution:135 * 240



HY2.0 port SCL SDA 5V GND

MIC (SPM1423)

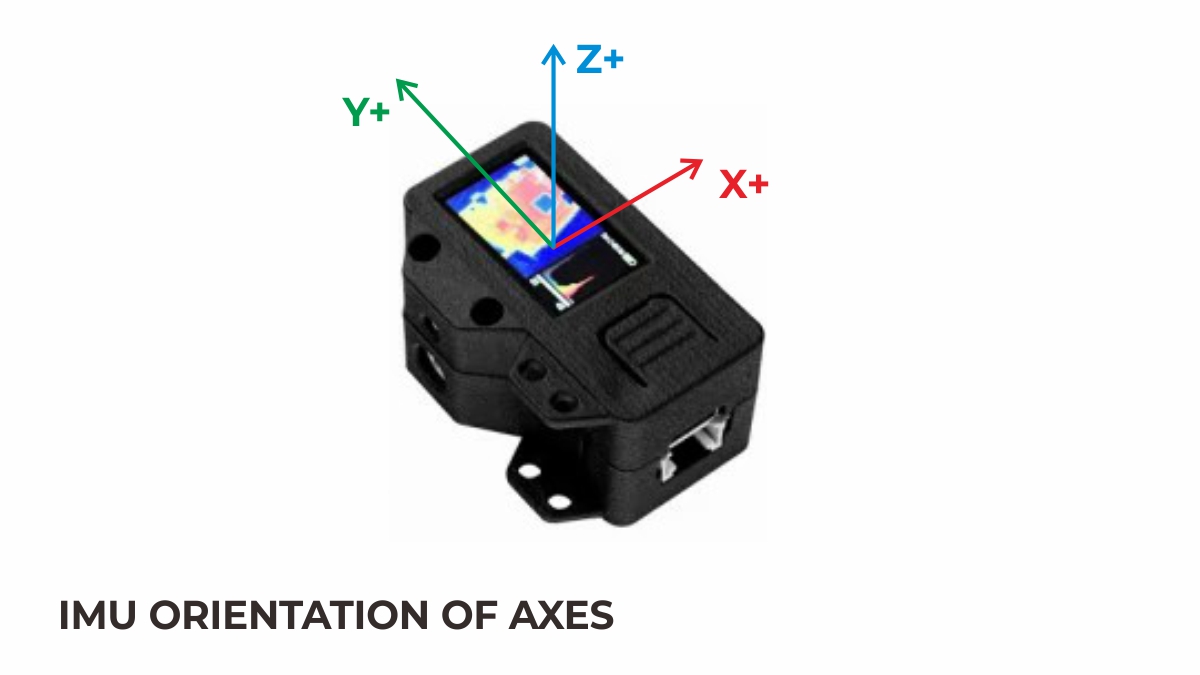

6-Axis posture sensor (SH200Q/MPU6886) & power management IC (AXP192)

6-Axis posture sensor SCL SDA
power management IC SCL SDA


Microphone RTC TFT backlight TFT IC ESP32/3.3V MPU6886/SH200Q 5V GROVE

Dial Encoder

Encoder SW EN_B EN_A



  • If you want the complete code, please click here

Version Change

Release Date Product Change Note:
2020.1 Initial public release /
2021.5 Optimize the internal structure, reduce the volume of the pulsator, and optimize the details /
