STAMP-C3

SKU:C056-B, K056

Quick-Start

ESP-IDF ESP-IDF
ESP-IDF
This tutorial will show you how to control STAMP-C3 devices through the IDF graphical programming platform

Description

M5Stack just added a new family to its popular series of modules with the Stamp-C3. the new Stamp-C3 featuring ESPRESSIF ESP32-C3 RISC-V MCU with Wi-Fi connectivity for IoT edge devices such as home appliances and Industrial Automation. By combining RSA-3072-based secure boot and the AES-128-XTS-based flash encryption, while also make it optimal for industrial IoT equipment collecting sensor data within a factory or a building.

The Stamp-C3 is based on 32-bit RISC-V micro controller and operates at a maximum clock frequency of 160 MHz. With 400 KB of internal RAM and 4 MB Flash, it can facilitate many different use-cases involving connected devices. Furthermore, the exceptional heat resistance plastic enclosure is sustained at a higher operating temperature.

Note: If you need to use SPIFFS filesystem in Arduino IDE. Please install a patch package first.

Product Features

  • MULTIPLE STYLE:

    • Three types soldering options are available(SMT, DIP, fly wire), with a high-temperature resistant plastic enclosure, Peak temperature = 230℃

  • HIGH INTEGRATION:

    • Stamp-C3 contains 5V->3.3V DC/DC design, GPIOx13, programmable RGB LED x1, Reset button x1, button x1, 3D antenna,providing stable and reliable wireless communication.

  • LOW-CODE DEVELOPMENT:

    • Stamp-C3 fully compatible with Arduino, ESP32-IDF, and other mainstream development platforms to quickly build various applications. (UIFlow support coming soon)

Application

  • DIY Prototyping
  • Home Appliances
  • Industrial Automation

Specifications

Specifications Parameters
ESP32-C3 32bit RISC-V single-core processor, clocked at 160 MHz
Storage 384KB ROM, 400KB SRAM, 8KB RTC SRAM, 4MB FLASH
Wi-Fi 2.4 GHz band supports 20 MHz and 40 MHz bandwidth, IEEE 802.11 b/g/n protocol, data rate up to 150 Mbps
Input voltage 5V @ 500mA
HMI Programmable physical button x 1, reset debugging button x 1, programmable RGB LED (SK6812) x 1
USB interface TypeC x1
Antenna Type 2.4G 3D Antenna
Module peripheral interface resources ADC, GPIO, SPI, UART, I2C, I2S, PWM, RMT, DMA, USB serial port, TWAI
IO interface x13 G21, G20, G9, G18, G19, G1, G0, G10, G8, G7, G6, G5, G4
IO interface spacing 2.54mm
Fixing screw specifications M2*4 countersunk head hexagon socket mechanical teeth

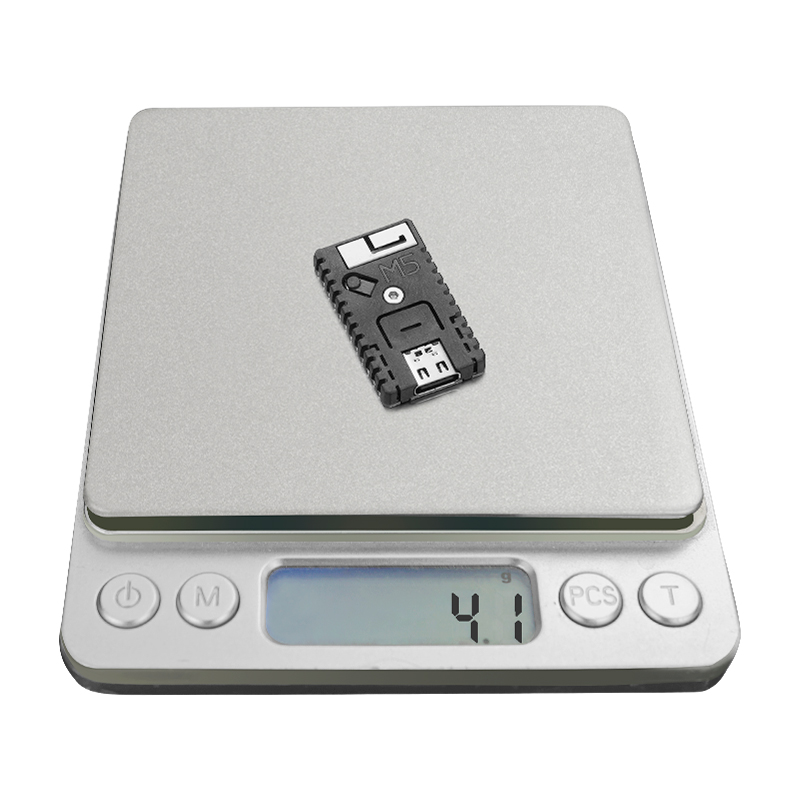

Net weight 3.8g
Product size 34 * 20 * 4.6mm
Packing size 85*55mm sealing bag (translucent)

Include

  • Purchase link
  • M5Stamp C3 (5pcs):
    • 5 x M5Stamp C3
    • 5 x Heat Resistant Sticker
  • Purchase link
  • M5Stamp C3 Mate:
    • 1 x M5Stamp C3
    • 1 x Heat Resistant Sticker
    • 2 x 2.54-12P female headers
    • 2 x 2.54-10P pin headers
    • 2 x 90° HY2.0-4P terminals
    • 1 x 1.5mm hex key

Driver Installation

Click the link below to download the driver that matches the operating system. select the installation package corresponding to the number of operating systems to install. During the installation process of CH9102_VCP_SER_MacOS v1.7, an error may occur, but the installation is actually completed, just ignore it.) When using it, if If the program cannot be downloaded normally (the prompt is overtime or Failed to write to target RAM), you can try to reinstall the device driver.

Driver name Applicable driver chip Download link
CH9102_VCP_SER_Windows CH9102 Download
CH9102_VCP_SER_MacOS v1.7 CH9102 Download

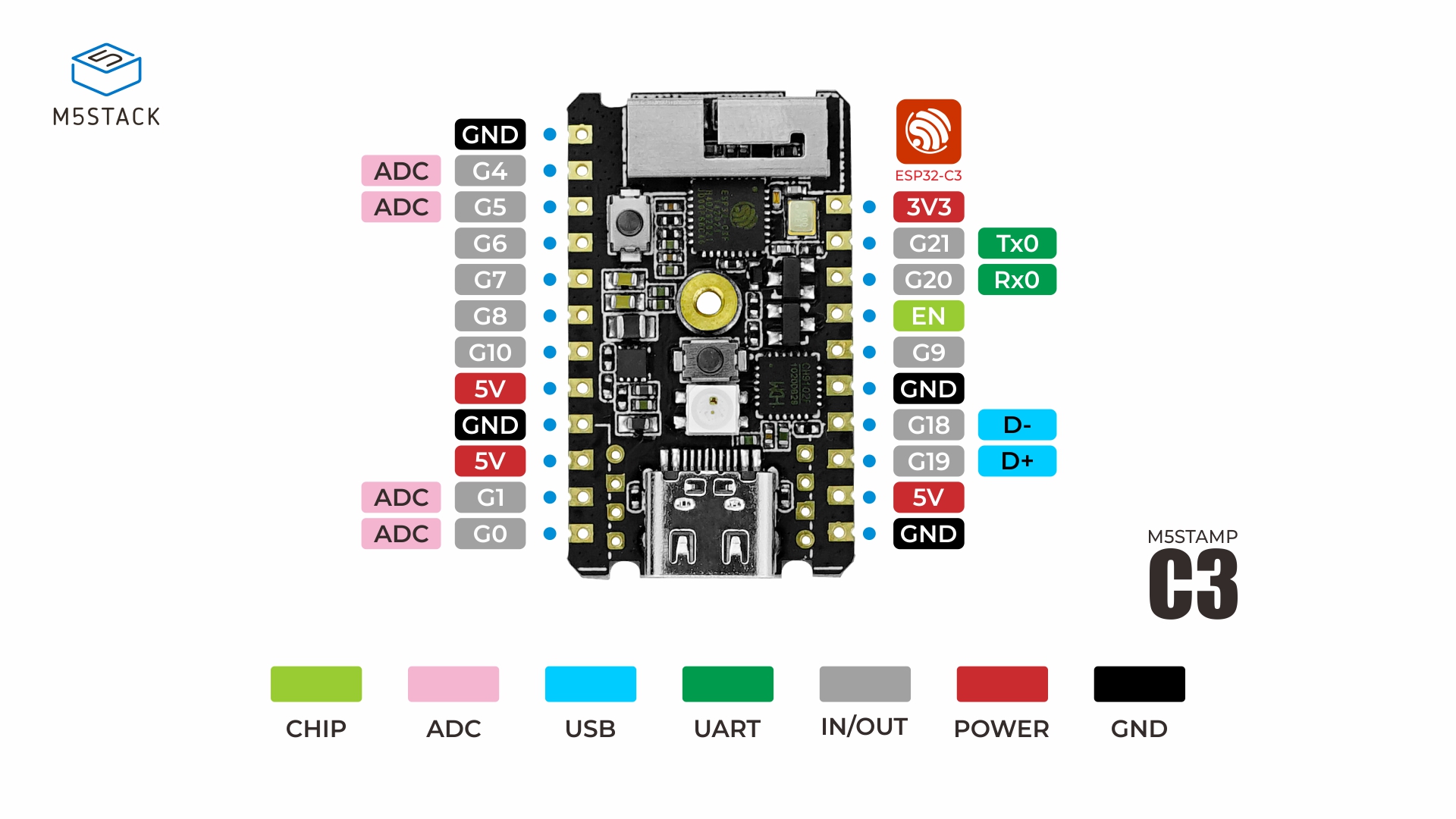

PinMap

SK6812 (RGB LED) and Button

ESP32 GPIO2 GPIO3
SK6812 DI /
Button / SW

Schematic

Module size

  • C3&C3U

The shell supports Reflow Profile

Example

ESP-IDF

FAQ

Q1: How do I remove the speaker floor noise when the M5Core is on or running?

Execute the following statement in Setup() of the Arduino program

Q2: How does M5Core2 stack modules?

When M5Core2 is stacked with other M5 modules, you need to remove the battery base of Core2, which does not support module stacking.

Q3: A timeout error is displayed when uploading the program to the device

Reason and solution: The power supply current of the port is insufficient, which can cause the device to not enter the download mode normally. You can try to connect a capacitor (>0.1uF) between the RST pin and the GND pin, or when uploading the program, set the G0 Short-circuit to GND, so that G0 can be set to a low level state normally

Q4: How to solve the phenomenon of automatic signal triggering of M5Core button A

Add the header file #include <driver/adc.h> and the function adc_power_acquire(); in the Arduino program

Q5: M5 device battery life

The battery life of the controller is affected by various factors such as battery capacity, operating status, and load, so there is no fixed value. Reducing the load and adopting a sleep strategy can effectively increase the battery life.

Q6: Can multiple modules with batteries be stacked at the same time?

Support multiple stacks, the total capacity of the batteries in parallel increases, and the voltage remains unchanged. However, since the discharge of each battery is not balanced during use, there is a voltage difference between the batteries, which may cause the battery to charge backwards. .(will lose part of the battery capacity)

Q7: M5 master supports WiFi connection to 5G frequency band

ESP32 module currently does not support WiFi in 5G band, only 2.4G.

Q8: The RS485 device cannot communicate normally/data is garbled. Packet loss, etc.

Confirm whether the TX/RX pin on the TTL side of the pin is correct, try to add two 120Ω terminal resistors at the beginning and end of the device line to reduce signal reflection interference

Q9: The difference between different masters and camera products

Click the link below to view the product comparison table

Q10: M5 camera image blur, how to adjust the focal length

Rotate the lens to adjust the focal length within a certain range

Q11: The control RGB LED pin of FACE II BOTTOM conflicts with the I2S DOUT pin of CORE2

FACE II BOTTOM NOT CORE2 COMPATIBLE

Q1: How to read the programmed firmware?

Use esptool to read the flash content of esp32 and export the bin file. Refer to the detailed operation

Q2: Several solutions for esp32 board download failure in Arduino IDE board management

Restart the Arduino IDE, the computer uses the mobile AP mobile network to download.

Method 3: Download the resource package provided by M5Stack for direct installation, and extract the contents to the board management path of Arduino, such as (C:\Users\Sean\AppData\Local\Arduino15\packages), https://m5stack.oss-cn-shenzhen.aliyuncs.com/resource/arduino/packages/m5stack_v2.0.0.zip
Q3: Arduino SPIFFS file upload operation

Refer to the Github link below, use arduino-esp32fs-plugin for file upload

Q4: When M5Burner burns firmware, an error pop-up window or exception occurs

Check if the COM of the corresponding device is selected and if the M5Burner is the latest version

Q5: Does the M5 master device support multi-language display (Chinese, English, Japanese, Russian, etc.)?

UIFlow users can switch the Label font to Unicode, Arduino users can use the Chinese font library provided in the M5GFX driver library

Q6: The program cannot load the SD card normally

Confirm whether the SD card format is FAT32, and no partitions exist.

Q7: How to use Bluetooth, HTTP, SD, WebServer, FreeRTOS and other features in Arduino IDE

You can refer to the following link for other ESP32 users to share the case program

Q8: How to download programs for STAMP C3U

STAMP C3U enters program download mode operation: 1. Long press the center button (G9) of STAMP C3U when the power is off. 2. Connect to the computer, after the port is successfully identified, program burning.

Q9: How STAMP C3U defines UART0 output mode

By default, USB CDC is not enabled, the serial port output started by C3U will be output through the default pins (G20, G21) of UART0. If you want to output through USB, please use the IDE to output Its USB CDC option is enabled. (Arduino users can enable it through Tools->USB CDC on Boot-Enabled. For IDF users, please refer to the ESP IDF official documentation.)

Q10: Unable to connect to UIFlow Desktop IDE

Refer to the UIFlow documentation of the corresponding device to check whether the device has entered the USB programming mode.

Q11: NBIoT devices cannot connect to the network normally

Make sure that the NBIoT used is not locked. Frequent device replacement or after activating the IoT card, using traffic in different places may cause the card to be locked. If the above situation occurs, please contact the IoT card supplier. If you are using the IoT card matching M5, please contact M5 after-sales through e-commerce or email. (provide the ICCID of the IoT card)

COMMON

Q1: Consultation for after-sales problems of products

Describe the problems encountered in detail. Screenshots of the programs involved or files can be added as attachments and sent to M5Stack's official after-sales email

Q2: Code Resources, Cases, User Communication

M5Stack related resource links: Official Github
