MiniEncoderC Hat
SKU:U157
Description
MiniEncoderC HAT is a rotary encoder extension base for M5StickC/C-CPlus, which integrates a rotary AB encoder, with button function, and comes with standard Lego hole to facilitate the expansion of structural parts; It contains a 200mAh polymer lithium battery and an SK6812 RGB LED. This product can be used to remotely adjust RGB lighting and remotely control robot joints.
Features
- 30-bit pulse coding knob (30 pulses per revolution)
- SK6812 programmable RGB LED
- Press the key input
- HY2.0-4P interface
- 4x LEGO connectors
Includes
- 1x MiniEncoderC HAT
- 1x lanyard
Applications
- Adjust the lights remotely
- Remote control of robot joints
Specification
| Resources | Parameters |
|---|---|
| MCU | STM32F030F4P6 |
| support voltage | 3.3V |
| RGB | SK6812-3535 |
| Battery level | 200mAh |
| Product Size | 81.05mm × 29mm × 24mm |
| Package Size | 101mm × 27mm × 22mm |
| Product Weight | 19.3g |
| Package Weight | 24.5g |
Related Link
Schematic

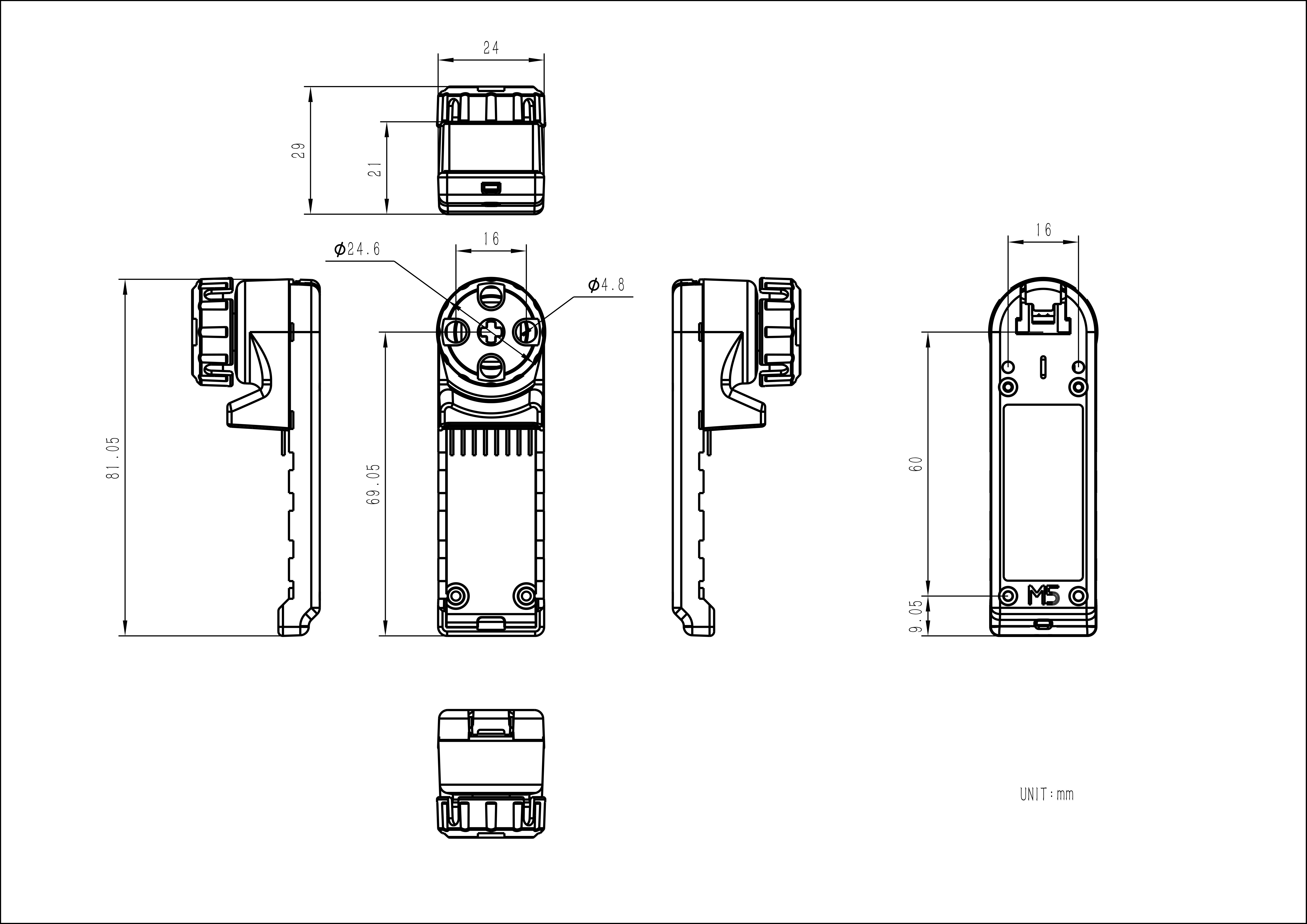

Module Size

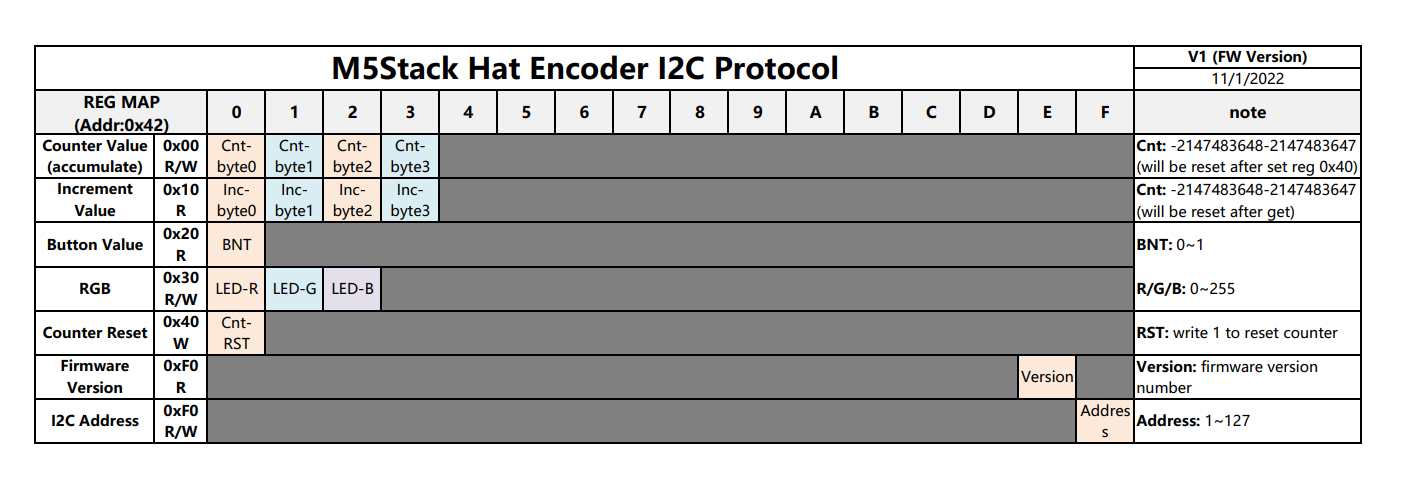

Protocol
Examples
Arduino
UIFlow
How to use Blockly mini_encoderc on the UIFlow 1.0 graphical programming platform and related API instructions
UIFlow
UIFlow Blocks
- Init I2C address
- Get counter value
- Get increment value
- Get button status
- Get device status (FW version / I2C address)
- Set counter value
- Reset counter value
- Set RGB LED color
- Set device I2C address
