PIR HAT
SKU:U054
Description
PIR HAT is an M5StickC compatible human body induction sensor, it belongs to "Passive pyroelectric infrared detector", that detect the infrared come from the human body. When the infrared is detected, the sensor will output HIGH and last for two seconds until the next detecting round.
*Notice: There exist 2 seconds delay*
Product Features
- Detecting Range: 500cm
- Delay time: 2s
- Induction Angle: < 100°
- IDDQ : < 60uA
- Op.T: -20 - 80 °C
Include
- 1x PIR Hat
Applications
- Human body induction lamp
- Security product
- Auto-induction
Specification
| Resources | Parameter |
|---|---|
| Net weight | 5g |
| Gross weight | 12g |

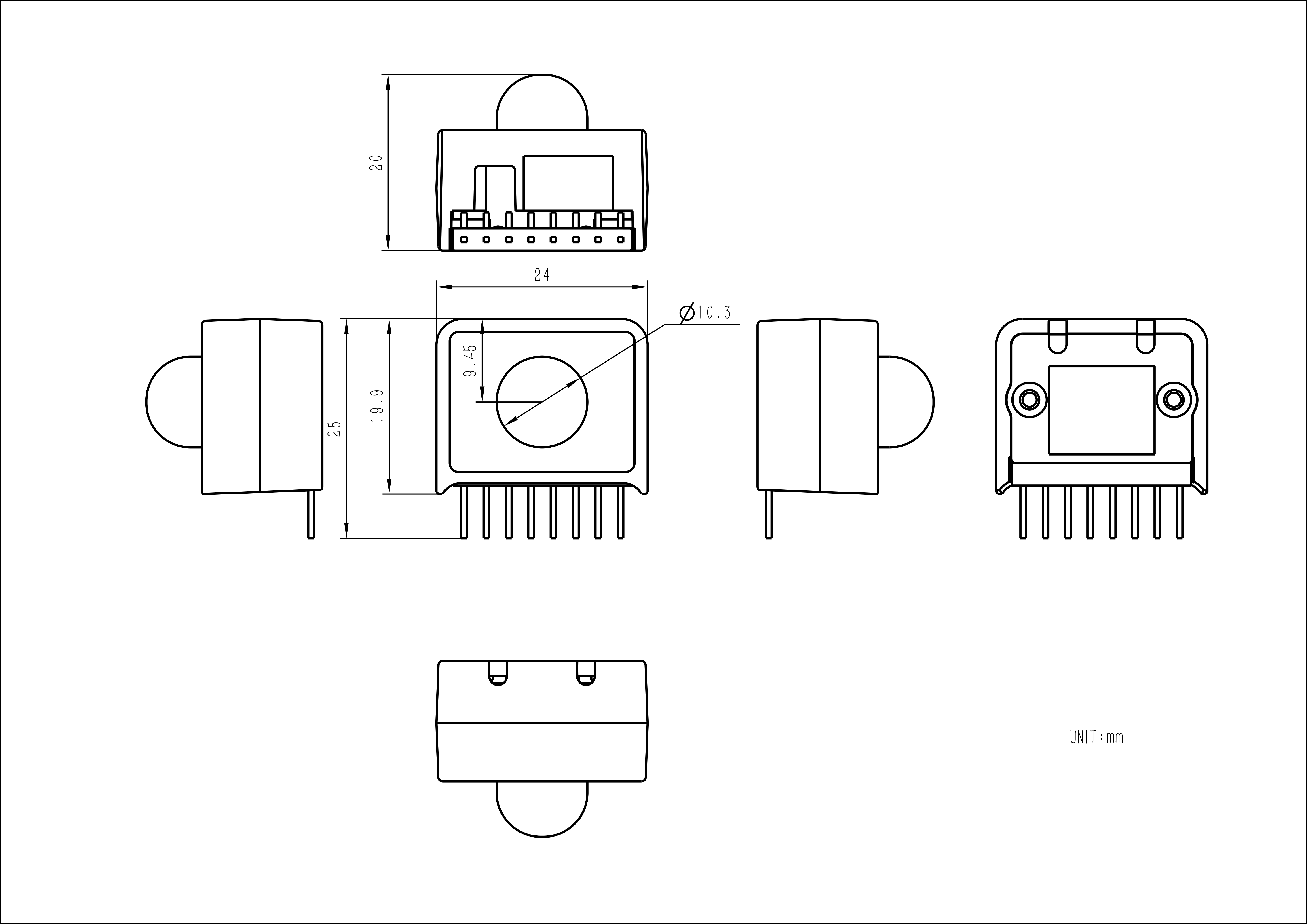

| Product Size | 24*25*20mm |
| Package Size | 136*92*21mm |
EasyLoader
EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification.
Download Windows Version Easyloader Download MacOS Version Easyloader
The real-time display shows the PIR HAT monitoring level.
Pin Map
| M5StickC | GPIO36 | 5V | GND |
|---|---|---|---|
| HAT PIR | OUT | 5V | GND |

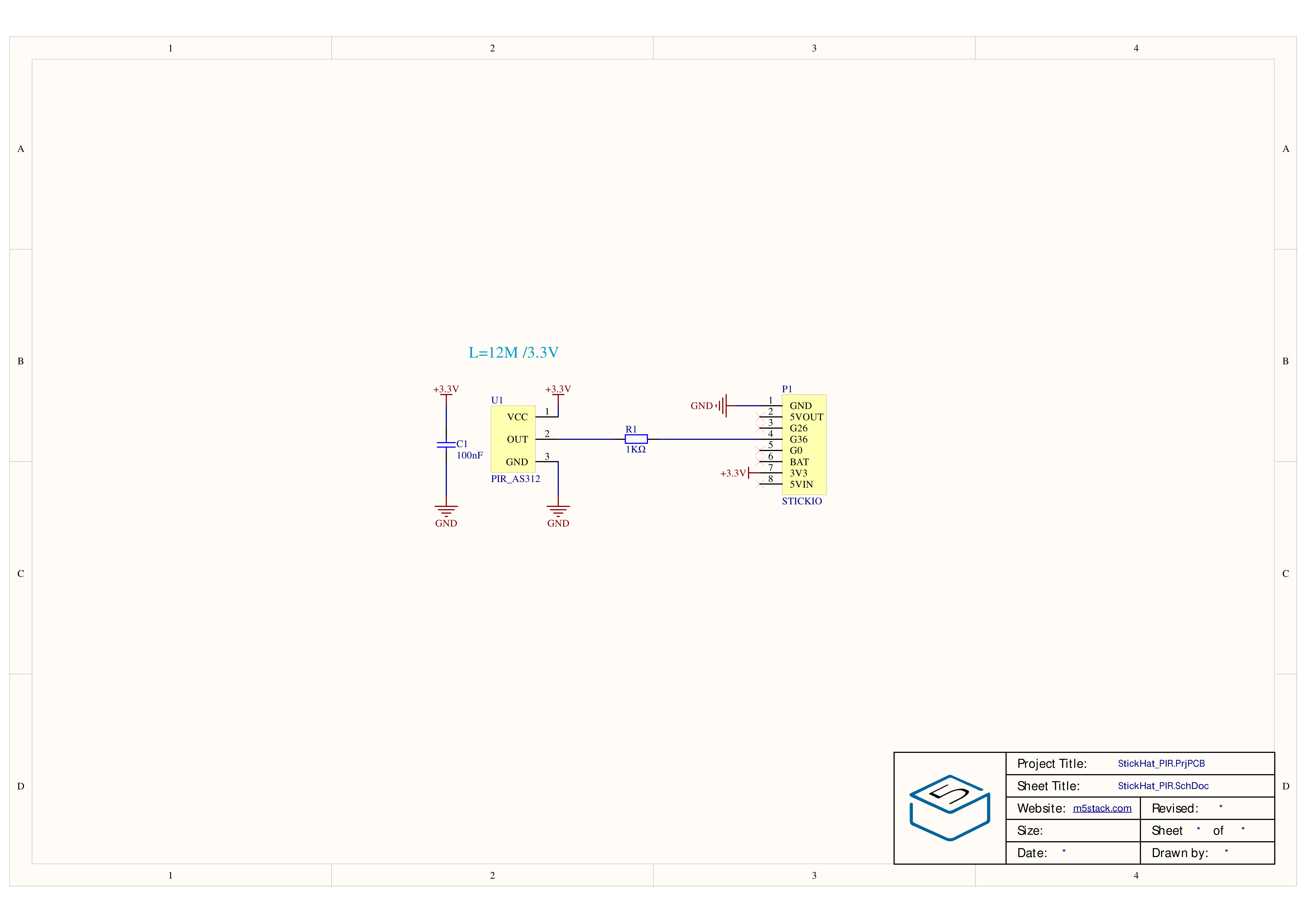

Schematic
Example
Arduino
Please click here to get complete code
UIFlow
UIFlow
Open http://flow.m5stack.com and click Demo to load
