Display Module 13.2

SKU:M126

Description

Display Module 13.2is an expansion module forHD audio and video, using GAOYUN GW1NR series FPGA chipto outputDisplay signal, and usingLT8618S chipas signal output conditioning, which can achieve24-bit color depth Display signalandup to 8-channel audio signaloutput, resolution up to 1080P, of which FPGA internally realizes I2S audio generation function. The module contains DC power input socketand correspondingDC-DC circuit, which can realize the power supply of the whole machine. This product is suitable for various programmable HD AV outputand other occasions.

Features

  • Supports 24-bit RGB input
  • Resolution up to 1080P
  • Supports up to 8 channels of audio input
  • Includes 9-24V to 5V, 3.3V and 1.2V DCDC circuits and 5V to 1.8V LDO circuits
  • HD audio and video interface, JTAG download interface
  • 9-24V DC power interface
  • Power switch

Includes

  • 1x Display Module 13.2

Applications

  • Output HD audio and video signals
  • Human-machine interaction

Specification

Resources Parameters
Audio and video signal acquisition chip GW1NR-LV9QN88C6-I5 FPGA
Audio and video signal processing chip LT8616SXB
9-24V to 5V DCDC buck chip SY8303
5V to 3.3V and 1.2V DCDC buck chips SY8089
5V to 1.8V LDO buck chip LP5907
Resolution MAXIMUM 1080P (1920x1080)
The power supply 9-24V
Product Size 54mm × 54mm × 14.2mm
Package Size 93mm × 63mm × 25mm
Product Weight 21.6g
Package Weight 41.2g

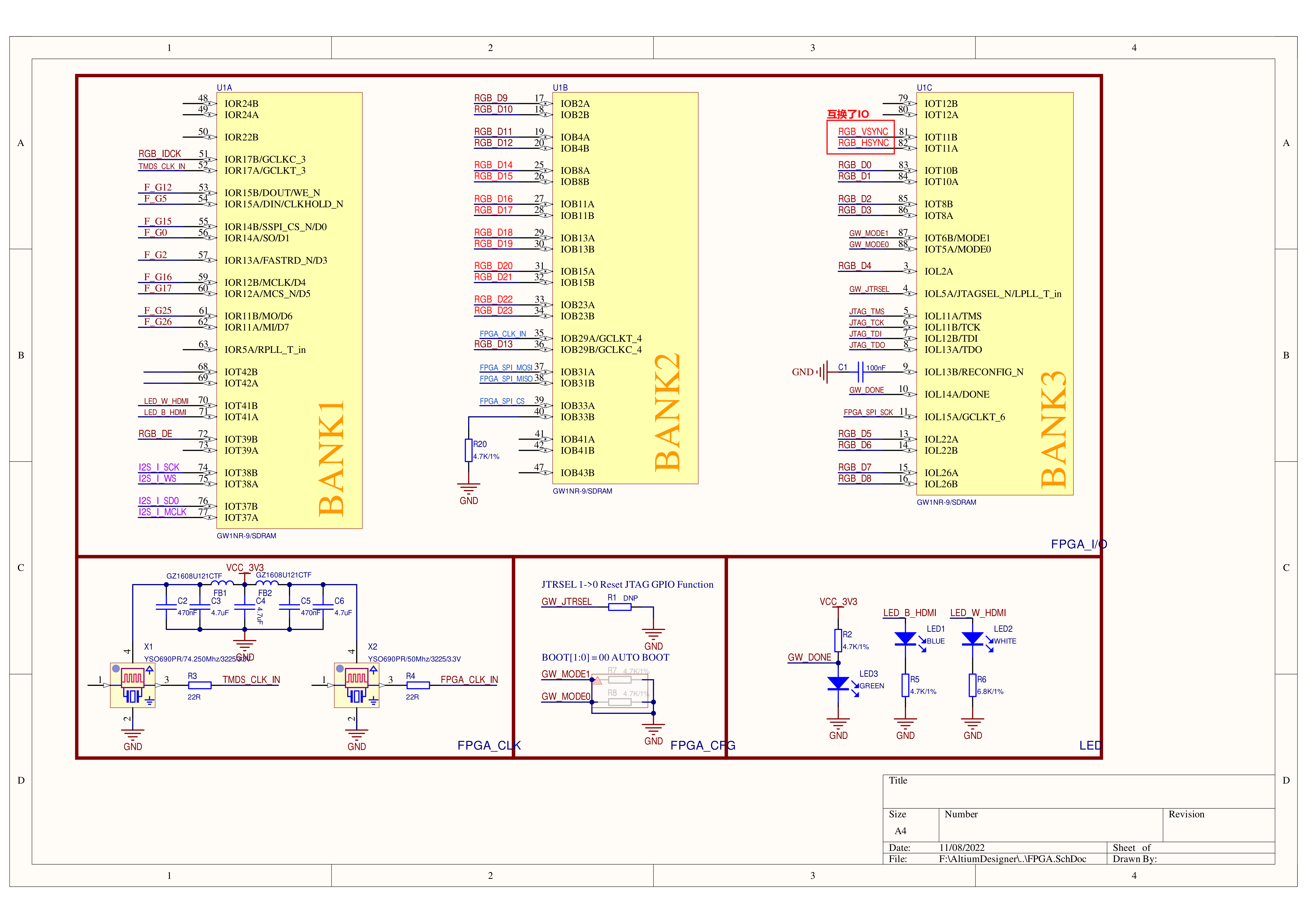

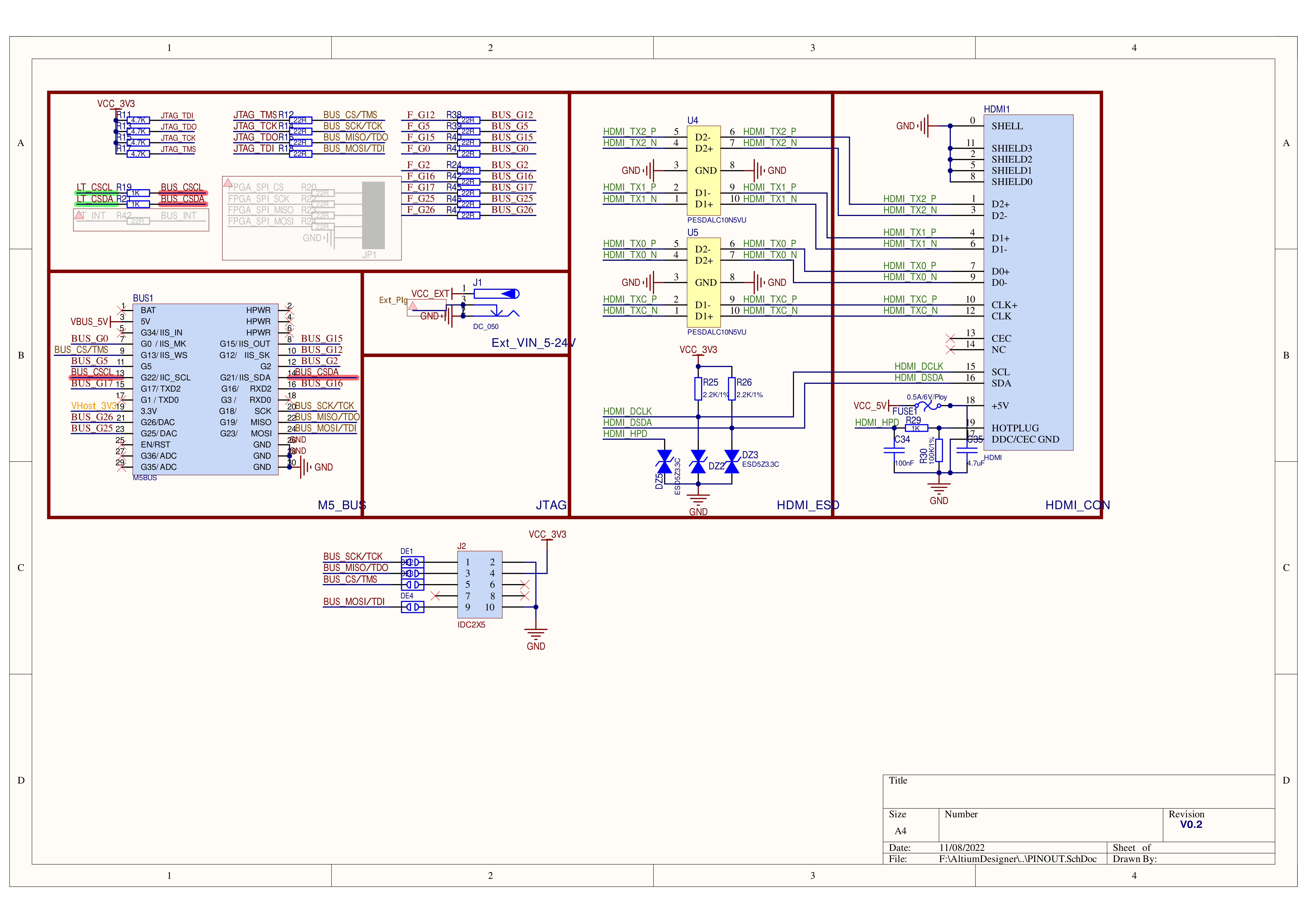

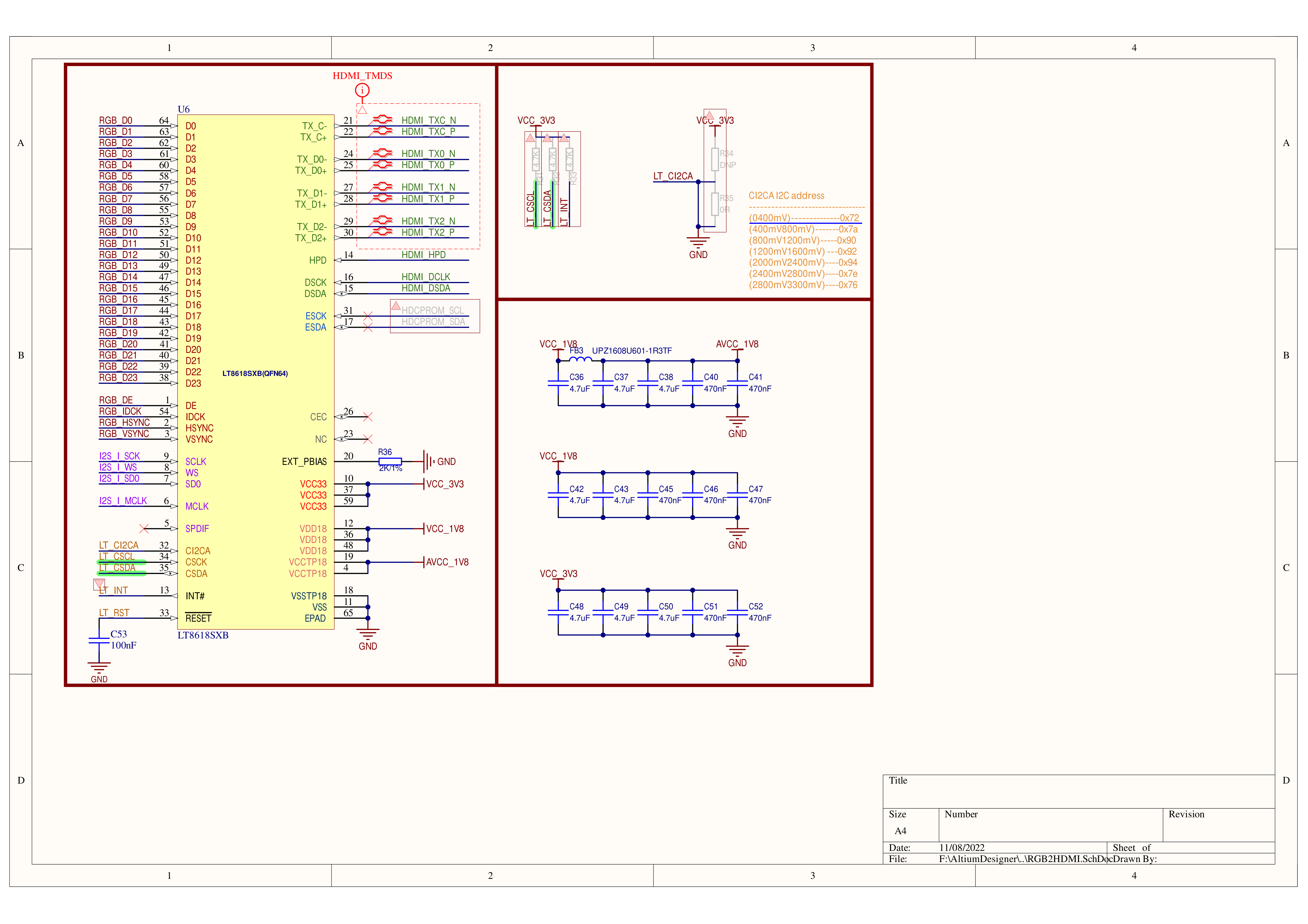

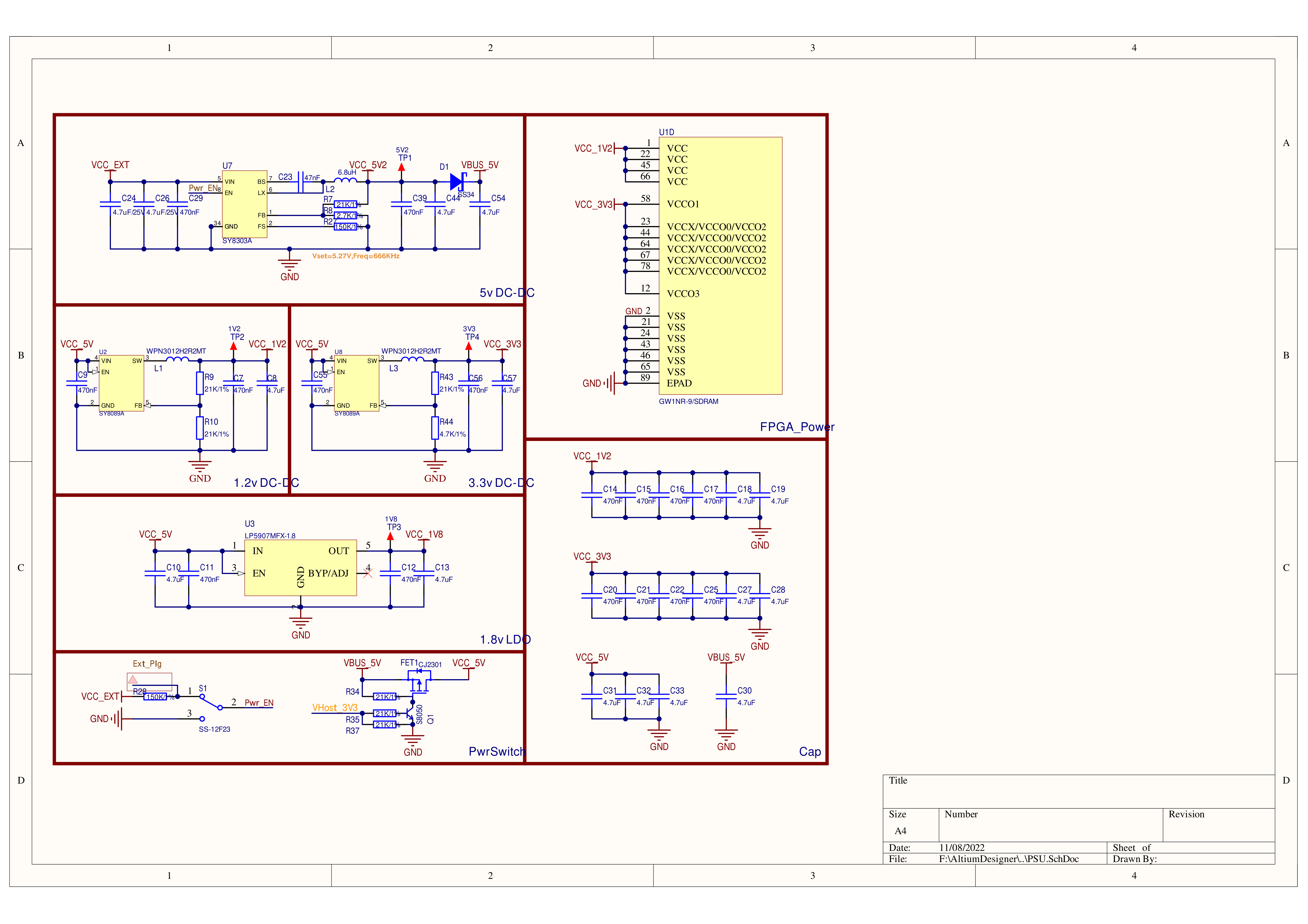

Schematic

schematics

Module Size

module size

Examples

Arduino
