Base M5GO Bottom3
SKU:A014-D
Description

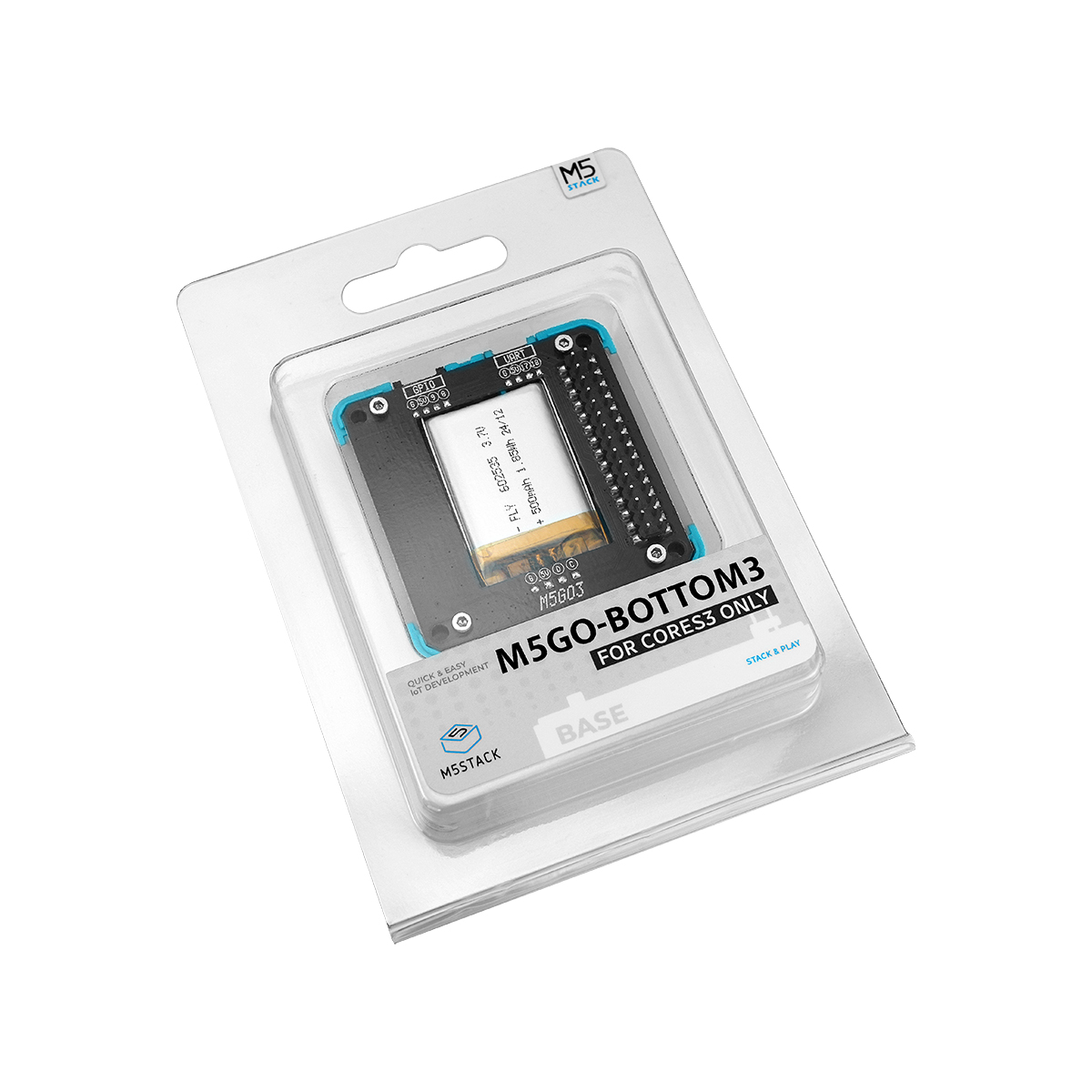

Base M5GO Bottom3 is an expansion base specifically designed for CoreS3, integrating an infrared-emitting LED and a 500mAh lithium battery. Two groups of HY2.0-4P expansion interfaces have led out commonly used ADC/DAC/UART pins, which can be used for connecting various types of sensors. There are 10 programmable RGB lights (WS2812) on each side of the base. With the frosted light-transmitting material light-shielding strip, it can provide a soft and comfortable lighting effect. The bottom is equipped with a pogo pin magnetic charging interface. When the charging base is adsorbed, the current will flow safely into the internal battery through the built-in TP4057 charging chip. In addition to the charging function, the pogo pin interface has led out the main control I2C bus, enabling users to externally expand through magnetic adsorption. There is a built-in adsorption magnet, and the back adopts a design compatible with LEGO holes, which can be seamlessly connected with LEGO structural designs.
Features
- Compatible with CoreS3
- Infrared emitter
- Programmable LED light strip
- 500mAh lithium battery
- HY2.0-4P expansion interface
- LEGO-compatible structure
- Compatible with magnetic charging base
Includes
- 1 x Base M5GO Bottom3
- 2 x M3*16 screws
- 2 x M3*18 screws
Applications
- CoreS3 expansion
- CoreS3 IoT kit
- STEAM education
Specifications
Specification | Parameter |
---|
LED | 10 x WS2812 |
Battery | 3.7V@500mAh |
Product Size | 54.0 x 54.0 x 15.0mm |
Package Size | 132.0 x 95.0 x 16.0mm |
Product Weight | 30.0g |
Package Weight | 48.9g |
Schematics
PinMap
Base M5GO Bottom3
CoreS3 | G5 | G7 | G12 | G11 |
---|
Base M5GO Bottom3 | RGB LED | IR TX | POGO_PIN_SDA | POGO_PIN_SCL |
HY2.0-4P
HY2.0-4P | Black | Red | Yellow | White |
---|
PORT.B | GND | 5V | G9 | G8 |
PORT.C | GND | 5V | G17 | G18 |
Model Size
Datasheets
Product Comparison
Product Compare | Base M5GO Bottom | Base M5GO Bottom2 | Base M5GO Bottom3 |
---|
Core | Basic(Core) | Core2 | CoreS3 |
RGB | 10*SK6812 | 10*SK6812 | 10*WS2812 |
IMU | / | MPU6886 | / |
IR | IR | / | IR |
BATTERY | 500mAh | 500mAh | 500mAh |
MIC | SPQ2410 | SPM1423 | / |
