Module PM2.5 Air Quality

SKU:M134

Description

PM2.5 Air Quality Module is an ambient air quality testing Module. This product adopts PMSA003 digital universal particulate matter concentration sensor. It can quickly collect and calculate the number of suspended particles of different particle sizes in the air per unit volume. The simple and reliable design makes it possible to quickly deploy nodes and be used in life or industrial scenarios, as environmental data collection, or to provide real-time and accurate concentration data for instruments or environmental improvement equipment related to the concentration of suspended particulate matter in the air.

Features

  • DC 5V
  • Compatible with M5stack stackable and extension system.
  • M5Core pedestal (Pin out SPI/I2C/Power)

Includes

  • 1x PM2.5 base
  • 2x M3×14 screw
  • 1x HEX KEY

Applications

  • Ambient PM2.5 measurement

Specification

Resources Parameters
PM2.5 Sensor PMSA003
Minimum resolution particle size 0.3μm
Particulate matter mass concentration resolution 1μg/m³
Particulate matter measurement range 0.3-1.0,1.0-2.5,2.5-10μm
Supply voltage 5v
Operating temperature 0~+40°C
Operating humidity range 0~99%
Product Size 54mm × 54mm × 18.7mm
Package Size 95mm × 65mm × 25mm
Product Weight 33.8g
Package Weight 53g

EasyLoader

EasyLoader is a simple and fast program burner, which has a built-in product-related case program, which can be burned to the main control through simple steps to perform a series of functional verification.

Download PM2.5 AIR QUALITY KIT Easyloader

Pin Map

  • Ext Port-2.54 6P
Basic Core 5V 3V3 GND G21 G22 G23 G19 G18
PM2.5 5V 3V3 GND SDA SCL MO MI SCK

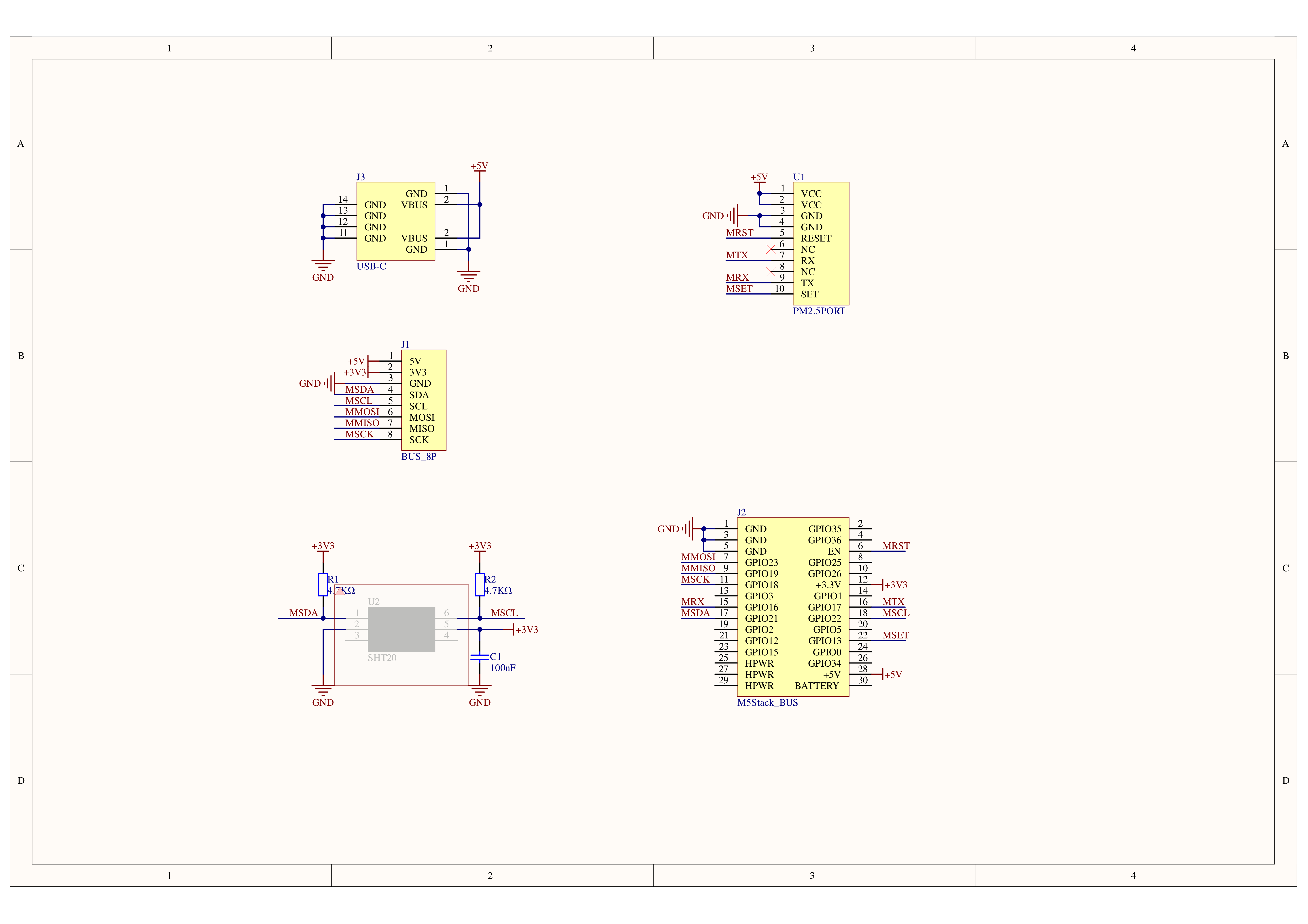

Schematic
