StampTimerPower

SKU:S005

Description

StampTimerPoweris alow-power power control modulewith built-inRTC wake-upin a STAMP series package, withmanual wake-up+manual sleep+RTC timing wake-up+battery charging+5V boost output+3V3 power outputand other functions, and the RTC adoptsBM8563,Theoverflow timecan be set to wake up the module for power. The module is available in a STAMP package and can be used as apower supply part for low-power productsby usingSMD,DIP, and flying wires.

Features

  • Multi-IO lead-out, support multiple application forms (SMT, DIP, flying wire)
  • Manual or software-timed wake-up or hibernation
  • Lithium battery charging and 5V boost
  • 3.3V output DCDC circuit

Includes

  • 1x StampTimerPower
  • 1x 2.0mm hex key
  • 1x HY2.0-4P terminal

Applications

  • Low power consumption product power section
  • Low-power time-lapse camera
  • Battery doorbell
  • Wearables
  • Smart home

Specification

Resources Parameters
RTC BM8563
Battery management IC TP4057
I2C mailing address default 0x51、0xA2(write)、0xA3(read)
IO interface spacing 2.54mm
Fixing screw specifications M2*4 countersunk hexagonal mechanical teeth
Operating temperature 0°C to 60°C
Product Size 20mm × 20mm × 5mm
Package Size 136mm × 92mm × 13mm

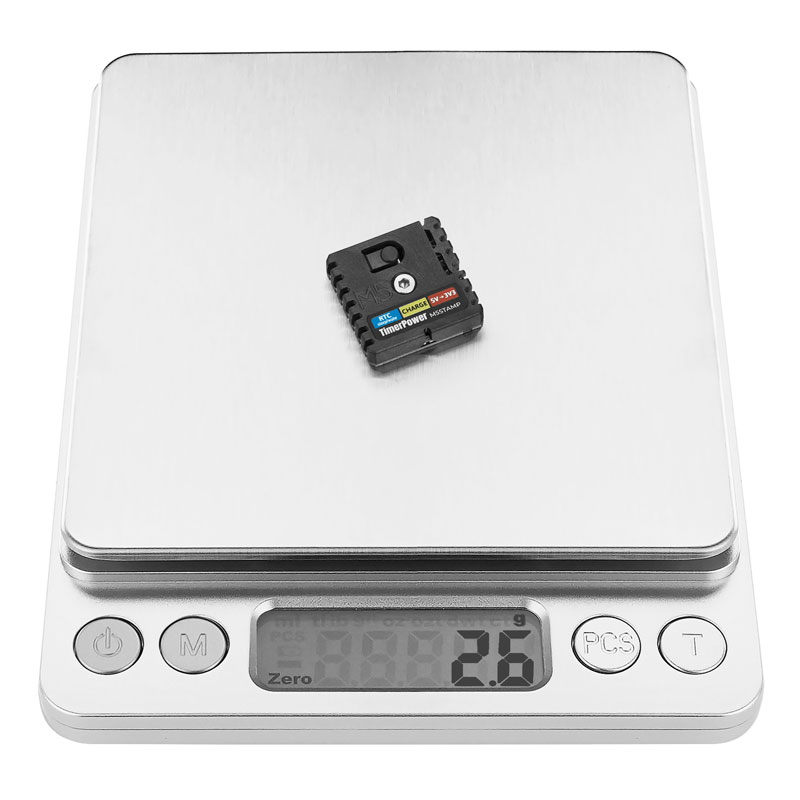

Product Weight 2.6g
Package Weight 5.8g

Schematic

schematics

Module Size

module size

Examples

Arduino

UIFlow

UIFlow Blocks

  • Get RTC value
  • Get timer value
  • Check alarm flag
  • Check timer flag
  • Set hold pin and state
  • Set wakeup pin and output
  • Set wakeup timer
  • Disable timer IRQ output
  • 3V3 power control
  • Set RTC
  • Set alarm
  • Turn off alarm
  • Disable alarm
  • Set timer
  • Turn off timer
  • Disable timer
  • Pause timer
  • Resume timer
  • Init
