GRBL 13.2

SKU:M035

Description

GRBL 13.2 is a three-axis stepper motor driver module in the M5Stack stacking module series. It uses an ATmega328P-AU controller with three sets of DRV8825PWPR stepper motor driver chip control ways, which can drive three bipolar steppers at the same time.

Using the I2C communication interface (default address:0x70) and integrated DIP switch for adjusting motor step subdivision (maximum support of 1/32 step subdivision) and I2C address adjustment (support dual address adjustment 0x70, 0x71), You can achieve six-axis control by stacking two GRBL 13.2 modules.

The power input interface is DC/9-24V, the motor drive current can reach 1.5A, and three sets of limit switch signal interfaces are open, which can be used to connect an external limit switch (active low) to realize the motor braking function. Suitable for a variety of stepping motor motion control scenarios, such as printers, robotic arms, etc.

Product Features

  • ATmega328P-AU controller
  • Three-axis DRV8825PWPR stepper motor driver
  • Drive current up to 1.5A
  • Drive bipolar stepper motor
  • Maximum 1/32 mode STEP subdivision
  • Limit switch interface (active low)

Include

  • 1x GRBL 13.2 Module

Applications

  • Printer
  • scanner
  • Office automation machine
  • Factory automation
  • robot technology

Specification

Resources Parameter
Motor driver chip DRV8825PWPR
Controller chip ATmega328P-AU
Maximum drive current of single channel 1.5A
Support maximum step subdivision 1/32
Interface XT2.54-4P
Net weight 22.5g
Gross weight 42.3g
Product size 54.2*54.2*13.2mm
Package size 95*65*25mm

EasyLoader

EasyLoader is a concise and fast program writer, which has a built-in case program related to the product. It can be burned to the main control by simple steps to perform a series of function verification. Please install the corresponding driver according to the device type. M5Core host Please click here to view the CP210X driver installation tutorial

Download Windows Version Easyloader Download MacOS Version Easyloader

Description:
Press the button to drive the three-axis stepping motor to rotate, when the lock occurs, press the button C to unlock

PinMap

M5Core(GROVE A) GPIO21 GPIO22 5V GND
GRBL 13.2 SDA SCL VCC GND

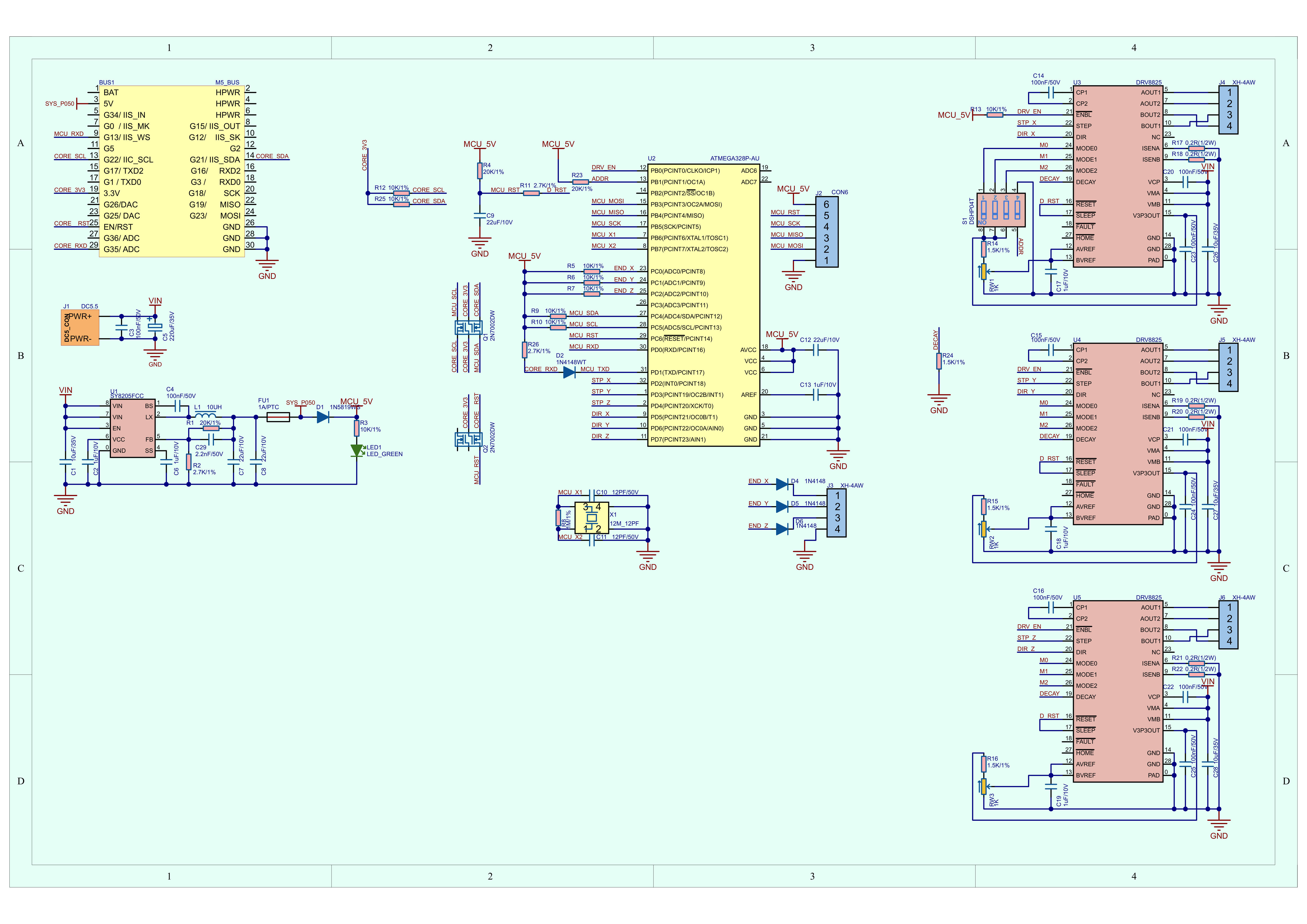

Schematic

Step subdivision adjustment

MODE2 MODE1 MODE0 STEP MODE
0 0 0 Full step (2-phase excitation) with 71% current
0 0 1 1/2 step (1-2 phase excitation)
0 1 0 1/4 step (W1-2 phase excitation)
0 1 1 1/8 step
1 0 0 1/16 step
1 0 1 1/32 step
1 1 0 1/32 step
1 1 1 1/32 step

I2C address adjustment

Switch Address
0 0x70
1 0x71

Example


GrblControl.h-API

//Initialize
void Init();

//Initialize, and set the three-axis step length and acceleration.
void Init(uint32_t x_step, uint32_t y_step,uint32_t z_step,uint32_t acc);

//Gcode
void Gcode(char *c);

//Control x, y, z offset and motor speed
void SetMotor(int x=0, int y=0, int z=0, int speed=300);

$0=755.906 (x, step/mm)
$1=755.906 (y, step/mm)
$2=755.906 (z, step/mm)
$3=30 (step pulse, usec)
$4=500.000 (default feed, mm/min)
$5=500.000 (default seek, mm/min)
$6=28 (step port invert mask, int:00011100)
$7=25 (step idle delay, msec)
$8=50.000 (acceleration, mm/sec^2)
$9=0.050 (junction deviation, mm)
$10=0.100 (arc, mm/segment)
$11=25 (n-arc correction, int)
$12=3 (n-decimals, int)
$13=0 (report inches, bool)
$14=1 (auto start, bool)
$15=0 (invert step enable, bool)
$16=0 (hard limits, bool)
$17=0 (homing cycle, bool)
$18=0 (homing dir invert mask, int:00000000)
$19=25.000 (homing feed, mm/min)
$20=250.000 (homing seek, mm/min)
$21=100 (homing debounce, msec)
$22=1.000 (homing pull-off, mm)

'$x=value' to set parameter or just '$' to dump current settings
