Module PROTO

SKU:M001

Description

PROTO is a pure universal prototype perboard. You can have the total freedom to make your own project as you want it, with prototyping perboards that allows laying out customized circuit to interact with the M5 core via M-BUS.

Product Features

  • Hole Size: 0.039" 1mm (CNC Drilled)
  • Hole Pitch: 0.1 in - (2.54 mm)
  • Entire Hole Quantity: 260 Holes

Include

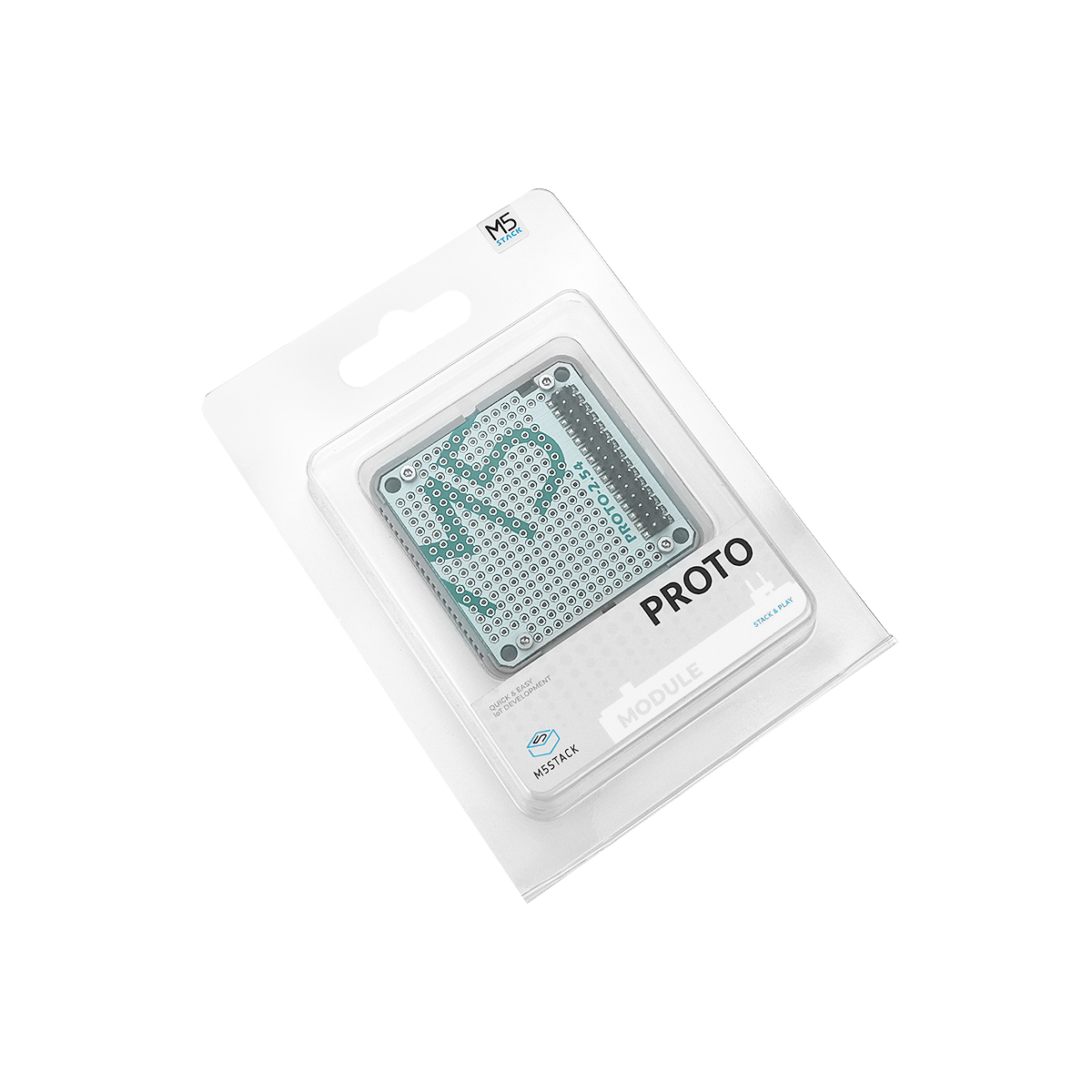

  • 1x M5Stack PROTO Module

Specification

Resources Parameter
Net weight 12g
Gross weight 22g
Product Size 54.2*54.2*12.8mm
Package Size 60*57*17mm

MBUS PinMap

LINE0 LINE1
GND IO35(ADC1)
GND IO36(ADC2)
GND EN
IO23(MOSI) IO25(DAC0)
IO19(MISO) IO26(DAC1)
IO18(EXT/_SCK) 3V3
IO3(U1/_RX) IO1(U1/_TX)
IO16(U2/_RX) IO17(U2/_TX)
IO21(I2C/_SDA) IO22(I2C/_SCL)
IO2 IO5
IO12(I2S/_SCLK) IO13
IO15(I2S/_OUT) IO0
HPOWR IO34
HPOWR 5V
HPOWR BAT

MBUS PinMap
