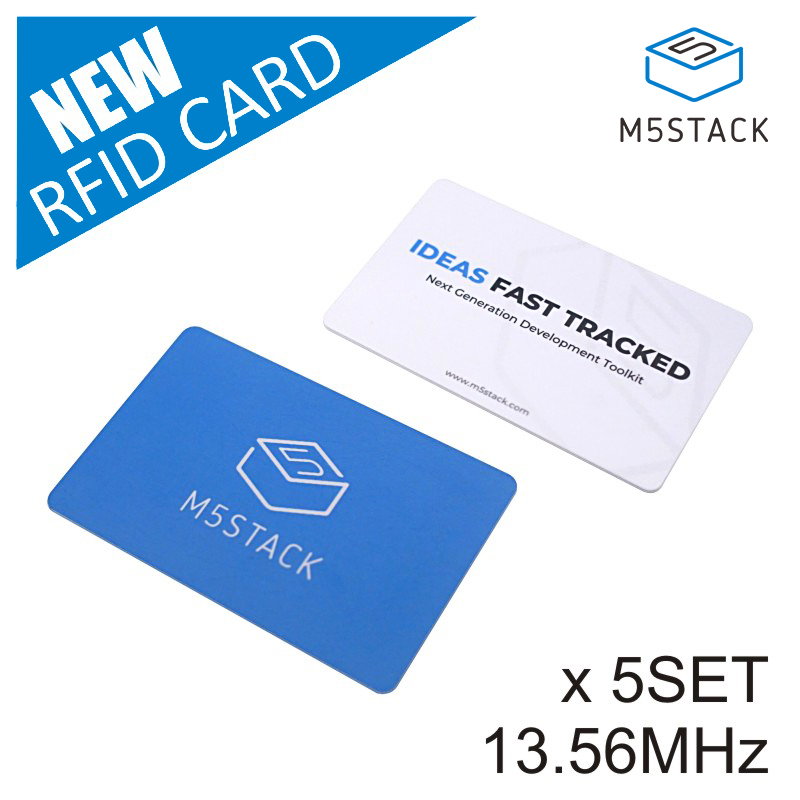

RFID Card 13.56MHz
SKU:A073
Description
RFID Card 13.56MHz is a high-performance radio frequency identification card with M5Stack exclusive printed logo. The main parts of the card include a chip, coil antenna, and card substrate, and it does not carry a power supply. The antenna operates by receiving radio waves emitted by the reader, and communication with the reader is achieved through radio frequency technology. It can be easily integrated into various readers and terminal devices to enable fast and reliable contactless identification and interaction.
Features
- Compliant with ISO/IEC 14443 A standard
- Excellent stability and security
- M5Stack exclusive printed logo
- Made of high-quality PVC material
Includes
- 5 x RFID Card 13.56MHz
Specifications
| Specification | Parameter |
|---|---|
| Operating Frequency | 13.56MHz |
| Storage Capacity | 1024 bytes |
| Read/Write Distance | 0 ~ 5cm (depends on reader device) |
| Read/Write Time | 1 ~ 2m (depends on reader device) |
| Read/Write Life | >100,000 cycles (number of sensing times) |
| Material | PVC |
| Operating Temperature | -20°C ~ 50°C |
| Product Size | 85.5 x 54.0 x 1.0mm |
| Product Weight | 5.3g |
| Package Size | 170.0 x 120.0 x 5.0mm |
| Gross Weight | 33.8g |
Learn
Note
RFID Card 13.56MHz does not support UID rewriting.
Applications
- Access control and attendance systems
- Smart home identity recognition
- M5Stack IoT device pairing
- Membership card / campus card management
- Asset tracking and warehouse management
